Specification Table
IDENTIFICATION

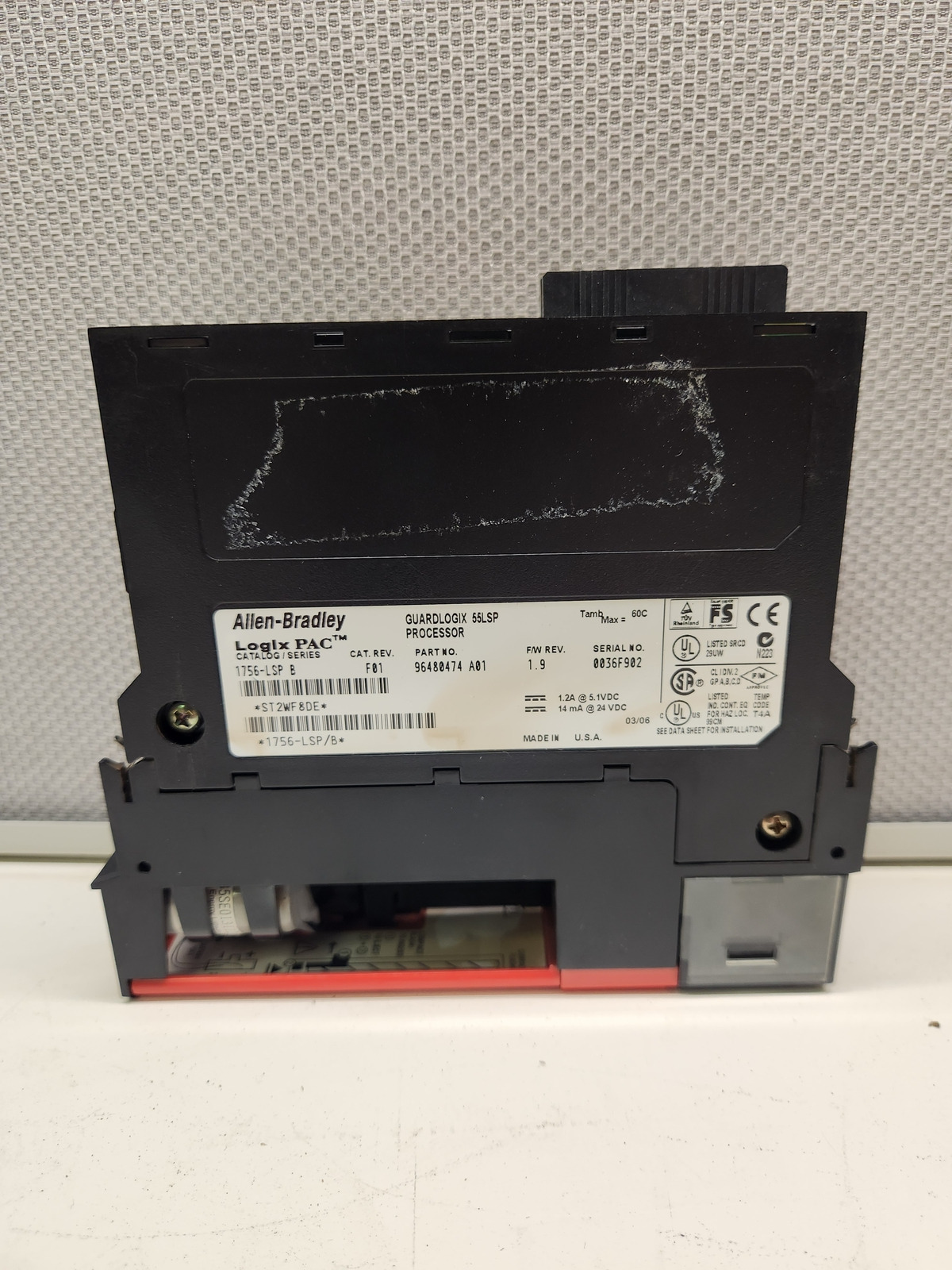

Manufacturer: Allen-Bradley
Brand Owner: Rockwell Automation
Catalog / Part Number: 1756-LSP
Product Family: GuardLogix
Processor Designation: 55LSP
Product Type: Safety Partner Processor
Series: B
Catalog Revision: F01
Part Number: 96480474 A01
Firmware Revision: 1.9
Serial Number: 0036F902
Condition: USED
YOM: 2006
Country of Manufacture: USA
PROCESSOR / SAFETY
Platform: ControlLogix
Safety Architecture: GuardLogix
Processor Role: Safety Partner
Safety Run Indicator: Included
Safety Task Indicator: Included
OK Indicator: Included
Battery Indicator: Included
ELECTRICAL
Backplane Current at 5.1 VDC: 1.2 A
Backplane Current at 24 VDC: 14 mA
Maximum Ambient Temperature: 60°C
MEMORY / SERVICE
CompactFlash Interface: Present
CompactFlash Card: Not specified
Battery: Present
INSTALLATION
Mounting Configuration: ControlLogix Chassis
Module Configuration: Chassis-Mounted
APPROVALS / MARKINGS
UL: Listed
CSA: Marked
CE: Marked
FM: Approved / Marked
TÜV Rheinland: Marked
Product Specifications
- Model Number: 1756-LSB/B
- Series: GuardLogix
- Type: Safety Partner Controller
- Safety Standards:
- ~ SIL 3 (IEC 61508)
- ~ PLe (ISO 13849-1)
- Compatibility: Must be paired with a primary GuardLogix controller (e.g., 1756-L61S, 1756-L62S, or 1756-L63S).
- Backplane Current Draw:
- ~ 5.1V DC: 500 mA
- ~ 24V DC: 10 mA
- Chassis Compatibility: ControlLogix chassis
- Programming Software: Studio 5000 Logix Designer or RSLogix 5000
- Diagnostics: Provides real-time diagnostics and status information for safety and standard operations.
Key Features
- Safety Redundancy: Works alongside the primary GuardLogix controller to ensure redundancy and maintain compliance with safety integrity levels.
- Safety Integrity Compliance: Certified for SIL 3 and PLe applications, meeting the highest industrial safety requirements.
- Real-Time Diagnostics: Continuously monitors safety system performance and provides detailed status feedback for troubleshooting.
- Compact and Seamless Integration: Fits easily into standard ControlLogix chassis, working seamlessly with other ControlLogix components.
- Global Certification: Designed to meet global industrial safety standards, making it suitable for a wide range of industries.
Applications
- Machine Safety Systems: Ensures fail-safe operation for critical machinery, such as robotic arms, presses, and automated assembly lines.
- Process Safety: Provides safety control in industries like oil & gas, petrochemicals, and pharmaceuticals.
- Energy Management: Enhances safety in power generation and distribution systems, including renewable energy setups.
- Material Handling: Maintains safety for conveyor systems, storage/retrieval machines, and automated logistics equipment.
- Custom Safety Applications: Ideal for bespoke automation solutions requiring redundancy and compliance with advanced safety standards.
Alternative model numbers include: 1756-LSB, 1756-LSB/A, AB-1756LSB, GuardLogix-1756LSB, 1756LSB-C.Common misspellings include: 1756-L5B/B, 1756-LSB/B, 1756-LBS/B, Allen Bradley 1756LSBB, 1756-LSB-B.
