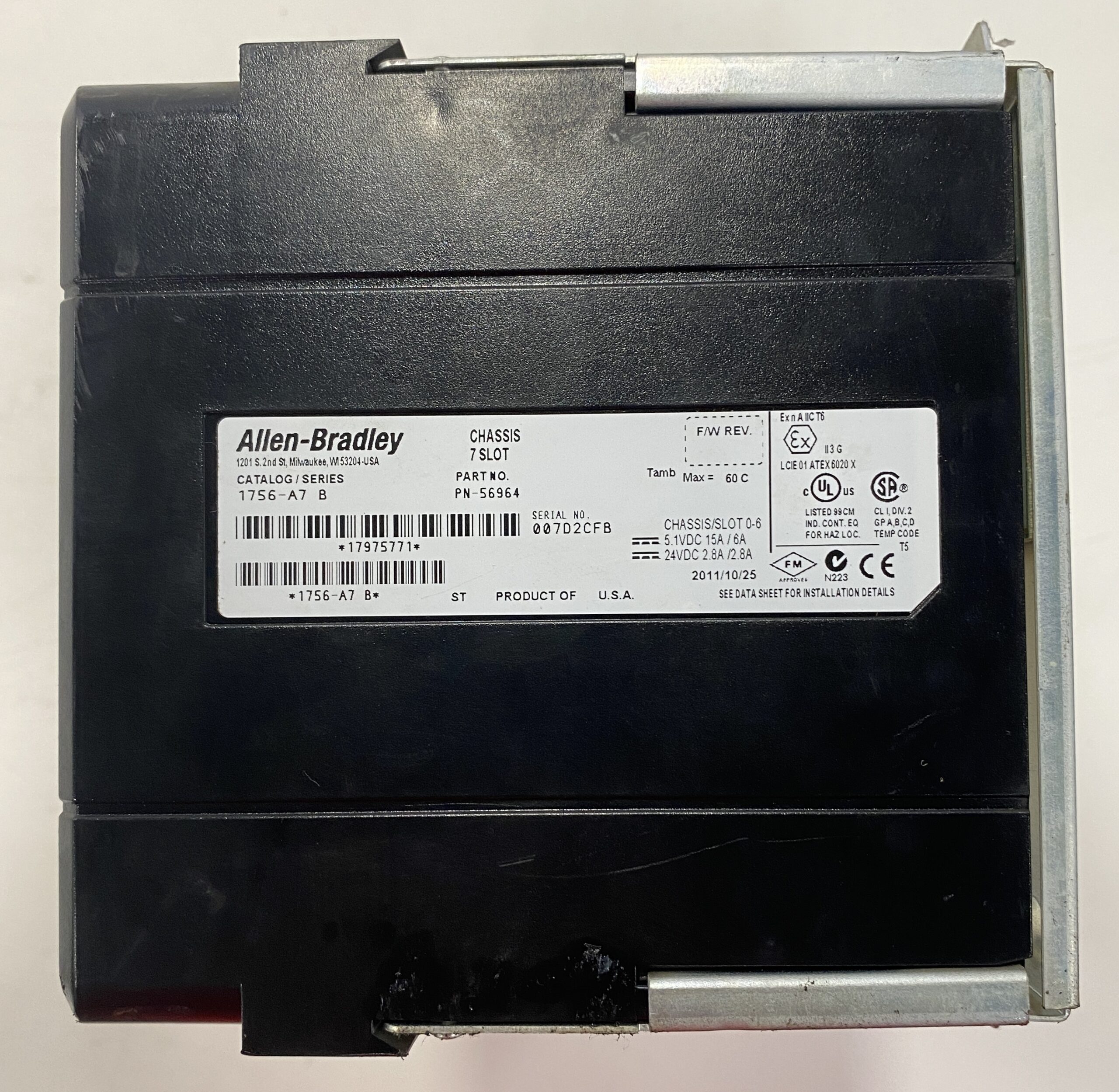

ALLEN BRADLEY 1756-A7/B PLC CHASIS USED

Product Specifications

• Model Number: 1756-A7/B
• Series: ControlLogix
• Type: Chassis
• Slots: 7
• Backplane Current Capacity:
  • ~ 5V DC: 4A
  • ~ 24V DC: 1.5A
• Power Supply Compatibility: Supports all ControlLogix power supplies
• Dimensions:
  • ~ Height: 6.4 inches (162.6 mm)
  • ~ Width: 17.5 inches (444.5 mm)
  • ~ Depth: 5.7 inches (144.8 mm)
• Material: Industrial-grade aluminum construction
• Mounting Options: Panel or DIN rail mounting
• Compatibility: Fully compatible with all ControlLogix I/O, communication, and processor modules

Key Features

• 7 Slots: Provides ample capacity for mid-sized automation systems, supporting processors, I/O, and network modules.
• Compact Design: Ideal for applications requiring a smaller footprint without sacrificing functionality.
• High Backplane Capacity: Ensures reliable operation for modules with demanding power requirements.
• Durable Construction: Built for harsh industrial environments, ensuring long-lasting performance.
• Flexible Mounting: Supports both panel and DIN rail installations for easy setup.
• Seamless Integration: Designed to work with the full range of ControlLogix modules, enabling scalable system designs.

Applications

• Factory Automation: Serves as a central platform for manufacturing systems requiring compact yet versatile control solutions.
• Process Control: Ideal for housing modules in mid-sized process automation systems.
• Building Systems: Supports modules for automating HVAC, lighting, and other building infrastructure.
• Energy Management: Suitable for energy distribution and monitoring systems requiring scalable ControlLogix setups.
• Custom Automation: Provides flexibility for bespoke automation solutions requiring a 7-slot chassis.

 Alternative model numbers include: 1756-A7A, 1756-A7C, AB-1756A7, ControlLogix-A7, 1756A7D.Common misspellings include: 1756-AI7/B, 1756A7/B, 1756-A7B, Allen Bradley 1756A7, 1756-Al7/B.
