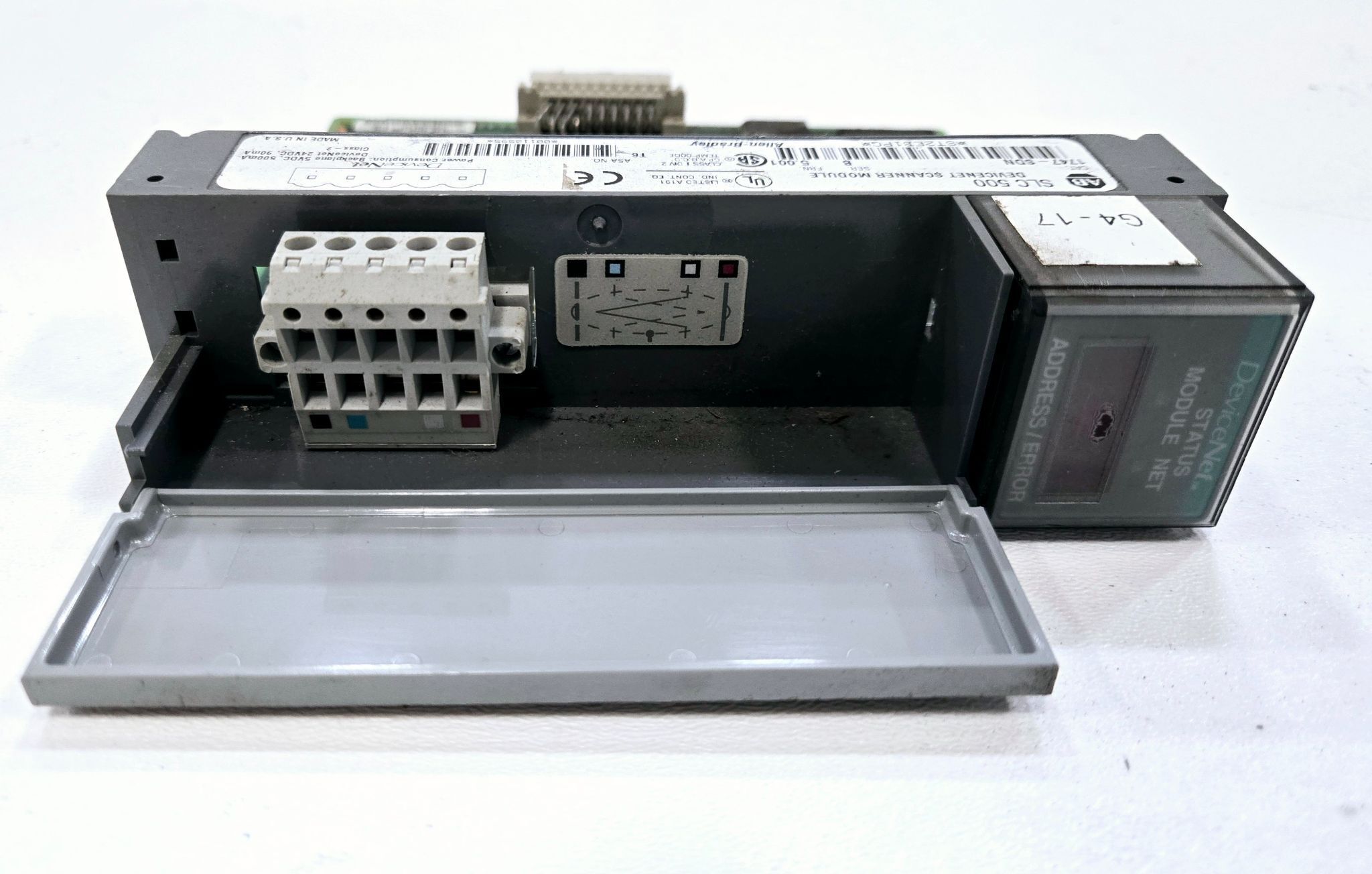

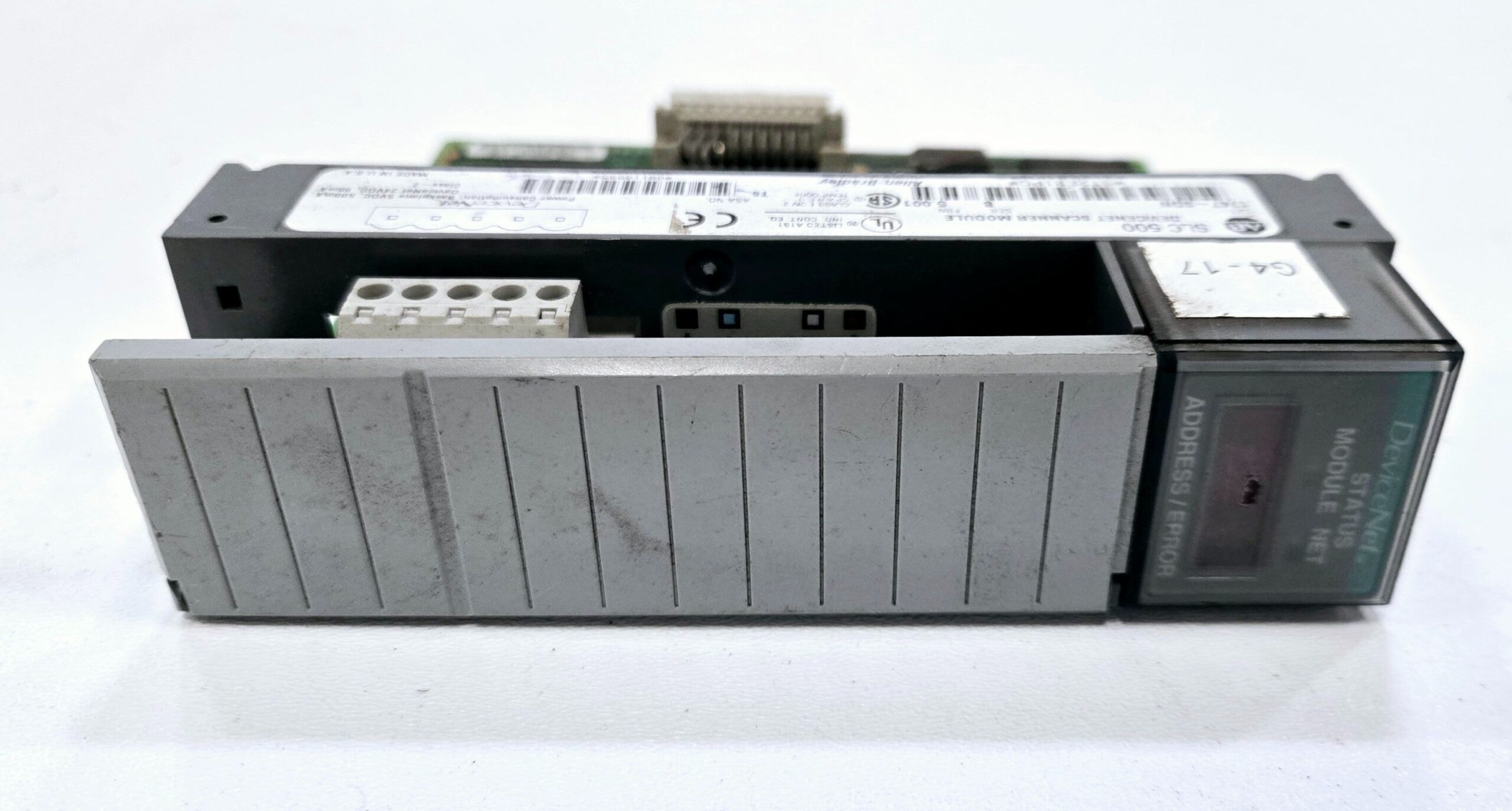

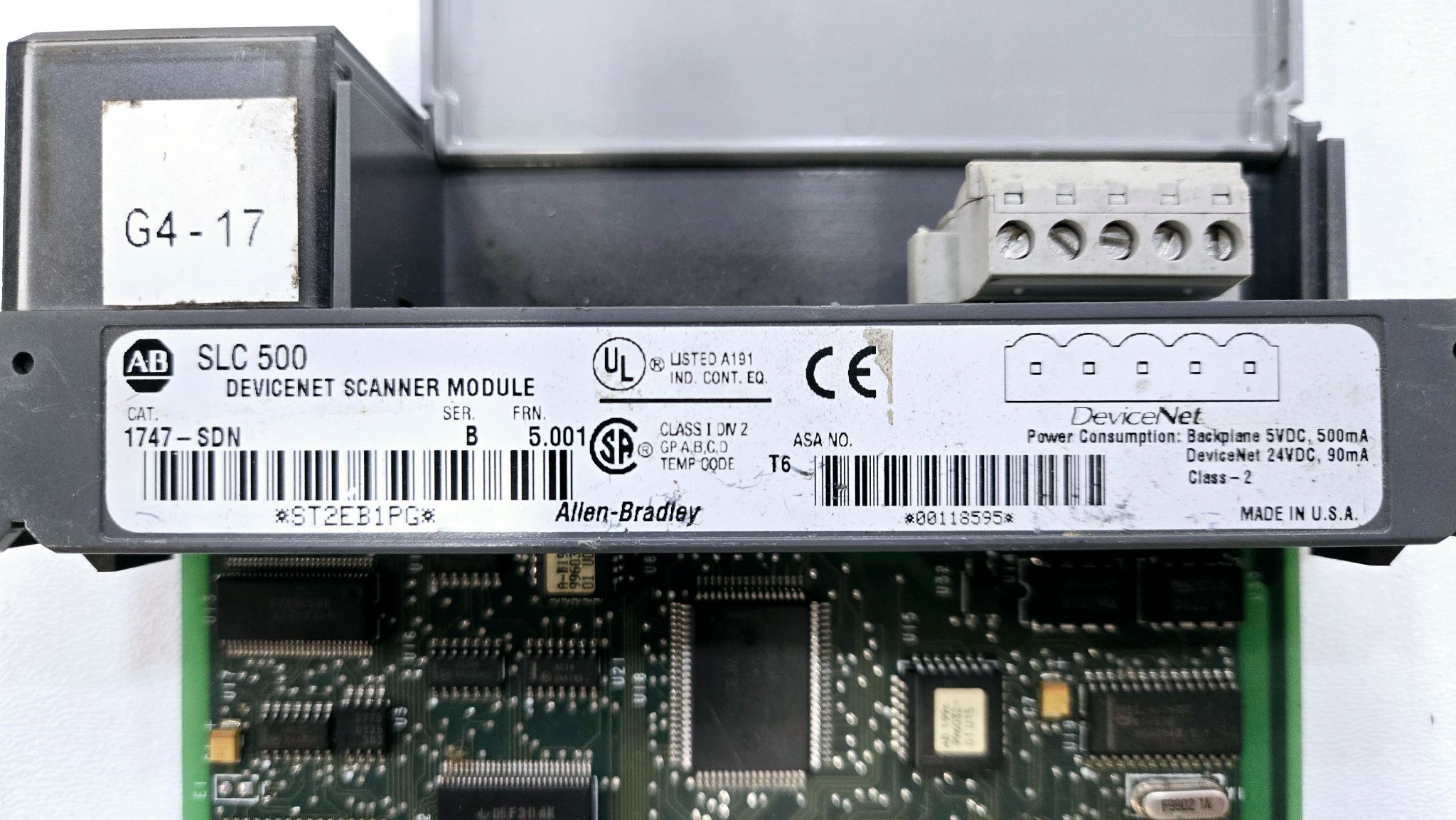

ALLEN BRADLEY 1747-SDN/B SLC 500 DeviceNet Scanner Module USED

Product Specifications

• Model Number: 1747-SDN
• Series: B
• Type: DeviceNet Scanner Module
• Communication Protocol: DeviceNet
• Baud Rates: 125, 250, and 500 Kbps
• Device Capacity: Supports up to 63 nodes (devices)
• Backplane Current Draw: 500 mA at 5V DC
• Status Indicators: LED indicators for module, network, and communication diagnostics
• Network Connection: 5-pin DeviceNet connector
• Chassis Compatibility: SLC 500 series chassis

Key Features

• DeviceNet Compatibility: Provides efficient communication with devices on a DeviceNet network, including sensors, actuators, and other controllers.
• Multi-Baud Support: Operates at 125, 250, or 500 Kbps for flexible network configuration.
• Diagnostics: Equipped with LED indicators for module, network, and communication status, simplifying troubleshooting and maintenance.
• High Node Capacity: Supports up to 63 DeviceNet nodes, enabling scalable system design.
• Compact Integration: Fits seamlessly into SLC 500 series chassis, minimizing installation space requirements.
• Durable Design: Engineered for reliable operation in industrial environments.

Applications

• Factory Automation: Facilitates communication with sensors, drives, and actuators on the factory floor.
• Process Control: Enables efficient monitoring and control of devices in process automation systems.
• Material Handling: Ideal for conveyor systems, robotics, and other material handling applications.
• Energy Management: Supports DeviceNet-connected energy systems for monitoring and control.
• Custom Automation Solutions: Integrates various DeviceNet-compatible components in bespoke automation setups.

 Alternative model numbers include: 1747-SDNB, 1747-SDNB1, AB-1747SDN, SLC500-SDN, 1747SDN2.Common misspellings include: 1747-SDNI, 1747-SDNB, 1747-SN, Allen Bradley 1747SDN, 1747-SD-N.
