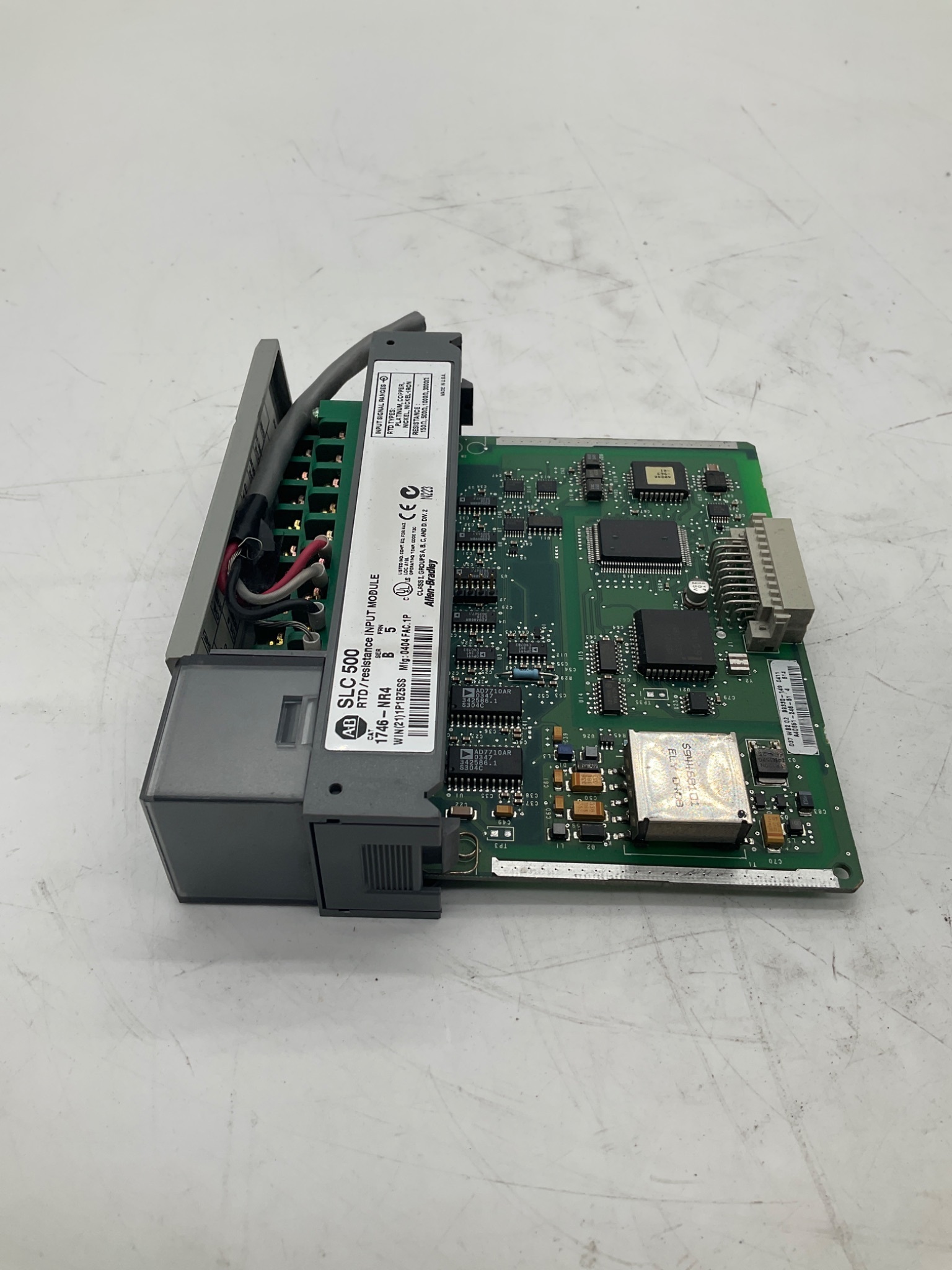

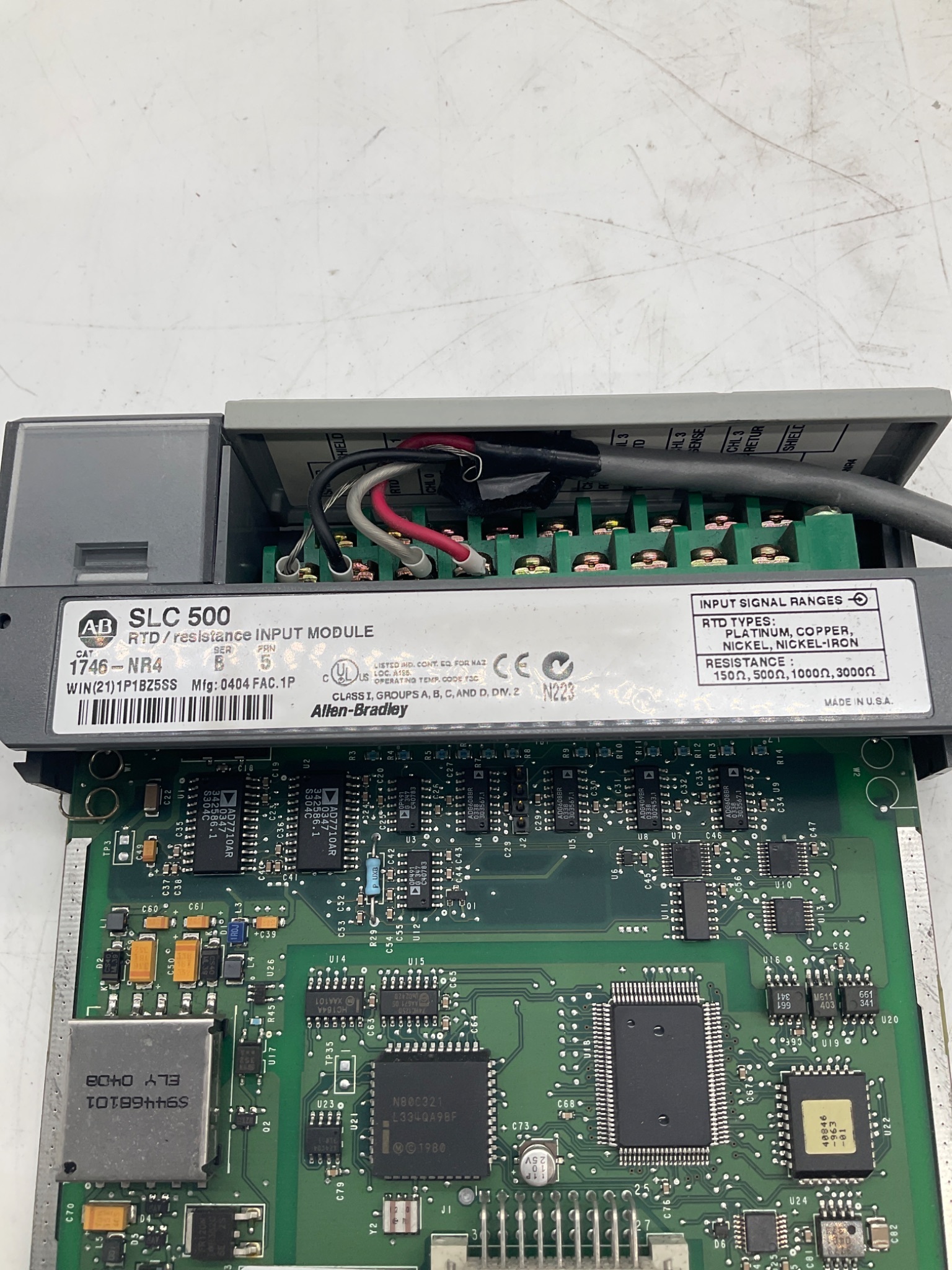

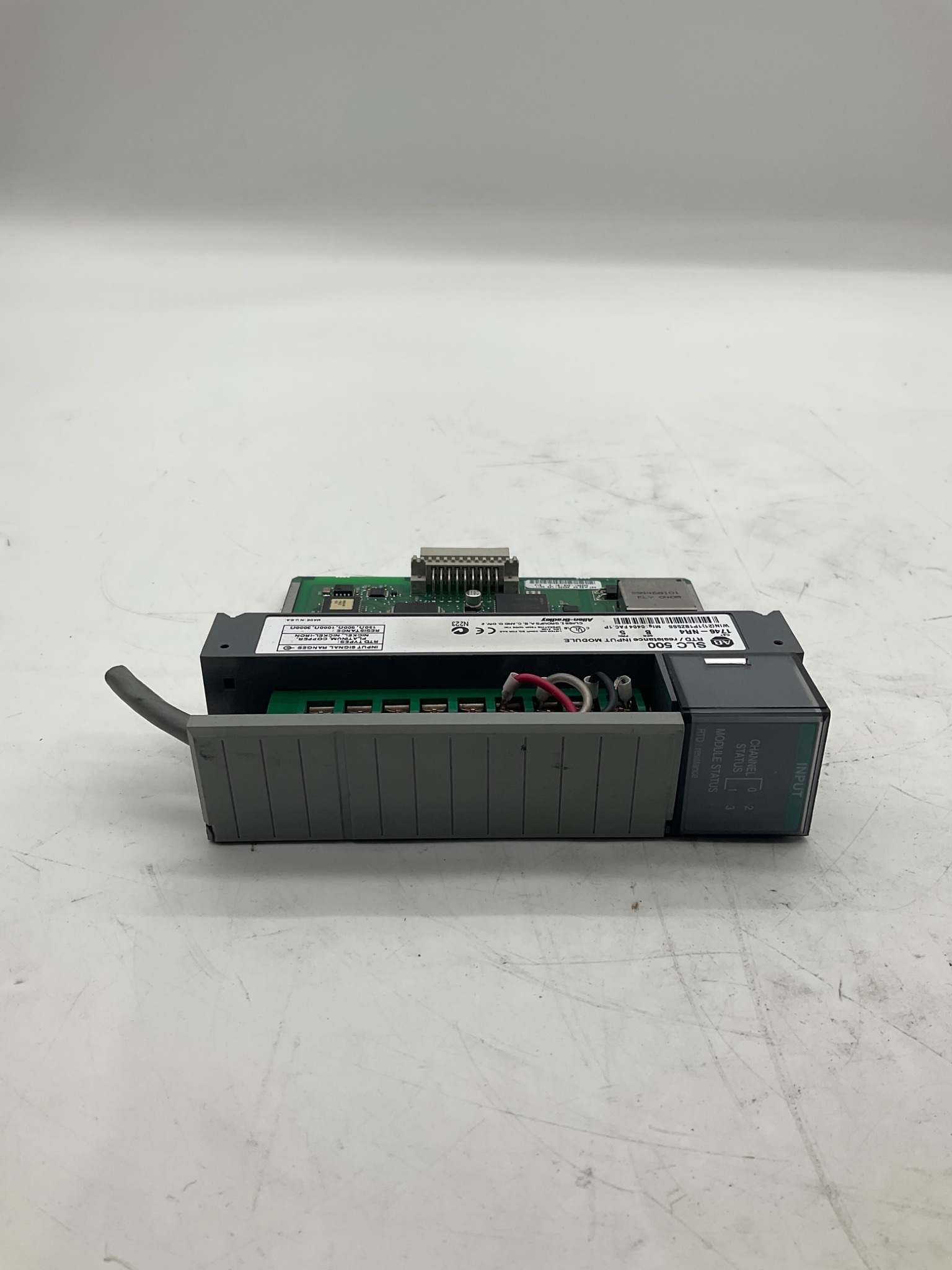

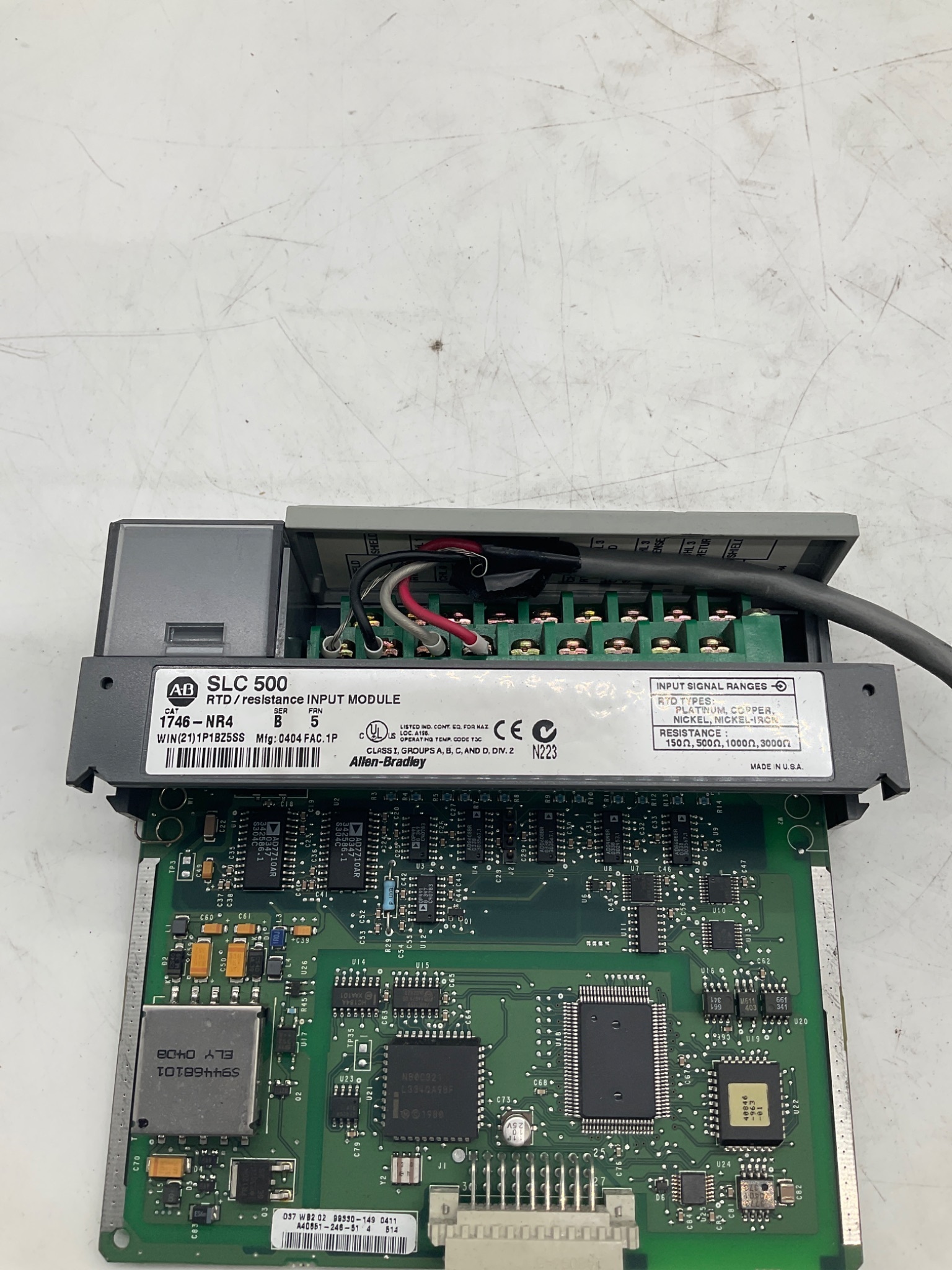

Allen-Bradley 1746-NR4 SLC 500 4-Channel RTD Resistance Input Module Series B USED

Specification Table

IDENTIFICATION Manufacturer: Allen-Bradley Product Family: SLC 500 Part Number: 1746-NR4 Series: B Product Type: RTD / resistance input module Condition: USED YOM: n/a Country of Manufacture: USA   INPUT CONFIGURATION Input Channels: 4 Input Type: RTD / resistance Signal Function: Temperature / resistance measurement RTD Materials: Platinum, copper, nickel, nickel-iron   RESISTANCE INPUT Resistance Range 1: 150 ohm Resistance Range 2: 500 ohm Resistance Range 3: 1000 ohm Resistance Range 4: 3000 ohm   FIELD INTERFACE Field Connection: Removable terminal block Field Wiring: Present Shield Terminals: Provided Channel Connections: Individual RTD inputs   SYSTEM / INSTALLATION PLC Platform: SLC 500 Module Format: Chassis-mounted Backplane Interface: SLC 500 Installation Location: SLC 500 I/O chassis Chassis Space: 1 slot   REGULATORY UL: Listed CE: Yes C-Tick / RCM: Present Hazardous Location: Class I, Groups A, B, C & D, Division 2
