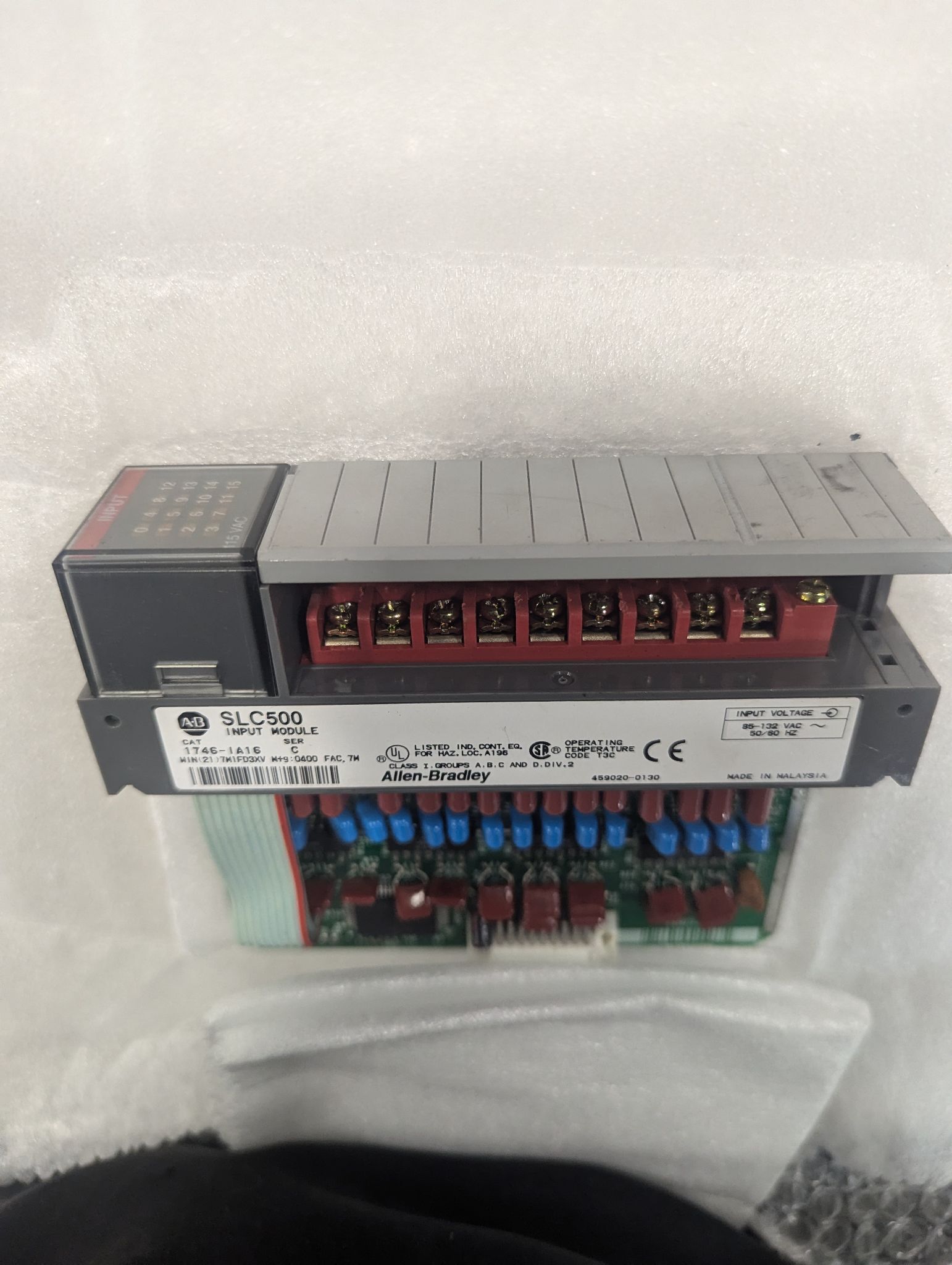

ALLEN BRADLEY 1746-IA16/C SLC 500 PLC IMPUT/OUTPUT MODELES USED

Product Specifications

• Model Number: 1746-IA16
• Series: C
• Input Type: AC Input
• Voltage Rating: 120V AC
• Frequency Range: 47-63 Hz
• Number of Input Channels: 16
• Input Signal Delay:
  • ~ ON Delay: 20 ms (max)
  • ~ OFF Delay: 20 ms (max)
• Current Draw: 85 mA at 5V DC
• Connection Type: Removable terminal block
• Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
• Compatible Systems: Allen-Bradley SLC 500 series racks
• Weight: Approx. 0.5 lbs

Key Features

• 16 AC Input Channels: Provides efficient handling of discrete input signals for streamlined automation processes.
• SLC 500 Compatibility: Integrates directly into Allen-Bradley SLC 500 systems for seamless system configurations.
• Durable and Compact: Designed for long-lasting performance in industrial environments while saving control panel space.
• Quick Installation: Features a removable terminal block for easy module replacement or setup.
• Optimized Signal Processing: Reliable signal delay settings ensure precise timing and accuracy in automation tasks.

Applications

• Industrial Automation: Ideal for monitoring and managing AC input signals in machinery and production lines.
• Building Management: Suited for applications like lighting control, HVAC systems, and energy monitoring.
• Process Industries: Supports operations in oil and gas, chemical processing, manufacturing, and utilities.
• System Upgrades: Perfect for expanding or maintaining Allen-Bradley SLC 500-based control systems.

 Alternative model numbers include: 1746IA16, 1746-IA16C, 1746-IA-16, 1746-IAC16, 1746IA16CCommon misspellings include: 1746-IAL6, 1746-AI16, and 1746IAC16.
