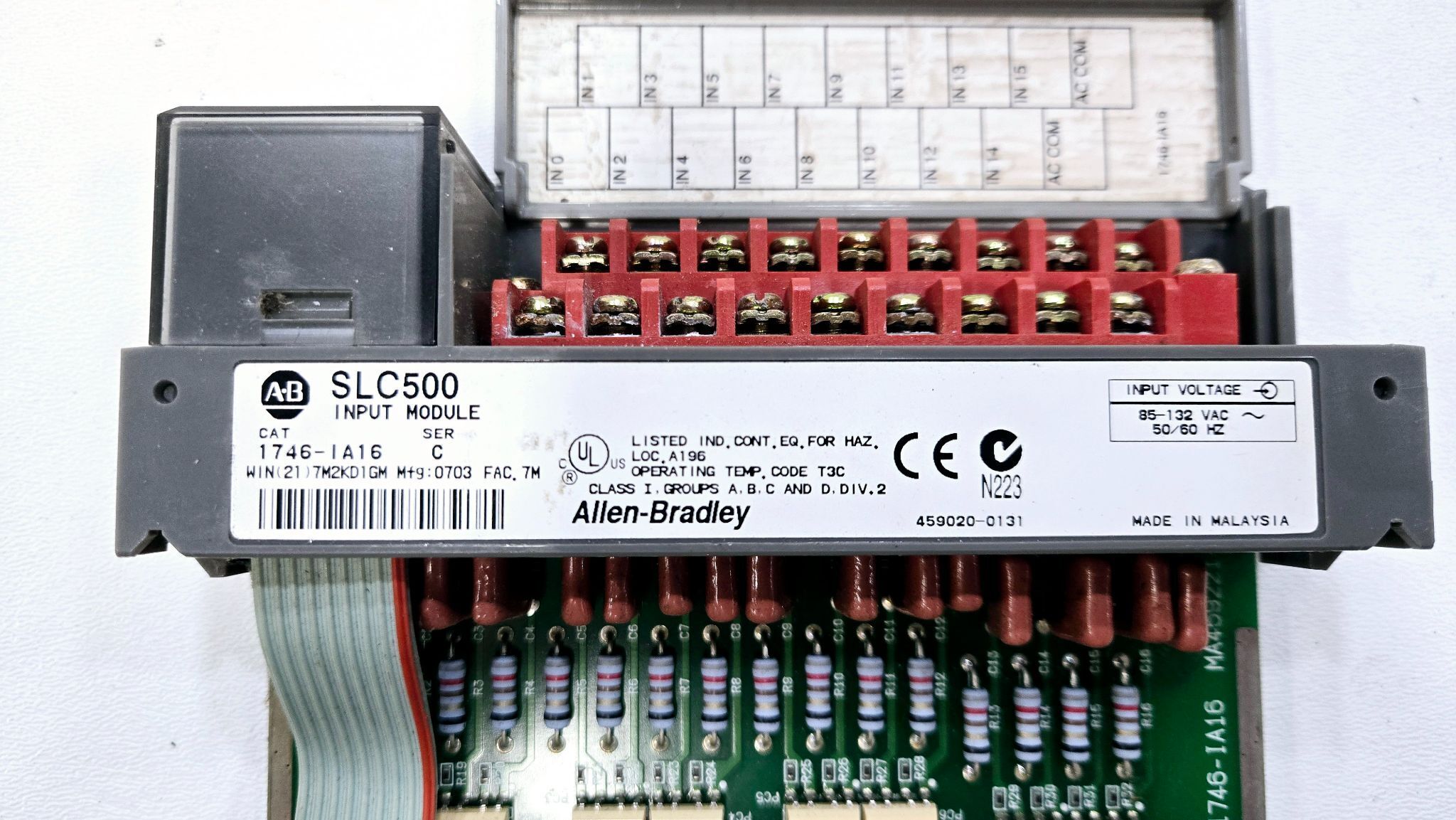

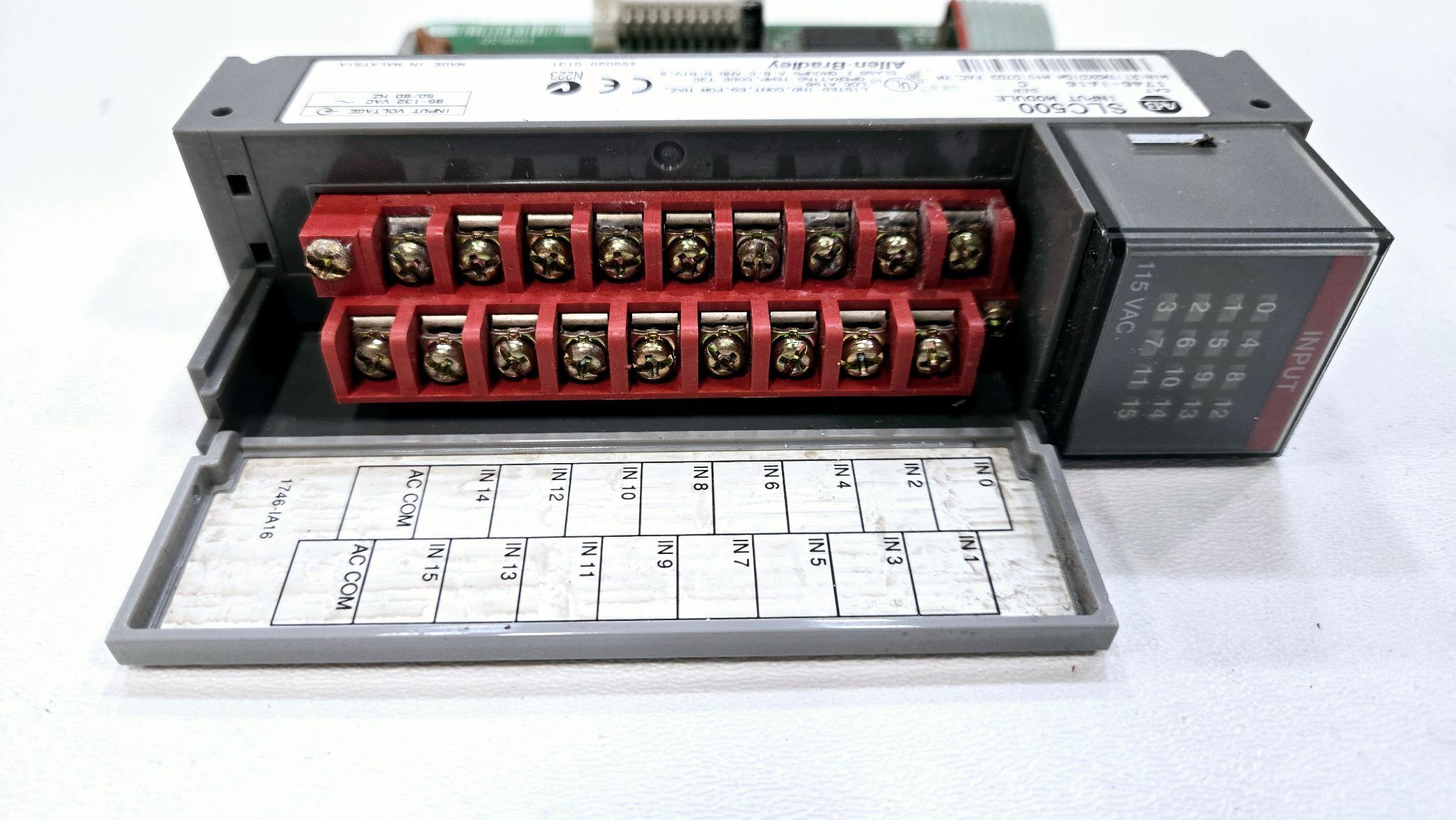

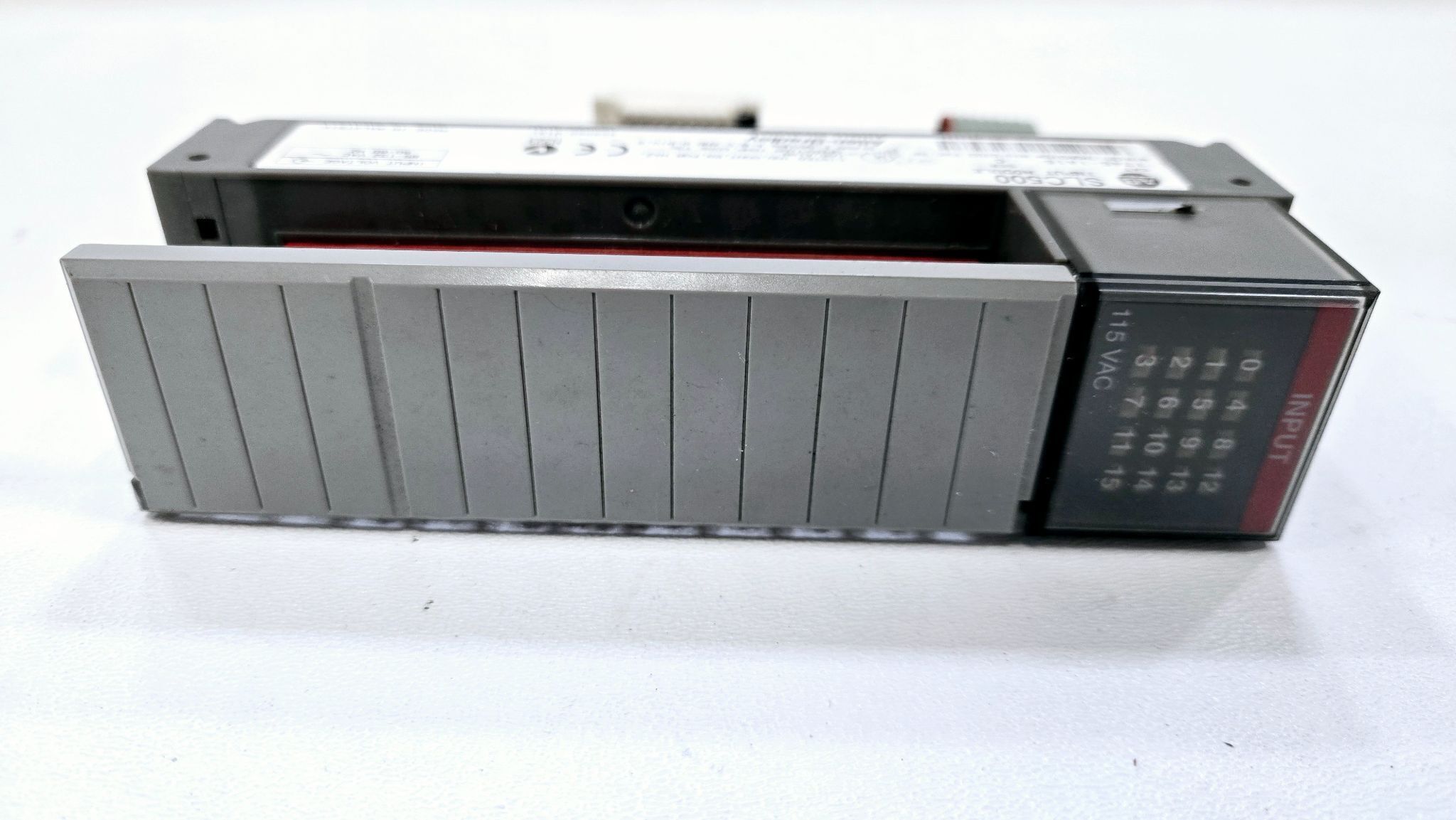

ALLEN BRADLEY 1746-IA16 INPUT MODULE SER C USED

Product Specifications

• Model Number: 1746-IA16
• Series: C
• Input Type: AC Input
• Voltage Rating: 120V AC
• Frequency Range: 47-63 Hz
• Number of Input Channels: 16
• Input Signal Delay:
  • ON Delay: 20 ms (max)
  • OFF Delay: 20 ms (max)
• Current Draw: 85 mA at 5V DC
• Connection Type: Removable terminal block
• Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
• Compatible Systems: Allen-Bradley SLC 500 series racks
• Weight: Approx. 0.5 lbs

Key Features

• 16 AC Input Channels: Efficiently handles up to 16 discrete input signals for streamlined system functionality.
• High Compatibility: Fully compatible with Allen-Bradley SLC 500 programmable logic controllers.
• Durable Construction: Designed to operate reliably in industrial conditions with fluctuating temperatures and high demands.
• Compact Design: Saves space within control panels while delivering high performance.
• Easy Installation: Removable terminal blocks enable quick and hassle-free module replacement or setup.

Applications

• Industrial Automation: Ideal for monitoring and controlling AC input signals in machinery and production lines.
• Building Automation: Perfect for managing 120V AC signals in systems such as lighting, HVAC, and energy monitoring.
• Process Control: Suitable for industries requiring precision input signal processing, including oil and gas, manufacturing, and utilities.
• System Expansion and Maintenance: Excellent for extending or maintaining Allen-Bradley SLC 500 systems with added input capacity.

Alternative model numbers include: 1746IA16, 1746-IA16C, 1746-IA-16, 1746-IAC16, 1746IA16C.

Common misspellings include: 1746-IAL6, 1746-AI16, and 1746IAC16.
