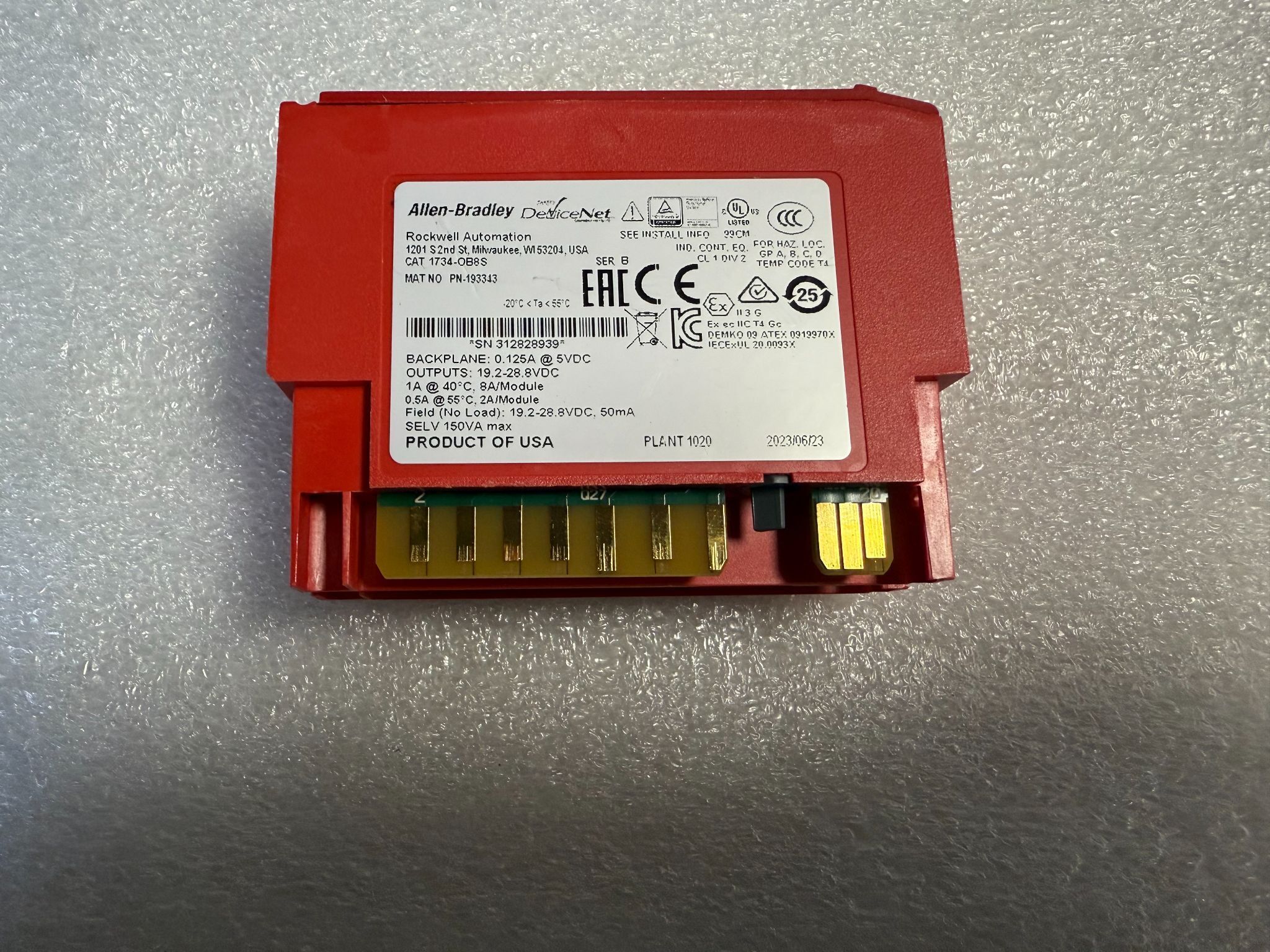

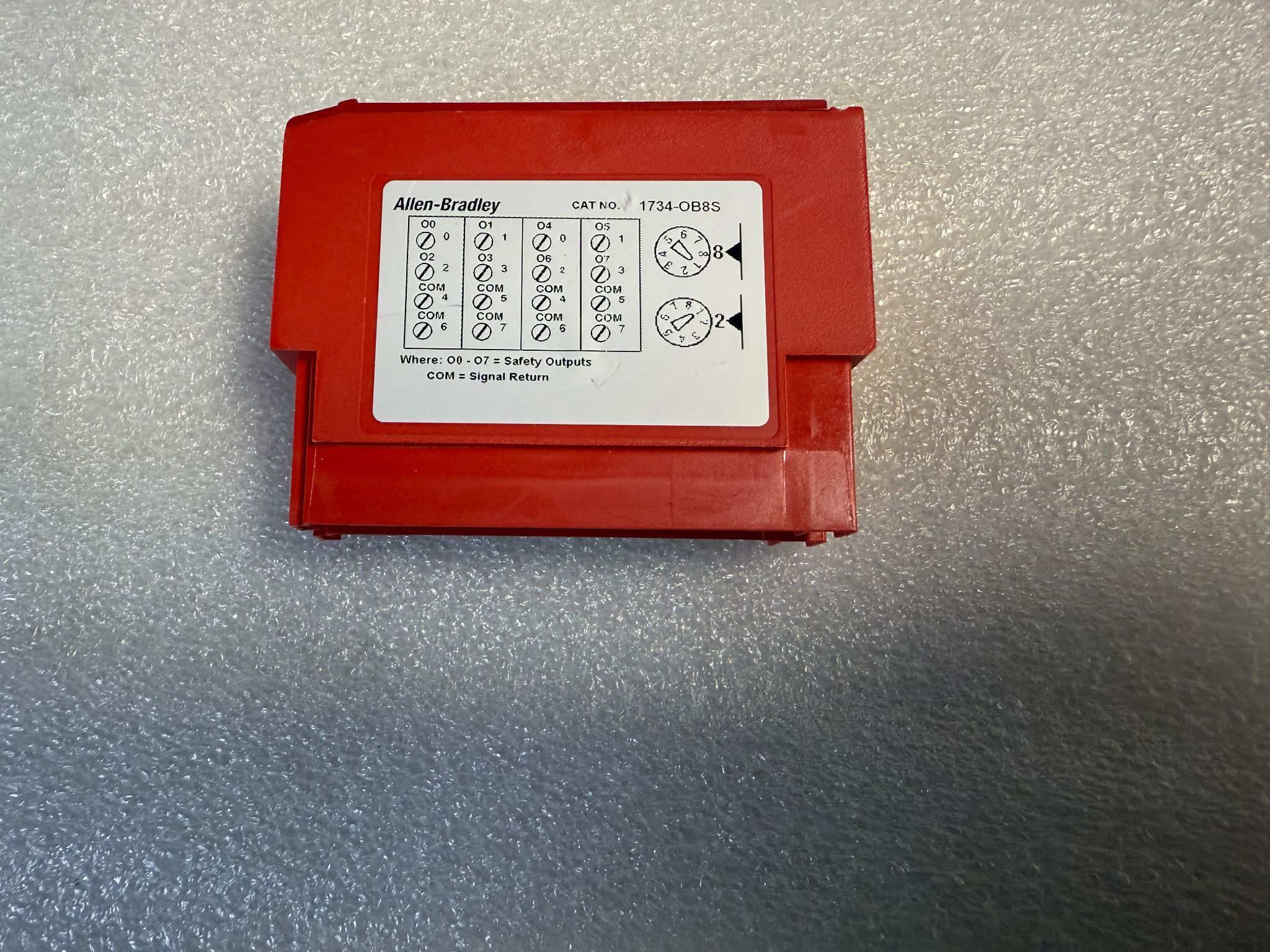

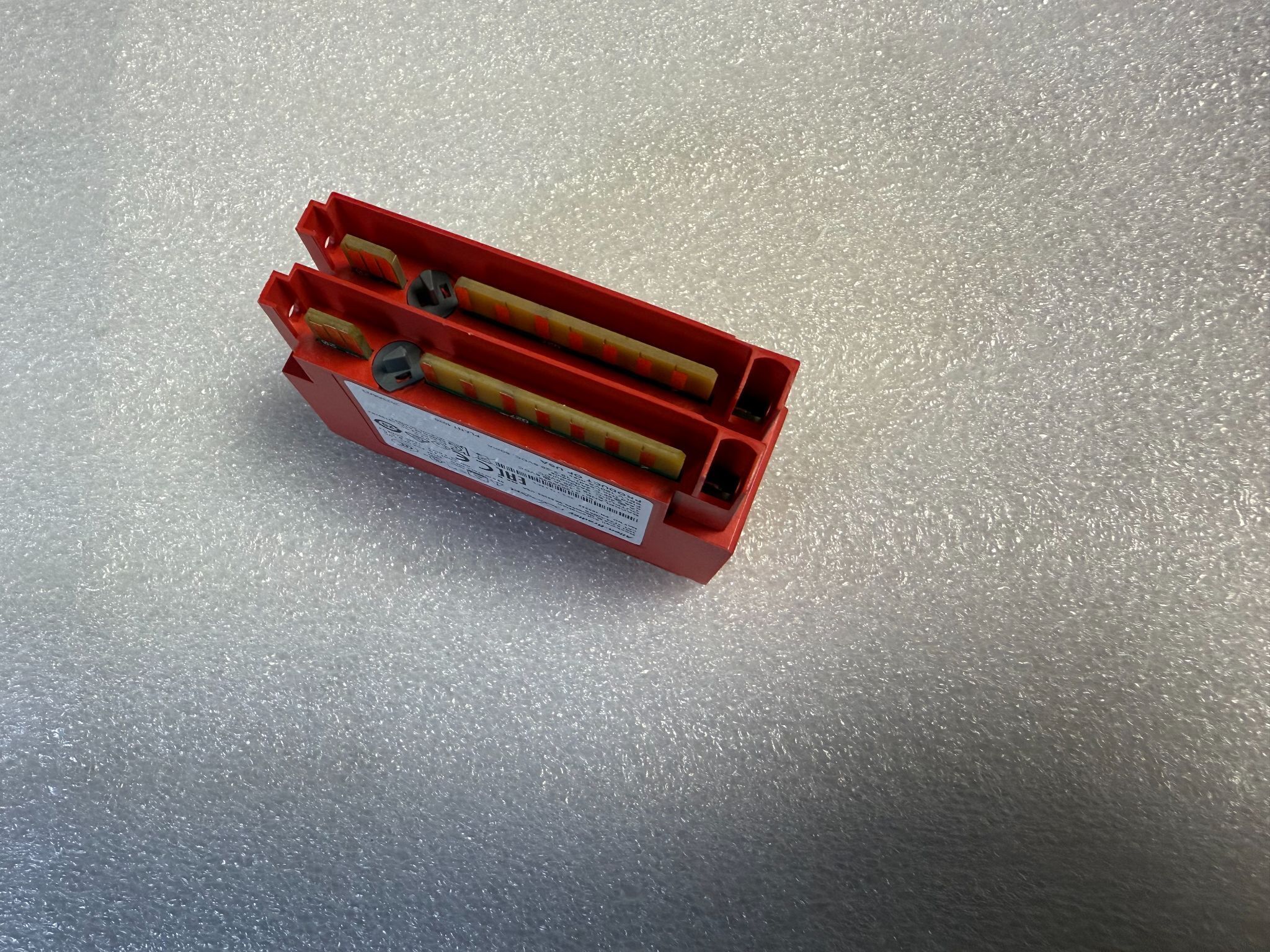

Allen-Bradley 1734-OB8S Series B POINT Guard I/O 8-Channel 24VDC Safety Output Module USED

Specification Table

IDENTIFICATION Manufacturer: Allen-Bradley / Rockwell Automation Catalog Number: 1734-OB8S Product Family: POINT Guard I/O Product Type: Safety Output Module Series: B Serial Number: 312828939 Condition: USED YOM: 2023 Country of Manufacture: USA   SAFETY OUTPUTS Output Type: Safety Source Number of Outputs: 8 Output Voltage Range: 19.2-28.8 VDC Output Channels: 0-7 Output Current @ 40 °C: 1 A per Channel Module Current @ 40 °C: 8 A Output Current @ 55 °C: 0.5 A per Channel Module Current @ 55 °C: 2 A   BACKPLANE Backplane Voltage: 5 VDC Backplane Current: 125 mA   FIELD POWER Field Voltage Range: 19.2-28.8 VDC No-Load Field Current: 50 mA   STATUS / INDICATION Module Status: MS Network Status: NS Link Status: LK Output Status Indicators: 0-7 Power Indicator: PWR   INSTALLATION / INTERFACE Automation Platform: POINT Guard I/O Module Configuration: Modular Backplane Interface: POINT I/O Safety Network: DeviceNet Safety   ENVIRONMENTAL Operating Temperature: -20 to +55 °C Temperature Code: T4   HAZARDOUS LOCATION Hazardous Location Class: Class I, Division 2 Hazardous Location Groups: A, B, C, D ATEX Classification: II 3 G ATEX Protection: Ex ec IIC T4 Gc IECEx Certification: IECEx UL 20.0093X   APPROVALS / MARKINGS cULus: Listed TÜV: Marked CE: Yes CCC: Yes RCM: Marked KC: Marked
