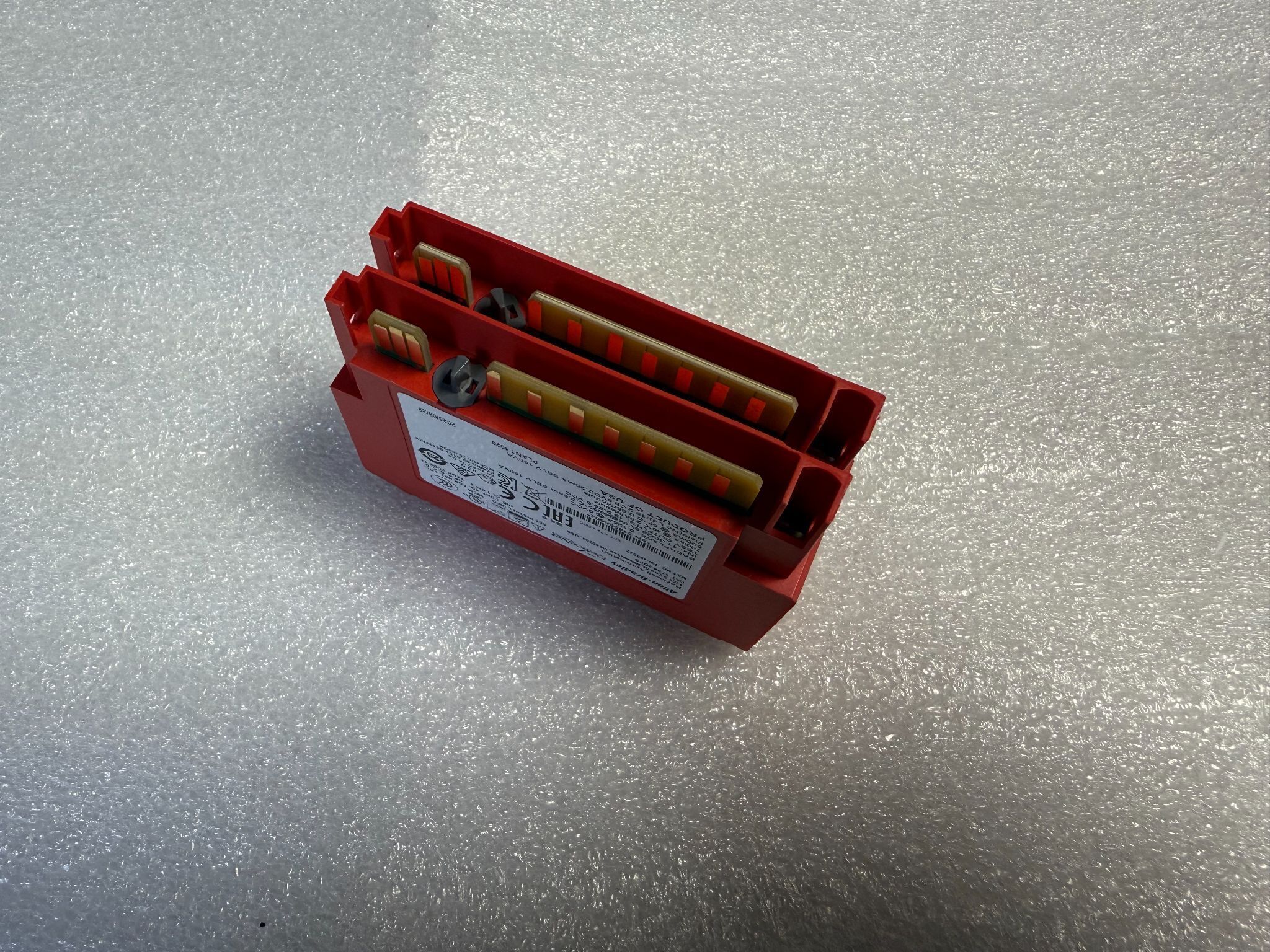

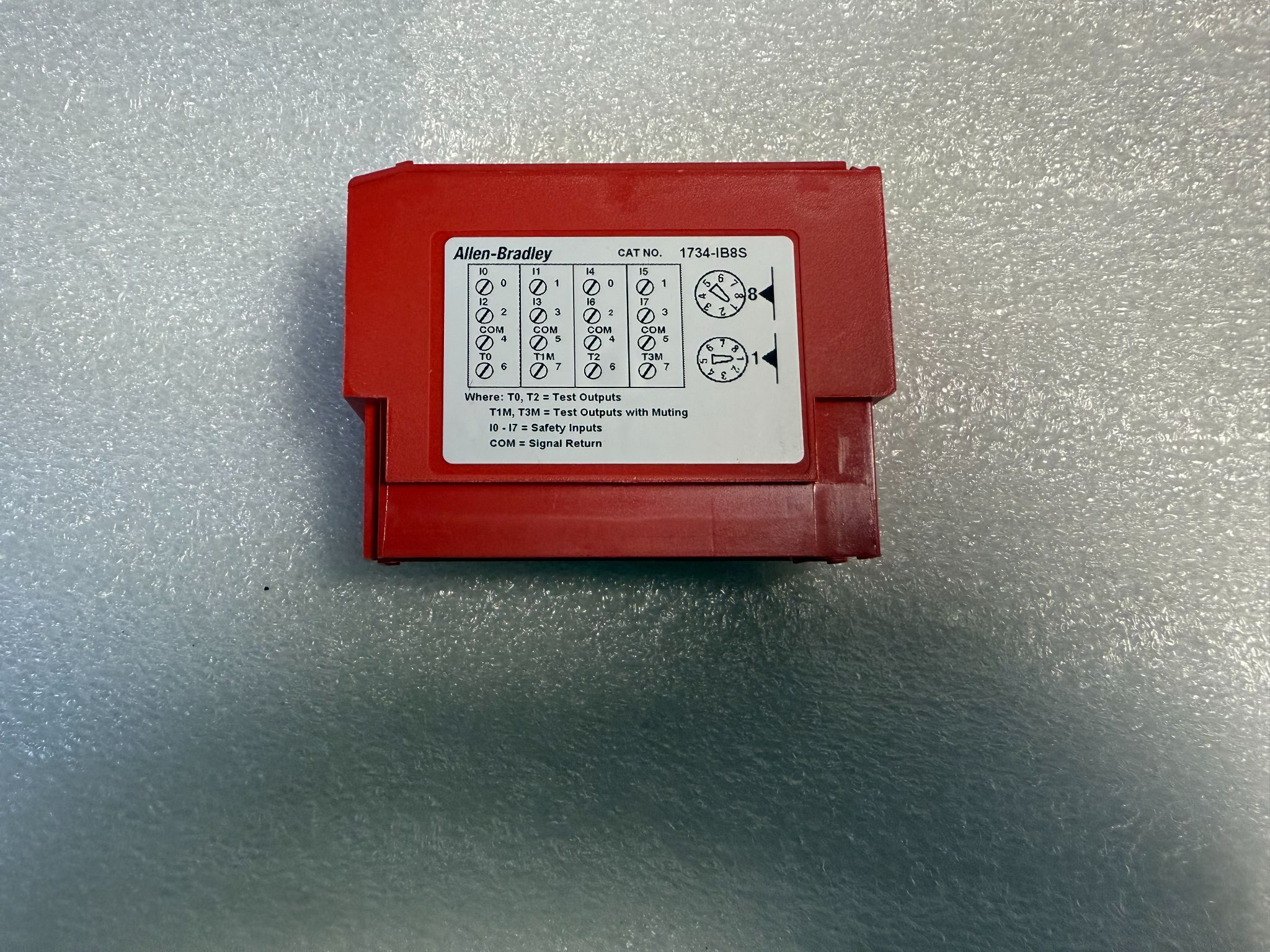

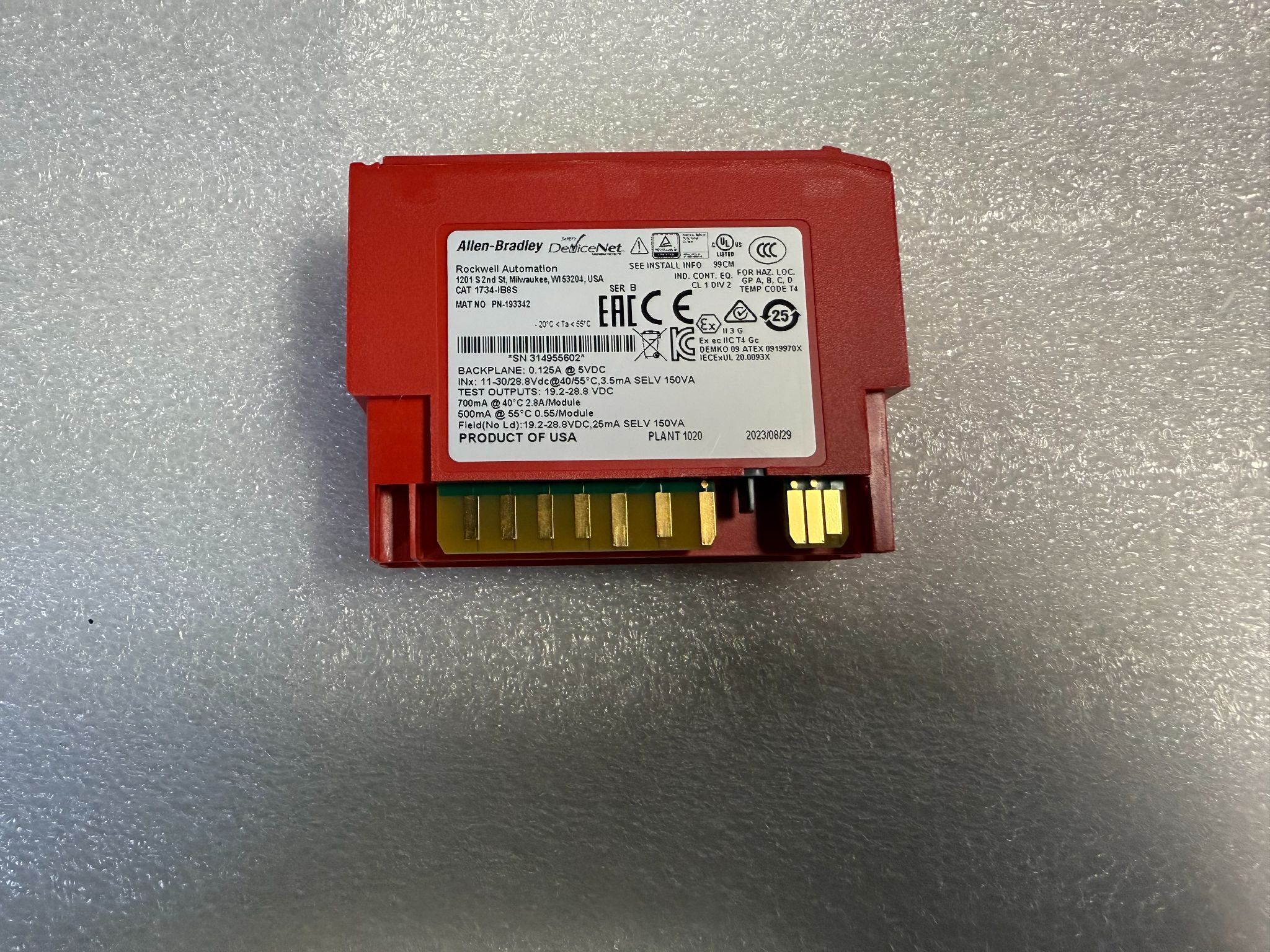

Allen-Bradley 1734-IB8S Series B POINT Guard I/O 8-Channel 24VDC Safety Input Module USED

Specification Table

IDENTIFICATION Manufacturer: Allen-Bradley / Rockwell Automation Catalog Number: 1734-IB8S Product Family: POINT Guard I/O Product Type: Safety Input Module Series: B Serial Number: 314955602 Condition: USED YOM: 2023 Country of Manufacture: USA   SAFETY INPUTS Input Type: Safety Sink Number of Inputs: 8 Input Voltage: 24 VDC Input Channels: 0-7 Input Current: 3.5 mA Input Voltage Range: 11-30 VDC   TEST OUTPUTS Test Output Voltage: 19.2-28.8 VDC Test Output Current: 700 mA @ 40 °C Test Output Current: 500 mA @ 55 °C Test Outputs: Integrated   BACKPLANE Backplane Current: 125 mA Backplane Voltage: 5 VDC   FIELD LOAD Field Load Voltage: 19.2-28.8 VDC Field Load Current: 25 mA   STATUS / INDICATION Module Status: MS Network Status: NS Network Link Status: LK Input Status Indicators: 0-7 Power Indicator: PWR Lock Status: Integrated   INSTALLATION / INTERFACE Automation Platform: POINT Guard I/O Module Configuration: Modular Backplane Interface: POINT I/O Mechanical Keying: Integrated Safety Network: DeviceNet Safety   ENVIRONMENTAL Operating Temperature: -20 to +55 °C Temperature Code: T4   HAZARDOUS LOCATION Hazardous Location Class: Class I, Division 2 Hazardous Location Groups: A, B, C, D ATEX Classification: II 3 G ATEX Protection: Ex ec IIC T4 Gc IECEx Certification: IECEx UL 20.0093X   APPROVALS / MARKINGS cULus: Listed TÜV: Marked CE: Yes EAC: Yes CCC: Yes
