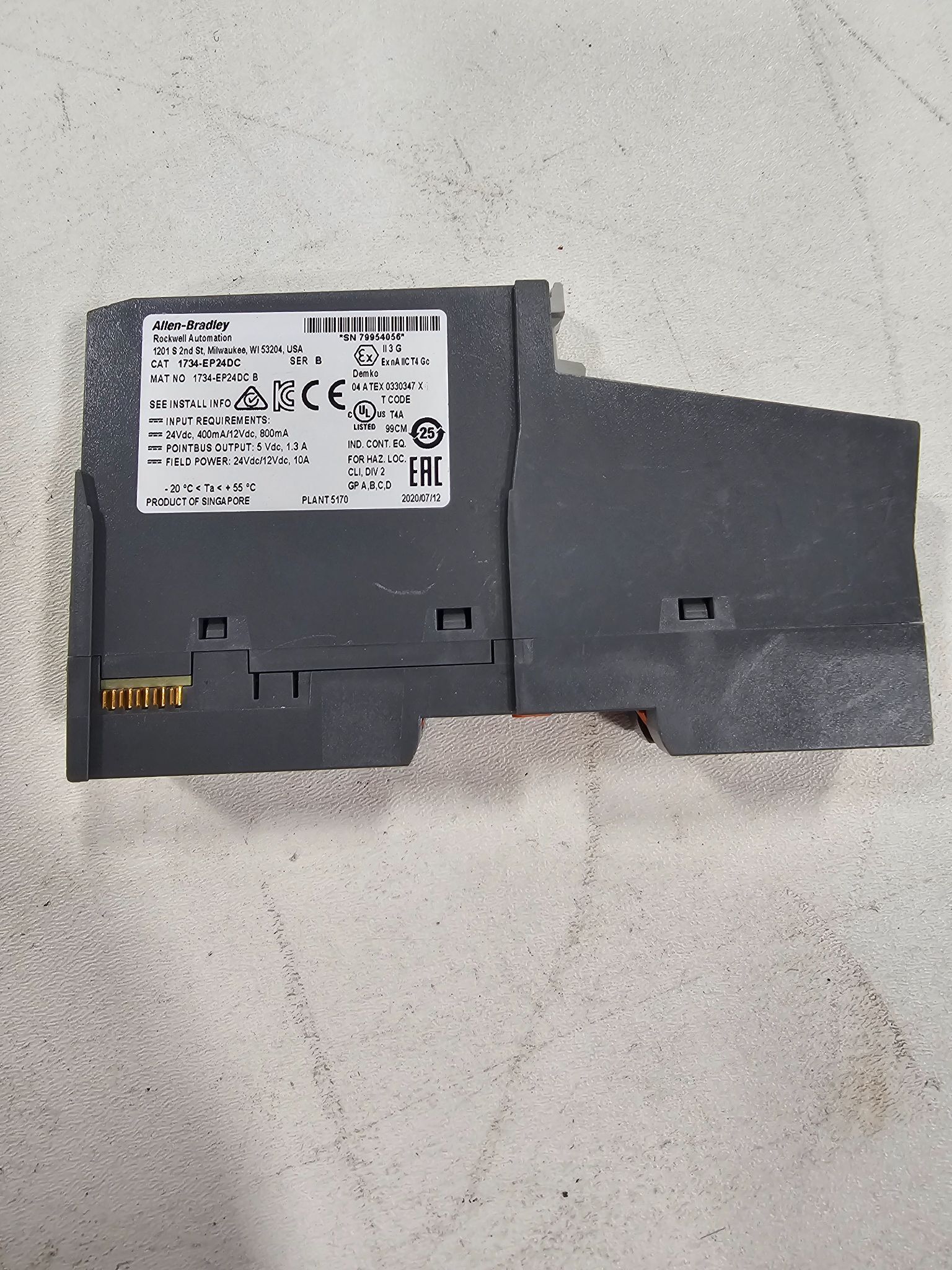

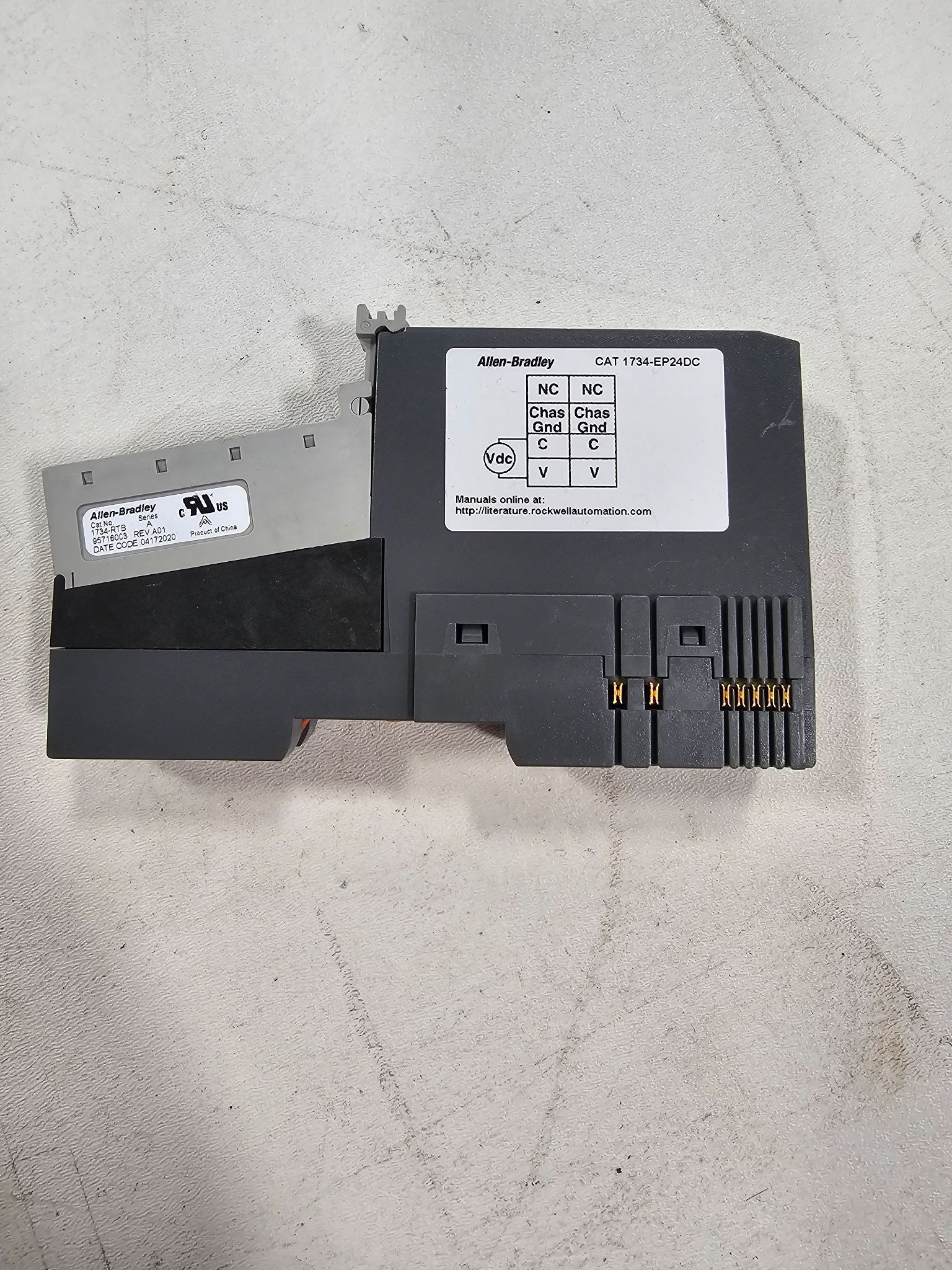

Specification Table
Manufacturer: Allen-Bradley
Series: POINT I/O
Catalog Number: 1734-EP24DC/B
Series Revision: B
Product Type: Extension Power Module
Function: POINTBus and Field Power Extension
Input Requirements:
24 VDC: 400 mA
12 VDC: 800 mA
POINTBus Output:
Output Voltage: 5 VDC
Output Current: 1.3 A
Field Power:
Voltage: 24 VDC / 12 VDC
Maximum Current: 10 A
Status Indicators:
System Power
Field Power
Operating Temperature: -20°C to +55°C
Hazardous Location Rating:
Class I, Division 2
Groups A, B, C, D
ATEX Rating: II 3 G
Protection Method: Ex nA IIC T4 Gc
ATEX Certificate: DEMKO 04 ATEX 0330347X
Certifications:
CE
cULus Listed
KC
EAC
Country of Origin: Singapore
Manufacture Date: 2020/07/12
YOM: 2020
Condition: Used
Product Specifications
- Model Number: 1734-EP24DC
- Type: POINT I/O Power Supply
- Input Voltage: 24V DC
- Output Current: 4 A (Backplane)
- Power Capacity: Provides an additional 4 A of POINTBus backplane current
- Mounting Type: DIN Rail
- Condition: Used
Key Features
- Increased Backplane Power: Delivers an additional 4 A for powering multiple POINT I/O modules.
- Compact Design: Space-saving module suitable for installations with limited room.
- Seamless Integration: Fully compatible with the Allen Bradley POINT I/O system.
- Durable Construction: Engineered to withstand industrial conditions, ensuring long-term performance.
- Plug-and-Play Setup: Simplifies installation, reducing downtime.
Applications
- Industrial Automation: Powers extended POINT I/O configurations in manufacturing lines.
- Process Control: Provides stable power in industries like pharmaceuticals, food processing, and chemicals.
- System Expansion: Supports additional I/O modules in scalable distributed systems.
- Factory Automation: Ensures reliable operation in assembly and packaging processes.
- Retrofit Projects: An ideal solution for upgrading older systems to handle increased power demands.
Alternative model numbers include: 1734EP24DC, 1734-EP24DC-A, 1734-EP24DC Series A, 1734-EP24, 1734-EPDC24.Common misspellings include: 1734-EP24D-C, 1734EP-24DC, 1734-E-P24DC, 1734EP24-DC, and 1734-EP24D.
