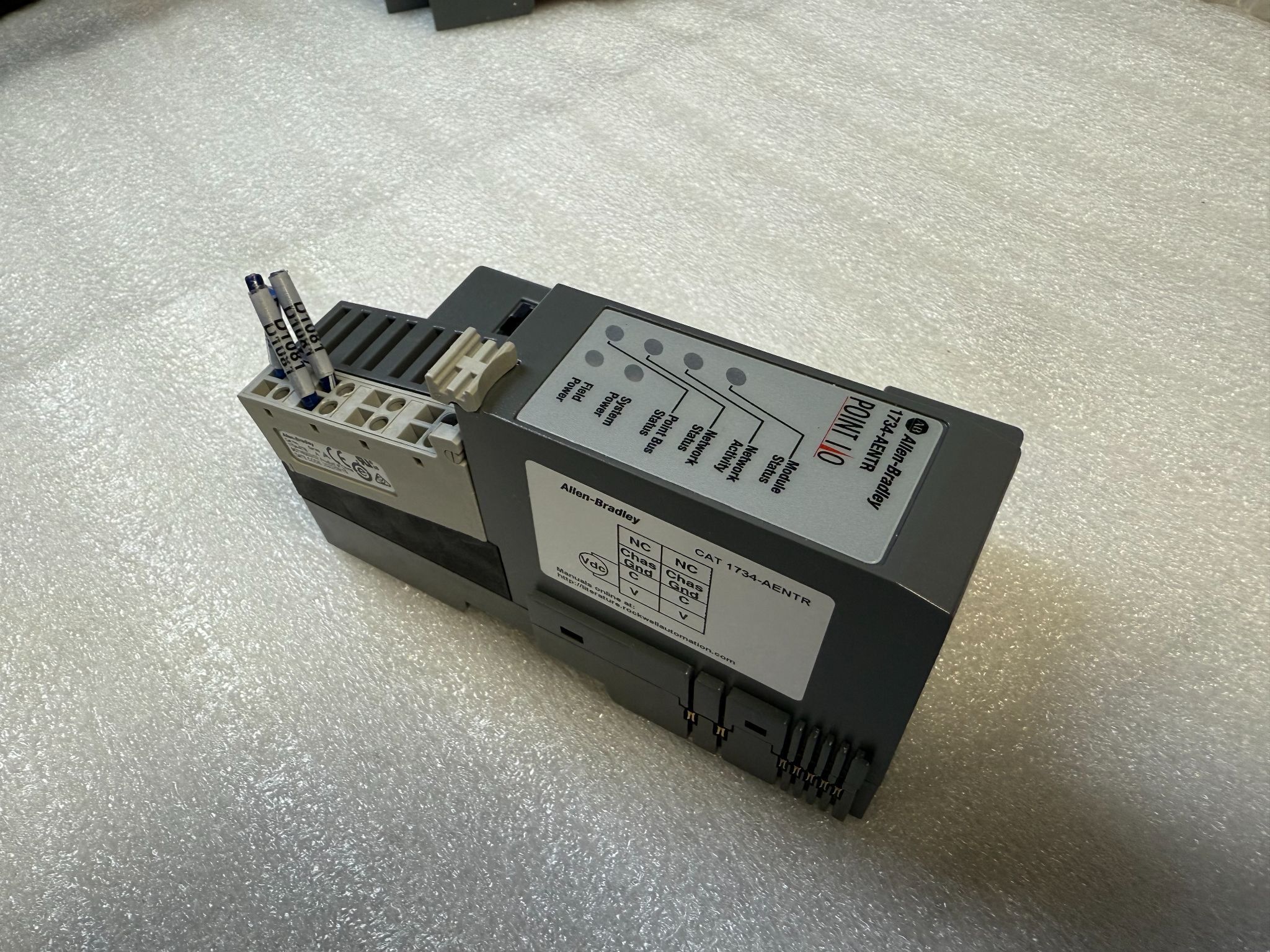

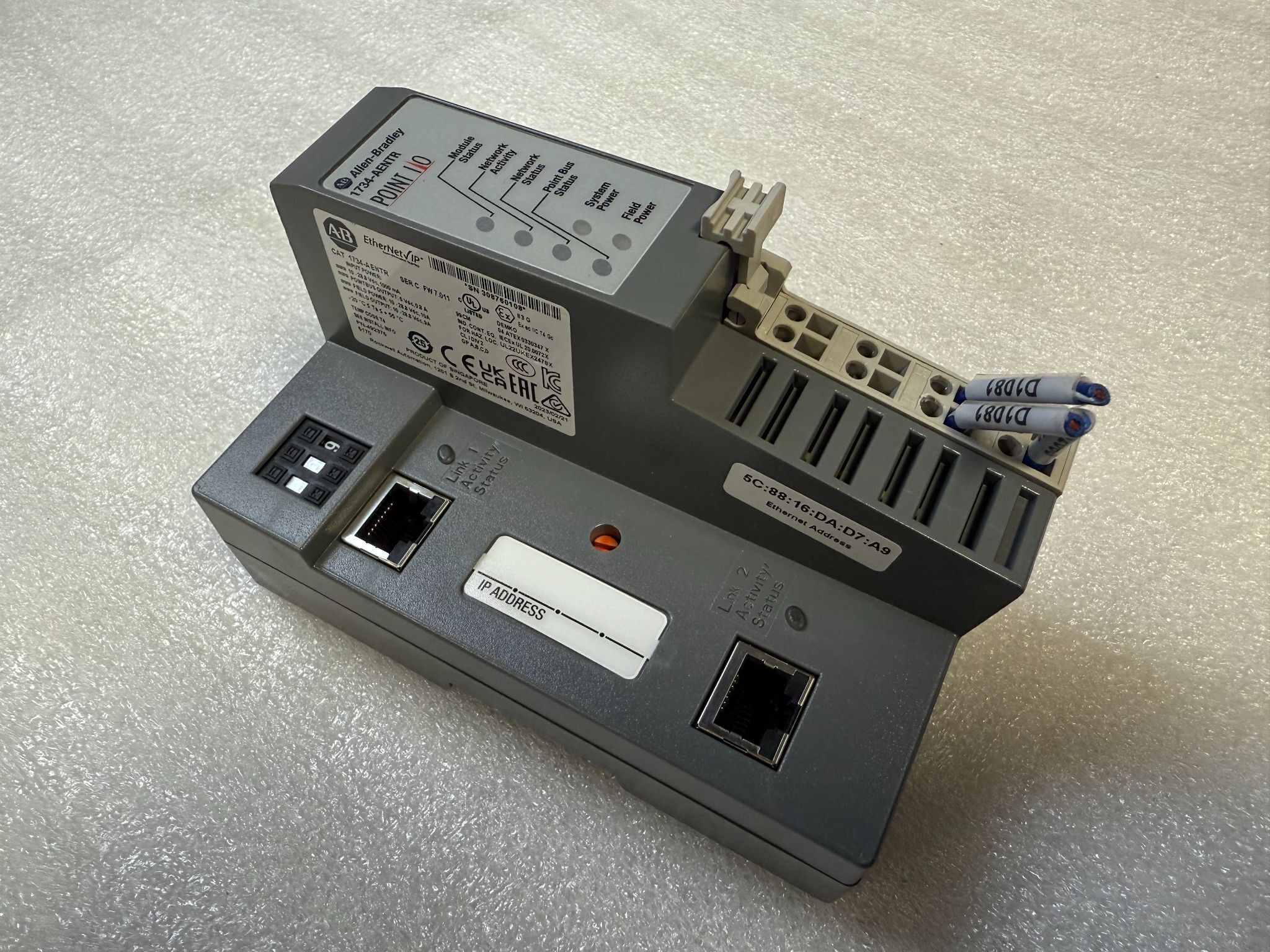

Allen-Bradley 1734-AENTR POINT I/O Dual-Port EtherNet/IP Adapter USED

Specification Table

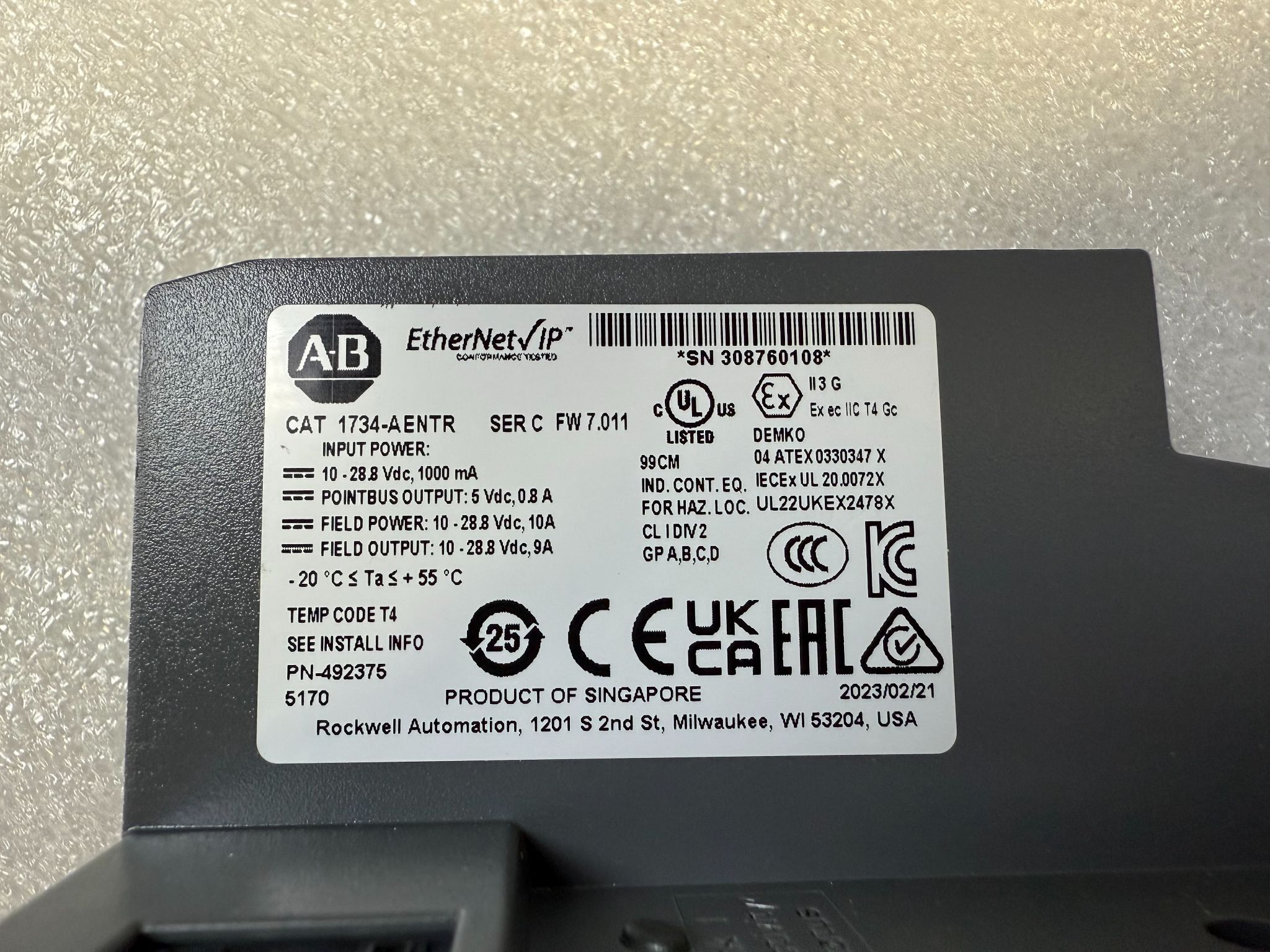

IDENTIFICATION Manufacturer: Allen-Bradley / Rockwell Automation Catalog Number: 1734-AENTR Product Family: POINT I/O Product Type: EtherNet/IP Adapter Series: C Firmware Revision: 7.011 Serial Number: 308760108 Condition: USED YOM: 2023 Country of Manufacture: Singapore   NETWORK / COMMUNICATION Network Protocol: EtherNet/IP Ethernet Ports: 2 Ethernet Connector Type: RJ45 Network Address Switches: 3 Network Address Range: 000-999 IP Address Field: Provided Port 1 Indication: Link 1 Activity / Status Port 2 Indication: Link 2 Activity / Status   INPUT POWER Input Voltage: 10-28.8 VDC Input Current: 1000 mA Power Type: DC   POINTBUS POWER POINTBus Output Voltage: 5 VDC POINTBus Output Current: 0.8 A   FIELD POWER Field Power Input: 10-28.8 VDC Field Power Input Current: 10 A Field Power Output: 10-28.8 VDC Field Power Output Current: 9 A   STATUS / DIAGNOSTICS Module Status Indicator: Yes Network Activity Indicator: Yes Network Status Indicator: Yes POINTBus Status Indicator: Yes System Power Indicator: Yes Field Power Indicator: Yes Ethernet Link Indicators: 2   ENVIRONMENTAL Operating Temperature: -20 to +55 °C Temperature Code: T4 Hazardous Location Class: Class I, Division 2 Hazardous Location Groups: A, B, C, D ATEX Classification: II 3 G ATEX Protection: Ex ec IIC T4 Gc   INSTALLATION / CONNECTION Module Format: POINT I/O Network Connections: Dual RJ45 Field Power Terminals: Present DIN Rail Installation: Not specified   CERTIFICATIONS / APPROVALS UL: Listed UL Equipment Type: Industrial Control Equipment UL Category: 99CM ATEX: DEMKO 04 ATEX 0330347 X IECEx: IECEx UL 20.0072X Hazardous Location UL Ref.: UL22UKEX2478X CE: Yes UKCA: Yes CCC: Yes EAC: Yes KC: Yes RCM: Yes
