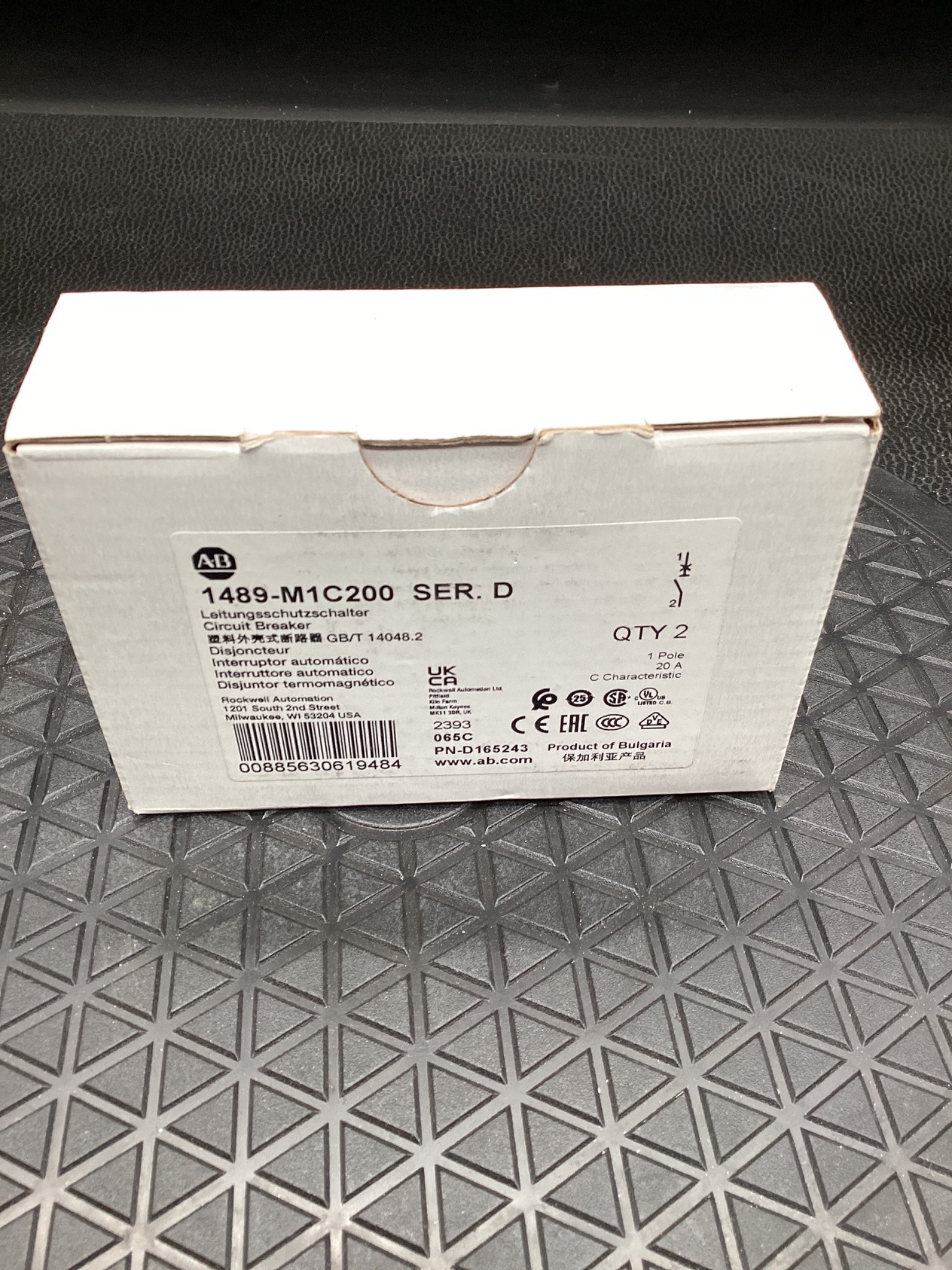

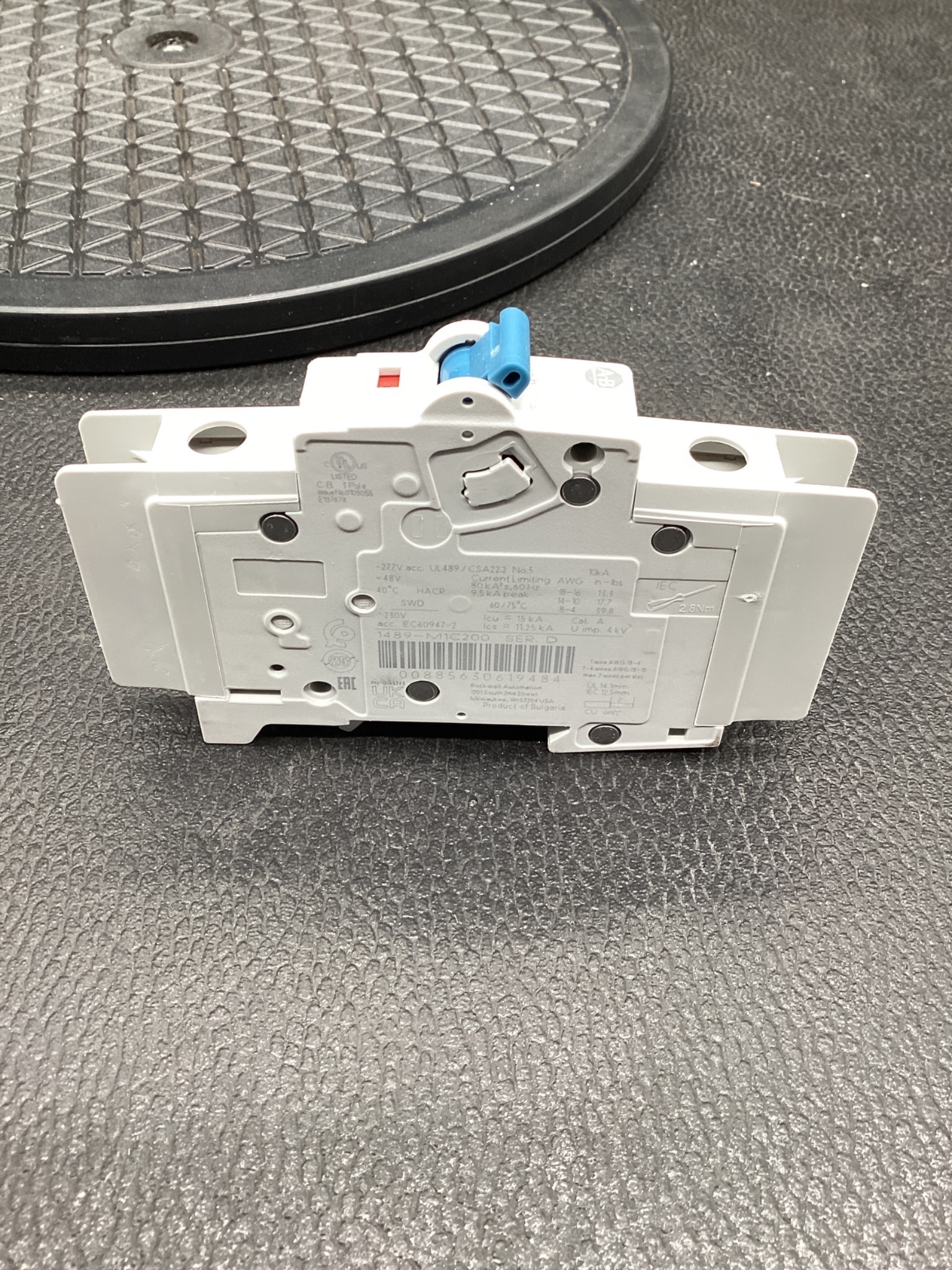

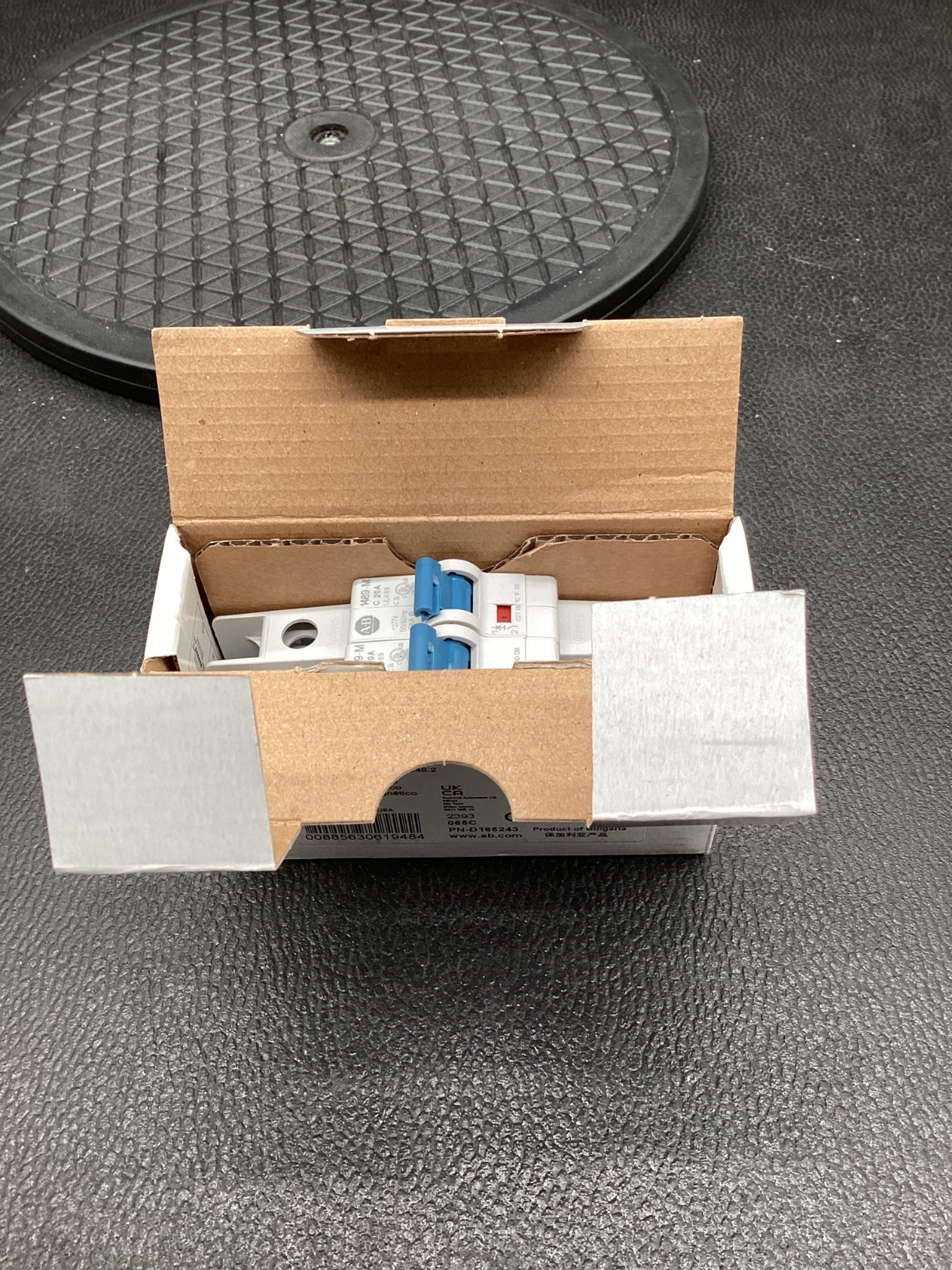

Allen-Bradley 1489-M1C200 Miniature Circuit Breaker 1-Pole 20A NEW

$50.00
Availability:

Out of stock
BRAND: Allen-Bradley MODEL: 149-M1C200 SER.D CONDITION: new
SKU: IGAM2781563 Weight: 1 lbs Shipping Calculated at Checkout

Out of stock

Overview

This listing is for a NEW Allen-Bradley 1489-M1C200. Part of the Bulletin 1489-M product family, this miniature circuit breaker provides branch circuit protection and manual circuit isolation for industrial control panels, machinery, and electrical distribution systems. The unit features a 1-pole configuration, 20 A current rating, C-curve trip characteristic, and UL 489 certification for industrial circuit protection applications.

Specification Table

Manufacturer: Allen-Bradley Bulletin: 1489-M   Part Number: 1489-M1C200 Series Revision: D   Description: Miniature Circuit Breaker Device Type: Current-Limiting MCB   Poles: 1 Current Rating: 20 A Trip Characteristic: C Curve   Rated Voltage (UL): 277 VAC Rated Voltage (DC): 48 VDC Rated Voltage (IEC): 230/400 VAC   Frequency: 50/60 Hz   Interrupt Rating (UL): 10 kA Interrupt Rating (IEC): 15 kA   Service Breaking Cap.: 15 kA @ 230 VAC Impulse Voltage: 4 kV   Protection Type: Thermal-Magnetic   UL Standard: UL 489 IEC Standard: IEC 60947-2 GB Standard: GB/T 14048.2   Mounting: DIN Rail   Wire Size Range: AWG 18-4 Conductor Size Range: 1-25 mm²   Terminal Torque: 2.8 N·m Terminal Torque: 25 lb-in   Reference Temperature: 40°C (UL) Reference Temperature: 30°C (IEC)   Approvals: UL Listed Approvals: CSA Approvals: CE Approvals: UKCA Approvals: EAC Approvals: CCC Approvals: VDE   Country of Origin: Bulgaria
