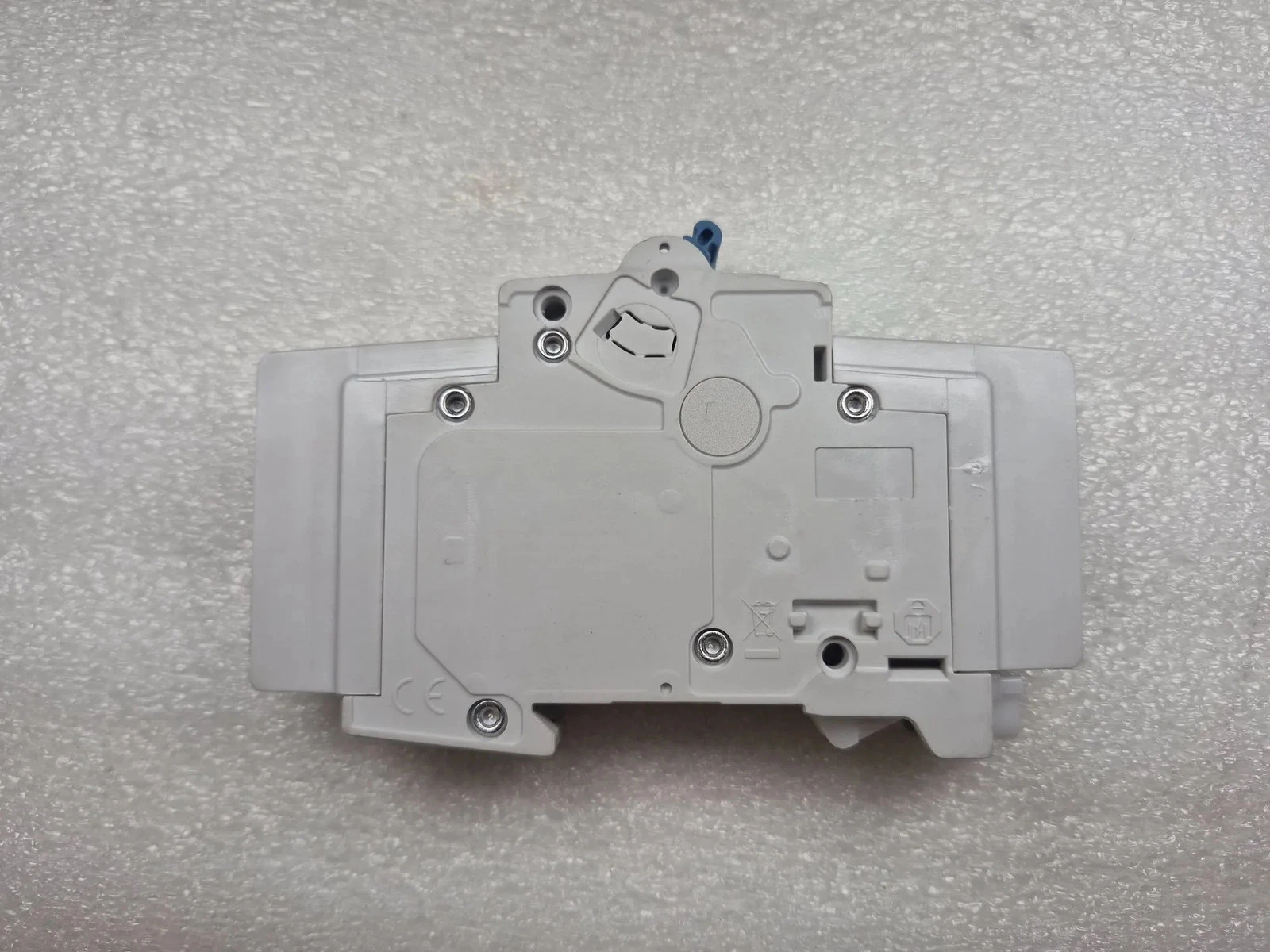

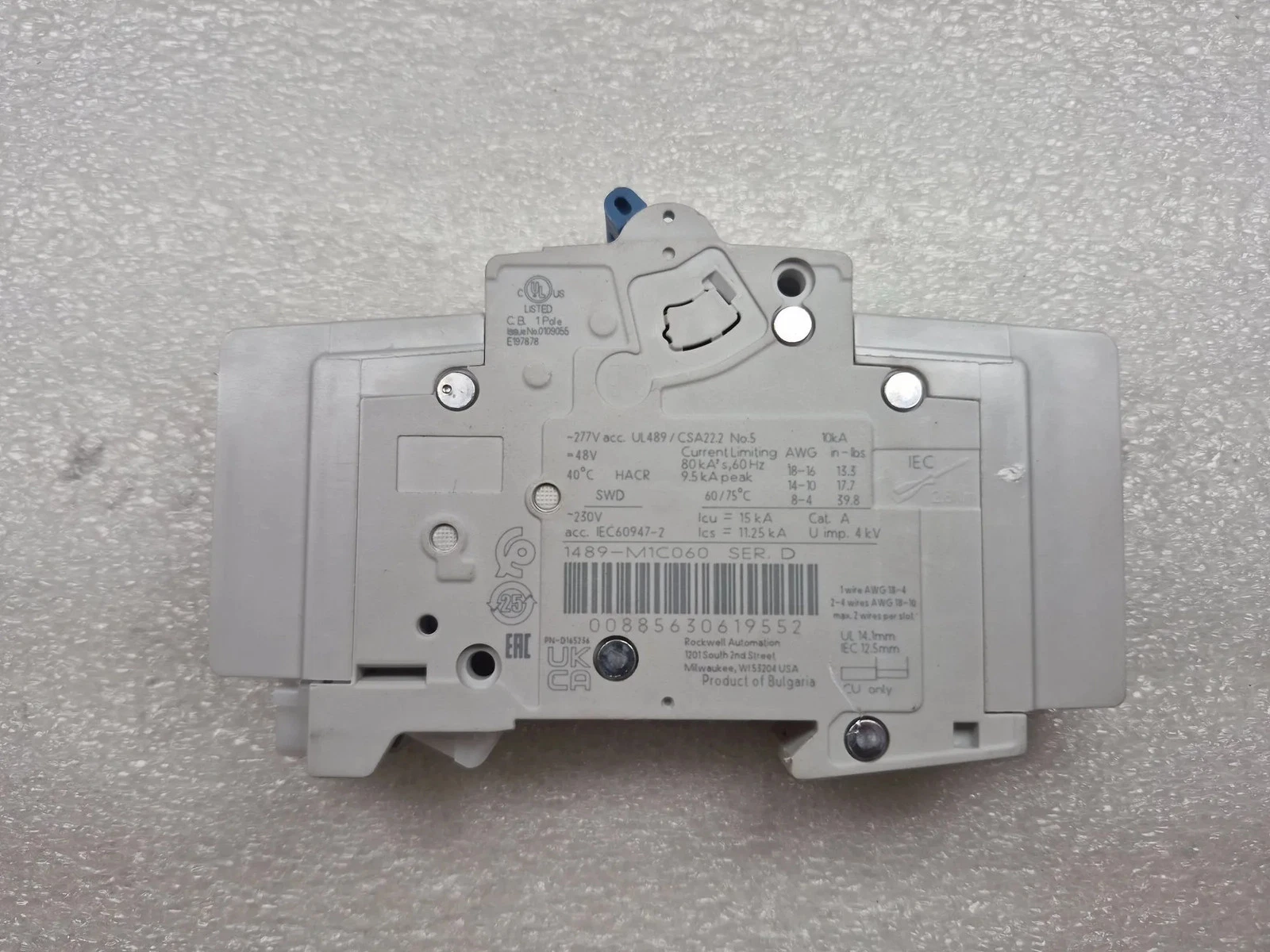

ALLEN BRADLEY 1489-M1C060 6A Circuit Breaker USED

Specification Table

IDENTIFICATION Manufacturer: Allen-Bradley / Rockwell Automation Catalog Number: 1489-M1C060 Product Family: 1489-M Product Type: Miniature Circuit Breaker Series: D Pole Configuration: 1-Pole Condition: USED YOM: n/a Country of Manufacture: Bulgaria ELECTRICAL Rated Current: 6 A Trip Characteristic: C AC Voltage Rating: 277 VAC DC Voltage Rating: 48 VDC Frequency: 50/60 Hz INTERRUPTING / SHORT-CIRCUIT Interrupting Rating: 10 kA Current-Limiting Rating: 80 kA²s / 60 Hz Peak Current: 9.5 kA IEC Ultimate Breaking Cap.: 15 kA IEC Service Breaking Cap.: 11.25 kA IEC Category: A Rated Impulse Voltage: 4 kV STANDARDS / CLASSIFICATION UL Standard: UL 489 CSA Standard: CSA 22.2 No. 5 IEC Standard: IEC 60947-2 HACR Rating: Yes SWD Rating: Yes TERMINALS / CONDUCTORS Conductor Material: Copper 1-Wire Range: 18-4 AWG 2-Wire Range: 18-10 AWG Maximum Wires Per Slot: 2 Terminal Torque, 18-16 AWG: 13.3 lb-in Terminal Torque, 14-10 AWG: 17.7 lb-in Terminal Torque, 8-4 AWG: 39.8 lb-in IEC Terminal Torque: 2.8 N·m UL Strip Length: 14.1 mm IEC Strip Length: 12.5 mm ENVIRONMENTAL Reference Temperature: 40 °C Conductor Temperature: 60/75 °C INSTALLATION / CONSTRUCTION Mounting Style: DIN Rail Module Width: 1-Pole Operating Handle: Toggle Position Indicator: Yes Terminal Configuration: Line / Load APPROVALS / MARKINGS UL: Listed UKCA: Yes EAC: Yes
