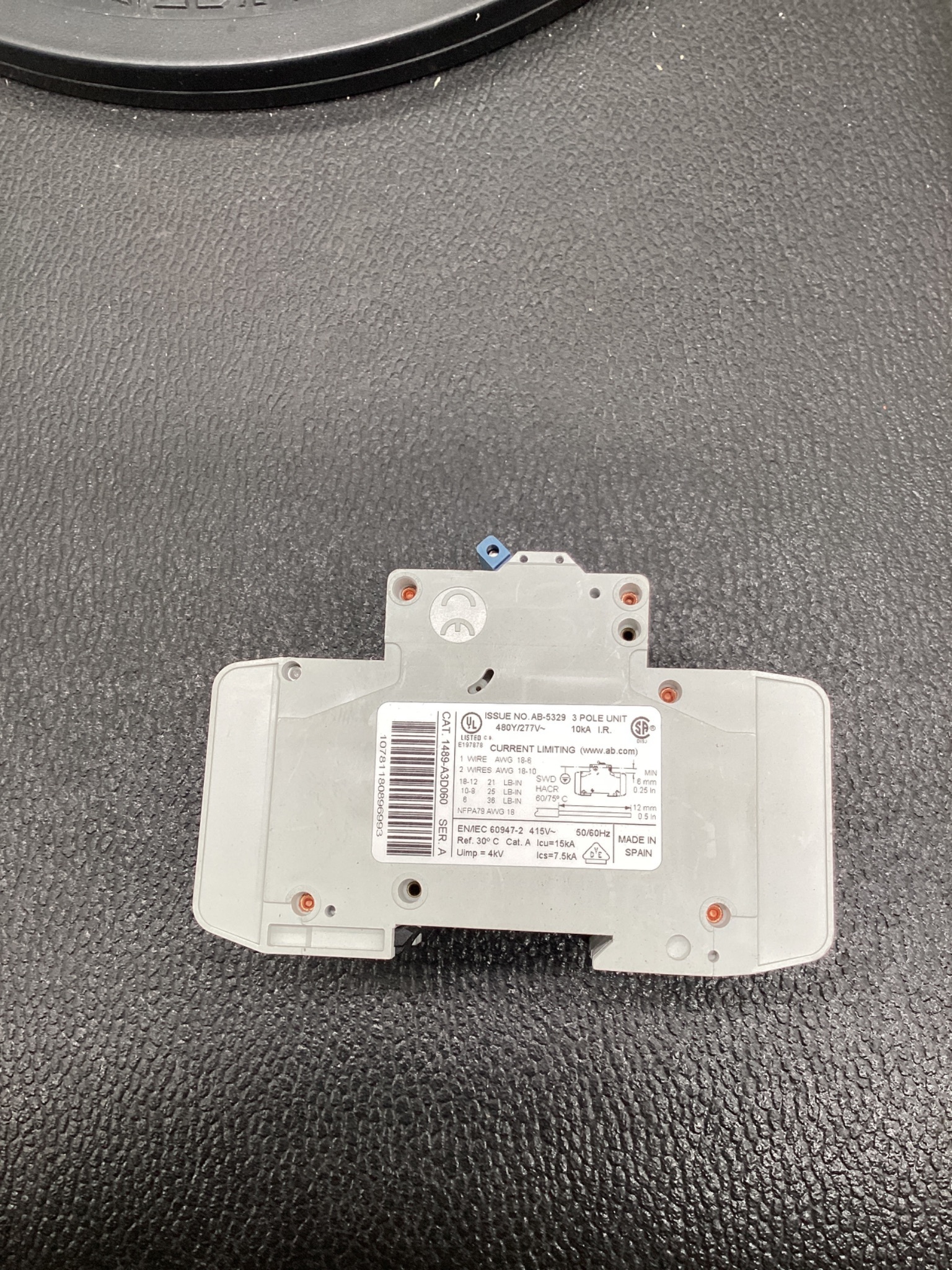

ALLEN-BRADLEY 1489-A3D060 3-Pole 6A D Curve Circuit Breaker USED

Specification Table

IDENTIFICATION Manufacturer: Allen-Bradley Catalog Number: 1489-A3D060 Series: A Product Type: Circuit breaker Number of Poles: 3 Condition: USED YOM: n/a Country of Manufacture: Spain   CIRCUIT PROTECTION Rated Current: 6 A Trip Characteristic: D Operating Mechanism: Common 3-pole toggle Interrupting Rating: 10 kA Reference Temperature: 40 °C   ELECTRICAL Voltage Rating: 480Y/277 VAC Frequency: 50/60 Hz Rated Insulation Voltage Ui: 415 VAC Impulse Withstand Voltage Uimp: 4 kV Short-Circuit Capacity Icn: 15 kA Short-Circuit Capacity Ics: 7.5 kA   CONNECTION Line Terminals: 1 / 3 / 5 Load Terminals: 2 / 4 / 6 Conductor Material: Copper only Single-Wire Range: AWG 18-6 Two-Wire Range: AWG 18-10 Terminal Torque: 1.2 Nm / 12 lb-in   INSTALLATION Mounting Type: DIN rail Module Configuration: 3-pole Terminal Type: Screw clamp   STANDARDS / APPROVALS IEC / EN Standard: IEC/EN 60947-2 UL Listed: Present CSA Marking: Present CE Marking: Present
