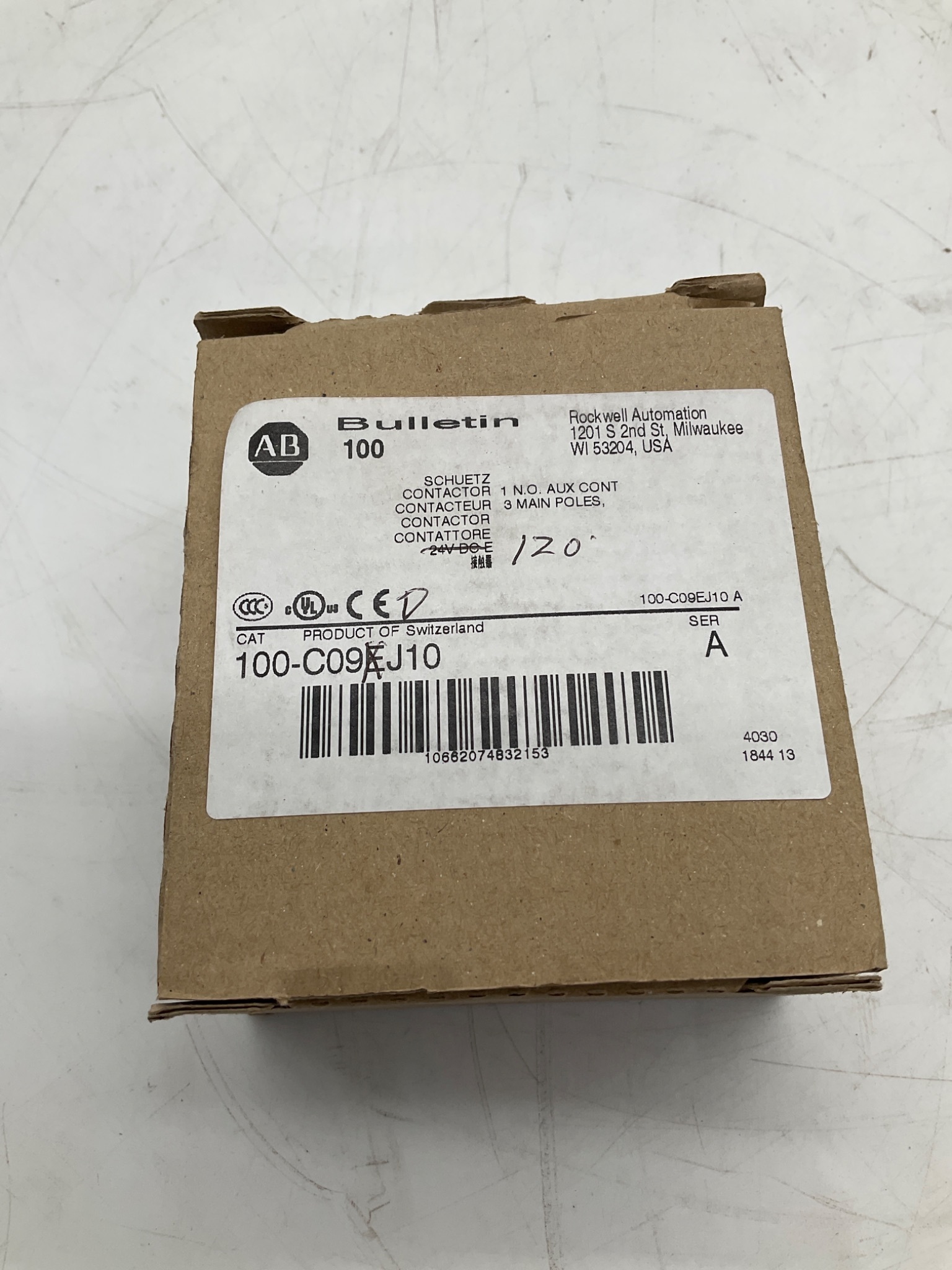

ALLEN-BRADLEY 100-C09DJ10 IEC Contactor 24VAC 50/60Hz NEW

Specification Table

Manufacturer: Allen-Bradley Series: Bulletin 100-C Part Number: 100-C09DJ10 Condition: NEW   Product Type: IEC Contactor Contactor Type: Motor Contactor Frame Size: C09   Main Contact Specifications   Number of Main Poles: 3 Main Contact Configuration: 3 NO Auxiliary Contact Configuration: 1 NO Integrated Auxiliary Contact: Yes   Coil Specifications   Control Voltage: 24 VAC Frequency: 50/60 Hz Coil Type: AC Operated   Electrical Specifications   Rated Operational Current (AC-3): 9 A Rated Operational Current (AC-1): 20 A Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): 6 kV Utilization Category: AC-3   Motor Ratings   Motor Rating @ 230 VAC: 2.2 kW Motor Rating @ 400 VAC: 4 kW Motor Rating @ 460 VAC: 5 HP Motor Rating @ 575 VAC: 7.5 HP   Mechanical Specifications   Mounting Type: DIN Rail Mount Mounting Type: Panel Mount Connection Type: Screw Terminal Compliance   UL Recognized: Yes CSA Certified: Yes CE Marked: Yes CCC Approved: Yes   Manufacturing Information   Country of Manufacture: Switzerland Series Revision: A YOM: n/a
