SOLD!

ADVANTAGE ENGINEERING TIP-100W Titan Industrial Water Chiller 100 Ton USED

$20,000.00
Availability:

1 in stock
BRAND: ADVANTAGE ENGINEERING MODEL: TIP-100W CONDITION: used
SKU: IGAM3470035 Weight: 6515 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

This listing is for a USED ADVANTAGE ENGINEERING TIP-100W Titan. This unit is designed to provide industrial water chilling by removing heat from circulating process water and supplying cooled fluid to connected equipment. It is commonly applied in plastics processing and industrial cooling systems requiring large-capacity operation with 460V 3-phase power, R407C refrigerant, and integrated multi-compressor configuration.

Specification Table

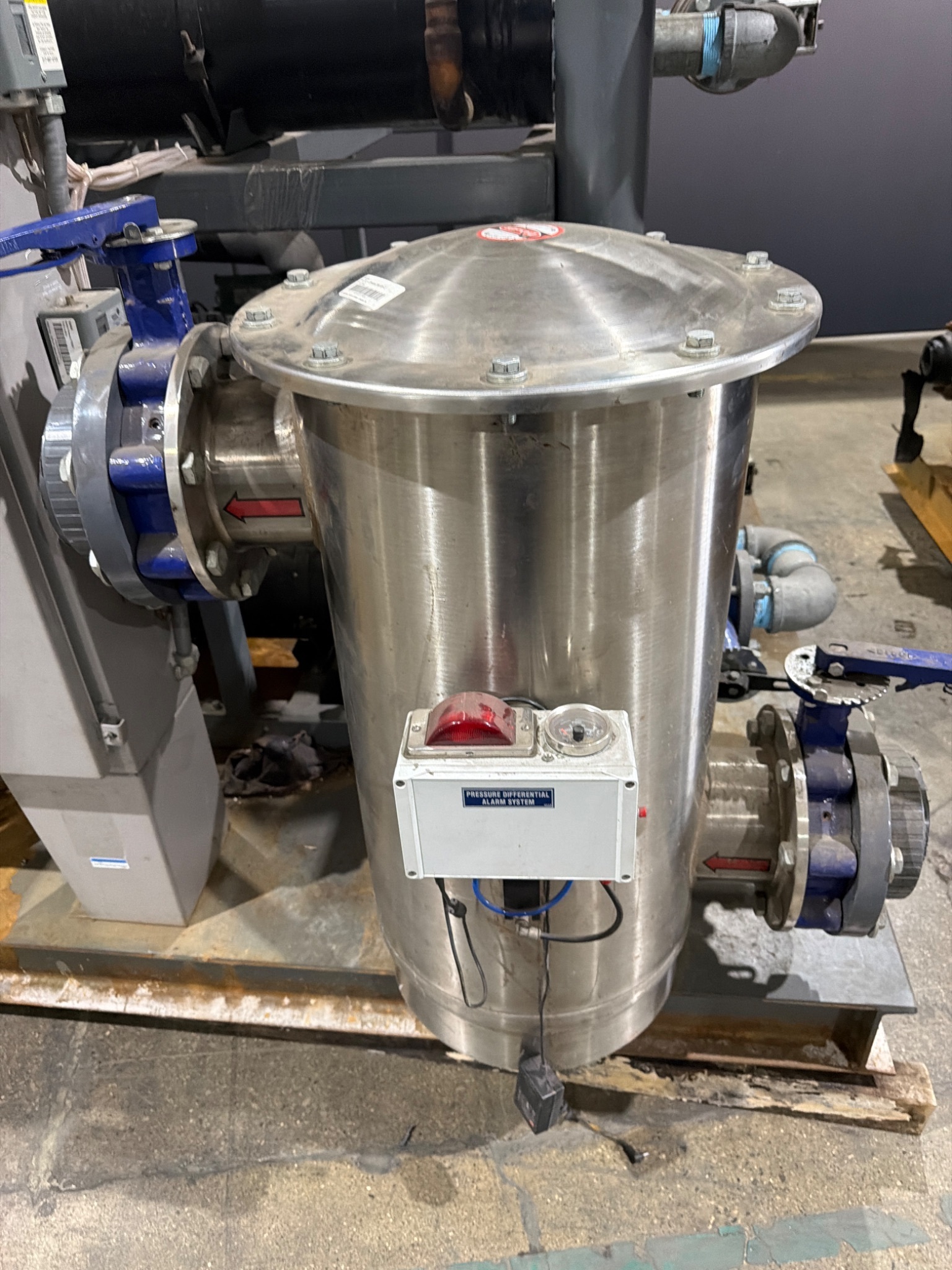

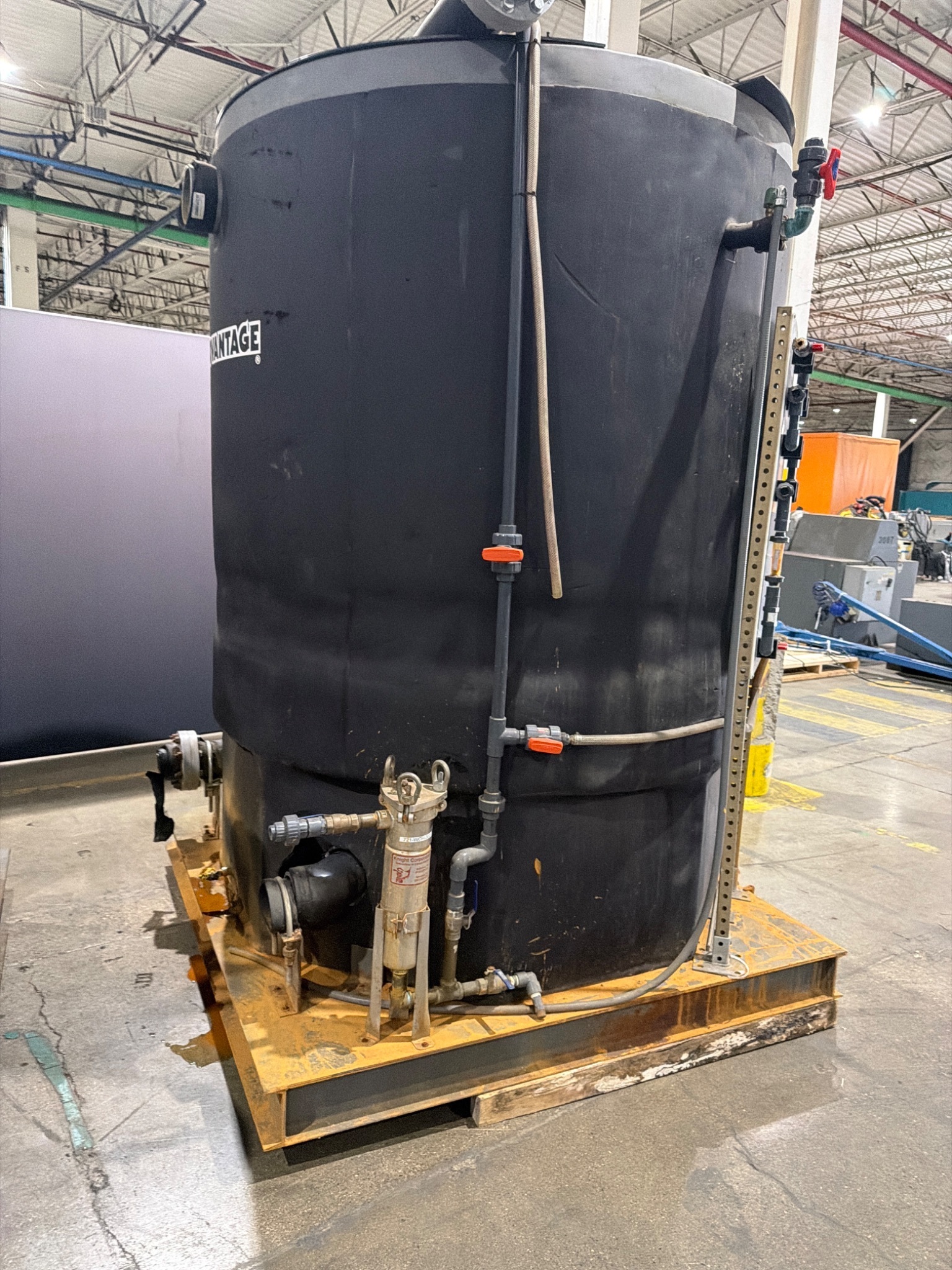

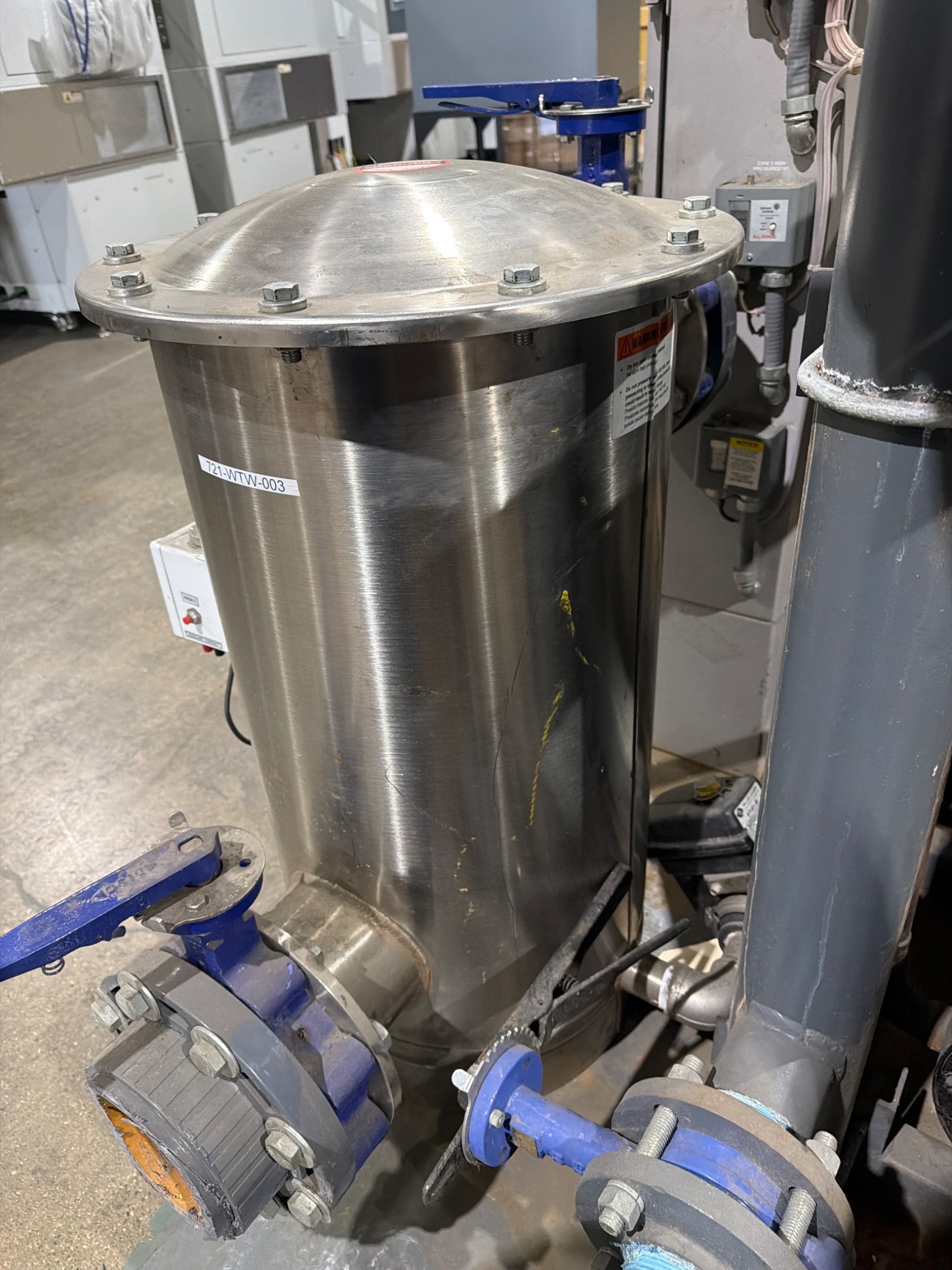

Manufacturer: Advantage Engineering Product Line: Titan Model: TIP-100W Condition: USED YOM: 2011 Device Type: Industrial Water Chiller Function: Removes heat from circulating water for process cooling Cooling Capacity: 100 ton Electrical: Voltage: 460 V Phase: 3 Phase Frequency: 60 Hz Full Load Amps (FLA): 264 Refrigeration: Refrigerant Type: R407C Compressor Configuration: Multiple compressors Short Circuit Current Rating: 5 kA RMS @ 600V max Control System: - Integrated control panel - Emergency stop / disconnect - Monitoring interface with gauges Fluid System: - Circulation pump system - Piping manifold - Stainless reservoir vessel - External storage tank - Inline filtration housing Pressure Rating: Maximum Pressure: 100 PSI Maximum Temperature: 125°F Additional Component: Accessory Unit Model: ACR-40B-7C Accessory Serial: UF-331 Mounting: Skid-mounted system Country of Manufacture: USA
