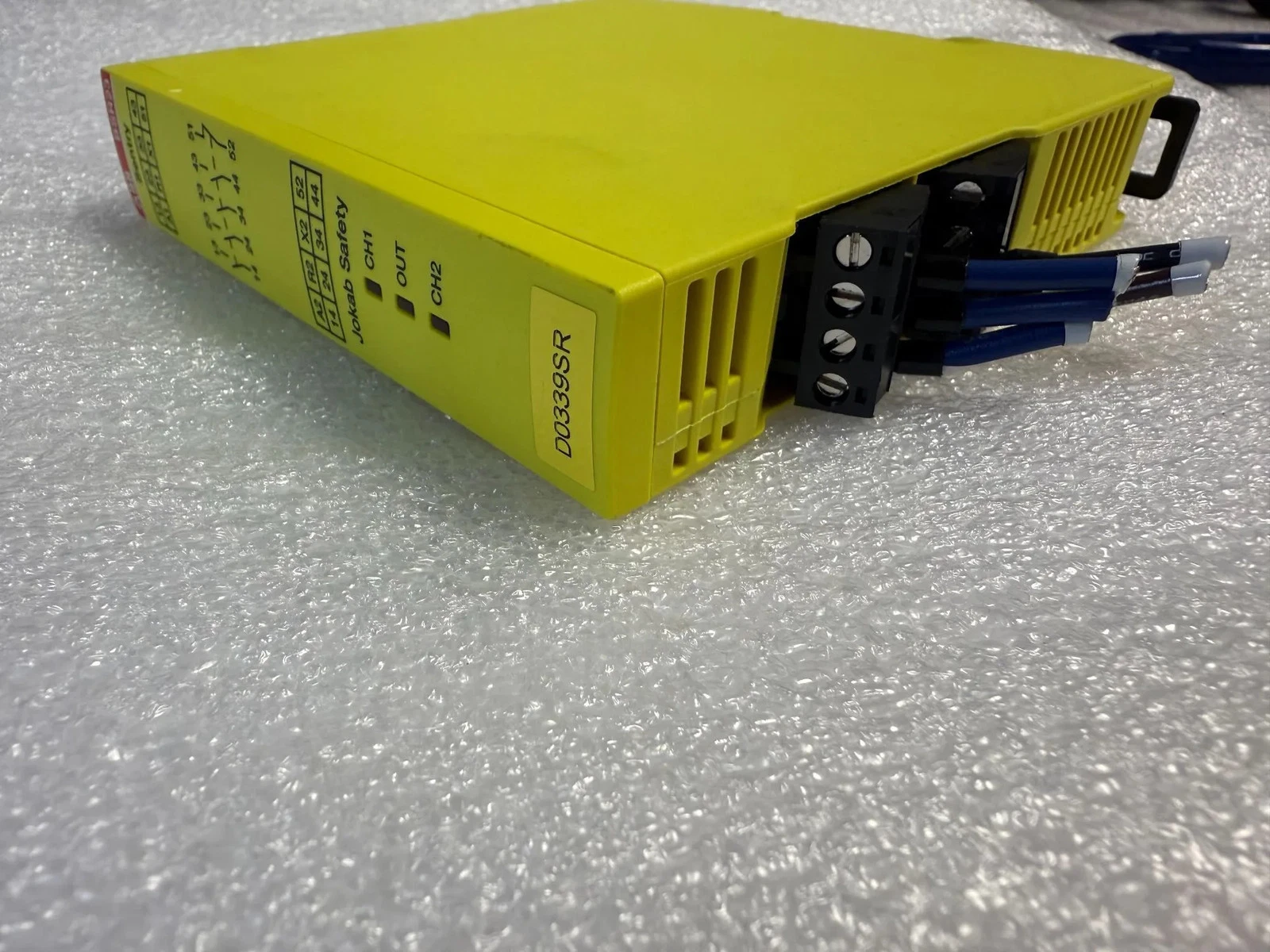

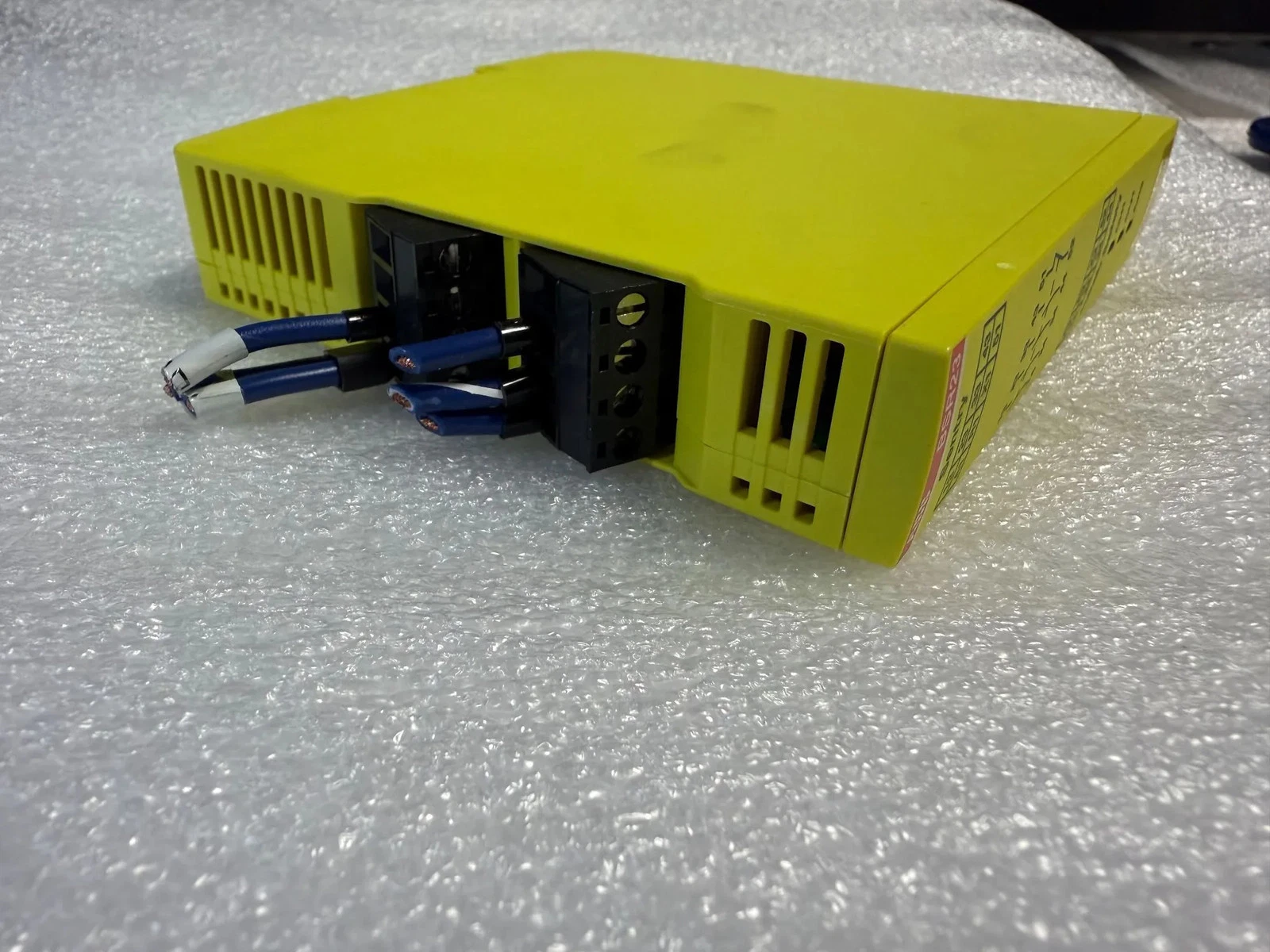

ABB 2TLA010041R0600 Sentry BSR23 Safety Relay USED

Specification Table

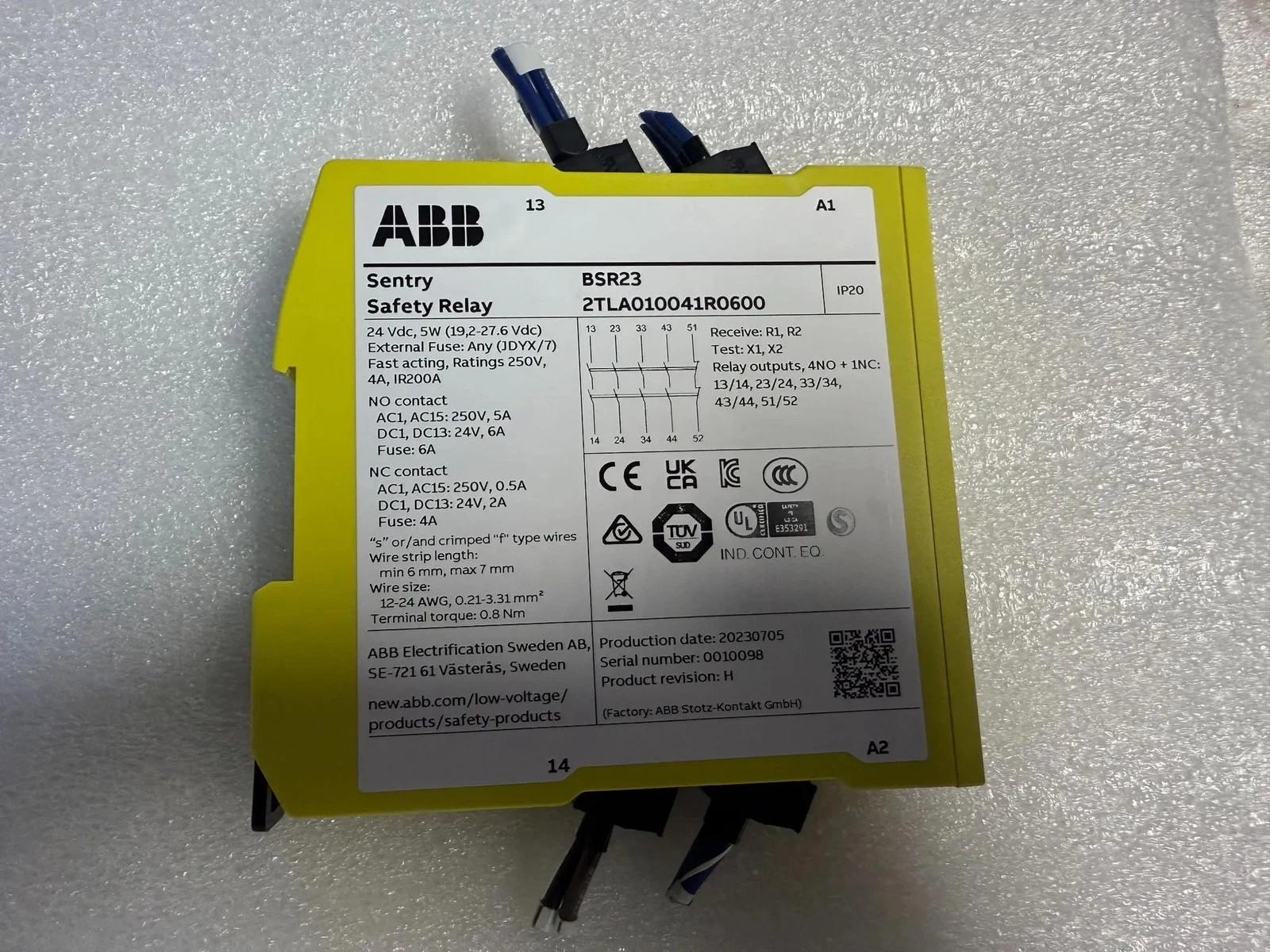

IDENTIFICATION Manufacturer: ABB Product Family: Sentry Model: BSR23 Part Number: 2TLA010041R0600 Product Type: Safety Relay Product Revision: H Serial Number: 0010098 Condition: USED YOM: 2023 POWER Supply Voltage: 24 VDC Operating Voltage Range: 19.2-27.6 VDC Power Consumption: 5 W Supply Terminals: A1 / A2 External Fuse: Any (JDTX/7) INPUT / CONTROL Receive Inputs: R1, R2 Test Inputs: X1, X2 Status Indicators: CH1, OUT, CH2 RELAY OUTPUTS Output Configuration: 4NO + 1NC NO Output Terminals: 13-14, 23-24, 33-34, 43-44 NC Output Terminals: 51-52 NO Contact AC1 Rating: 250 VAC, 5 A NO Contact AC15 Rating: 250 VAC, 5 A NO Contact DC1 Rating: 24 VDC, 6 A NO Contact DC13 Rating: 24 VDC, 6 A NO Contact Fuse: 6 A NC Contact AC1 Rating: 250 VAC, 0.5 A NC Contact AC15 Rating: 250 VAC, 0.5 A NC Contact DC1 Rating: 24 VDC, 2 A NC Contact DC13 Rating: 24 VDC, 2 A NC Contact Fuse: 4 A SWITCHING Relay Type: Fast Acting Mechanical Operations: 250 Million IR Rating: 200 A CONNECTION Wire Type: Solid / Ferruled Wire Size: 12-24 AWG Conductor Range: 0.21-3.31 mm² Wire Strip Length, Minimum: 6 mm Wire Strip Length, Maximum: 7 mm Terminal Torque: 0.8 Nm CONSTRUCTION / INSTALLATION Protection Rating: IP20 Mounting: DIN Rail Housing Color: Yellow Terminal Configuration: Removable Terminal Blocks APPROVALS / MARKINGS CE: Yes UKCA: Yes KC: Yes CCC: Yes RCM: Yes TÜV SÜD: Yes UL: Listed UL File Number: E353291 WEEE: Marked
