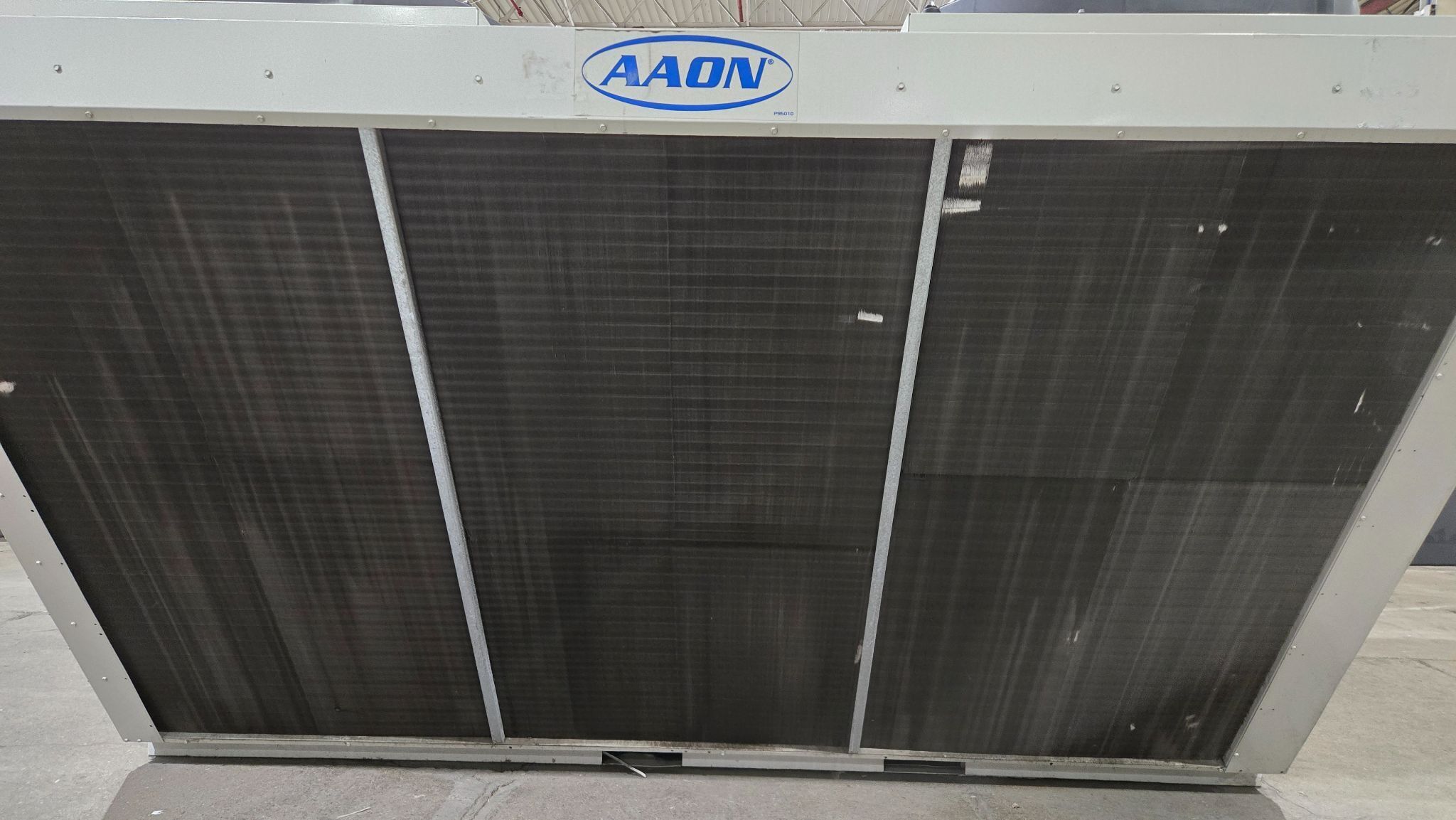

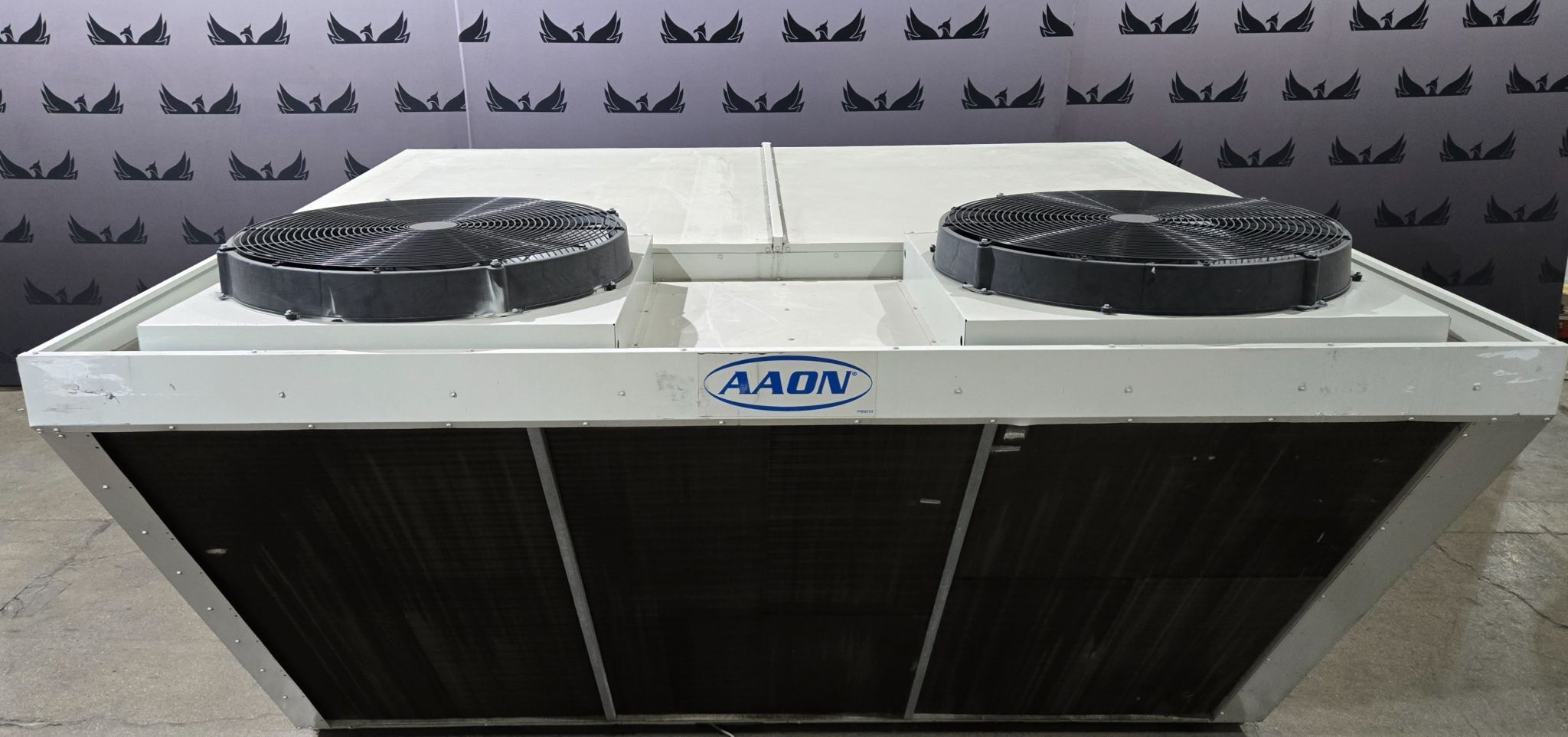

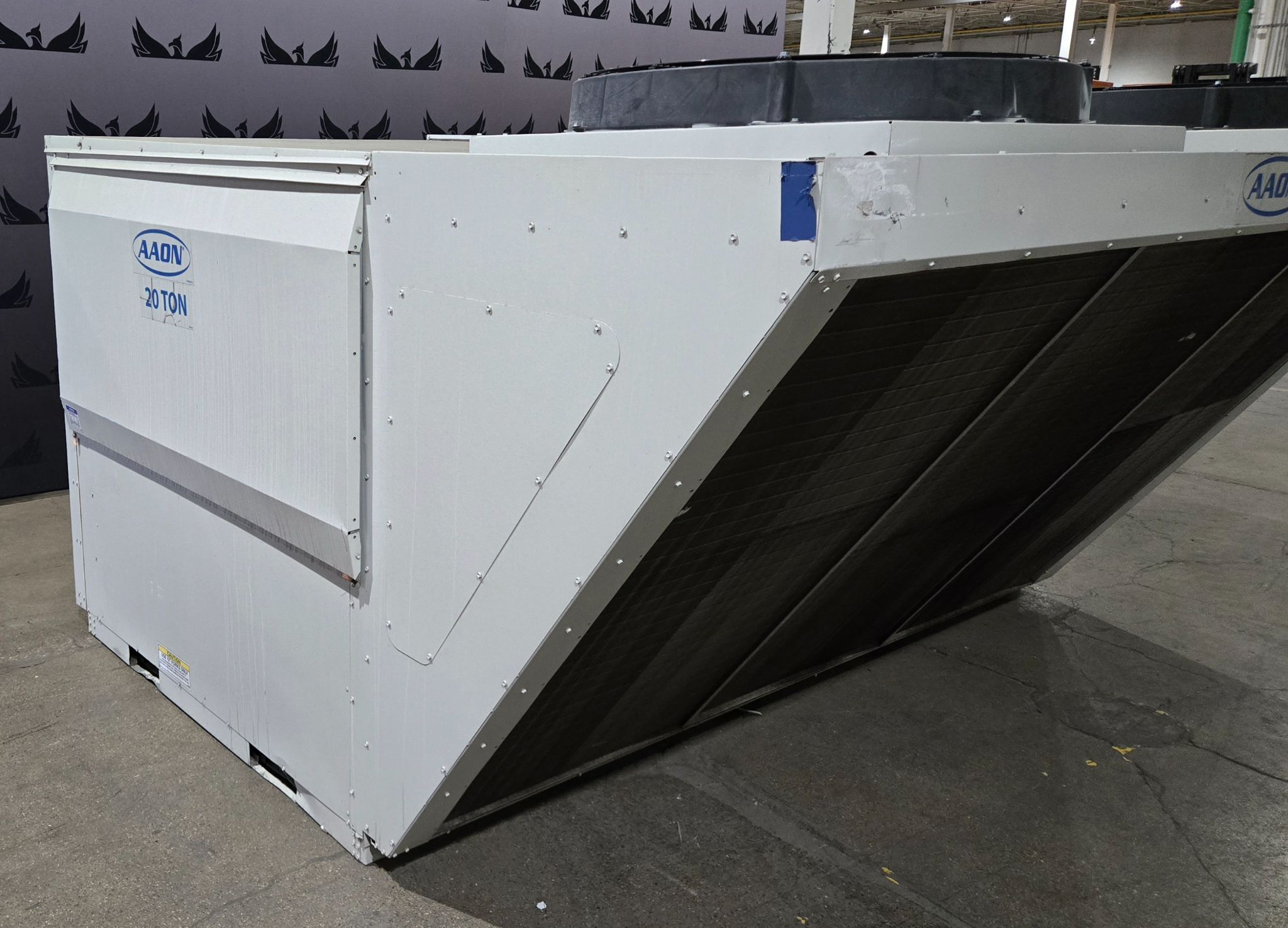

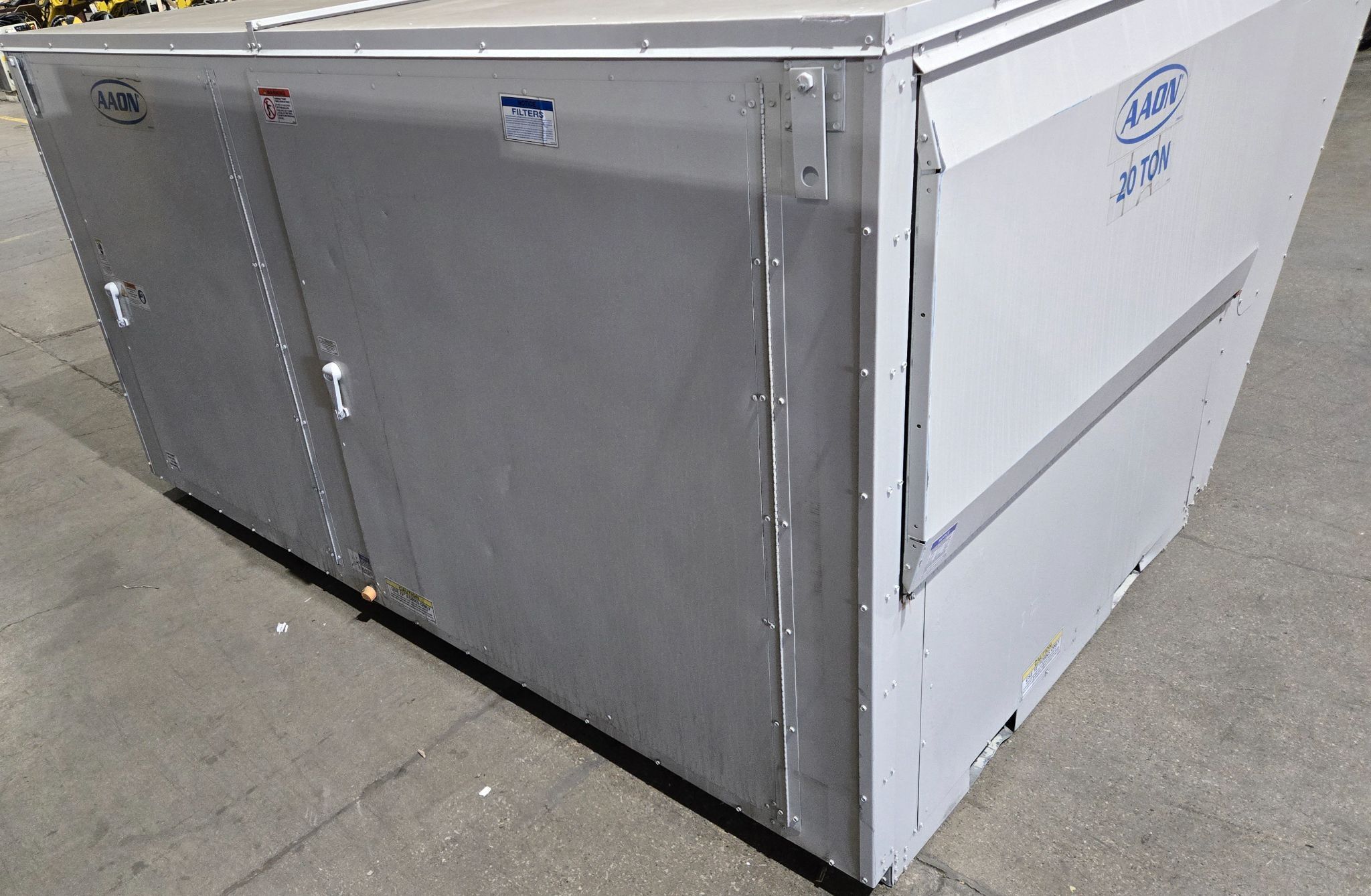

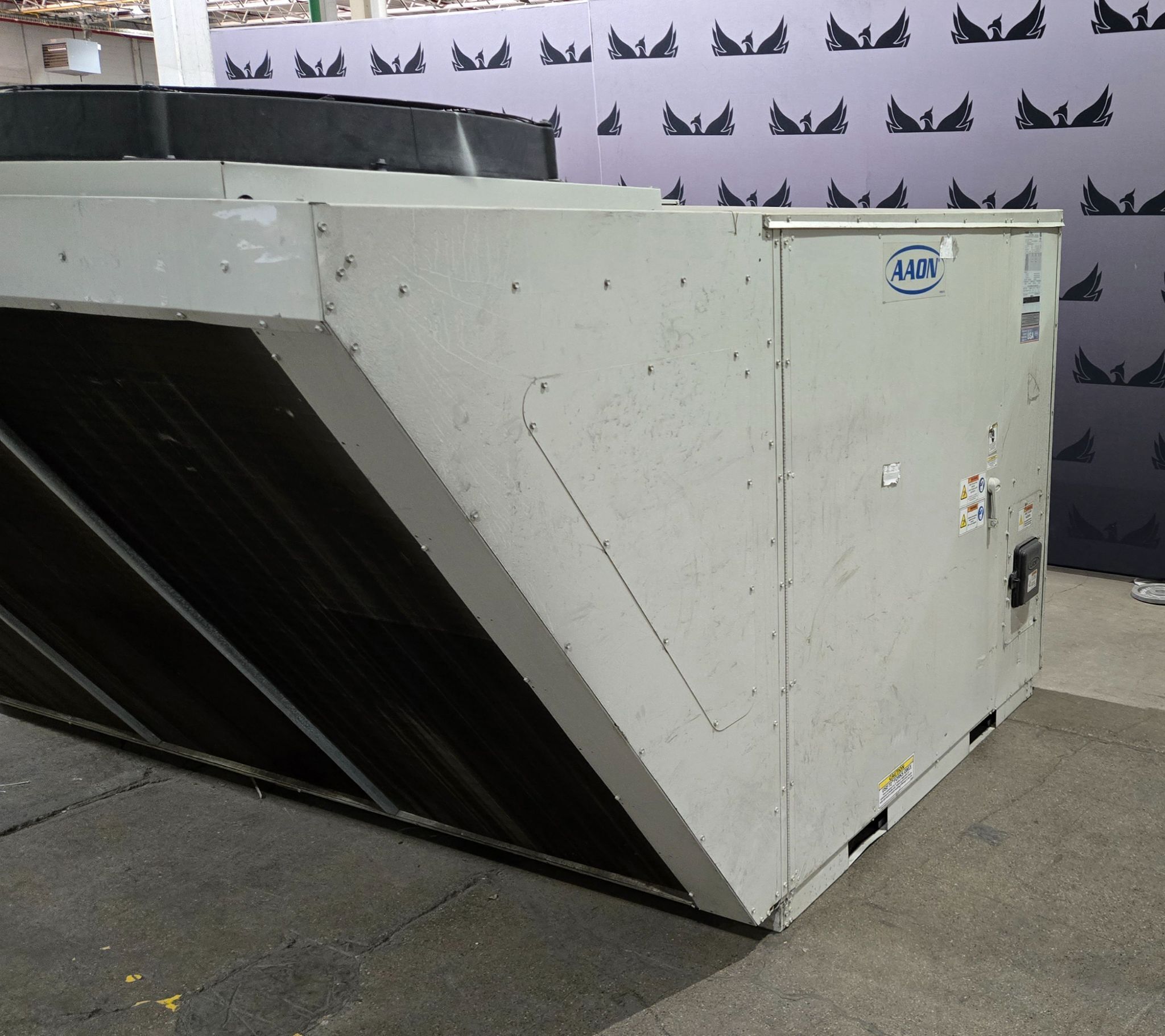

AAON RN-020-3-0-E60A-000 20 Ton Rooftop HVAC Unit 460V 3PH USED

Specification Table

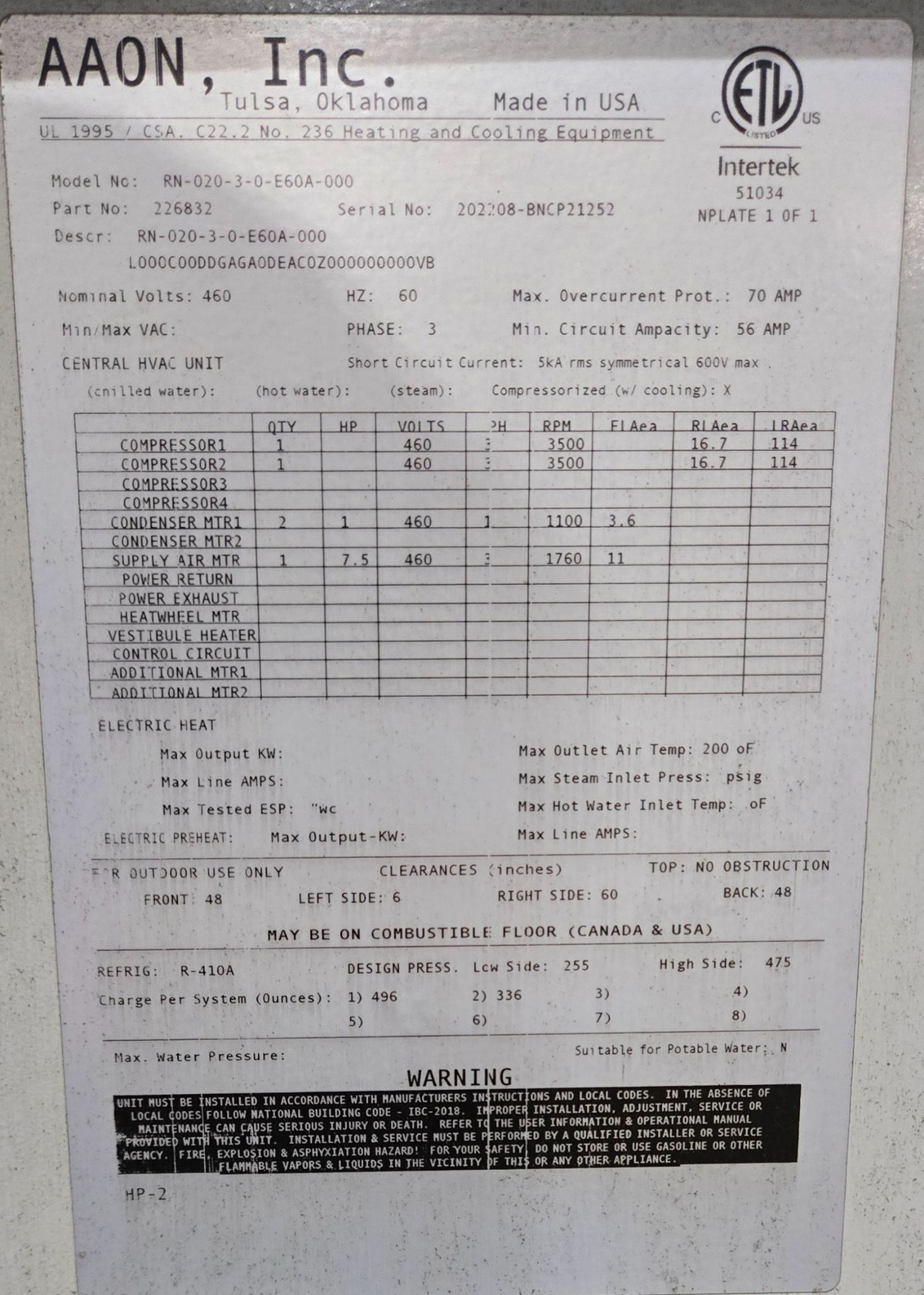

Manufacturer: AAON, Inc. Model: RN-020-3-0-E60A-000 Condition: USED YOM: 2022 Equipment Type: Packaged Rooftop HVAC Unit Cooling Capacity Class: 20 Ton Refrigerant Type: R-410A Refrigerant Charge Circuit 1: 496 oz Refrigerant Charge Circuit 2: 336 oz Cooling Configuration: Dual Circuit Compressor Quantity: 2 Compressor Motor Speed: 3500 RPM Compressor RLA: 16.7 A (each) Compressor LRA: 114 A Condenser Fan Quantity: 2 Condenser Motor Power: 1 HP each Condenser Motor Speed: 1100 RPM Condenser Motor FLA: 3.6 A Supply Air Motor Quantity: 1 Supply Motor Power: 7.5 HP Supply Motor Speed: 1760 RPM Supply Motor FLA: 11 A Nominal Voltage: 460 VAC Phase: 3 Phase Frequency: 60 Hz Minimum Circuit Ampacity (MCA): 56 A Maximum Overcurrent Protection: 70 A Short Circuit Rating: 5000 A symmetrical Design Pressure Low Side: 255 PSIG Design Pressure High Side: 475 PSIG Airflow Configuration: Top Discharge Condenser / Ducted Supply Air Section Cabinet Construction: Heavy Gauge Steel Packaged Enclosure Function: Packaged rooftop air conditioning unit providing large-scale building cooling
