75 HP Three Phase Electric Motor - 9 Lead Delta USED 0
75 HP Three Phase Electric Motor - 9 Lead Delta USED 1
75 HP Three Phase Electric Motor - 9 Lead Delta USED 2
75 HP Three Phase Electric Motor - 9 Lead Delta USED 3
75 HP Three Phase Electric Motor - 9 Lead Delta USED 4
75 HP Three Phase Electric Motor - 9 Lead Delta USED 5
75 HP Three Phase Electric Motor - 9 Lead Delta USED 6

SOLD!

TOSHIBA EQP Global 840 75 HP AC Motor USED

$2,000.00
Availability:

1 in stock
BRAND: TOSHIBA MODEL: EQP Global 840 CONDITION: Used
SKU: IGAM4010012 Weight: 778 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

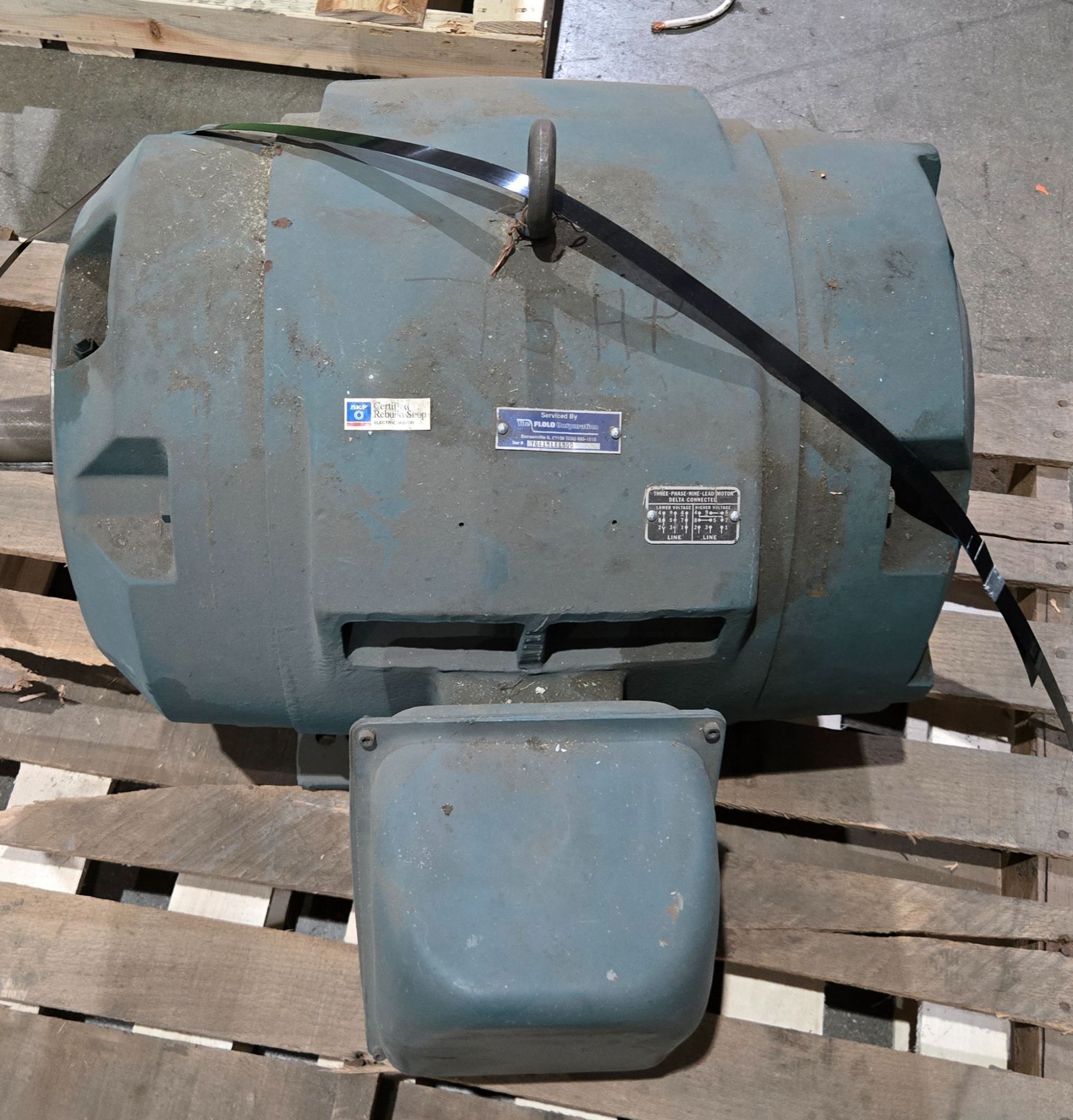

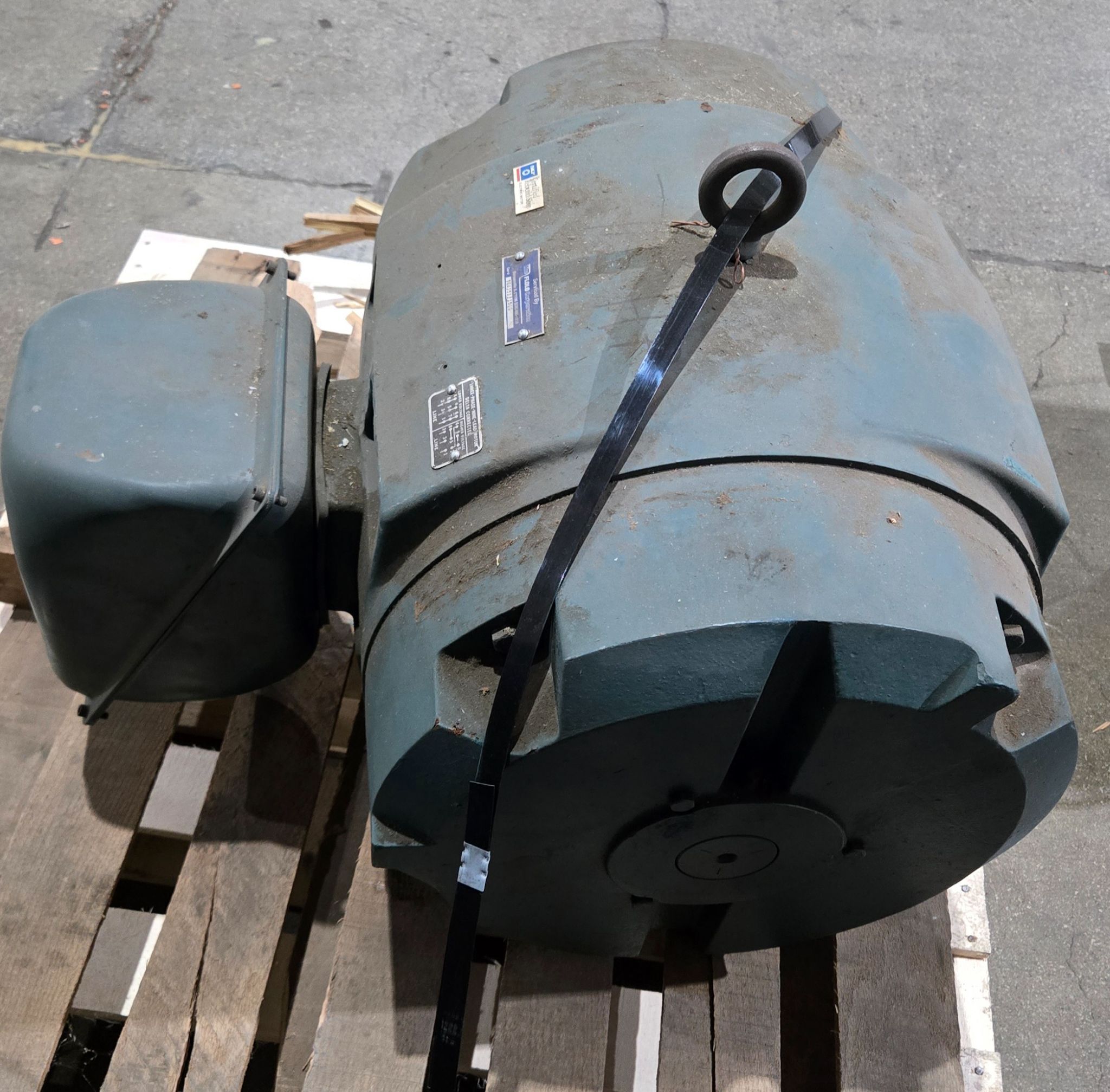

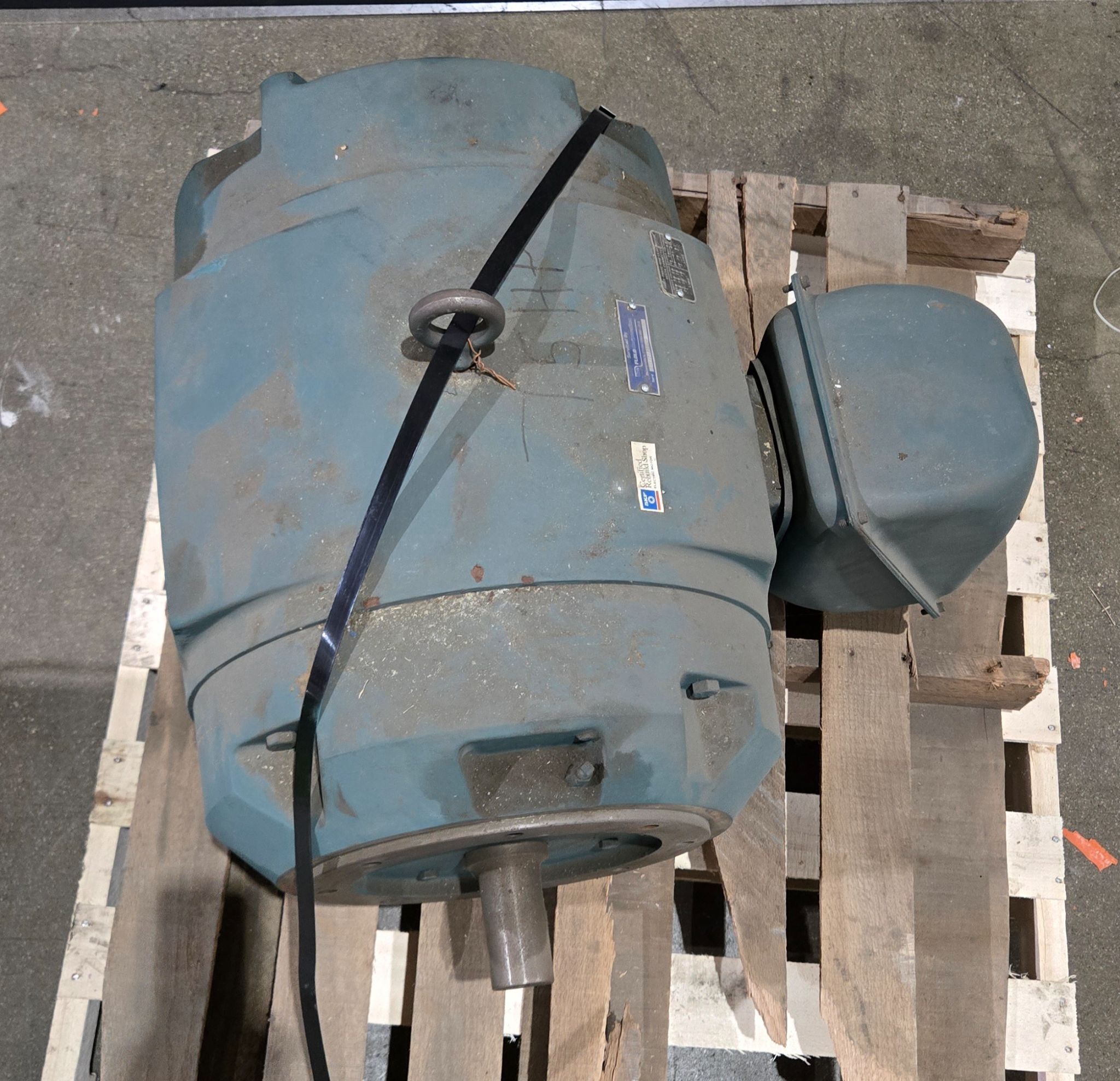

This listing is for a USED Toshiba EQP Global 840 75 HP AC motor. The motor features a three-phase design, nine-lead dual-voltage winding configuration, foot-mounted construction, and totally enclosed fan cooled (TEFC) enclosure. This 405T frame motor configuration includes 1780 RPM operation, Class F insulation, and 95.4% nominal efficiency.

Specification Table

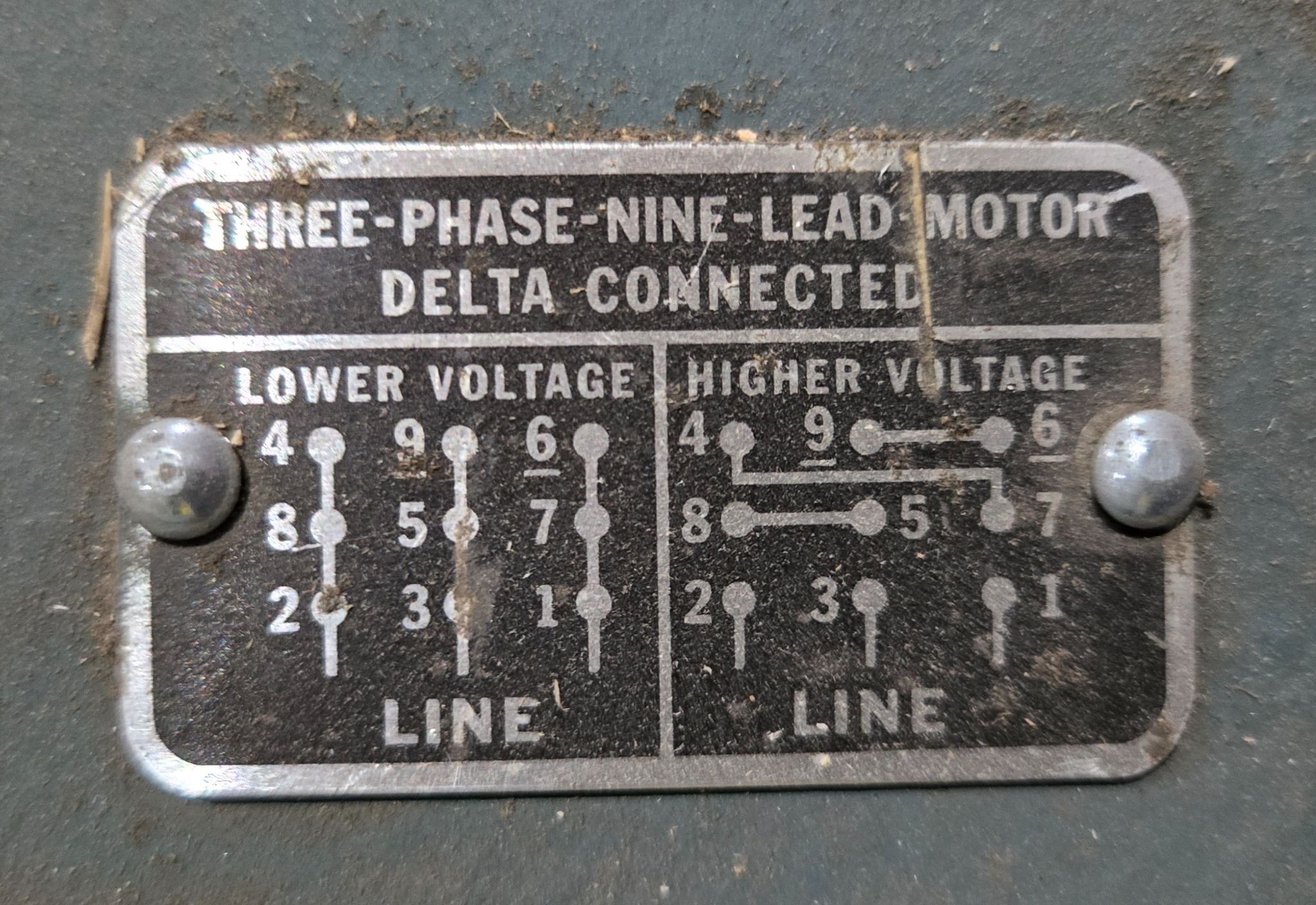

IDENTIFICATION Manufacturer: Toshiba Motor Family: EQP Global 840 Equipment Type: AC Motor Condition: USED POWER DATA Power Rating: 75 HP Power Rating: 55.9 kW MOTOR DATA Motor Type: Three-Phase Induction Motor Frame Size: 405T Full Load Speed: 1780 RPM Phase: 3 Frequency: 60 Hz ELECTRICAL Voltage: 460 VAC Full Load Current: 118 A Service Factor: 1.15 NEMA Design: B kVA Code: F EFFICIENCY NEMA Nominal Efficiency: 95.4% Full Load Efficiency: 95.4% Three-Quarter Load Efficiency: 95.1% Half Load Efficiency: 92.0% INSULATION & ENCLOSURE Enclosure Type: TEFC IP Rating: IP56 Insulation Class: F Duty Rating: Continuous Ambient Rating: 40°C WIRING DATA Lead Configuration: 9 Lead Connection Style: Delta LOW VOLTAGE CONNECTION 1-7 2-8 3-9 4-5-6 Tied Together HIGH VOLTAGE CONNECTION 1 Line 2 Line 3 Line 4-7 5-8 6-9 MECHANICAL DATA Mounting Configuration: Foot Mounted Shaft Diameter: 2.875 in. Shaft Key Size: 0.75 x 0.75 x 5.62 in. Frame Construction: Cast Iron Conduit Size: 3.00 in. NPT BEARING DATA Drive End Bearing: 6317C3 Opposite End Bearing: 6313C3TMB
