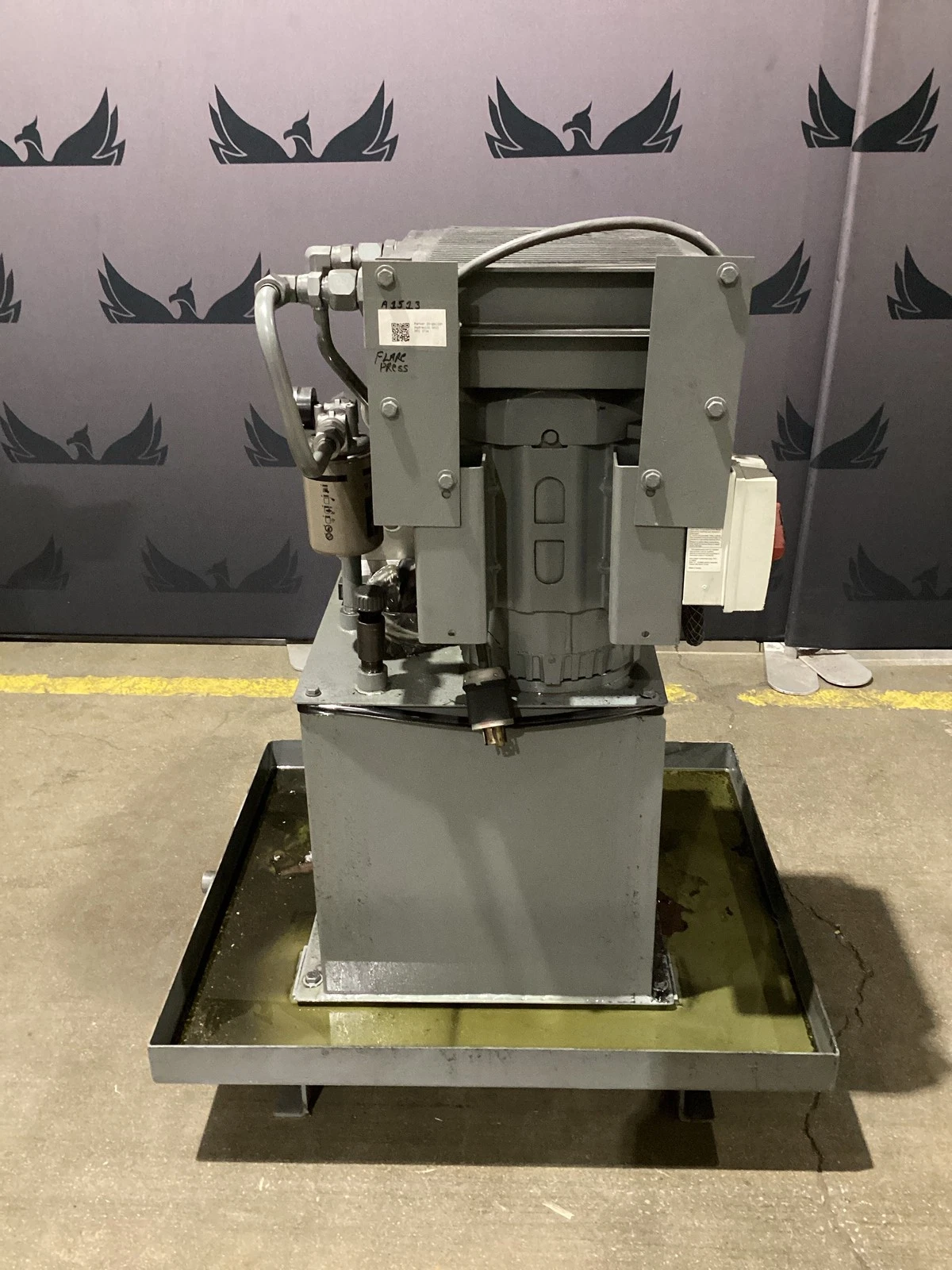

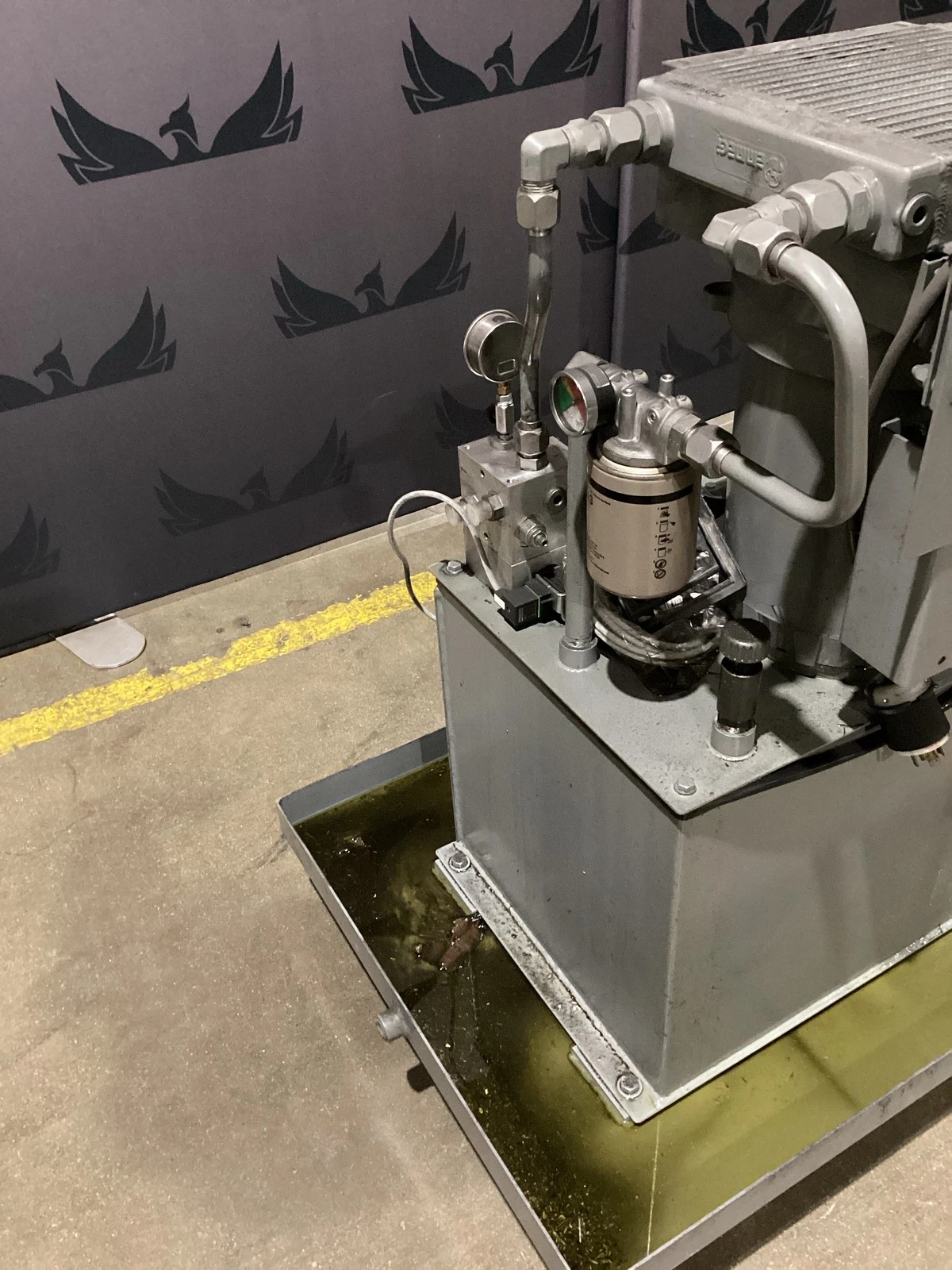

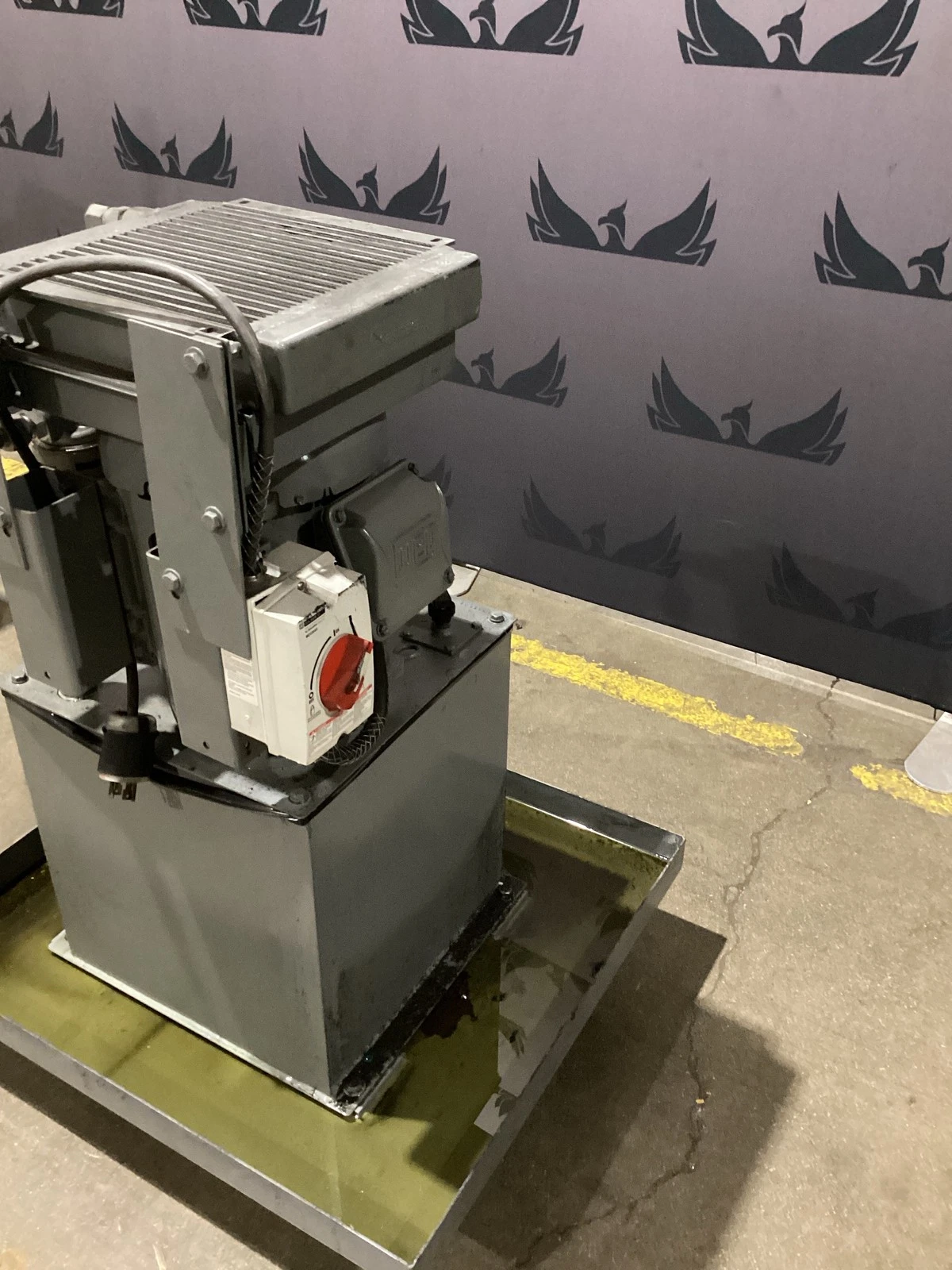

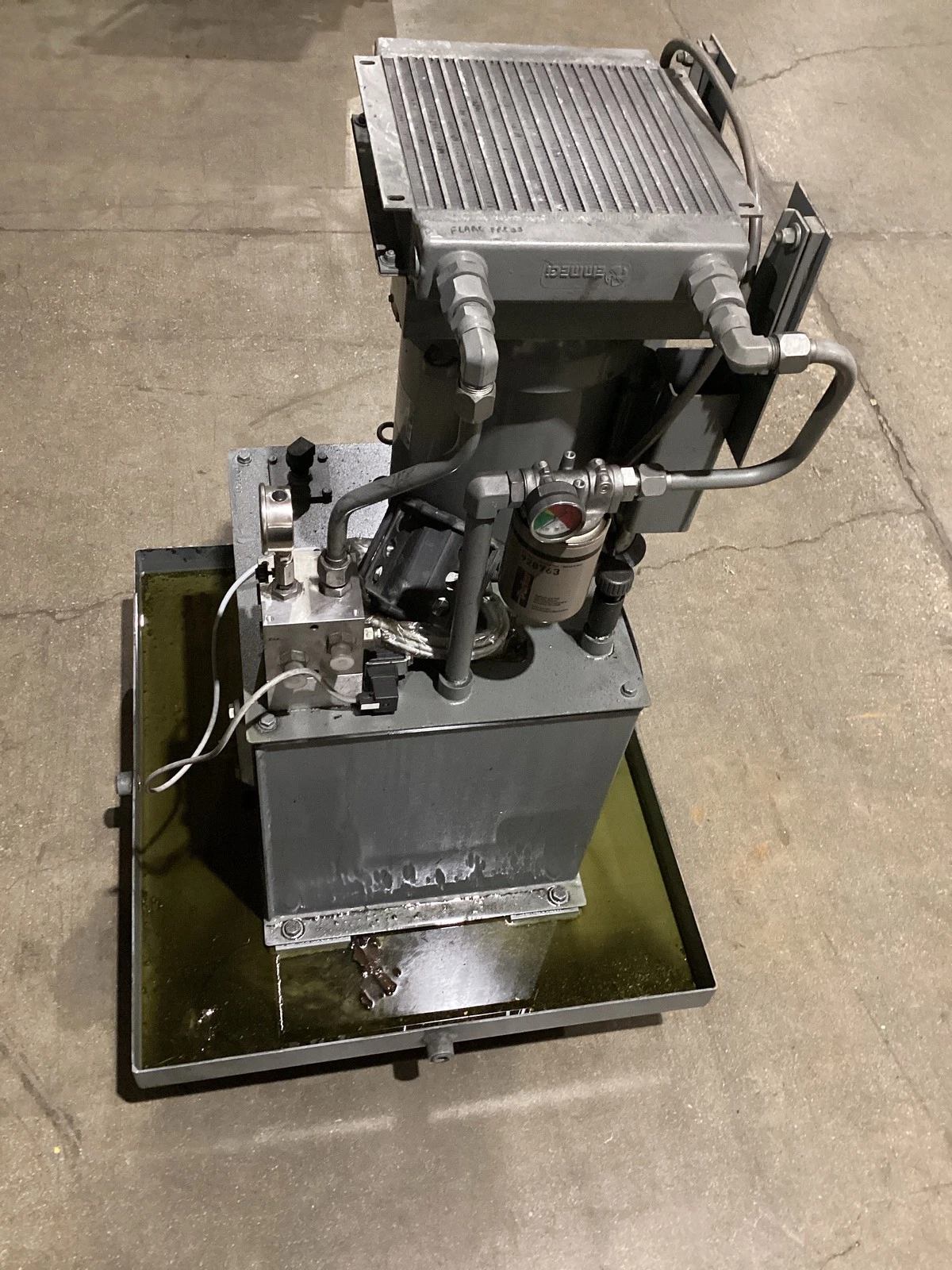

7.5 HP Hydraulic Power Unit w/ Heat Exchanger 230/460V 3-Phase USED

Specification Table

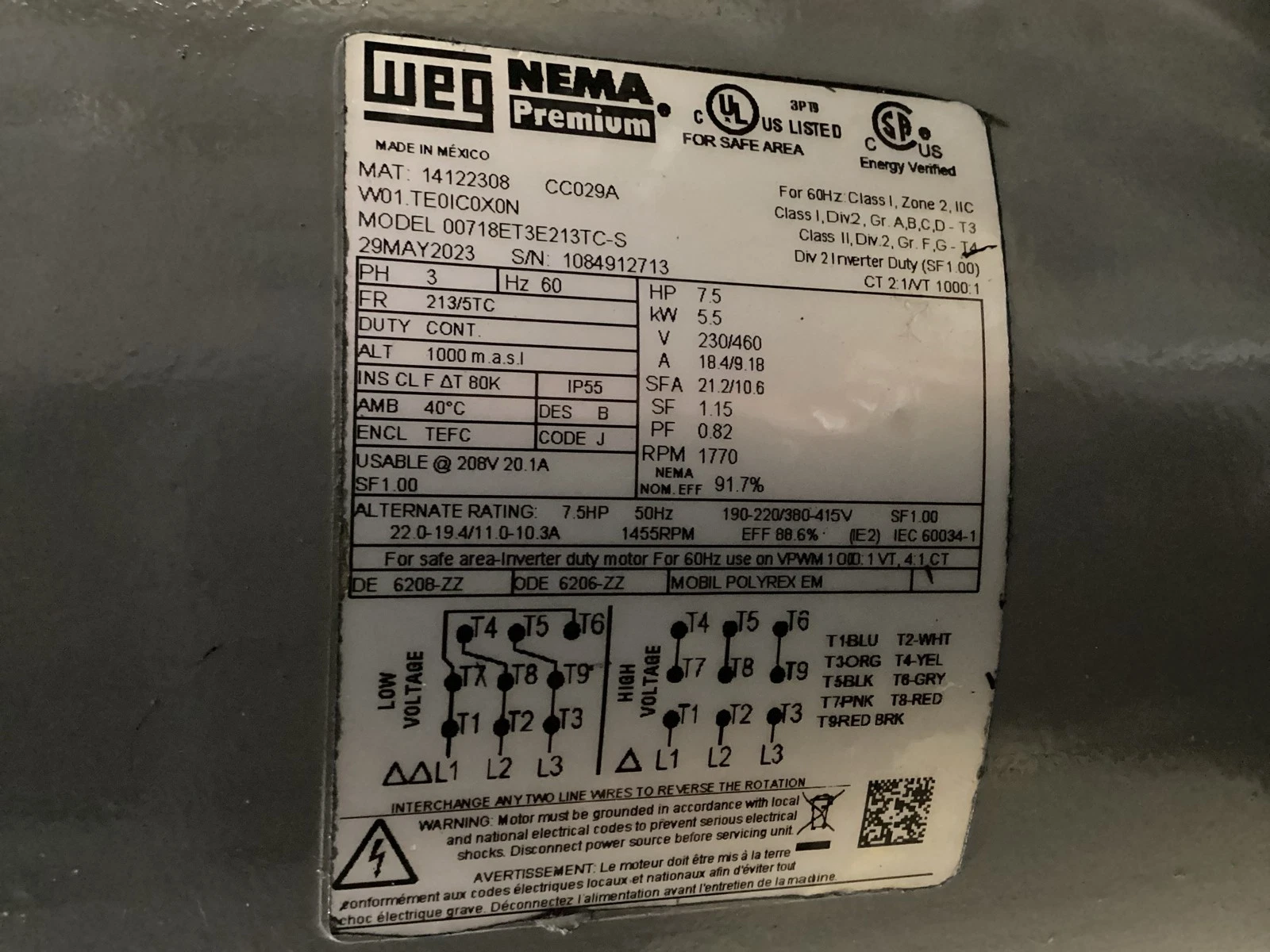

IDENTIFICATION System Manufacturer: Not specified System Model: Not specified Product Type: Hydraulic Power Unit Condition: USED YOM: n/a   HYDRAULIC SYSTEM Drive Method: Electric Motor Hydraulic Pump: Included Reservoir: Included Hydraulic Filter: Included Heat Exchanger: Included System Operating Pressure: Not specified Pump Flow: Not specified Pump Displacement: Not specified Reservoir Capacity: Not specified Hydraulic Fluid: Not specified   MOTOR Manufacturer: WEG Series: NEMA Premium Model: 00718ET3E213TC-S Rated Power: 7.5 HP (5.5 kW) Frame: 213/5TC Phase: 3 Phase Frequency: 60 Hz Enclosure: TEFC Protection Rating: IP55 Duty: Continuous Insulation Class: F Ambient Temperature: 40°C NEMA Design: B NEMA Code: J Service Factor: 1.15 Power Factor: 0.82 Rated Speed: 1770 RPM Nominal Efficiency: 91.7% Motor Date: 29 May 2023 Motor Serial Number: 1084912713   60 HZ MOTOR ELECTRICAL Rated Voltage: 230 / 460 V Full Load Current: 18.4 / 9.18 A Service Factor Current: 21.2 / 10.6 A Usable at 208V: 20.1 A   50 HZ MOTOR ELECTRICAL Rated Voltage: 190-220 / 380-415 V Rated Current: 22.0-19.4 / 11.0-10.3 A Rated Speed: 1455 RPM Efficiency: 88.6% Service Factor: 1.00   MOTOR / DRIVE CAPABILITY Inverter Duty: Yes 60 Hz VPWM Rating: 1000:1 VT / 4:1 CT Motor Classification: Safe Area   MOTOR BEARINGS Drive-End Bearing: 6208-ZZ Opposite-End Bearing: 6206-ZZ Bearing Grease: Mobil Polyrex EM   HEAT EXCHANGER Manufacturer: Enimegi Heat Exchangers, Inc. Model: 2024K-MM-2P-JE12 Maximum Working Pressure: 250 PSI Maximum Working Temperature: 250°F Manufacturing Code: SC124462 Manufacturing Date Code: 231205   INSTALLATION Configuration: Reservoir-Mounted Mounting Type: Floor / Base Mount
