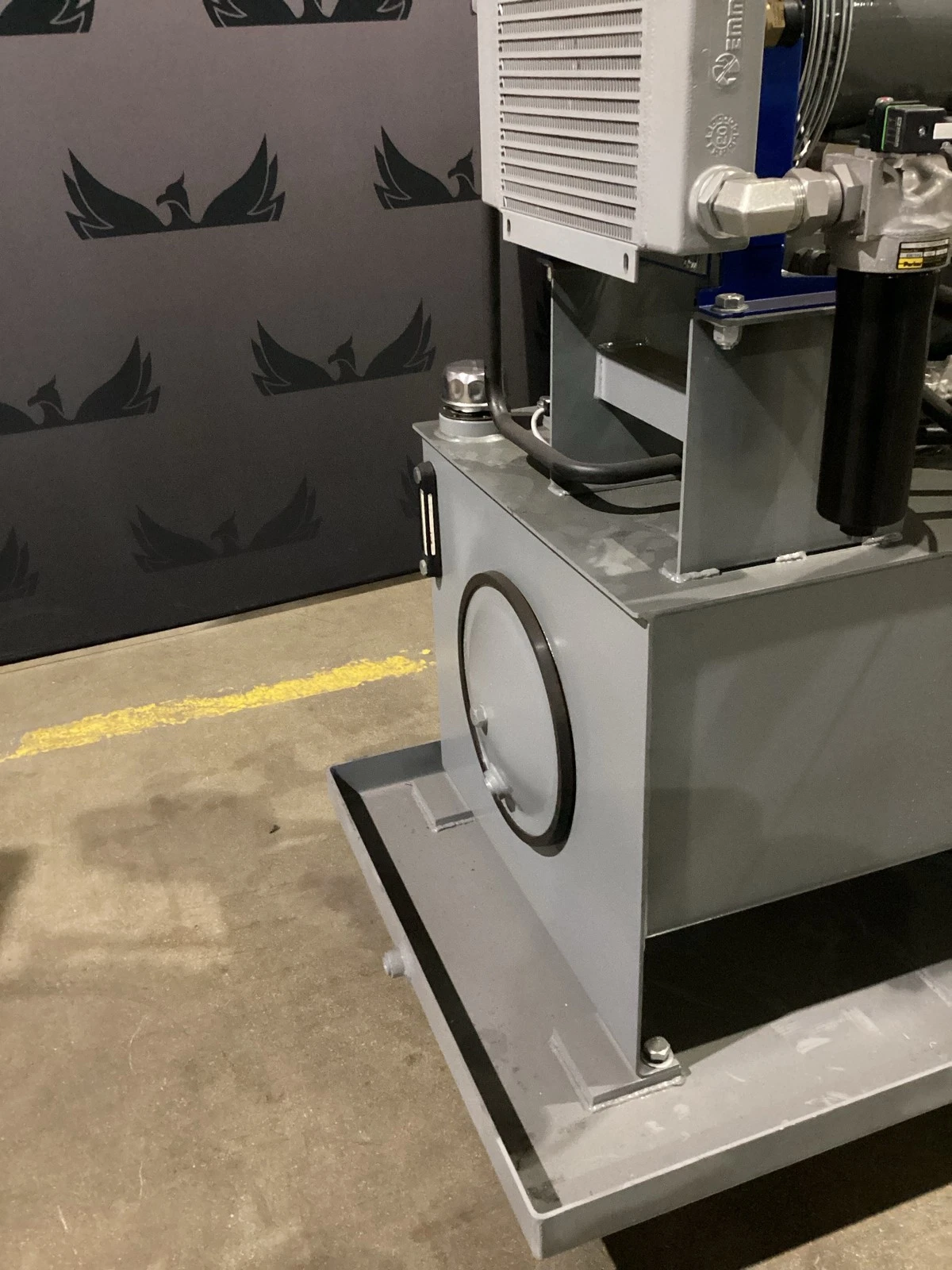

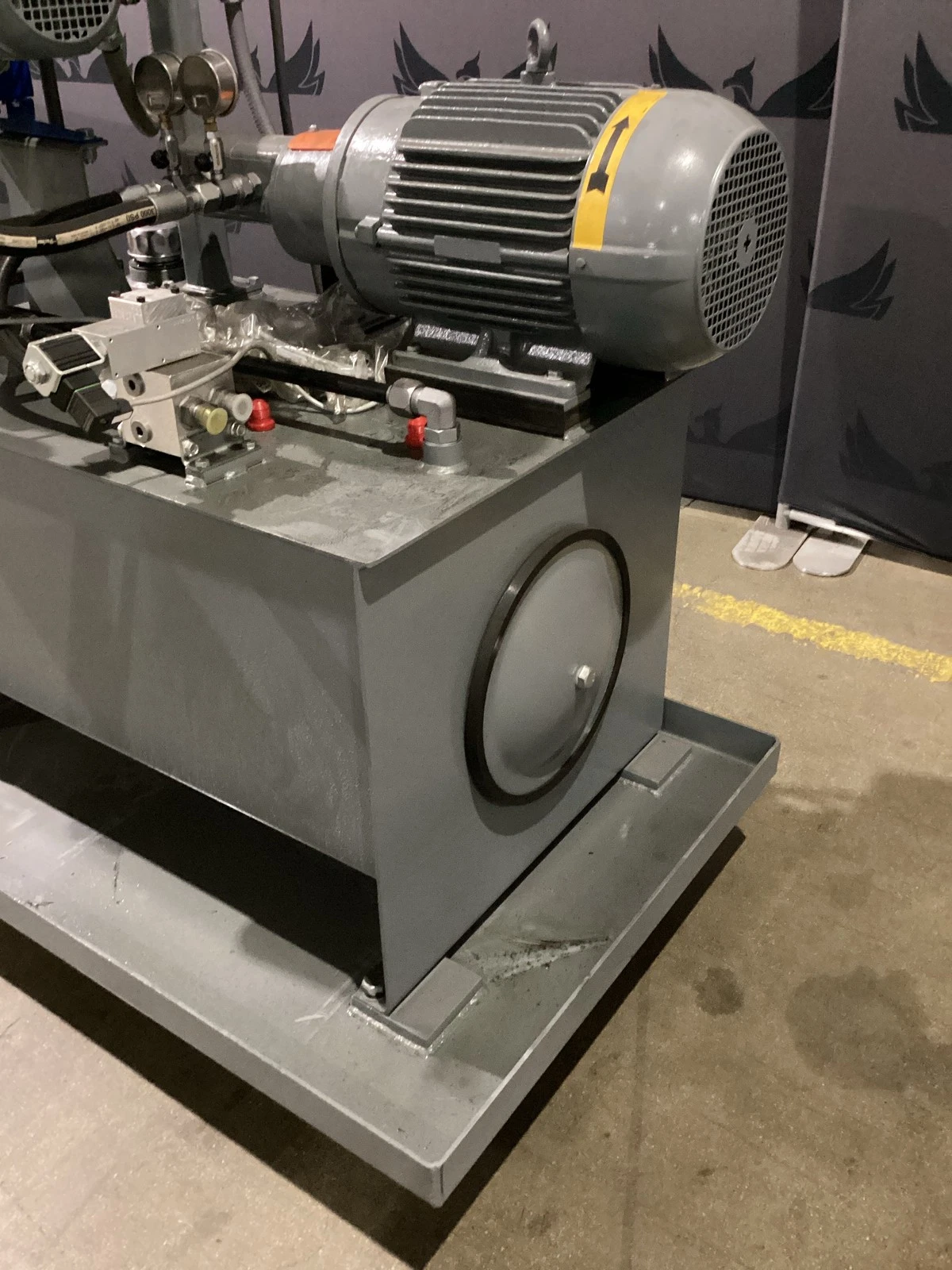

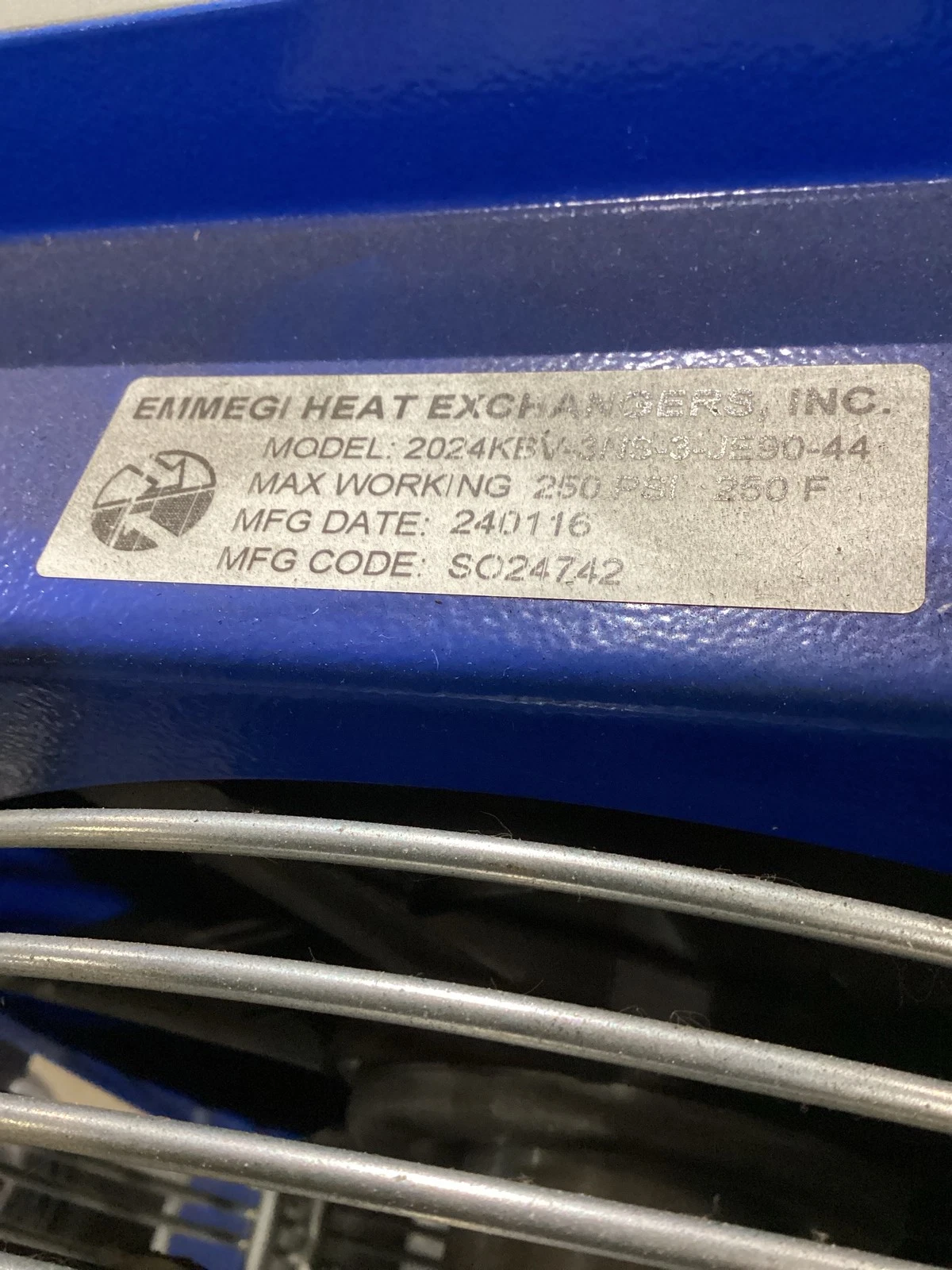

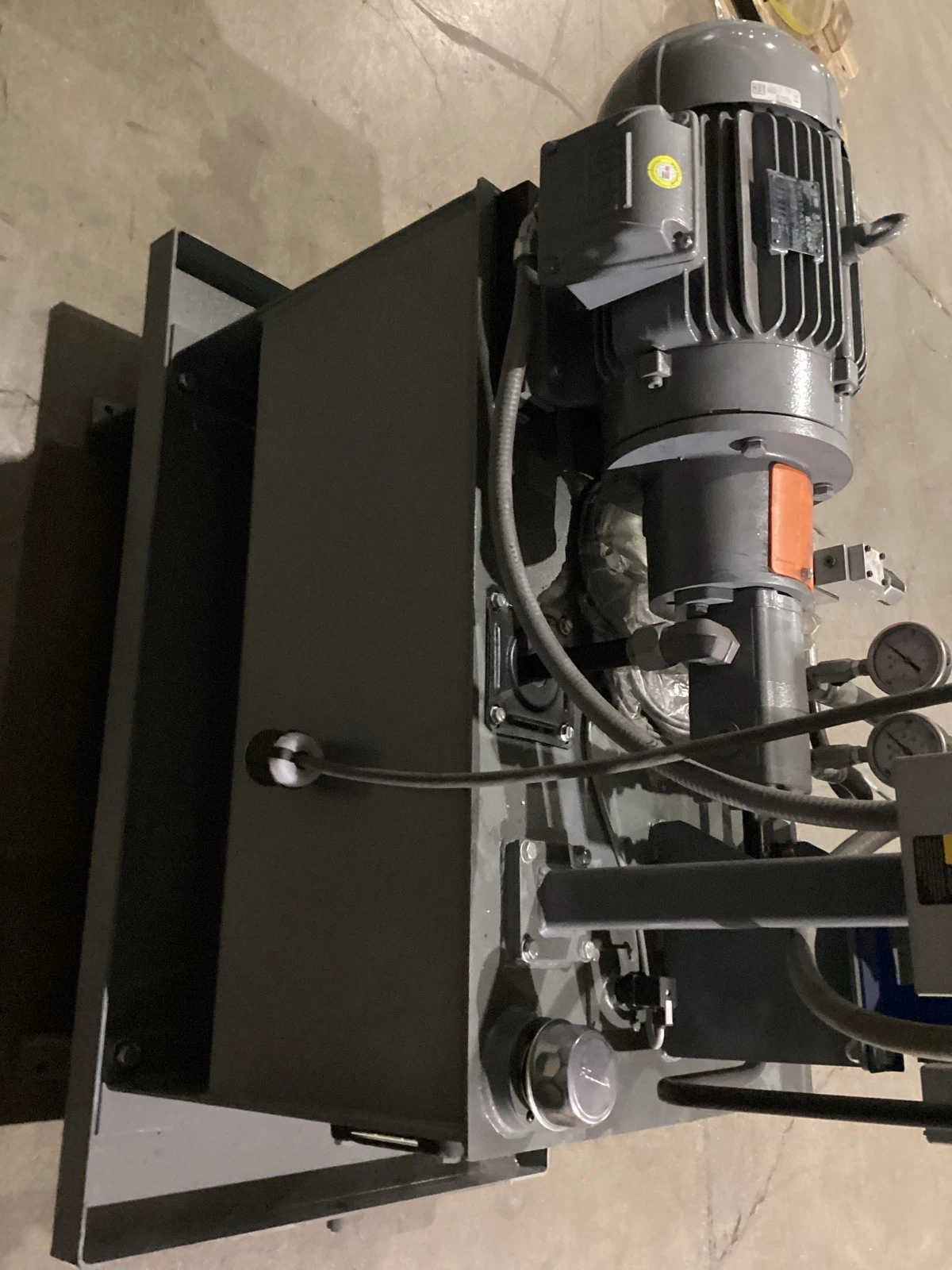

7.5 HP Hydraulic Power Unit w/ Enimegi Heat Exchanger 230/460V USED

Specification Table

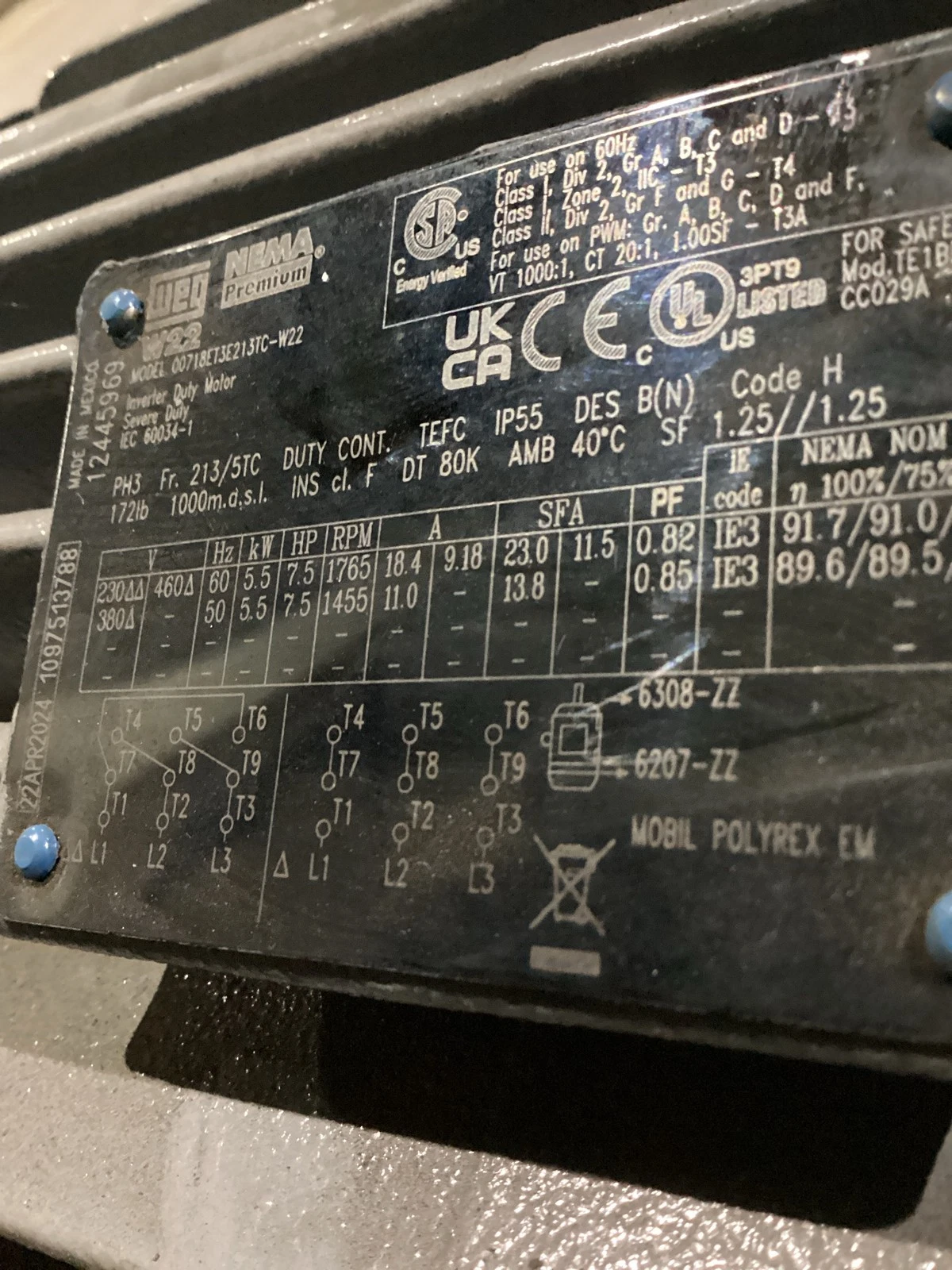

IDENTIFICATION System Manufacturer: Not specified System Model: Not specified Product Type: Hydraulic Power Unit Condition: USED YOM: n/a   HYDRAULIC SYSTEM Drive Method: Electric Motor Hydraulic Pump: Included Reservoir: Included Hydraulic Filter: Included Pressure Gauges: Included Fluid Cooler: Included System Operating Pressure: Not specified Pump Flow: Not specified Pump Displacement: Not specified Reservoir Capacity: Not specified Hydraulic Fluid: Not specified   MAIN MOTOR Manufacturer: WEG Product Line: NEMA Premium W22 Model: 00718ET3E213TC-W22 Motor Type: Severe Duty Rated Power: 7.5 HP (5.5 kW) Frame: 213/5TC Phase: 3 Phase Enclosure: TEFC Protection Rating: IP55 Duty: Continuous Insulation Class: F Temperature Rise: 80 K Ambient Temperature: 40°C NEMA Design: B NEMA Code: H Motor Weight: 172 lb.   MAIN MOTOR - 60 HZ ELECTRICAL Rated Voltage: 230 / 460 V Frequency: 60 Hz Full Load Current: 18.4 / 9.18 A Rated Speed: 1765 RPM Service Factor: 1.25 Service Factor Current: 23.0 / 11.5 A Power Factor: 0.82 Nominal Efficiency: 91.7%   MAIN MOTOR - 50 HZ ELECTRICAL Rated Voltage: 380 V Frequency: 50 Hz Rated Current: 11.0 A Rated Speed: 1455 RPM Service Factor: 1.25 Service Factor Current: 13.8 A Power Factor: 0.85 Nominal Efficiency: 89.6%   MAIN MOTOR - BEARINGS Drive-End Bearing: 6308-ZZ Opposite-End Bearing: 6207-ZZ Bearing Grease: Mobil Polyrex EM   MAIN MOTOR - CERTIFICATIONS CSA: Energy Verified UL: Listed CE: Marked UKCA: Marked   HEAT EXCHANGER Manufacturer: Enimegi Heat Exchangers, Inc. Cooling Method: Forced Air Maximum Working Pressure: 250 PSI Maximum Working Temperature: 250°F Manufacturing Date: 24/07/16 Manufacturing Code: SC242742 Model: Not specified   COOLING CONFIGURATION Heat Exchanger Fan: Included Fan Drive: Electric Motor Cooler Installation: Reservoir-Mounted   INSTALLATION / CONFIGURATION System Configuration: Reservoir-Mounted Mounting Type: Floor / Base Mount Reservoir Construction: Welded Metal Cooler Configuration: Fan-Cooled Hydraulic Connections: Hose / Tube
