3XMFA083 Electronic Module I/O Test Fixture USED

Specification Table

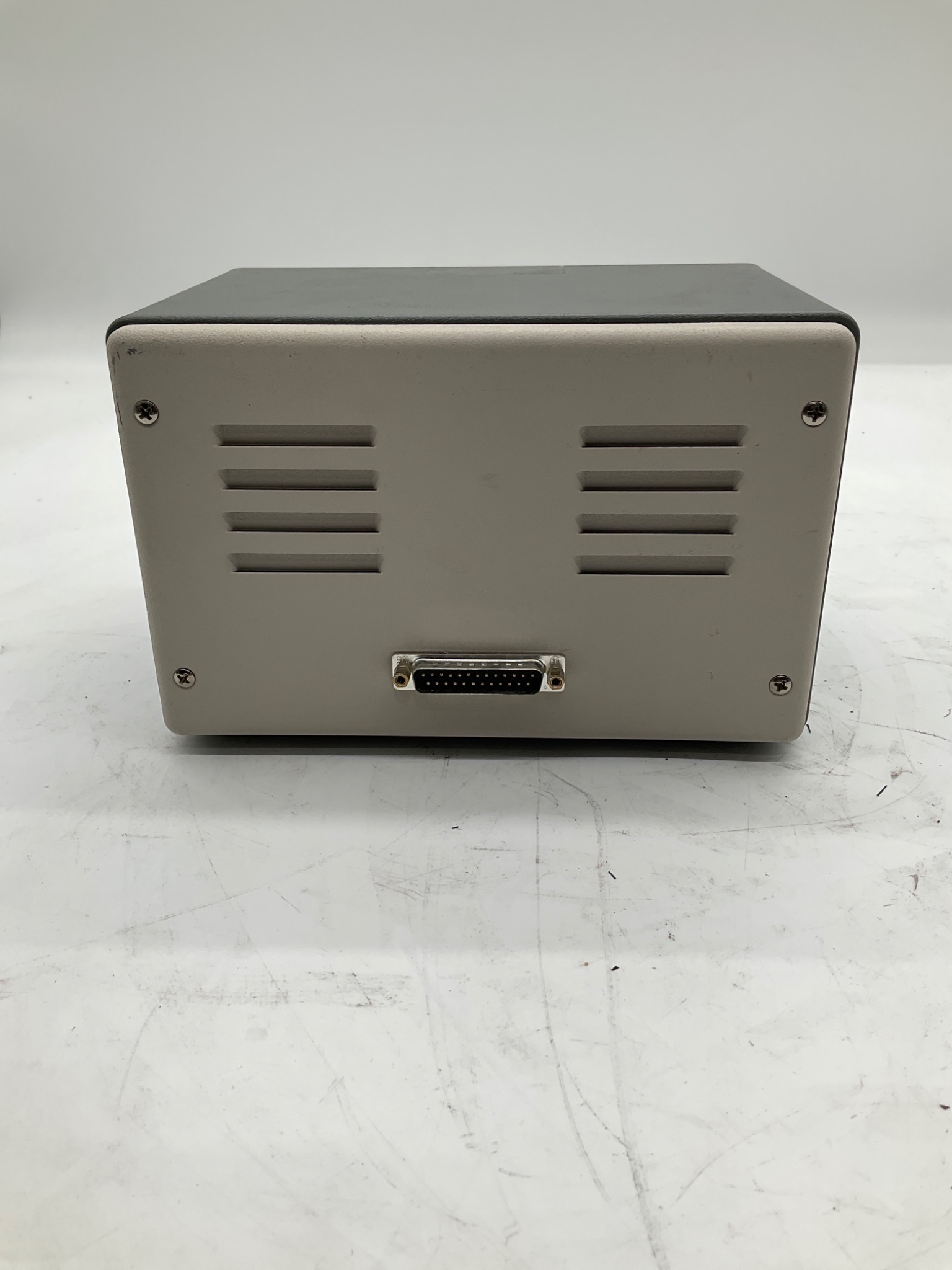

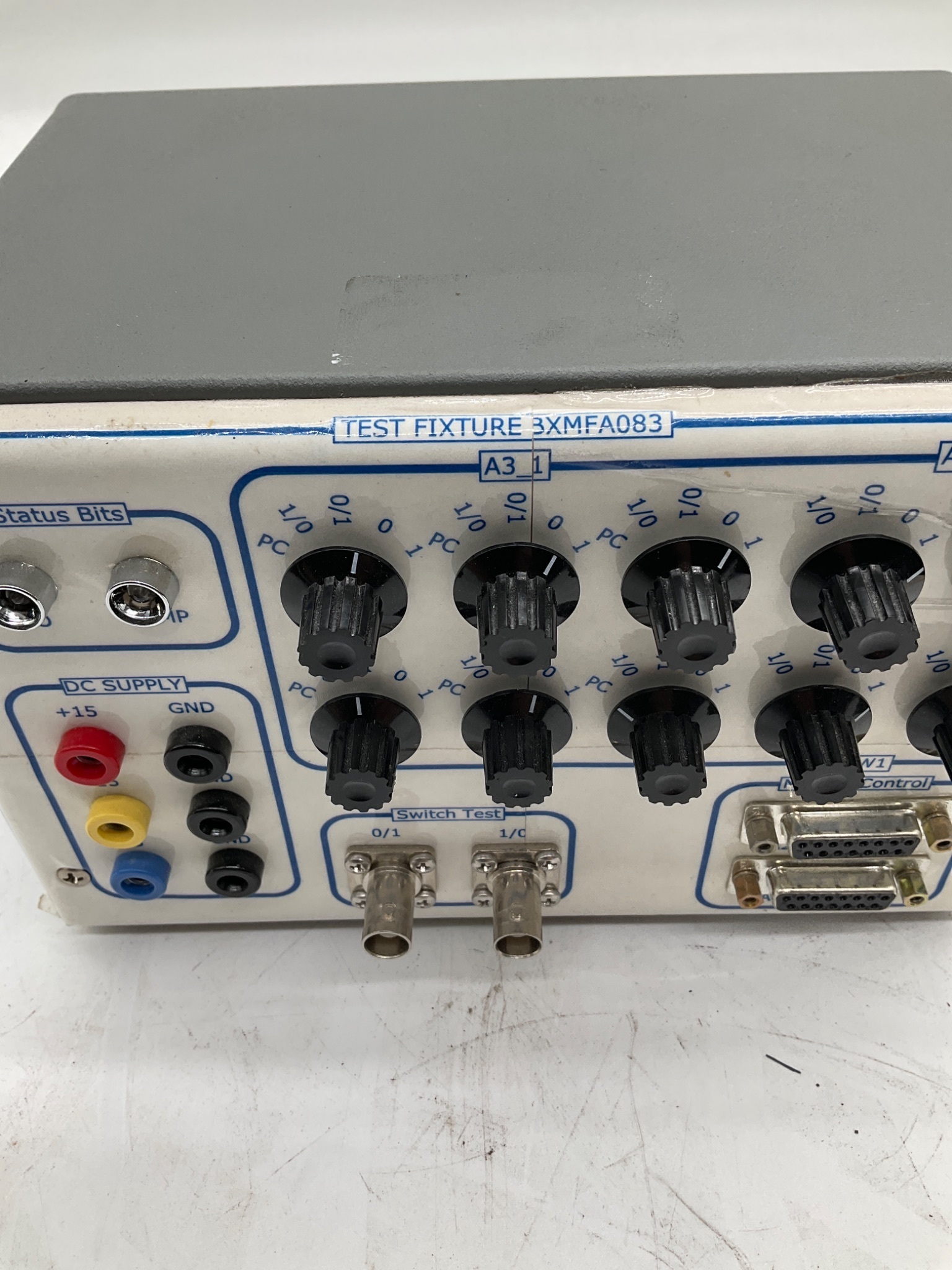

IDENTIFICATION Manufacturer: Not specified Fixture ID: 3XMFA083 Product Type: Electronic module test fixture Condition: USED YOM: n/a   I/O SIMULATION Adjustable I/O Controls: 10 Control Groups: A3_1 / A3_2 Selectable States: PC / 1/0 / 0 / 1 Manual Adjustment: Rotary controls   DC SUPPLY INTERFACE Positive Supply: +15 VDC Negative Supply: -15 VDC Logic Supply: +5 VDC Ground Connections: 3 Connection Type: Banana jack   SWITCH TEST Switch Test Channels: 2 Channel 1 Designation: 0/1 Channel 2 Designation: 1/C Connector Type: Coaxial / BNC-style   STATUS INTERFACE Status Connections: 2 Status Designations: LO / AMP Connector Type: Coaxial / BNC-style   MODULE CONTROL A2 Module Interface: Present A3 Module Interface: Present Connector Type: D-sub Front D-sub Connectors: 2   REAR INTERFACE Rear D-sub Connector: Present   CONSTRUCTION Configuration: Benchtop Enclosure: Metal Ventilation Openings: Present Front Panel: Labeled control / interface panel
