Specification Table
| Type of CNC Control |
Fanuc 31i-TB |
| # of Axes |
10 |
| Bar Capacity |
1.26″ |
| X1 Travel |
2.559″ |
| Z1 Travel |
8.66″ |
| Y1 Travel |
12.716″ |
| X2 Travel |
13.405″ |
| Z2 Travel |
13.385″ |
| Y2 Travel |
3.937″ |
| X3 Travel |
14.173″ |
| Z3 Travel |
7.48″ |
| C1/C2 Indexing |
0.001° |
| Main Spindle C1 Max Speed (rpm) |
8,000 RPM |
| Main Spindle C1 Motor |
7.3 hp |
| Sub Spindle C2 Max Speed (rpm) |
8,000 RPM |
| Sub Spindle C2 Motor |
7.3 hp |

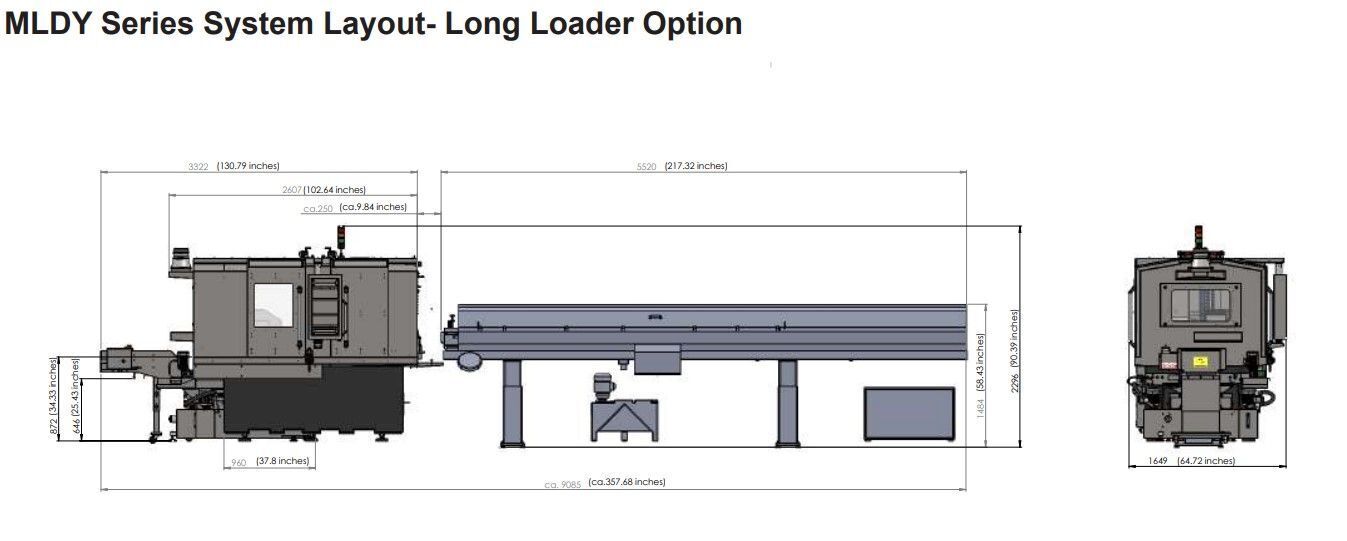

| Machine Dimensions |
103″ x 65″ x 91″ |
| Machine Weight |
8,500 lb |
Equipped With

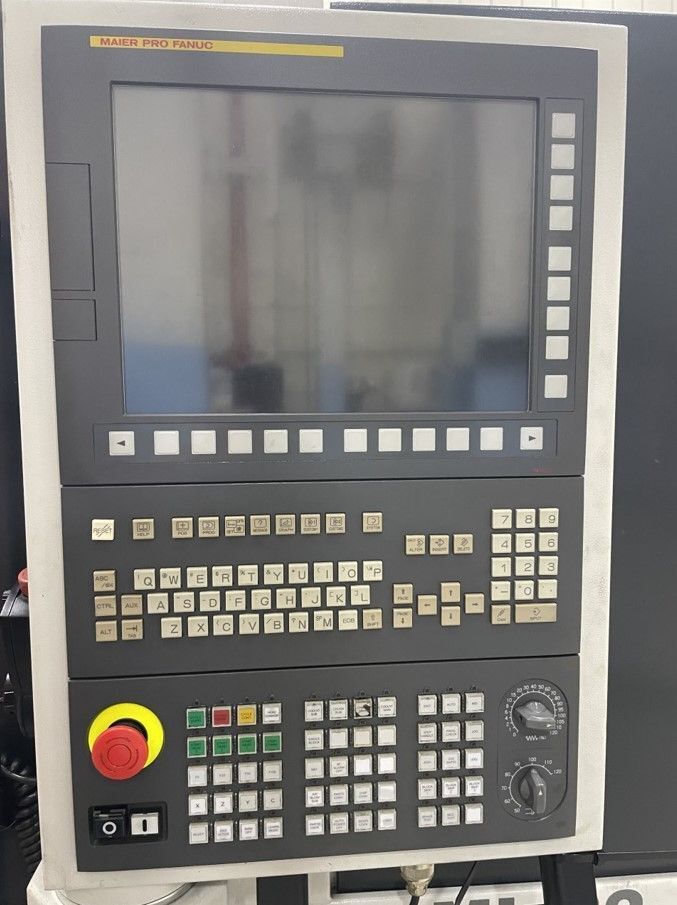

– Fanuc 31i-TB CNC Control
– Chip Conveyor

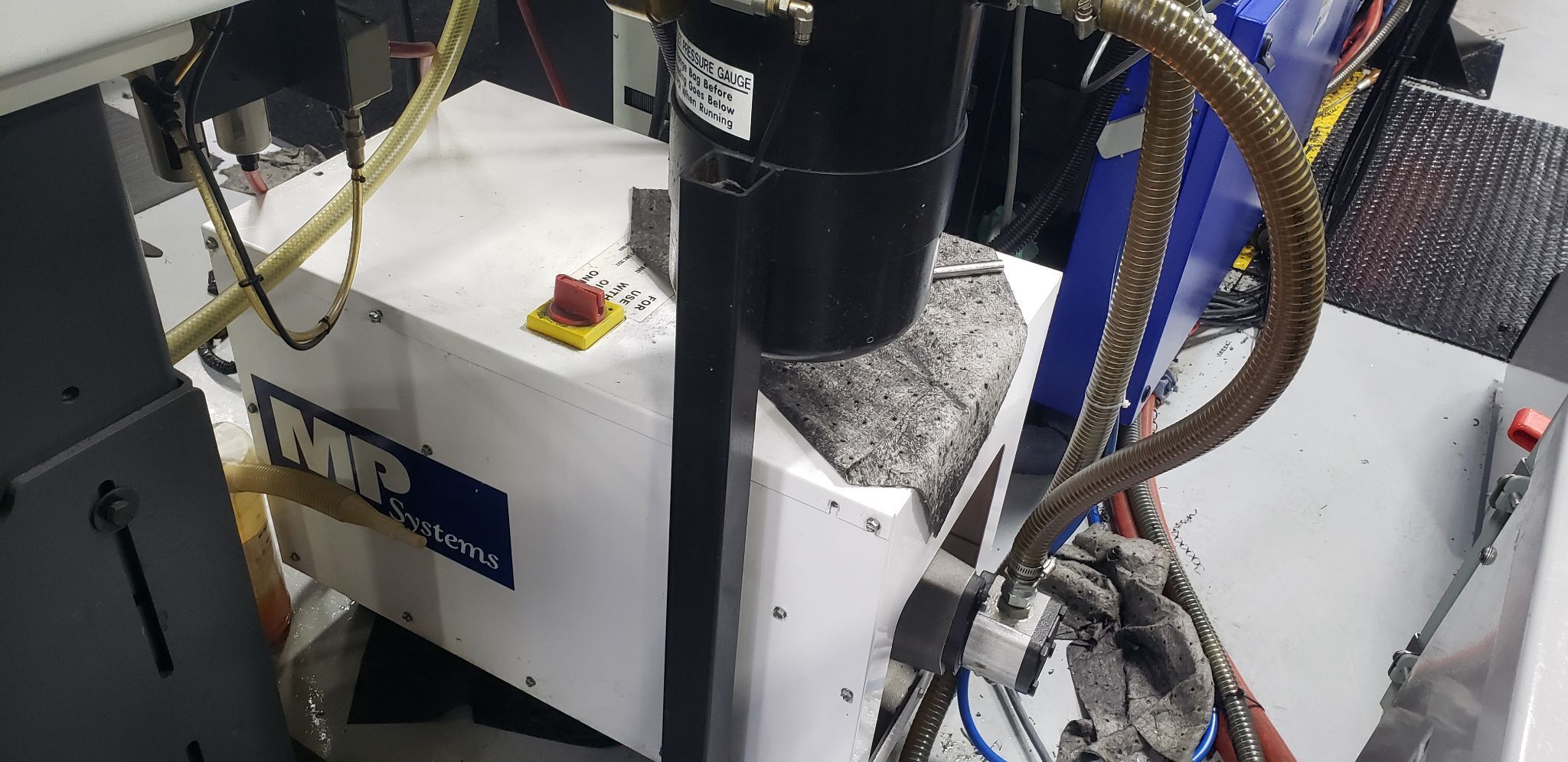

– MP Coolant Systems

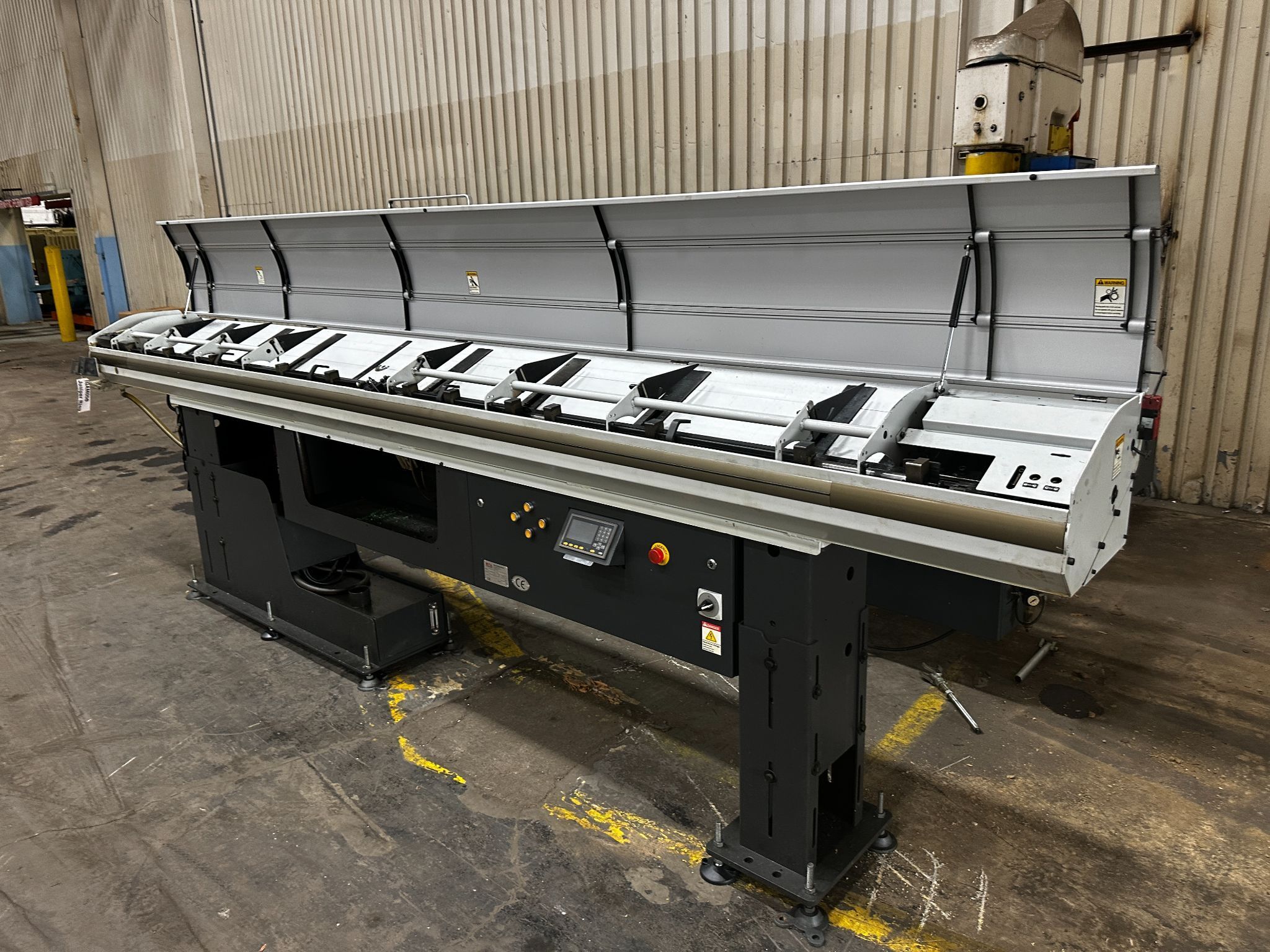

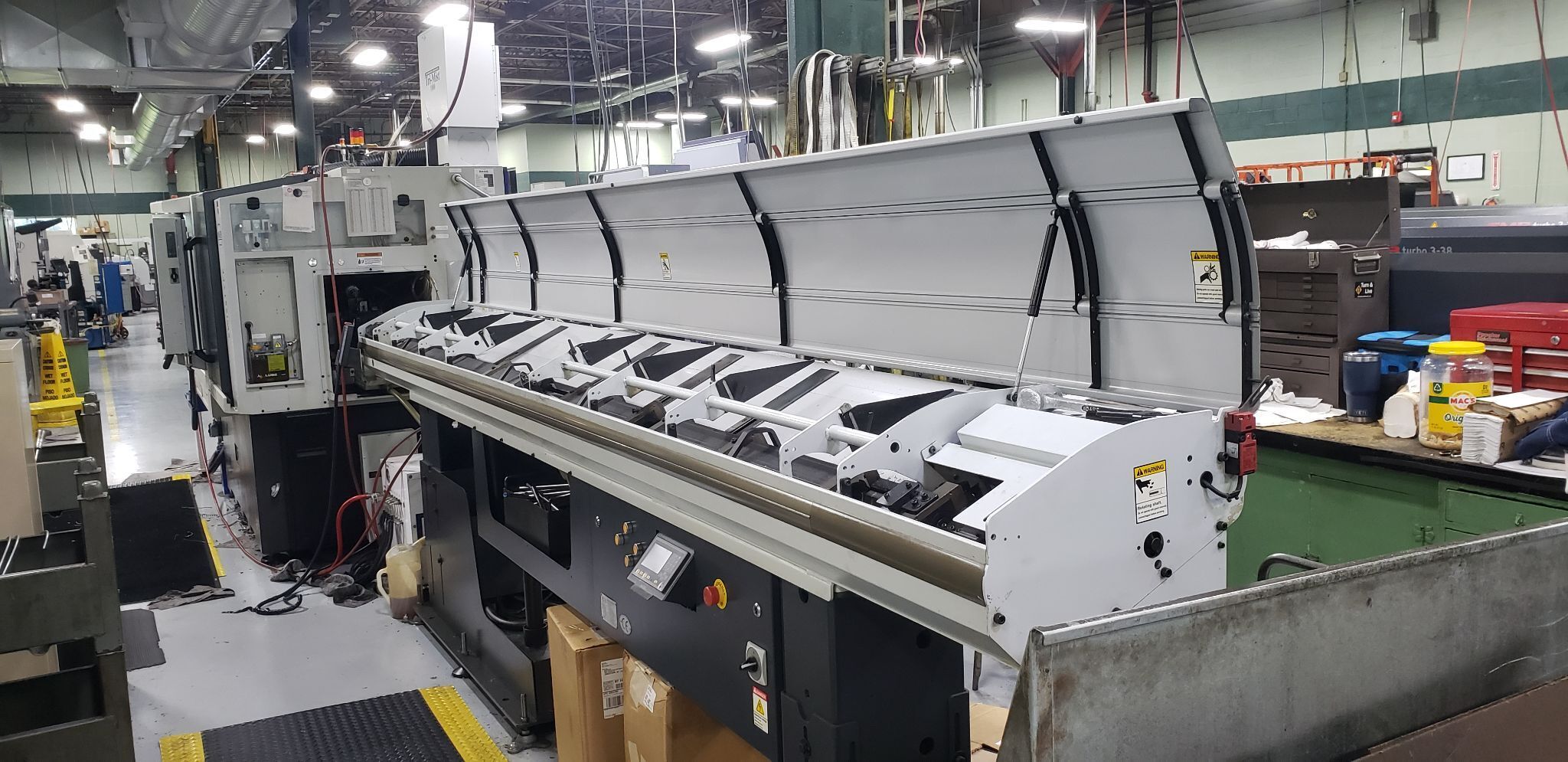

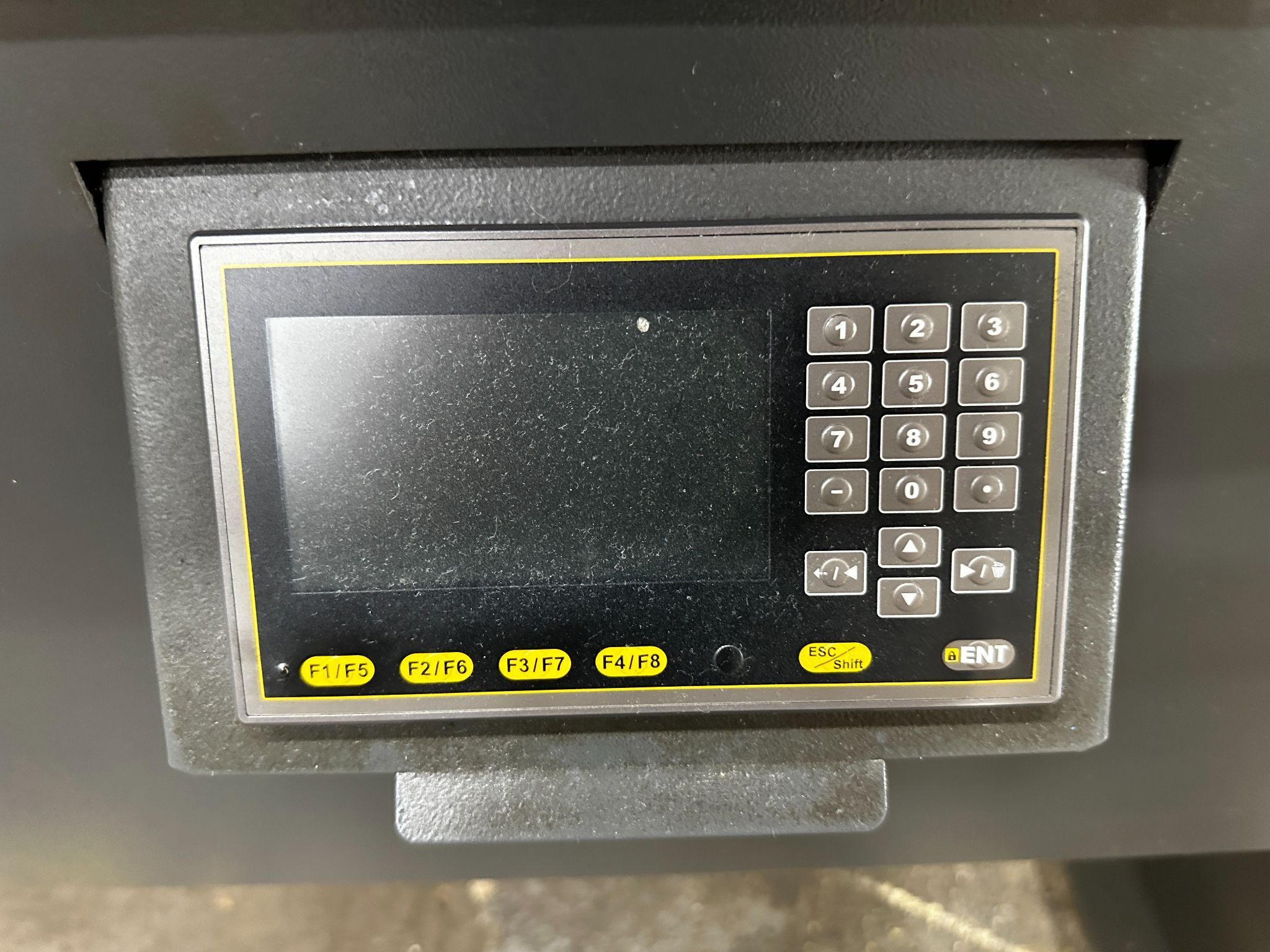

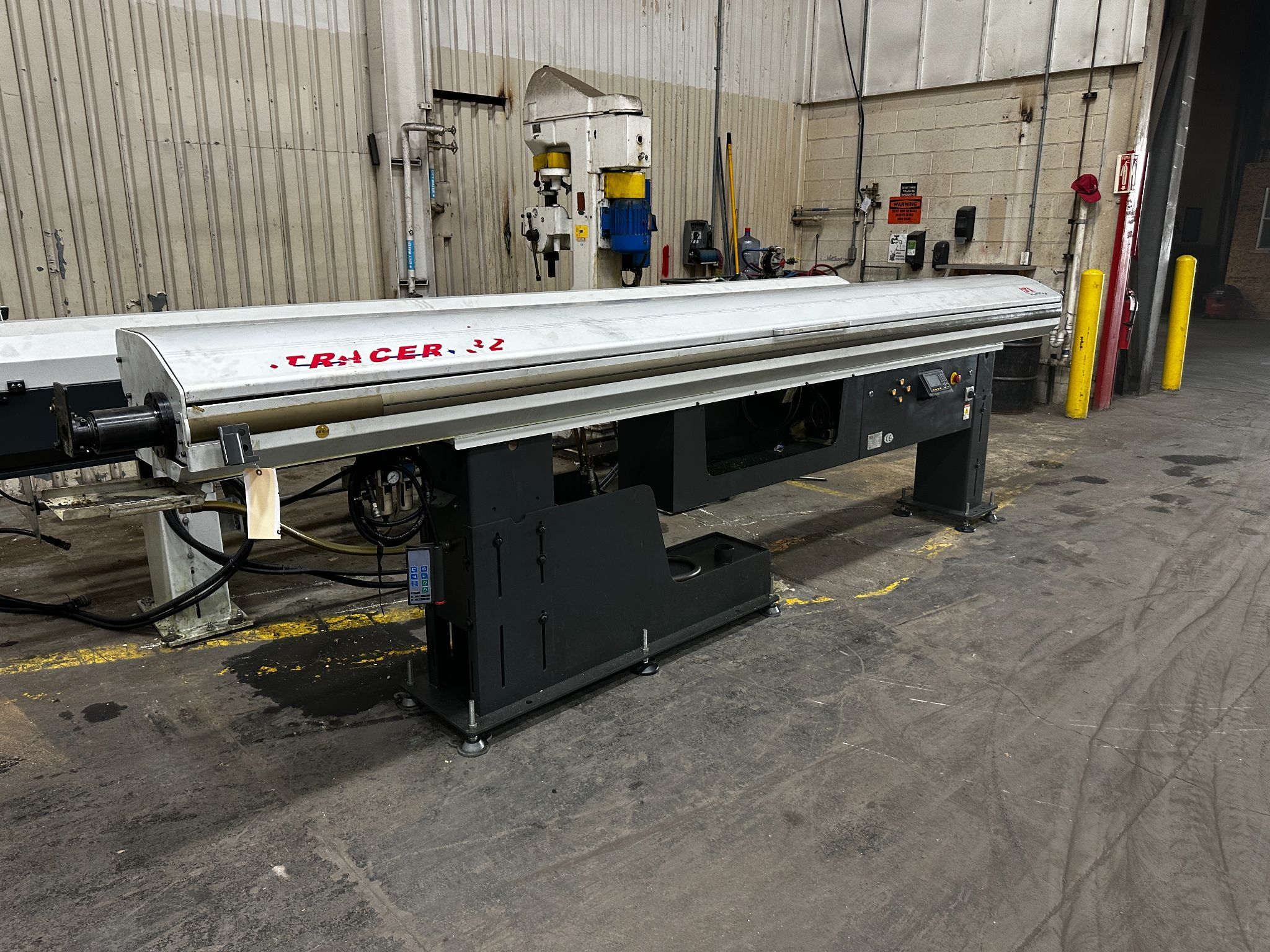

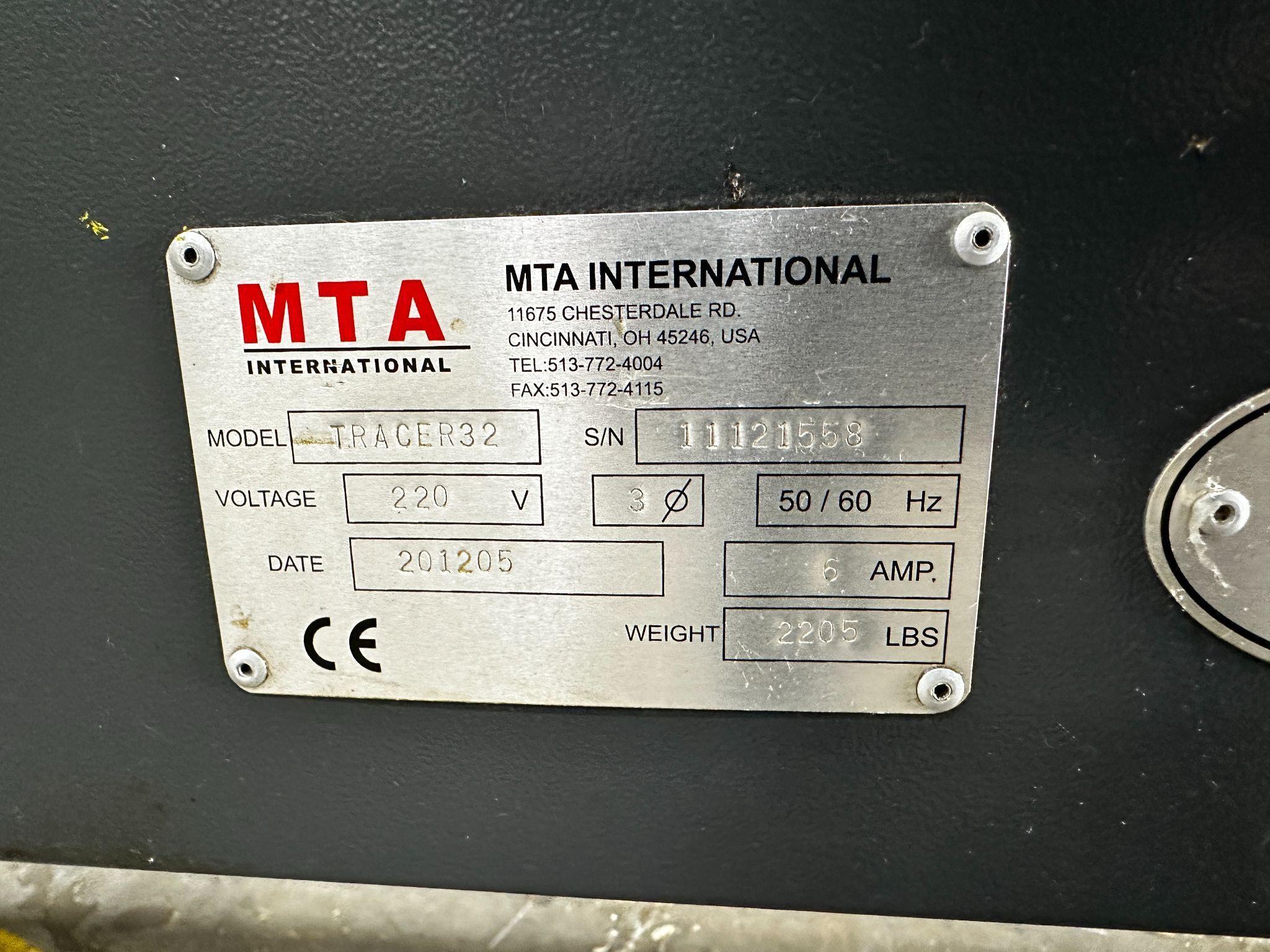

– 12Ft MTA Tracer 32 Bar Feeder available as optional add on
– Turmoil OCO-150-RO Mist Collector available as optional add on
*Collets shown not included with machine*
Product Specifications
-

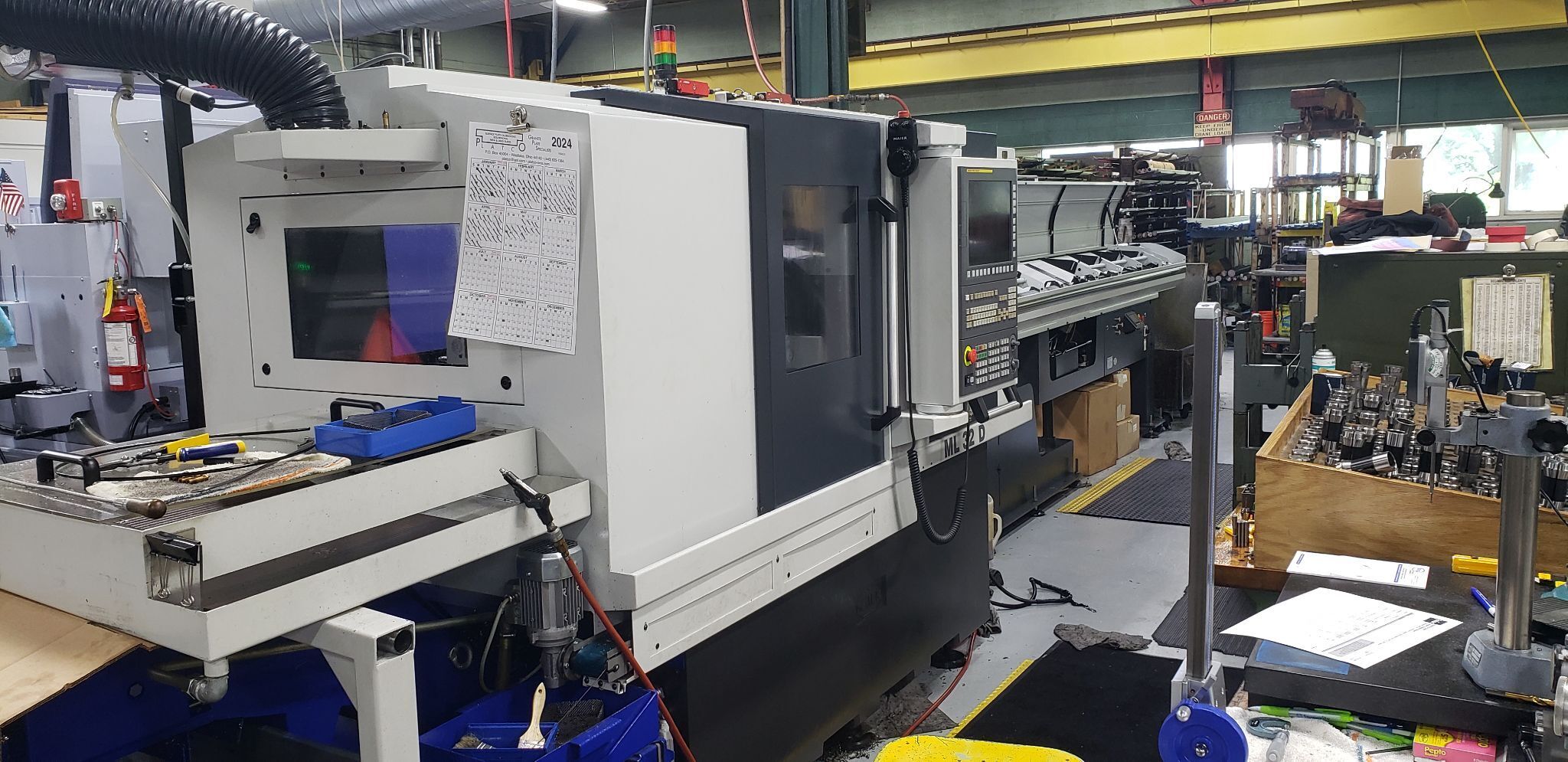

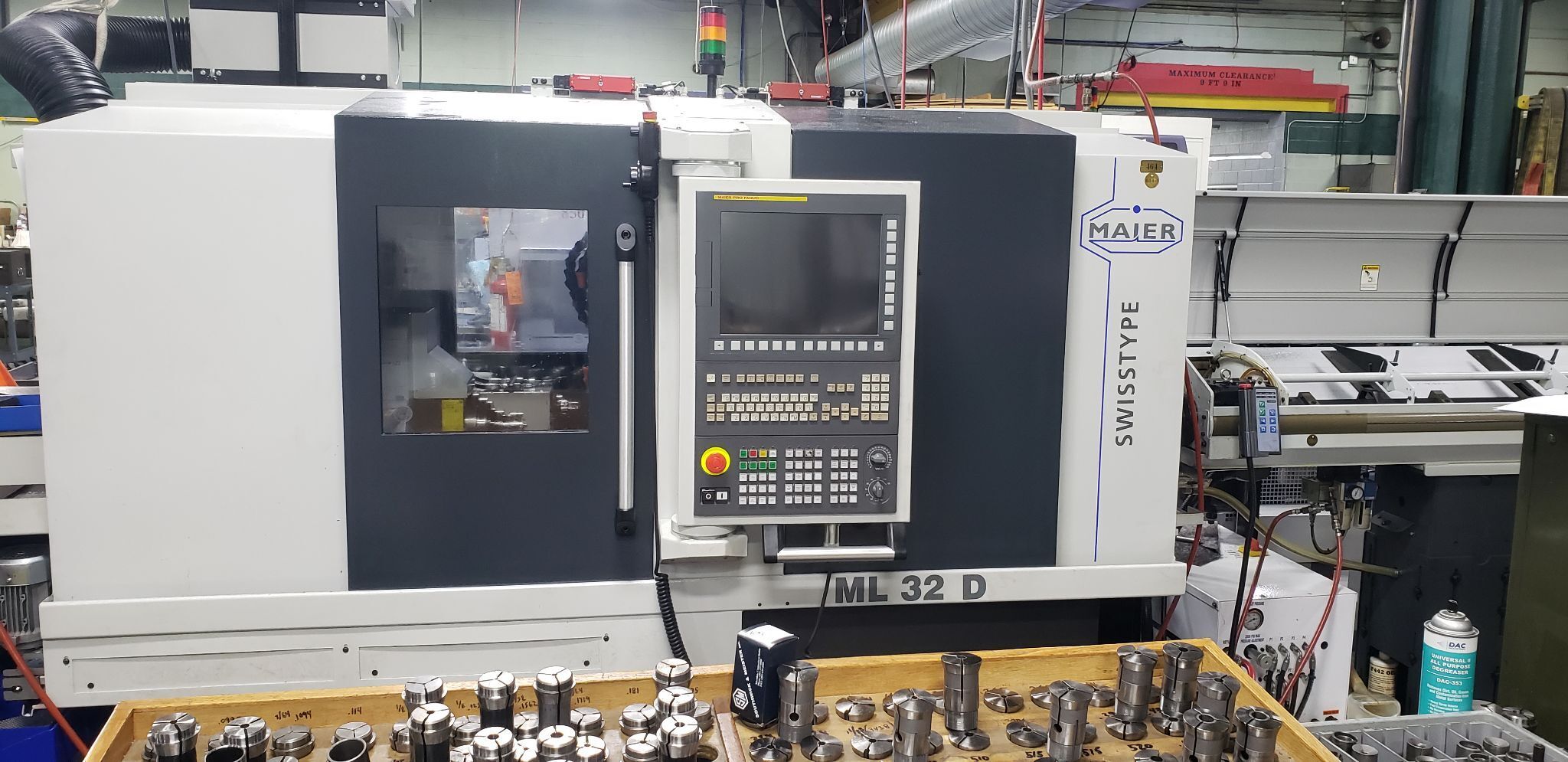

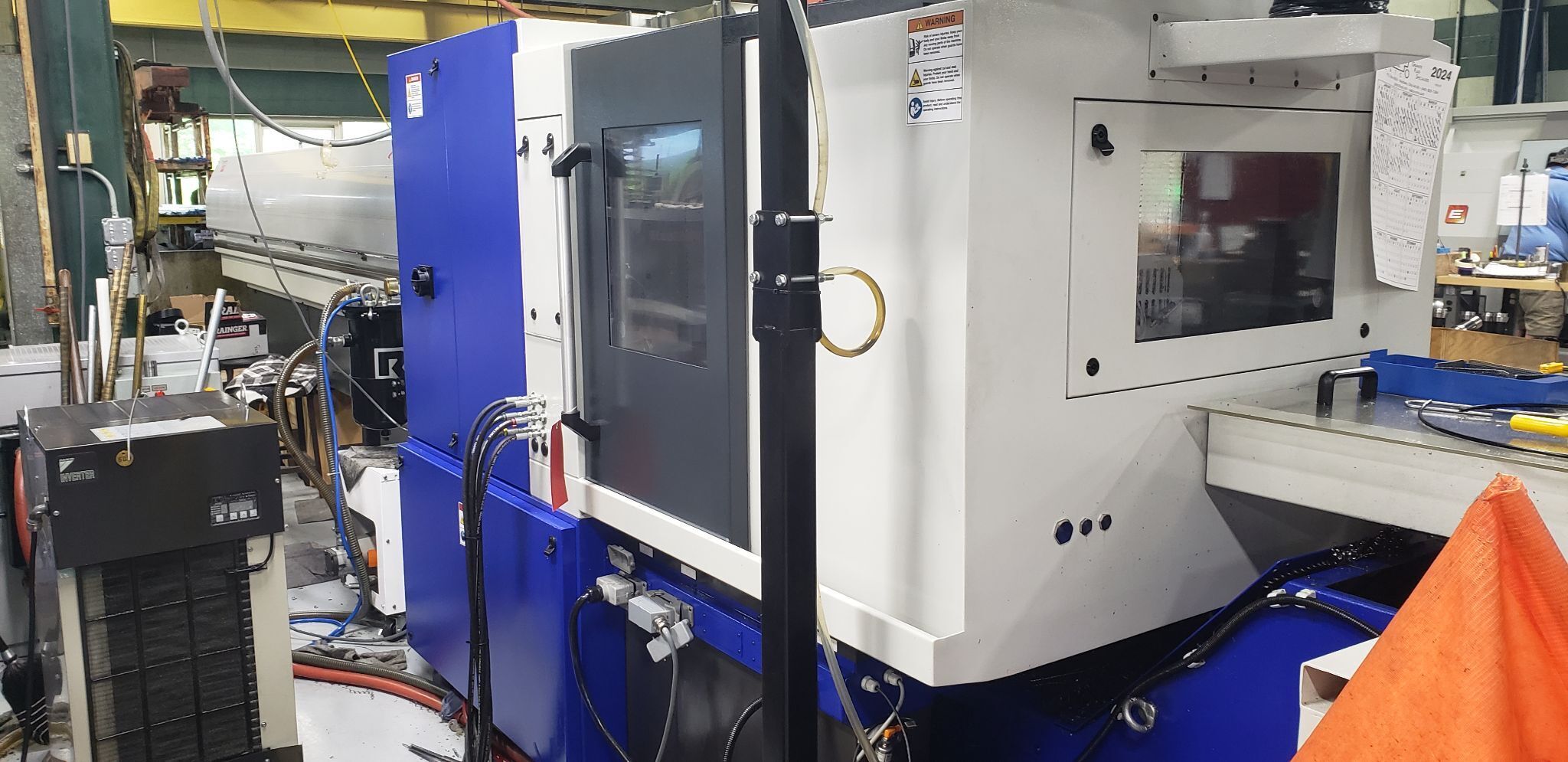

Model: Maier ML32DY
-
Year: 2017
-
Machine Type: CNC Swiss-Type Automatic Screw Machine
-
Max Bar Capacity: Approximately 32mm (1.26″)
-
Configuration: Dual spindle, Y-axis capability
-
Control System: CNC (Fanuc or equivalent)
-
Construction: Rigid base with precision linear guides
-
Axis Count: Multiple-axis configuration including Y-axis and C-axis
-
Tool Stations: Multiple live and static tooling positions
-
Coolant System: Integrated high-pressure coolant capability (if equipped)
-
Chip Conveyor: Included (if applicable)
Key Features
-
Swiss-type sliding headstock for high-precision, long-part machining
-
Dual spindle operation allows simultaneous front/back machining
-
Y-axis capability supports off-center milling and drilling operations
-
Live tooling enhances complexity and part functionality
-
Ideal for machining tight-tolerance components from bar stock
-
High-speed spindle operation ensures excellent surface finish
-
Efficient layout reduces non-cutting time and tool changes
-
Rigid and stable design supports consistent, long-duration runs
Applications
-
Precision medical device components
-
Aerospace fasteners and fittings
-
Hydraulic and pneumatic valve parts
-
High-volume automotive precision parts
-
Watch, electronics, and instrument components
