Specification Table
| CNC Control |
Mitsubishi 730 |
| # Axis |
4 |
| Pallet-L |
15.7″ |
| Pallet-W |
15.7″ |
| Pallet Indexing (B-axis) |
.001 |
| X-axis Travel |
22″ |
| Y-axis Travel |
22″ |
| Z-axis Travel |
26″ |
| Rapid Traverse Rate (X/Y/Z) |
2362 |
| Spindle Speed |
12,000 RPM |
| Spindle Taper |
HSK-A63 |
| Spindle Motor |
20 hp |
| # ATC |
40 |
SPINDLE CENTER TO TABLE TOP: 2.4″ – 24.4″
SPINDLE NOSE TO TABLE CENTER: 2.8″ – 28.7″
TOOL CHANGE TIME (T – T / C – C): 0.9 / 2.8 SECONDS
PALLET CHANGE TIME: 8 SECONDS
PALLET LOAD CAPACITY: 880 LBS.
MAX WORKPIECE DIA / HEIGHT: 24.8″ / 34.6″
MAX TOOL DIAMETER: 2.7″ / 6.6″
MAX TOOL LENGTH: 17.7″
MAX TOOL WEIGHT: 17.6 LBS.
Equipped With

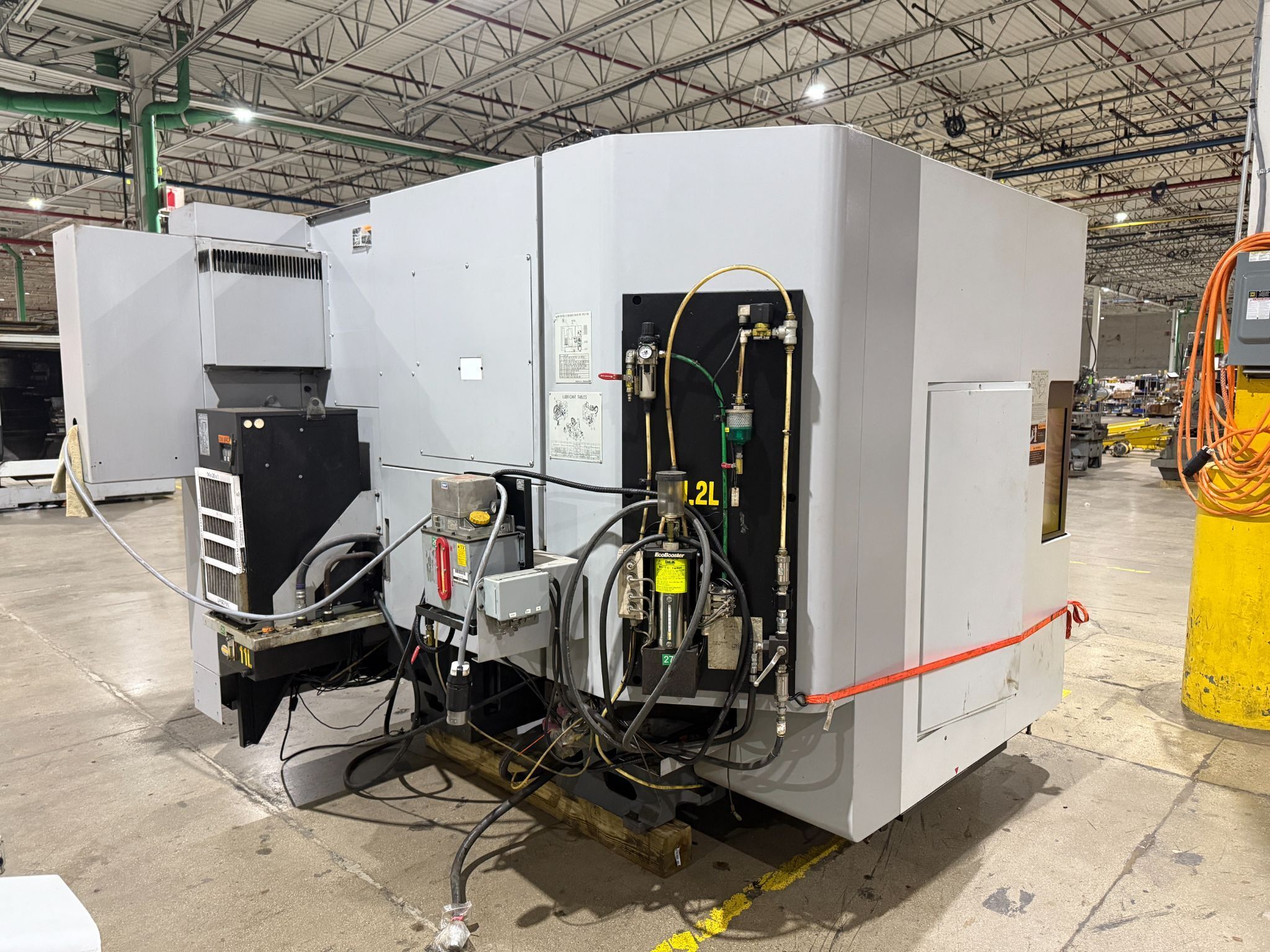

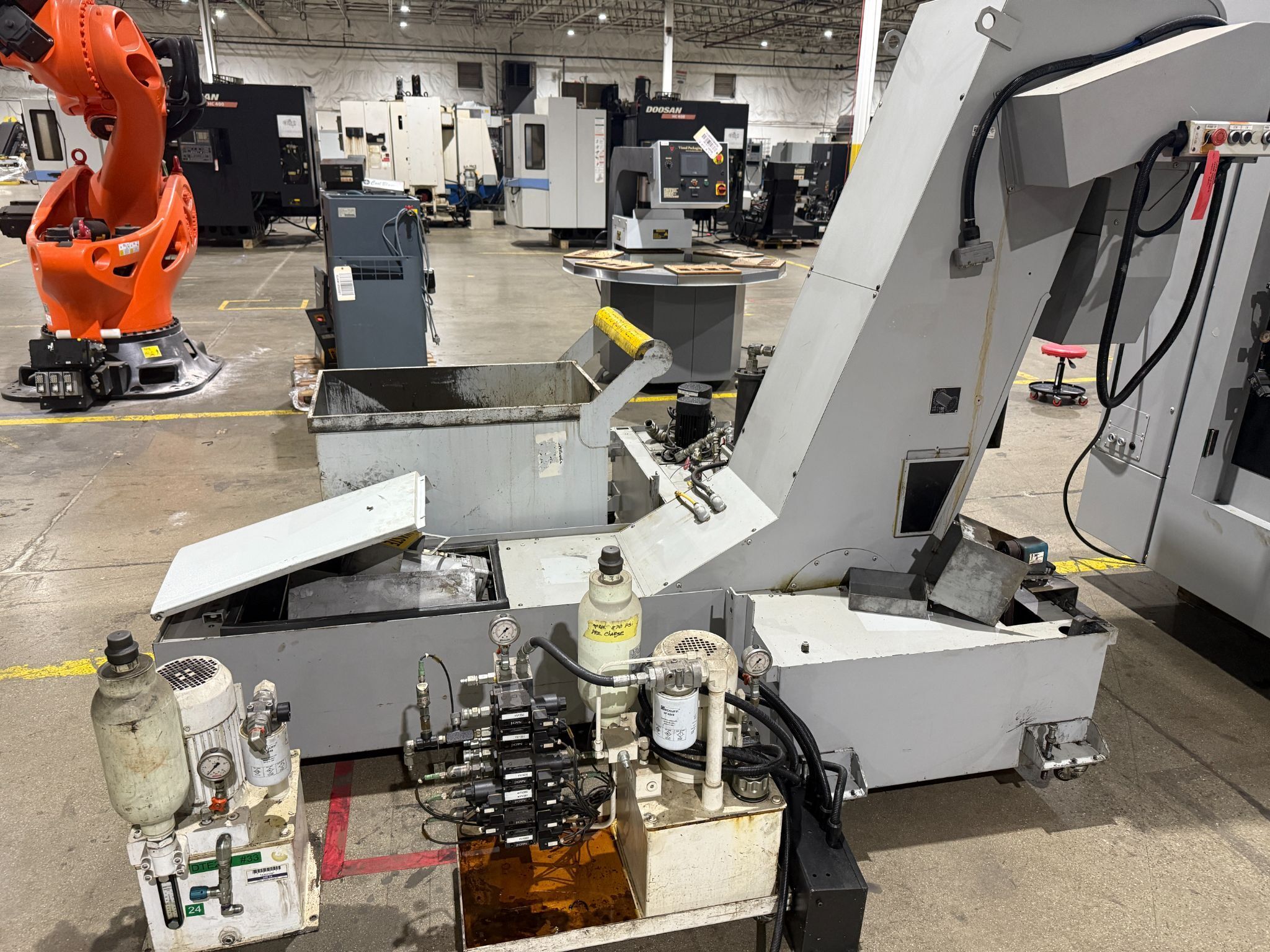

TOOLING SHOWN, CHIPBLASTER, COOLANT FILTRATION SYSTEM, CHIP CONVEYOR
Product Specifications:
-
Model: NHX4000
-
Manufacturer: MORI SEIKI
-
Year: 2012
-
Type: CNC Horizontal Machining Center
-
Pallet Size: 400 mm
-
Spindle Speed: High-speed (up to 15,000 RPM, model-dependent)
-
Axis Configuration: X/Y/Z
-
CNC Controller: MAPPS IV / FANUC-based (varies by unit)
-
Tool Capacity: Standard large-capacity ATC
-
Condition: Used
-
Construction: Heavy-duty cast iron frame for stability
Key Features:
-
Includes ChipBlaster high-pressure coolant filtration system for improved tool life and chip evacuation
-
Integrated chip conveyor for efficient material handling
-
Comes with tooling, ready for immediate deployment
-
High-rigidity spindle and advanced thermal stability for consistent precision
-
Designed for automation-ready manufacturing environments
Applications:
-
High-precision part production
-
Aerospace and automotive component machining
-
Mold and die manufacturing
-
Medical equipment fabrication
-
General industrial part production
