Specification Table
| CNC Control |
Haas CNC Control |
| CNC Control Type |
Haas |
| # of Axes |
2 |
| Swing |
30″ |
| Turning Dia |
17″ |
| Center Distance |
39″ |
| Chuck Size |
10″ |
| Bar Capacity |
3″ |
| X-axis Travel |
11.3″ |
| Z-axis Travel |
34″ |
| Rapid Traverse Rate (X/Y/Z) |
710 ipm |
| Spindle Nose |
A2-6 |
| Spindle Speed (rpm) |
3,400 RPM |
| Spindle Motor (hp) |
30 hp |
| Tailstock |
Yes |
| Live Tooling |
No |
| Turret Capacity |
12 |
| Machine Weight |
14,500 lb |
Product Specifications:
-
Manufacturer: HAAS
-
Model: SL-30T
-
Year: 2005
-
CNC Control: Haas
-
Swing Over Bed: 30″
-
Maximum Turning Diameter: 17″
-

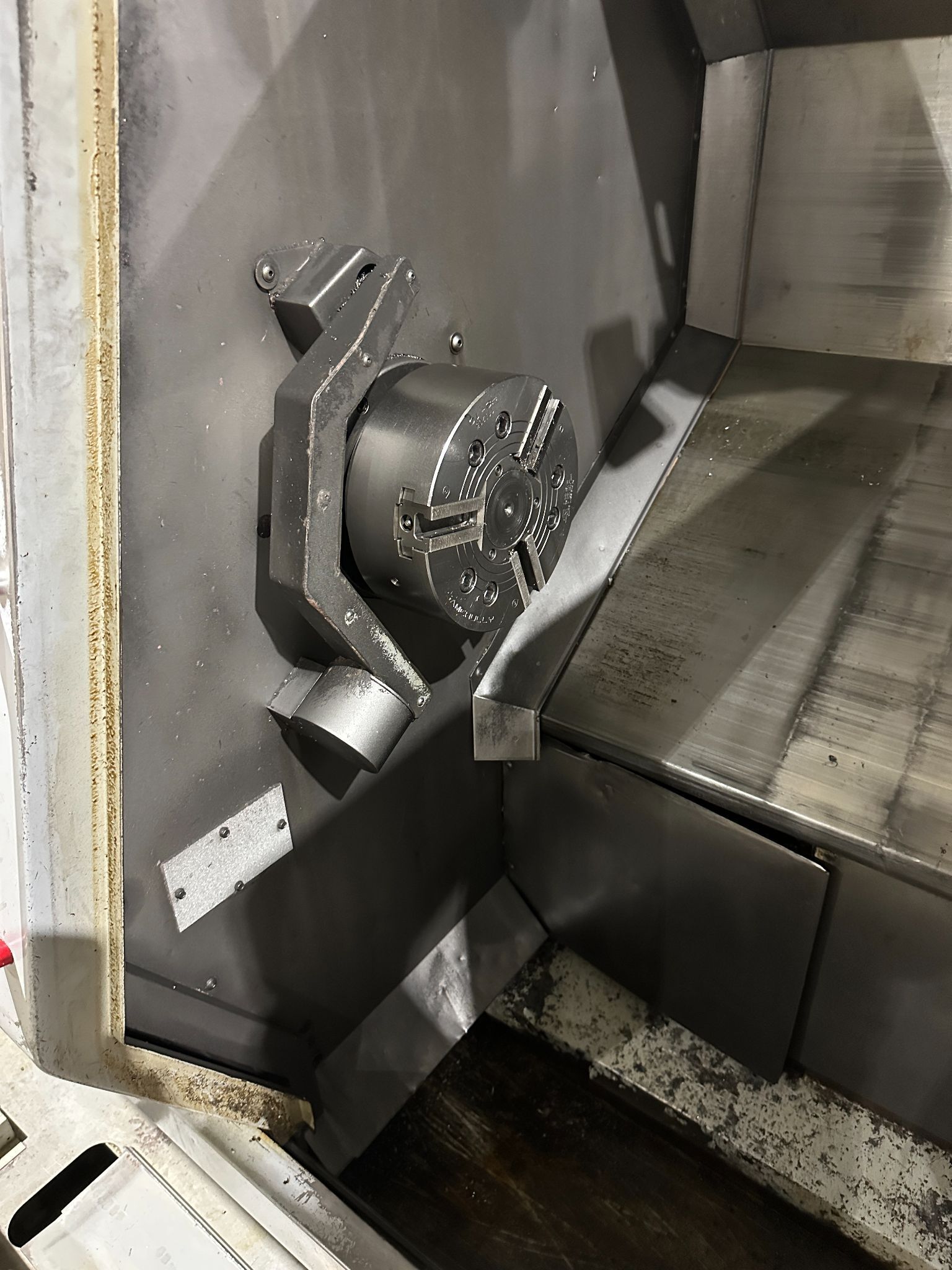

Chuck Size: 10″
-
Spindle Speed: Up to 3,400 RPM
-
Spindle Motor: 30 hp
-

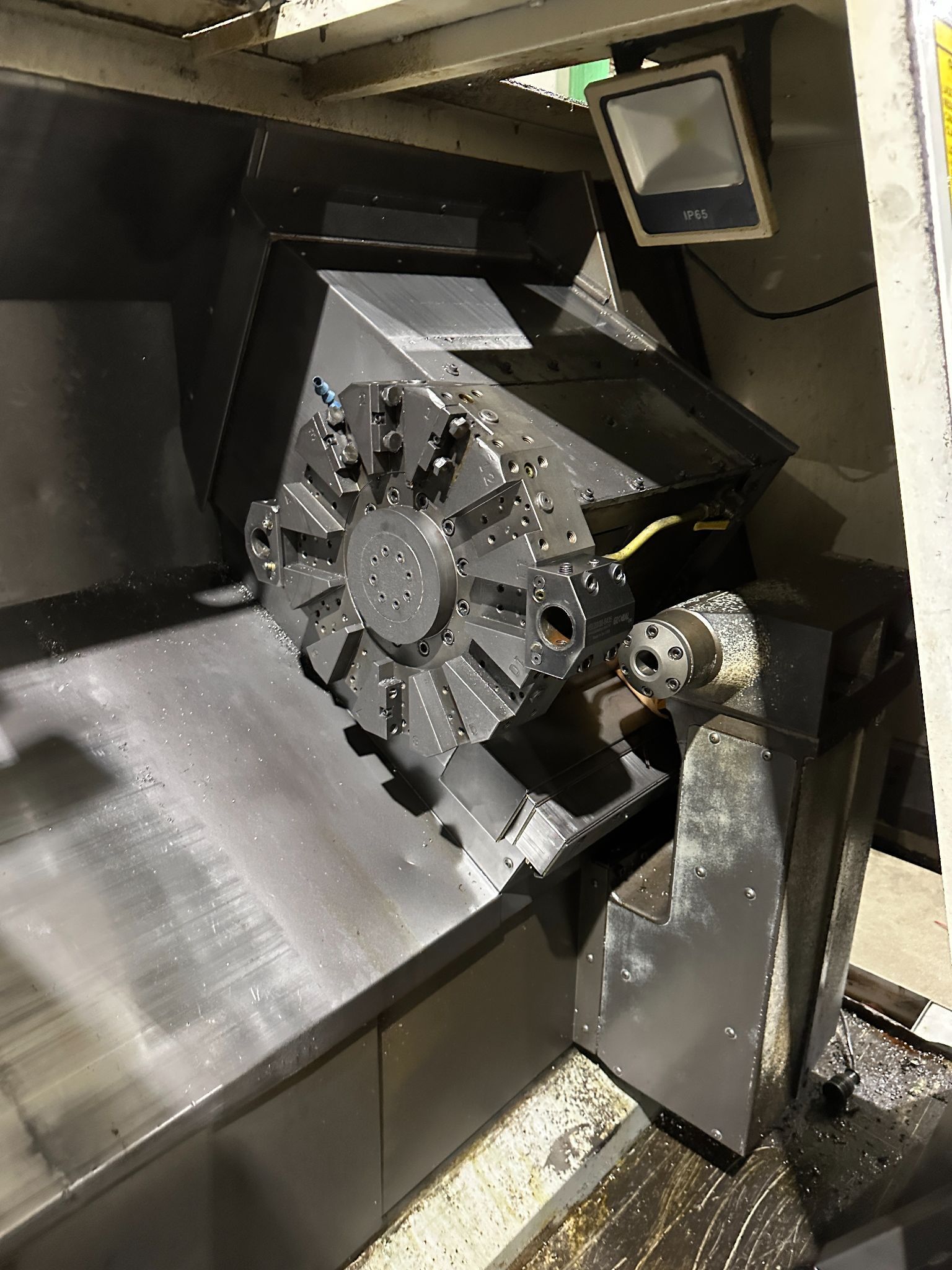

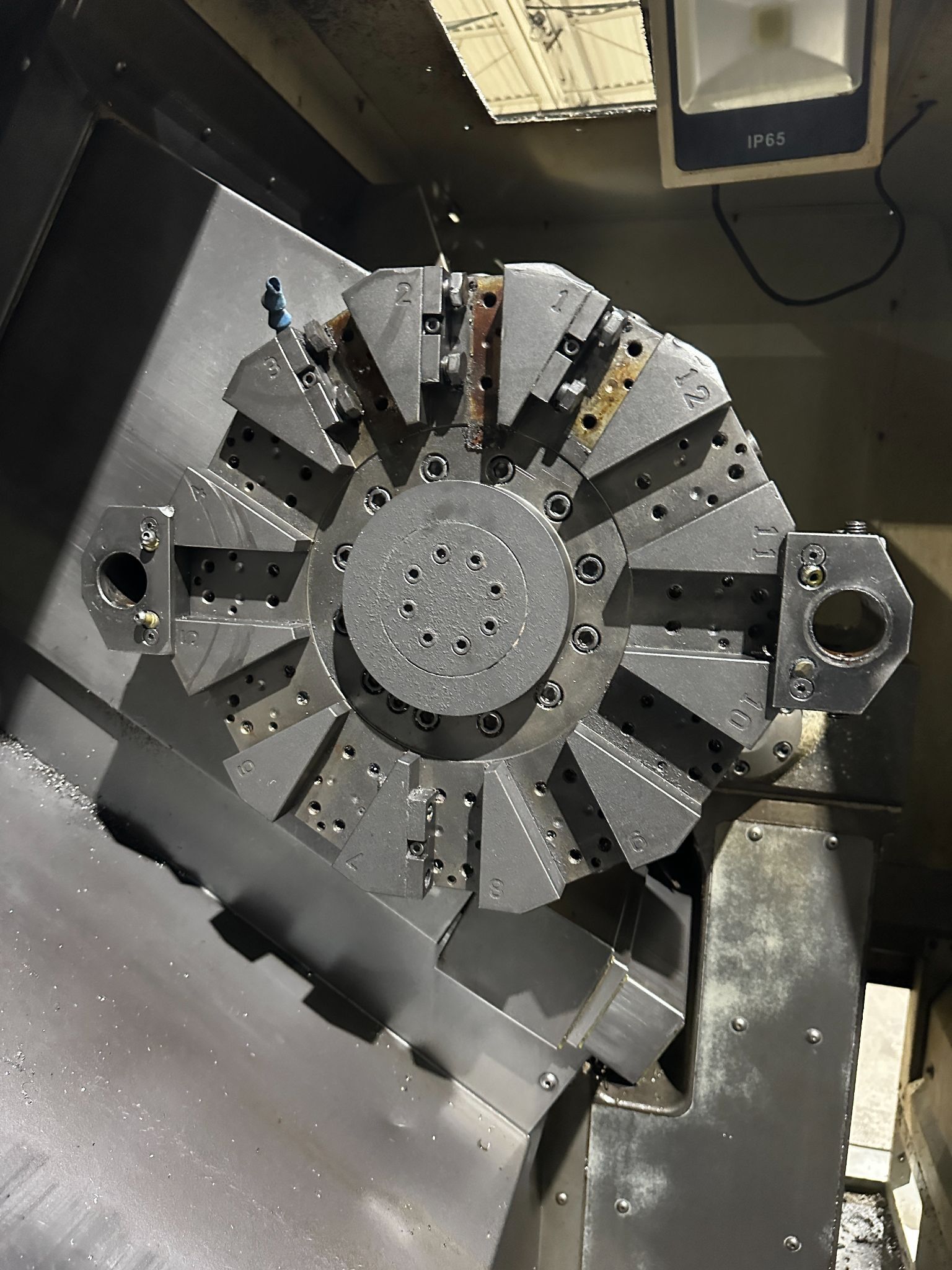

Turret: 12-station
-
Machine Weight: Approx. 14,000 lbs
-

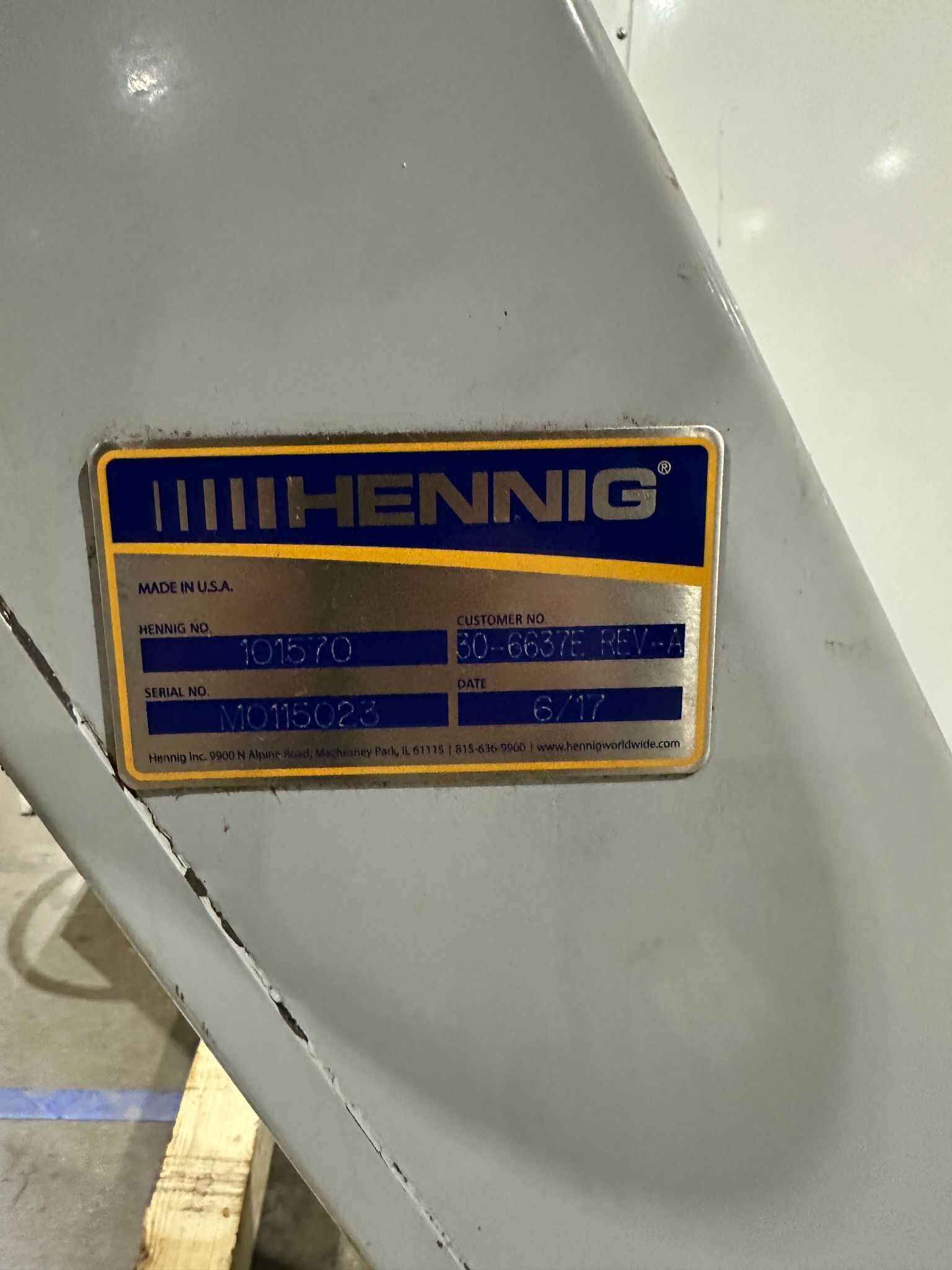

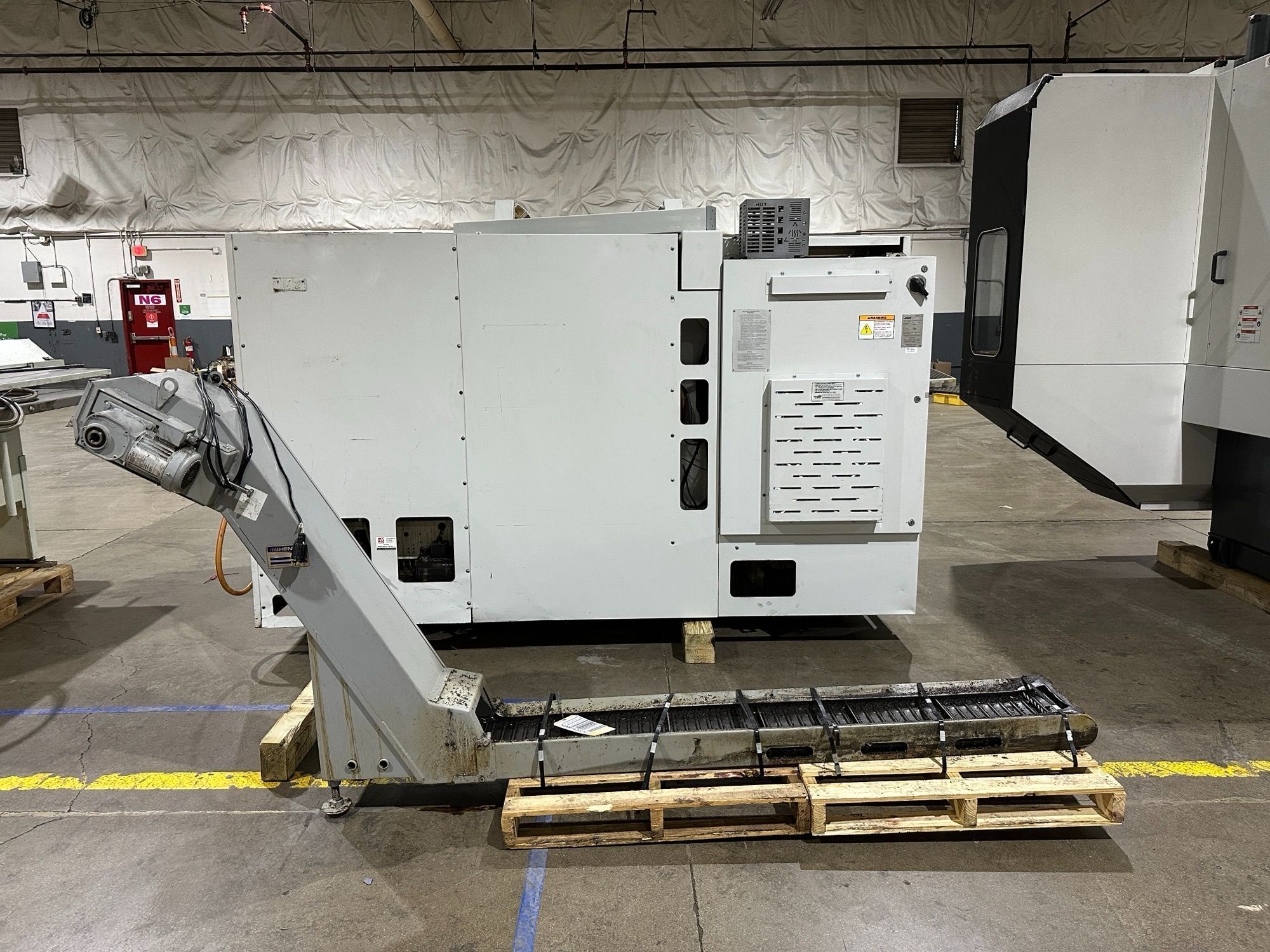

Chip Conveyor: Henning brand included
Key Features:
-
High-horsepower 30 hp spindle for demanding cutting applications
-
Large 30″ swing with generous 17″ turning diameter
-

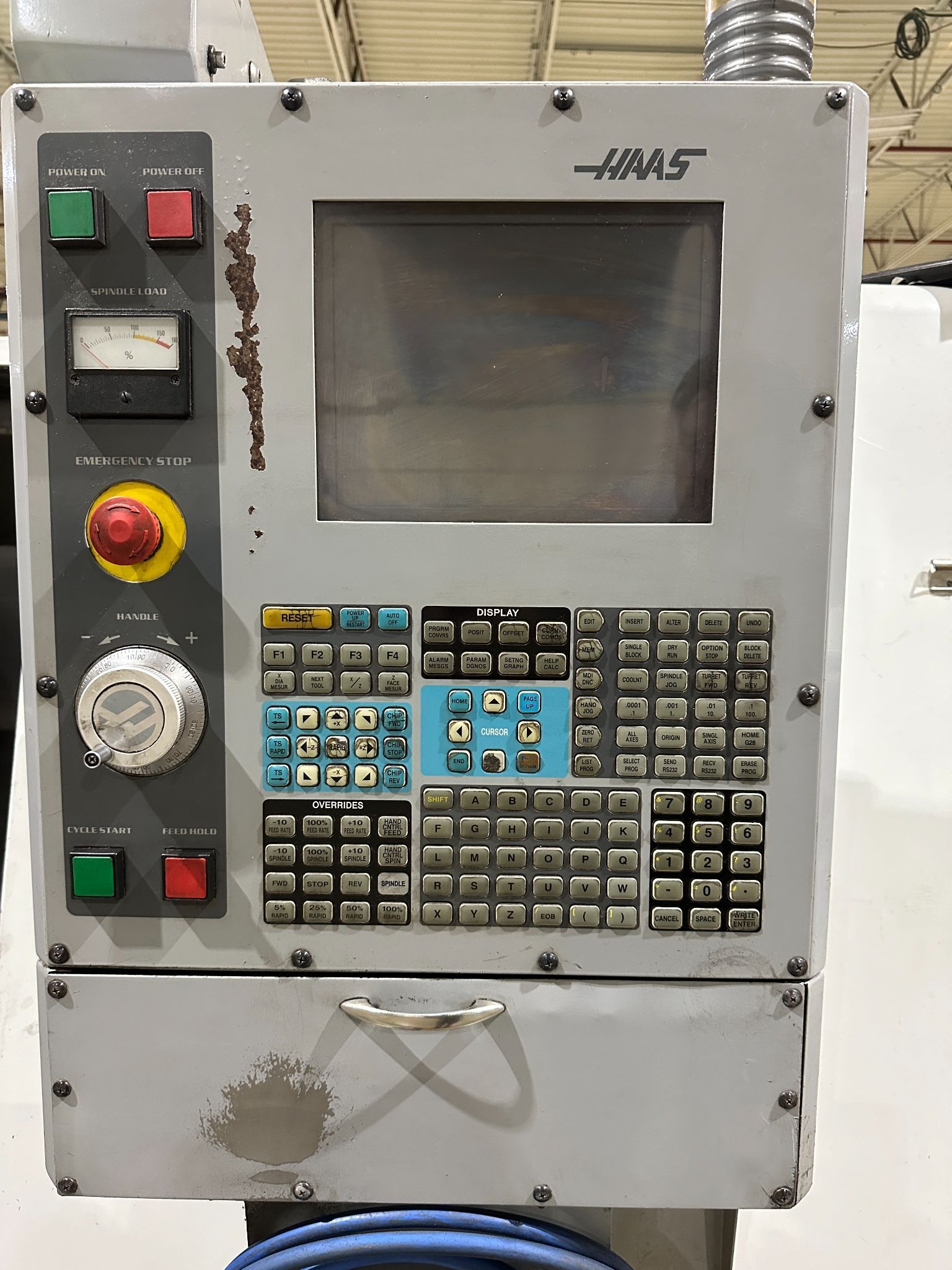

Haas CNC control for intuitive programming and monitoring
-
Durable 12-tool turret enabling efficient tool changes
-
Integrated Henning chip conveyor for clean and continuous operation
-
Rigid construction suitable for medium to heavy-duty machining
Applications:
-
General-purpose metal turning in small- to mid-sized machine shops
-
Production of cylindrical parts in aerospace and automotive sectors
-
Batch manufacturing with high dimensional repeatability
-
Machining of medium to large diameter components
-
Educational or training environments requiring a full-size CNC lathe
