SOLD!

2002 OKUMA IMPACT LU-15 TWIN TURRET CNC LATHE USED

$24,000.00
Availability:

1 in stock
BRAND: OKUMA MODEL: IMPACT LU-15 CONDITION: used
SKU: IGAM1420001 Weight: 999 lbs Freight (Item Must Ship Freight)

1 in stock

Make an offer
Get Shipping Quote

Overview

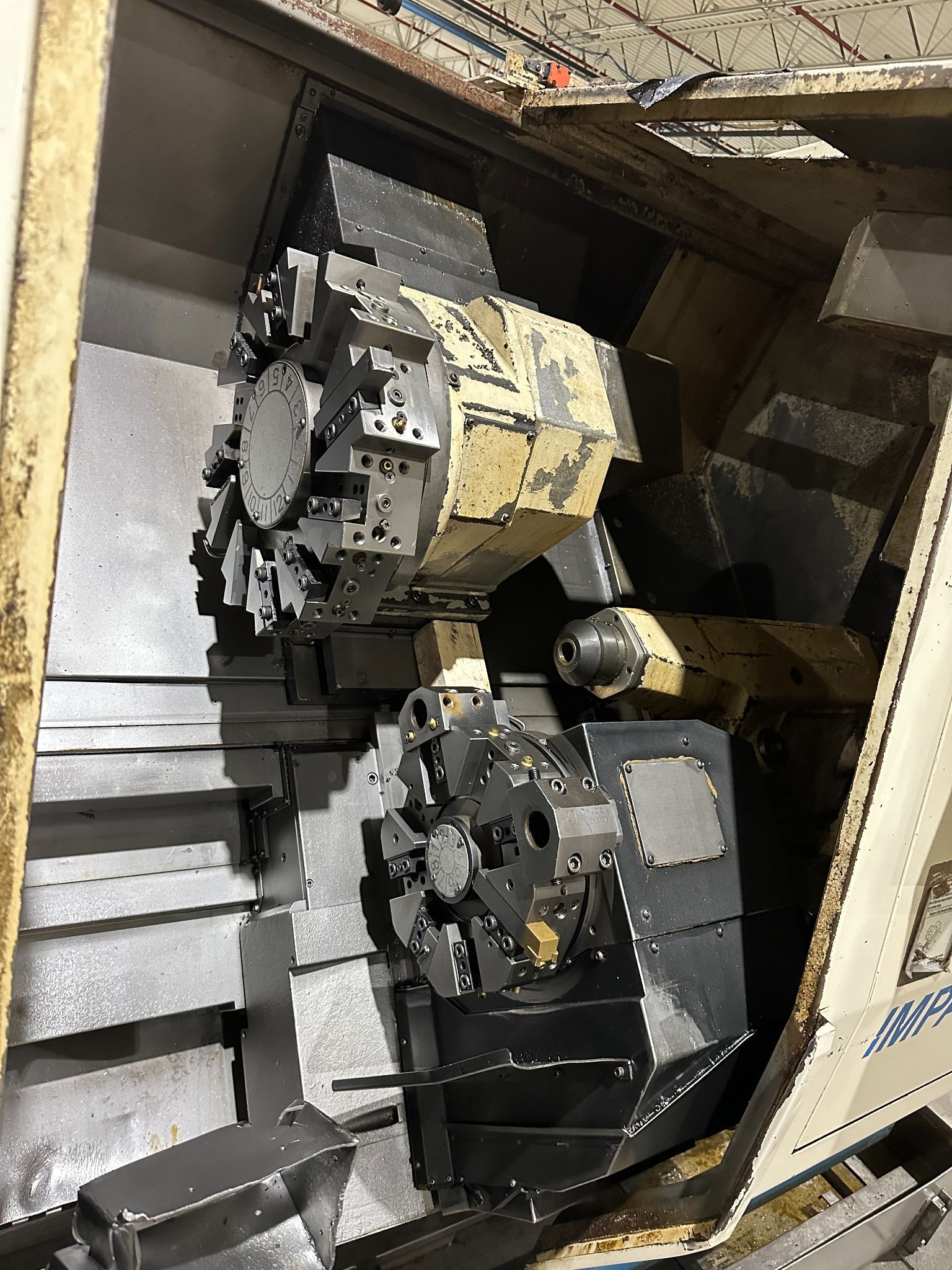

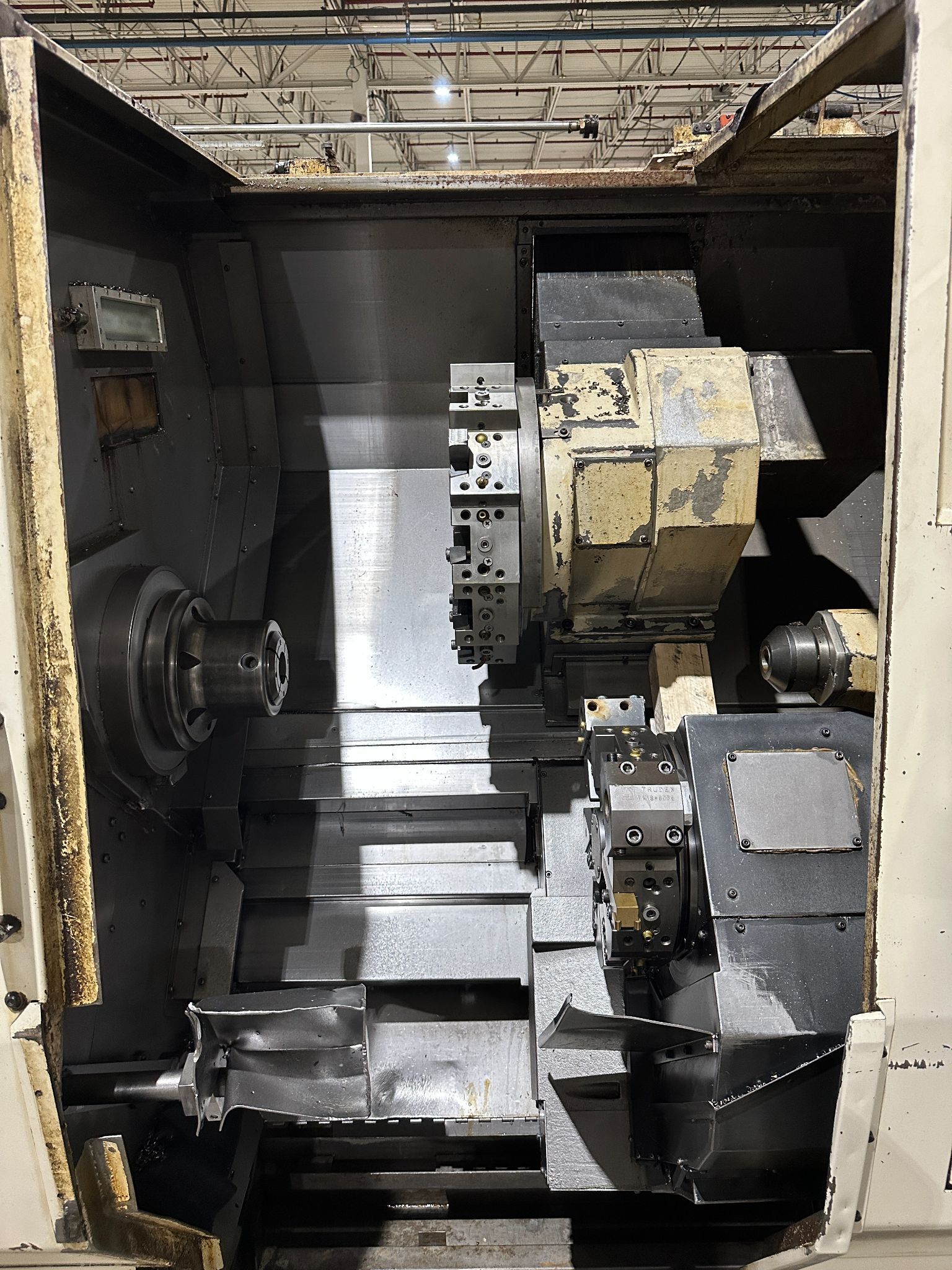

The 2002 OKUMA IMPACT LU-15 is a precision-engineered used twin turret CNC lathe designed for high-speed, multi-axis turning operations in demanding manufacturing environments. Built by Okuma, a leader in CNC machine tools, the LU-15 features dual turrets for simultaneous machining, increasing productivity and reducing cycle time. This machine includes a Jorgensen chip conveyor for efficient chip management, and an SMW Spacesa R210 bar feeder is available as an optional add-on, enhancing automation capabilities for bar stock operations.

Specification Table

CNC Control Okuma OSP-U100L
Swing 20.87″
Turning Dia 13.78″
Center Distance 20.47″
Chuck Size 10″
Bar Capacity 2.56″
X-axis Travel 9.45″
Z-axis Travel 21.65″
Rapid Traverse Rate (X/Y/Z) 787/984 IPM
Spindle Speed (rpm) 4,500 RPM
Spindle Motor (hp) 20 hp
Tailstock Yes
Turret Capacity 12/turret 24 total

Control Okuma OSP-U100L
Max Swing Over Bed 20.87″ (530 mm)
Max Turning Diameter 13.78″ (350 mm)
Max Turning Length 20.47″ (520 mm)
X1/X2-Axis Travel 9.45″ (240 mm)
Z1/Z2-Axis Travel 21.65″ (550 mm)
Spindle Nose A2-8
Spindle Bore 3.15″ (80 mm)
Bar Capacity 2.56″ (65 mm)
Spindle Speed 4,500 RPM
Spindle Motor 20 HP (15 kW), AC
Number of Turrets 2
Turret Capacity 2 × 12-station turrets (24 total tool positions)
Rapid Traverse (X/Z) 787 / 984 IPM (20 / 25 m/min)
Tailstock Programmable hydraulic
Machine Dimensions Approx. 112″ × 78″ × 70″
Machine Weight ~13,500 lbs (6,123 kg)
Power Requirements 220V / 3-Phase / 50-60 Hz

Product Specifications:

  • Model: OKUMA IMPACT LU-15

  • Year: 2002

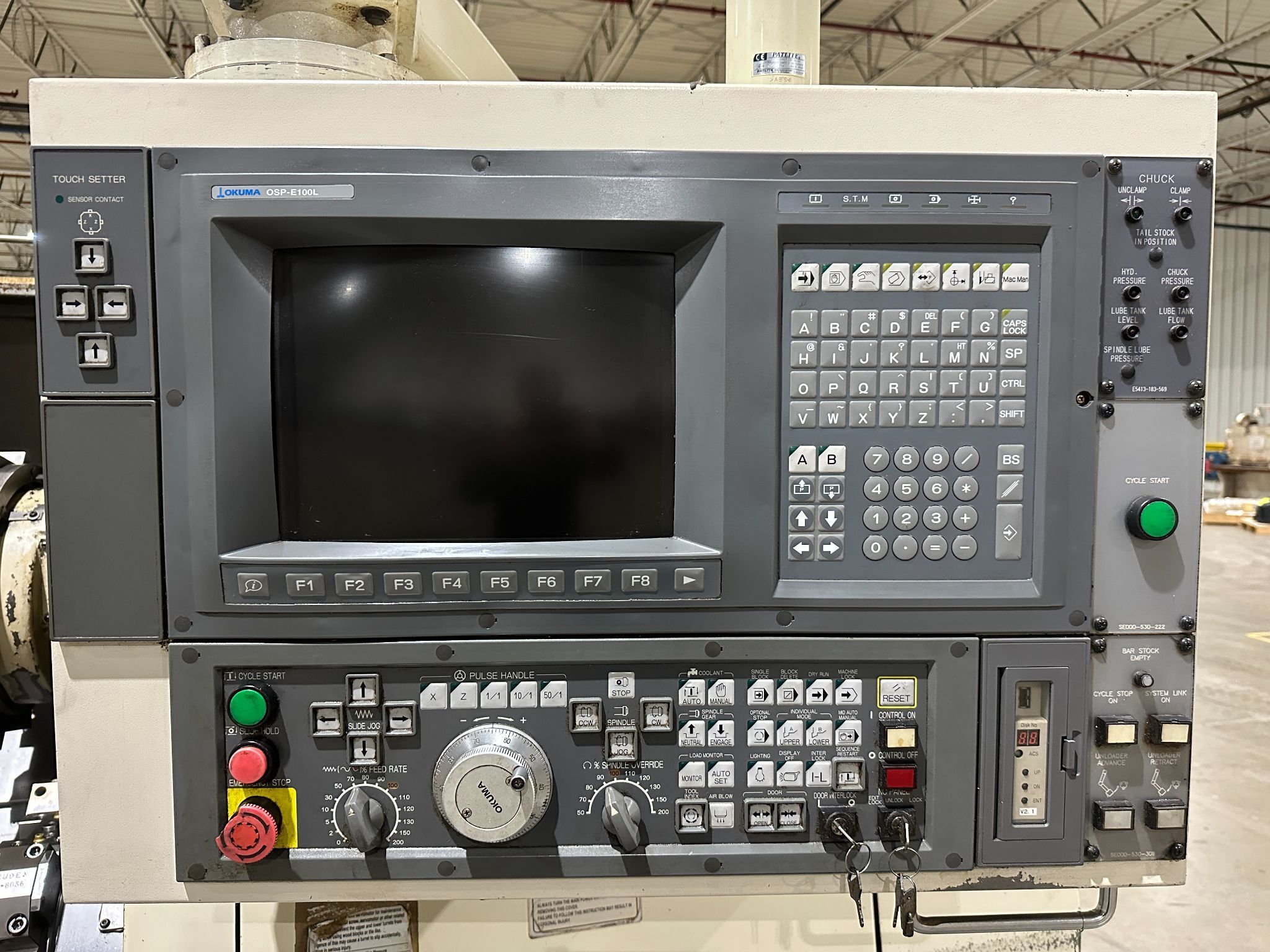

  • CNC Control: OSP-U100L

  • Configuration: Twin turret, horizontal lathe

  • Maximum Turning Diameter: Approx. 250mm (varies with tooling)

  • Maximum Turning Length: Approx. 600mm

  • Spindle Speed: Up to 4,500 RPM

  • Spindle Bore: Approx. 2.56 in (65 mm)

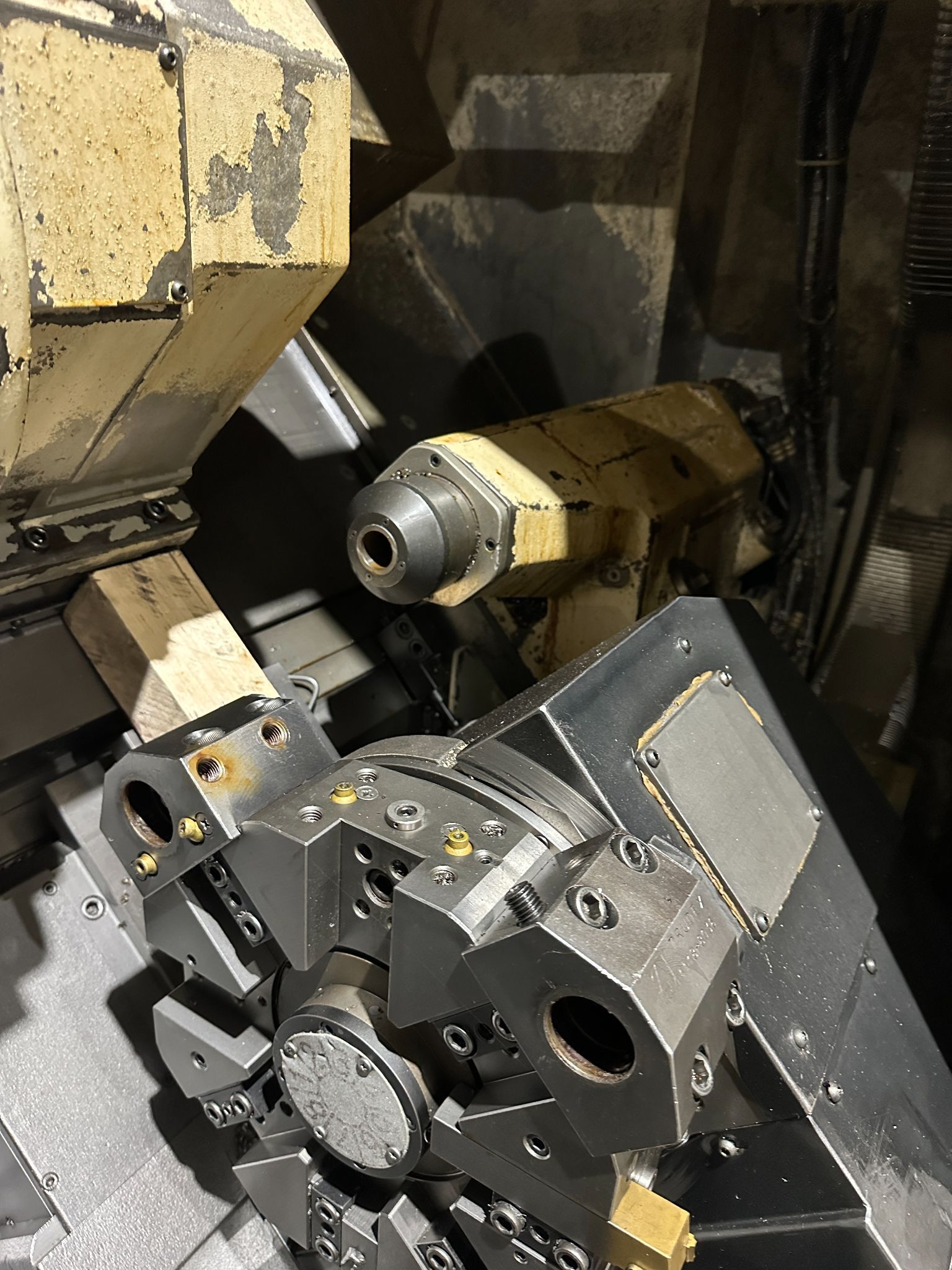

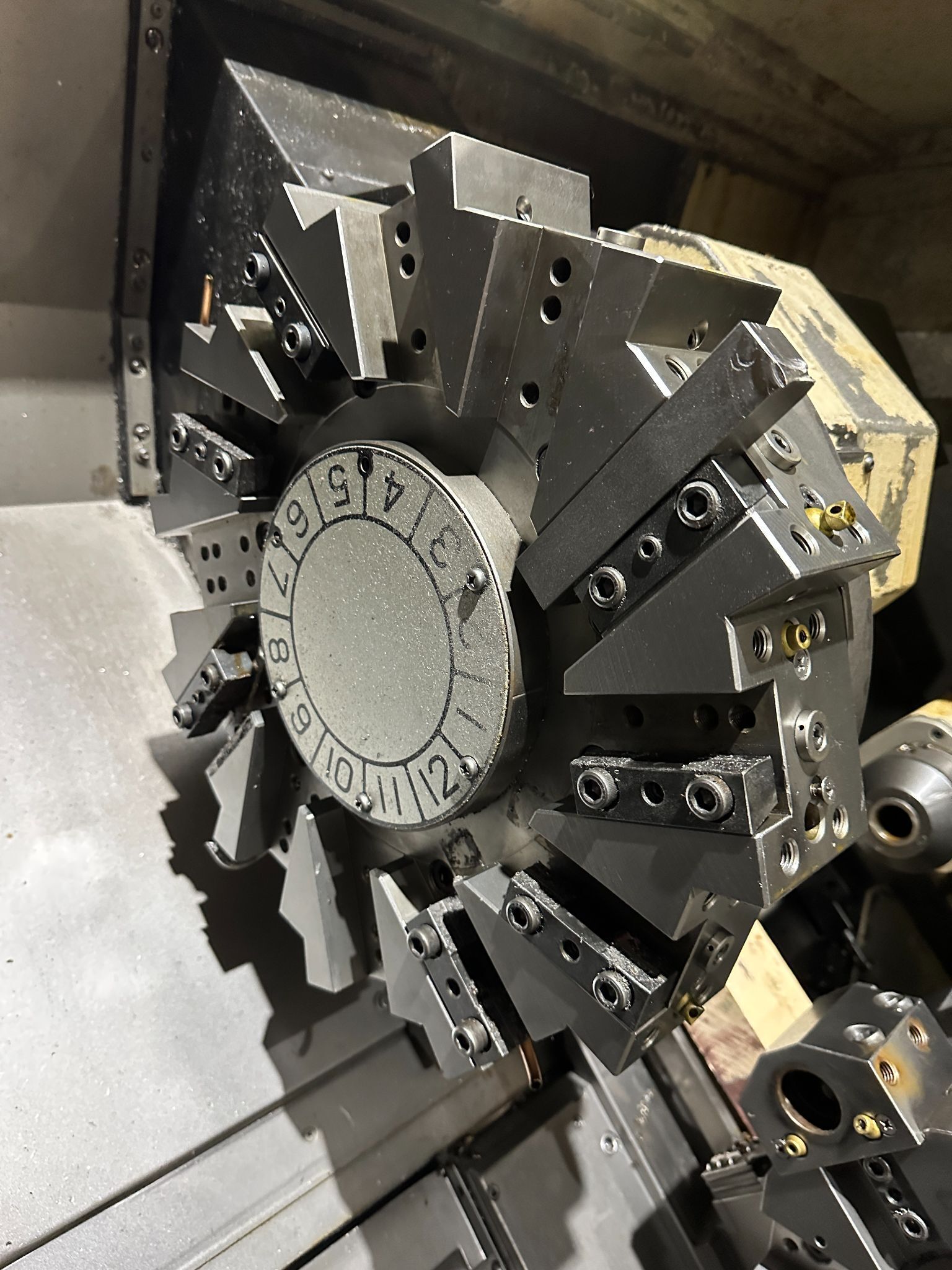

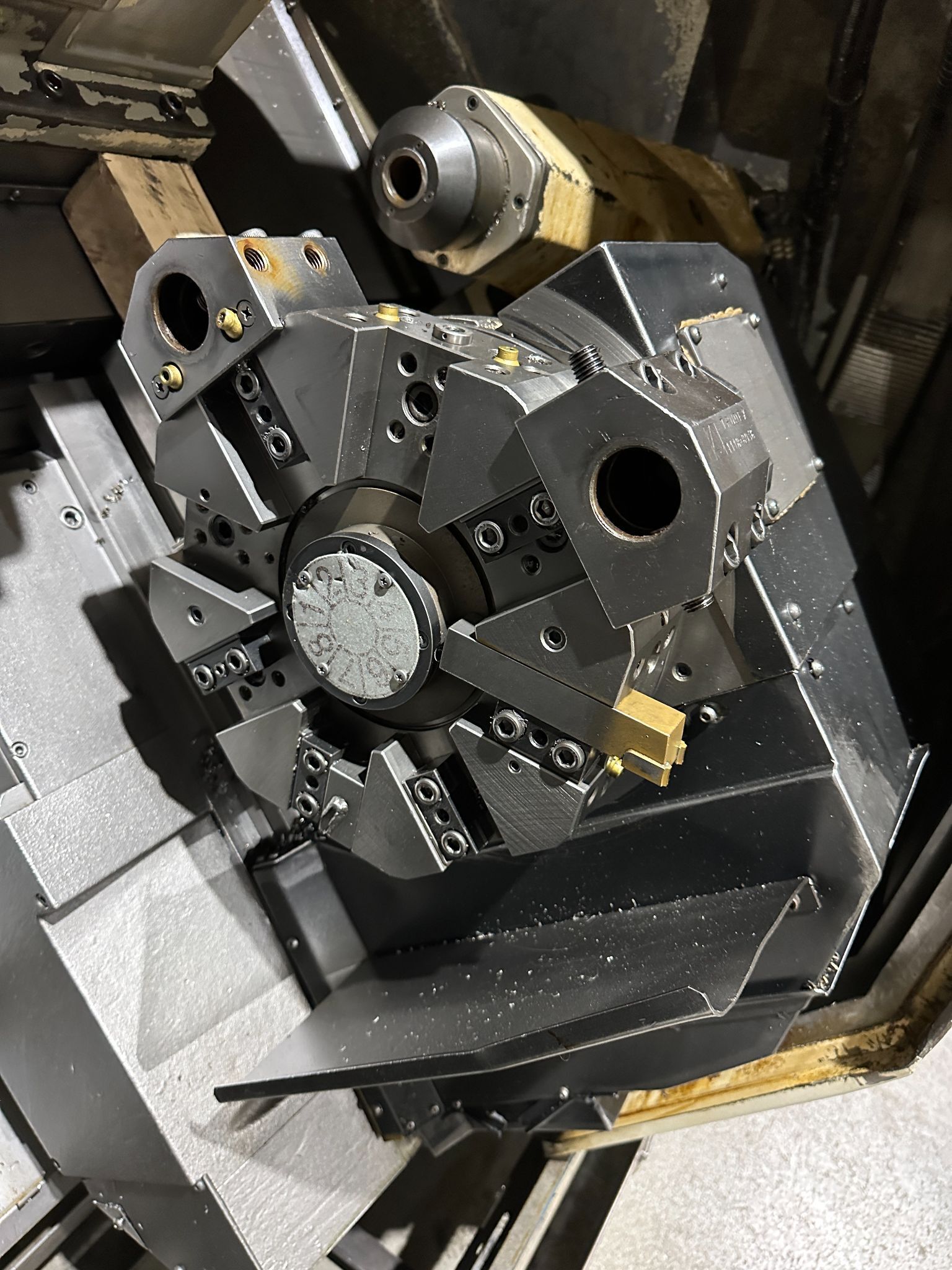

  • Turrets: 2 (upper and lower) with 12 tool stations each

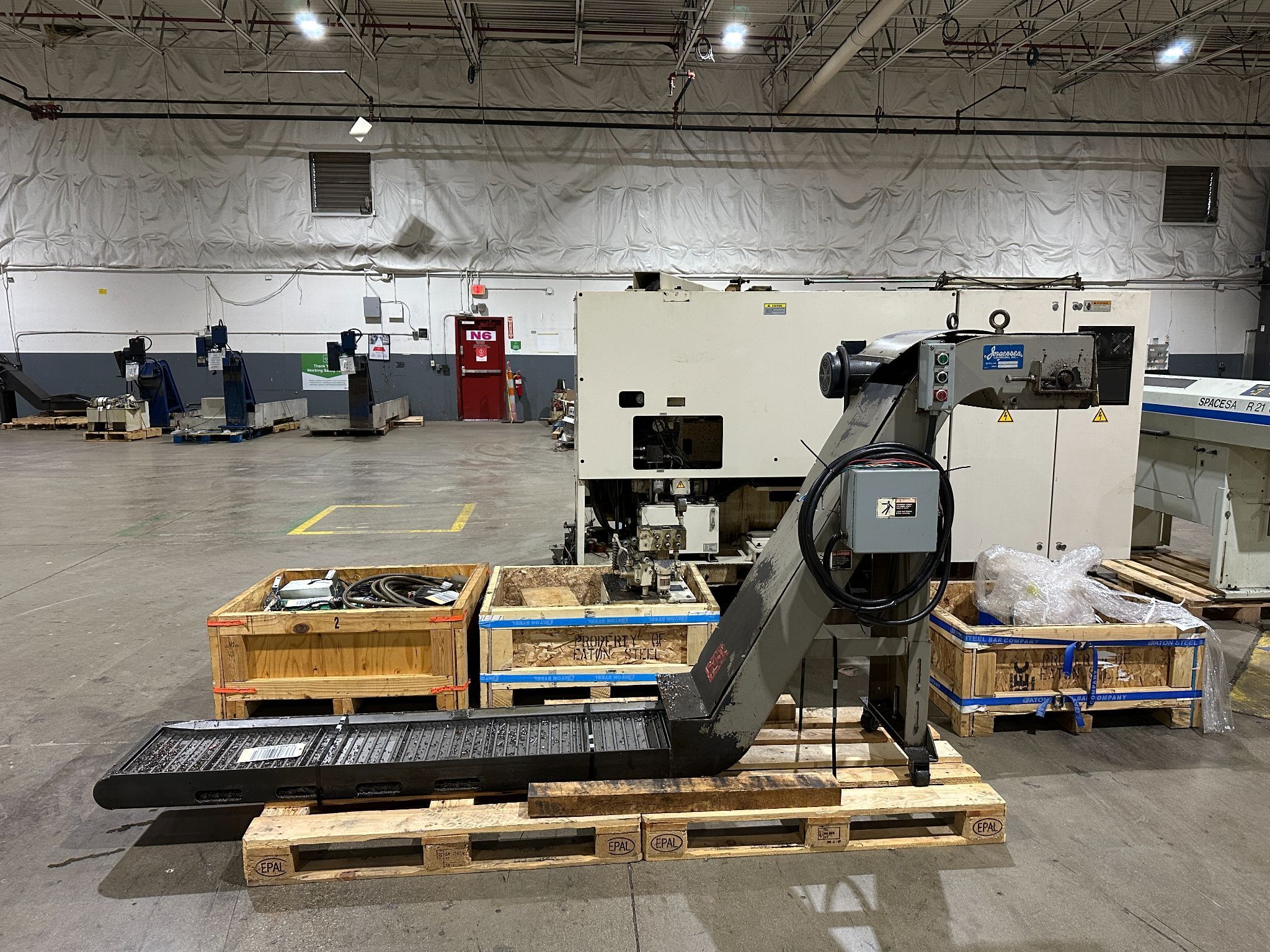

  • Chip Conveyor: Jorgensen included

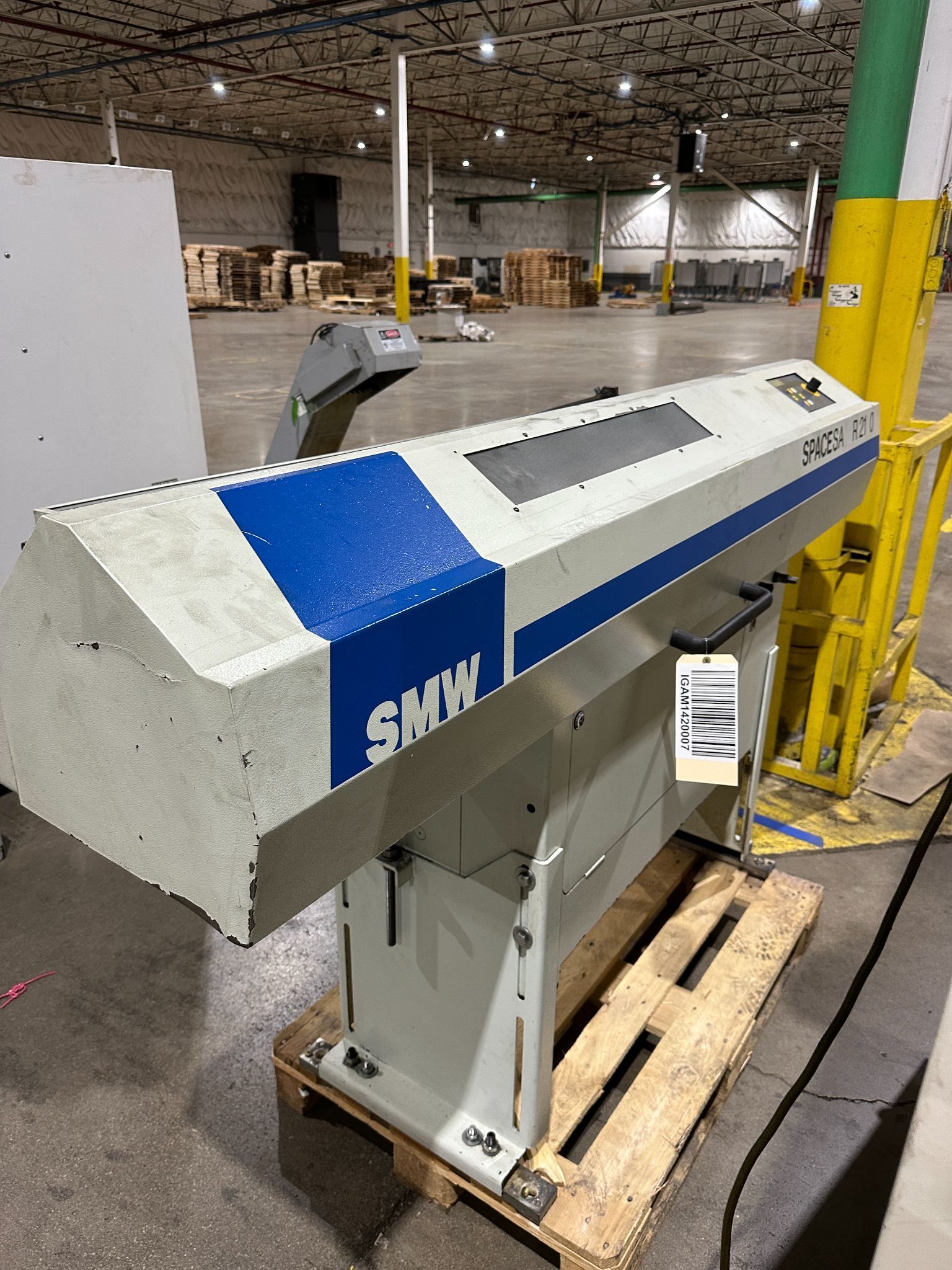

  • Bar Feeder: Optional SMW Spacesa R210 available



Key Features:

  • Twin turret configuration for synchronized multi-tool operations

  • High-speed spindle for efficient metal removal rates

  • Rigid machine structure ideal for heavy-duty applications

  • OSP-U100L CNC control for precise and intuitive programming

  • Integrated Jorgensen chip conveyor for automated waste handling

  • Optional SMW Spacesa R210 bar feeder to automate bar feeding and increase throughput



Applications:

  • High-volume production of precision cylindrical components

  • Aerospace and automotive part manufacturing

  • Complex multi-operation machining

  • Batch production with bar-fed automation

  • Applications requiring fast tool change and reduced idle time



Alternative model numbers include: OKUMA LU-15M, OKUMA LU15-TT, OKUMA LU-15 CNC, OKUMA IMPACT LU15, OKUMA LU-15T
Common misspellings include: OKOMA LU15, OKUMA IMPAKT LU-15, OKUMA LU-115, OKUMA LU15T, OKUMA LU-51
