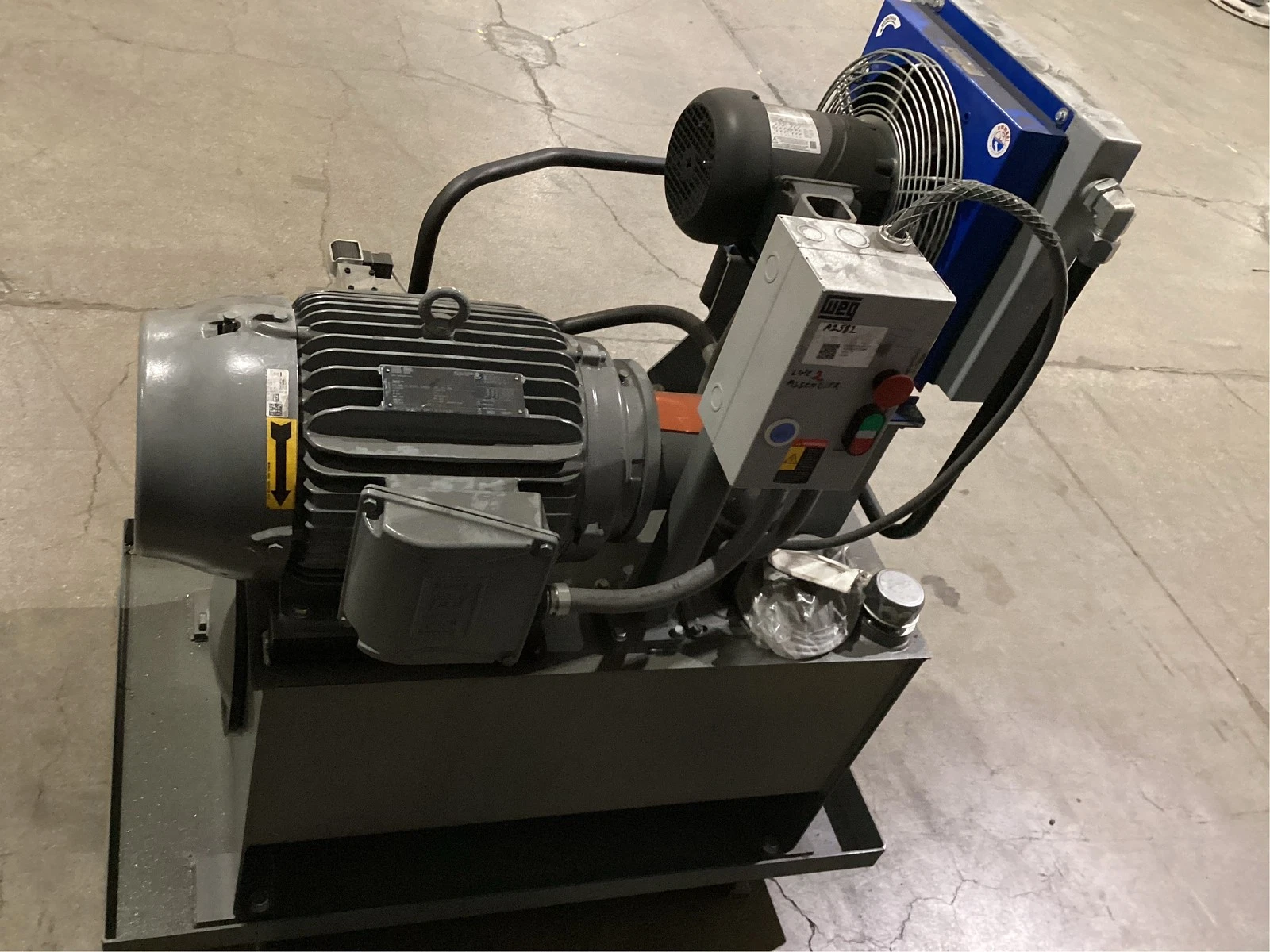

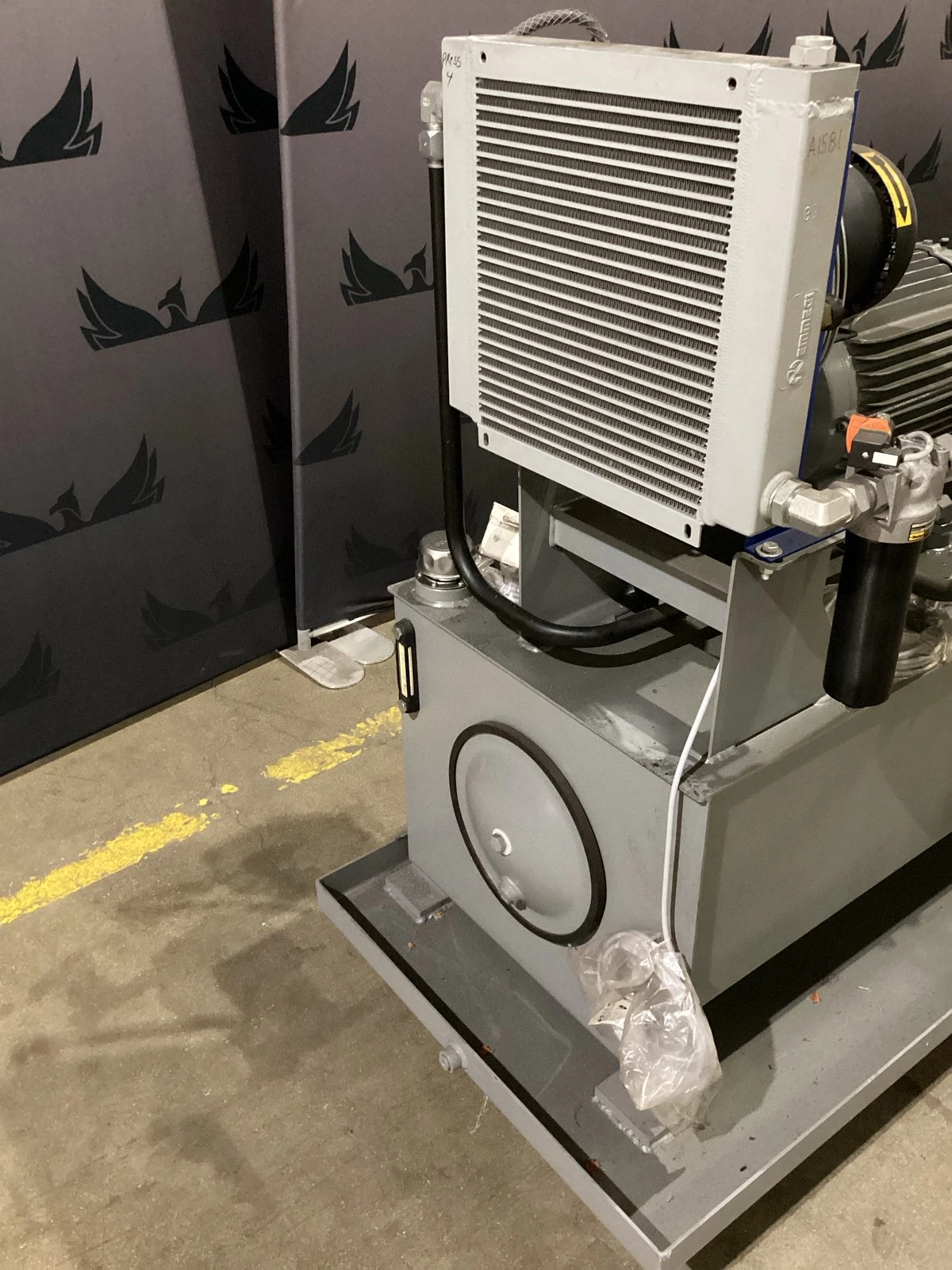

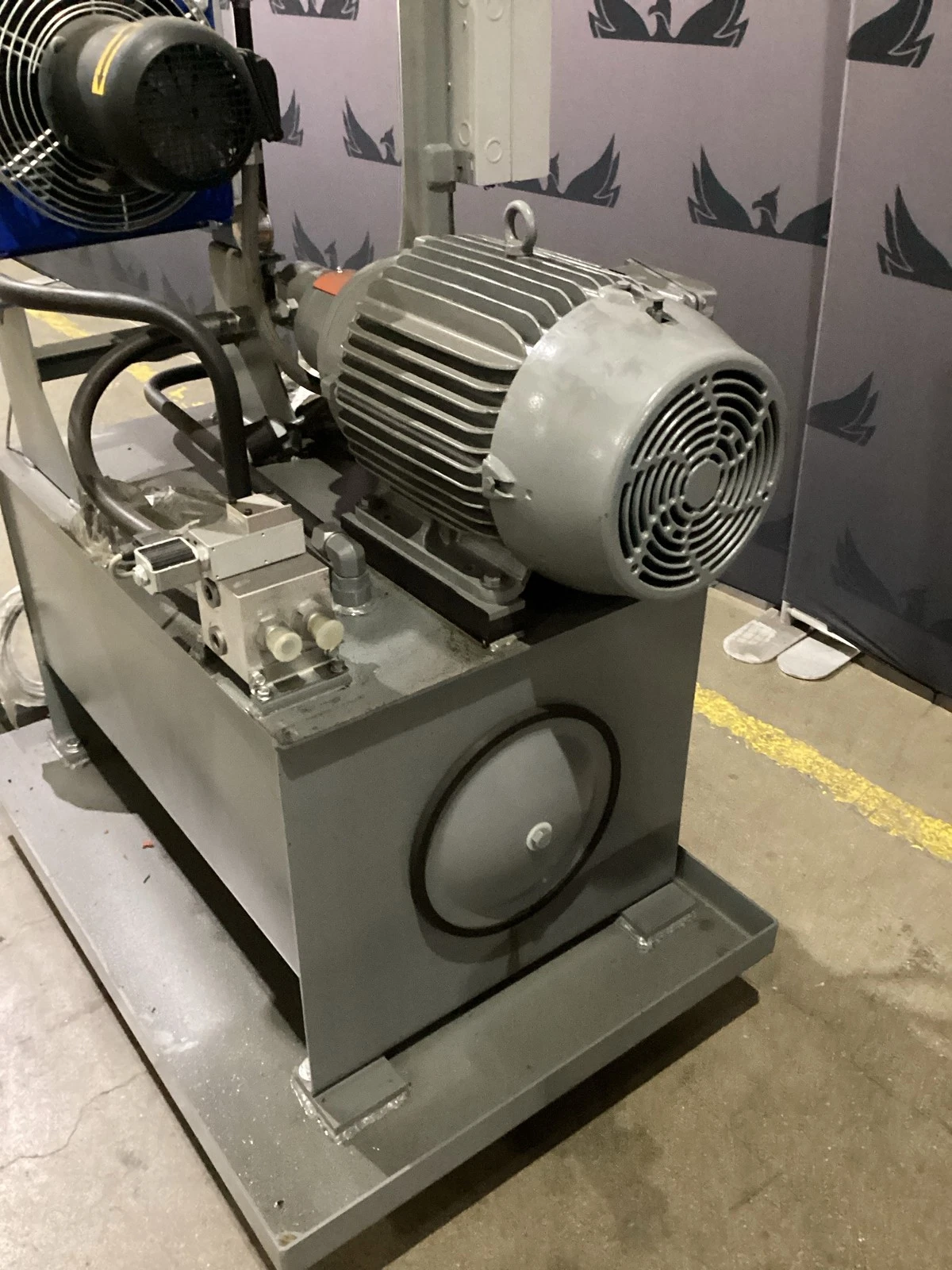

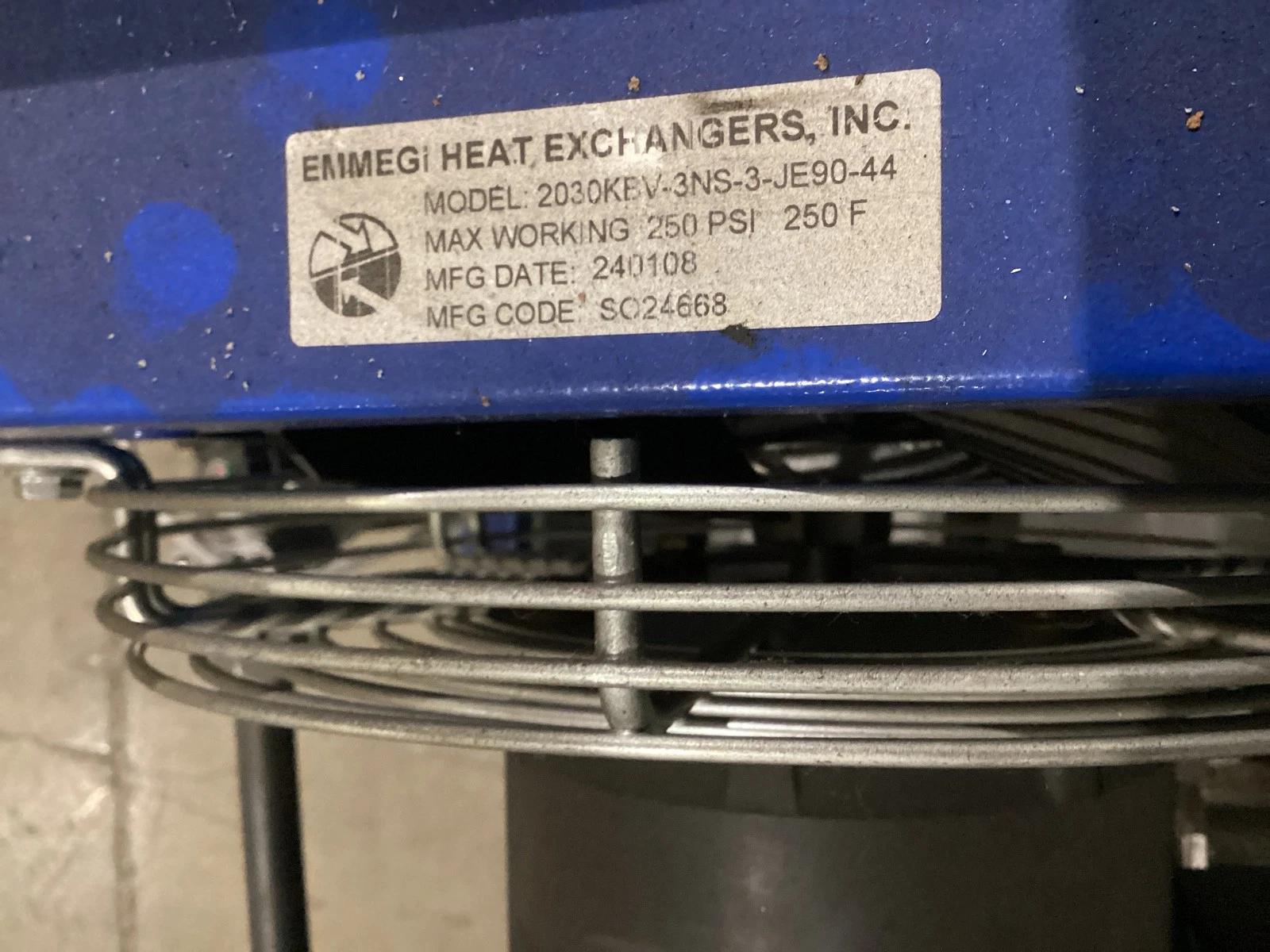

15 HP Hydraulic Power Unit w/ Enimegi Heat Exchanger 230/460V USED

Specification Table

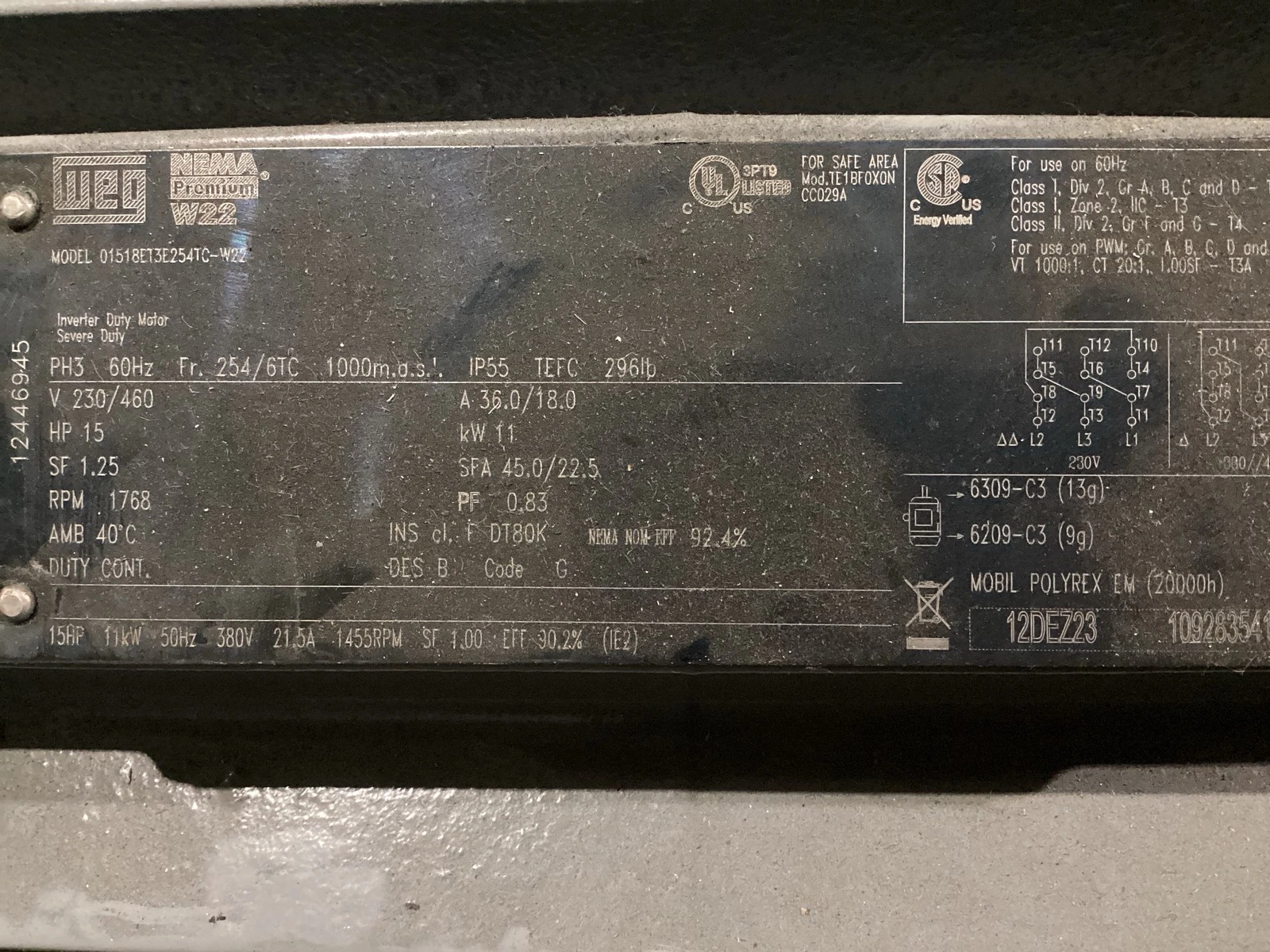

IDENTIFICATION System Manufacturer: Not specified System Model: Not specified Product Type: Hydraulic Power Unit Condition: USED   HYDRAULIC SYSTEM Drive Method: Electric Motor Hydraulic Pump: Included Reservoir: Included Hydraulic Filter: Included Pressure Gauge: Included Fluid Cooler: Included System Operating Pressure: Not specified Pump Flow: Not specified Pump Displacement: Not specified Reservoir Capacity: Not specified Hydraulic Fluid: Not specified   MAIN MOTOR Manufacturer: WEG Product Line: NEMA Premium W22 Model: 01518ET3E254TC-W22 Rated Power: 15 HP (11 kW) Frame: 254/6TC Phase: 3 Phase Frequency: 60 Hz Enclosure: TEFC Protection Rating: IP55 Duty: Continuous Insulation Class: F Ambient Temperature: 40°C NEMA Design: B NEMA Code: G Service Factor: 1.25 Power Factor: 0.83 Rated Speed: 1768 RPM Nominal Efficiency: 92.4% Motor Weight: 296 lb. Motor Date: 12/2023   MAIN MOTOR - 60 HZ ELECTRICAL Rated Voltage: 230 / 460 V Full Load Current: 36.0 / 18.0 A Service Factor Current: 45.0 / 22.5 A   MAIN MOTOR - 50 HZ ELECTRICAL Rated Voltage: 380 V Rated Current: 21.3 A Rated Speed: 1455 RPM Service Factor: 1.00 Efficiency: 90.2%   MAIN MOTOR - DRIVE CAPABILITY Inverter Duty: Yes Variable Torque Range: 1000:1 Constant Torque Range: 20:1   MAIN MOTOR - BEARINGS Drive-End Bearing: 6309-C3 Opposite-End Bearing: 6209-C3 Bearing Grease: Mobil Polyrex EM   HEAT EXCHANGER Manufacturer: Enimegi Heat Exchangers, Inc. Model: 2030KEV-3NS-3-JE90-44 Cooling Method: Forced Air Maximum Working Pressure: 250 PSI Maximum Working Temperature: 250°F Manufacturing Code: SC024668 Manufacturing Date: 24/01/08   HEAT EXCHANGER FAN MOTOR Manufacturer: WEG Model: 5036ES3E56C-S Rated Power: 0.50 HP (0.37 kW) Frame: 56C Phase: 3 Phase Frequency: 60 Hz Voltage: 208-230 / 460 V Full Load Current: 1.86-1.69 / 0.843 A Rated Speed: 3500 RPM Service Factor: 1.15 Power Factor: 0.81 Nominal Efficiency: 68.0% Enclosure: TEFC Protection Rating: IP55 Duty: Continuous Insulation Class: F Motor Date: 11 Jul 2023   FAN MOTOR - 50 HZ ELECTRICAL Rated Voltage: 190-220 / 380-415 V Rated Current: 1.78-1.66 / 0.890-0.87 A Rated Speed: 2865 RPM Service Factor: 1.15 Efficiency: 71.5%   FAN MOTOR - DRIVE CAPABILITY Inverter Duty: Yes Variable Torque Range: 1000:1 Constant Torque Range: 10:1   FAN MOTOR - BEARINGS Drive-End Bearing: 6203-ZZ Opposite-End Bearing: 6202-ZZ Bearing Grease: Mobil Polyrex EM   INSTALLATION / CONFIGURATION System Configuration: Reservoir-Mounted Mounting Type: Floor / Base Mount Cooler Configuration: Fan-Cooled Reservoir Level Indicator: Included Reservoir Access Cover: Included
