Product Specifications
-

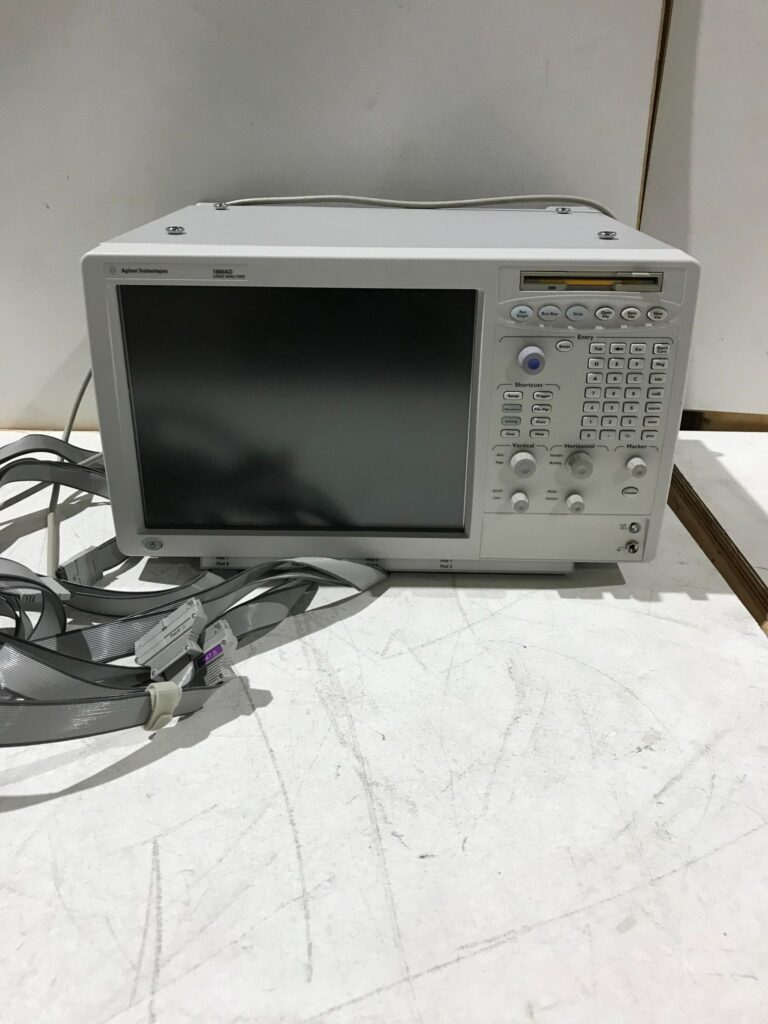

Model Number: 1680AD
-
Manufacturer: Agilent Technologies
-
Type: Digital logic analyzer
-
Channels: 68 channels (34 timing + 34 state channels standard)
-
Memory Depth: Up to 64 K samples per channel
-
Sampling Rate: 4 GHz timing, 400 MHz state analysis
-
Display: Integrated 10.4″ color LCD display
-
Operating System: Embedded OS with GUI interface
-
Connectivity: USB, LAN, GPIB (option-dependent)
-
Dimensions: Compact benchtop form factor
Key Features
-
Simultaneous state and timing analysis for comprehensive debugging
-
Deep memory and high-speed sampling for detailed data capture
-
Advanced triggering to isolate intermittent and complex logic issues
-
Intuitive graphical user interface for easy setup and navigation
-
Standalone unit with integrated display—no external PC required
Applications
-
Embedded system design and debugging
-
FPGA and microcontroller development
-
Protocol analysis (e.g., I2C, SPI, parallel buses)
-
Hardware/software integration validation
-
Educational and research labs focused on digital electronics
Alternative model numbers include: Agilent 1680A, Agilent 1680AD-001, Keysight 1680AD, HP 1680AD, Agilent Technologies 1680AD Logic Analyzer
Common misspellings include: 168OAD, 1680D, AGILENT 168OAD, AGILENT TECHNOLOGIES 1680A, LOGIC ANALYSER 1680AD
