Product Specifications
-

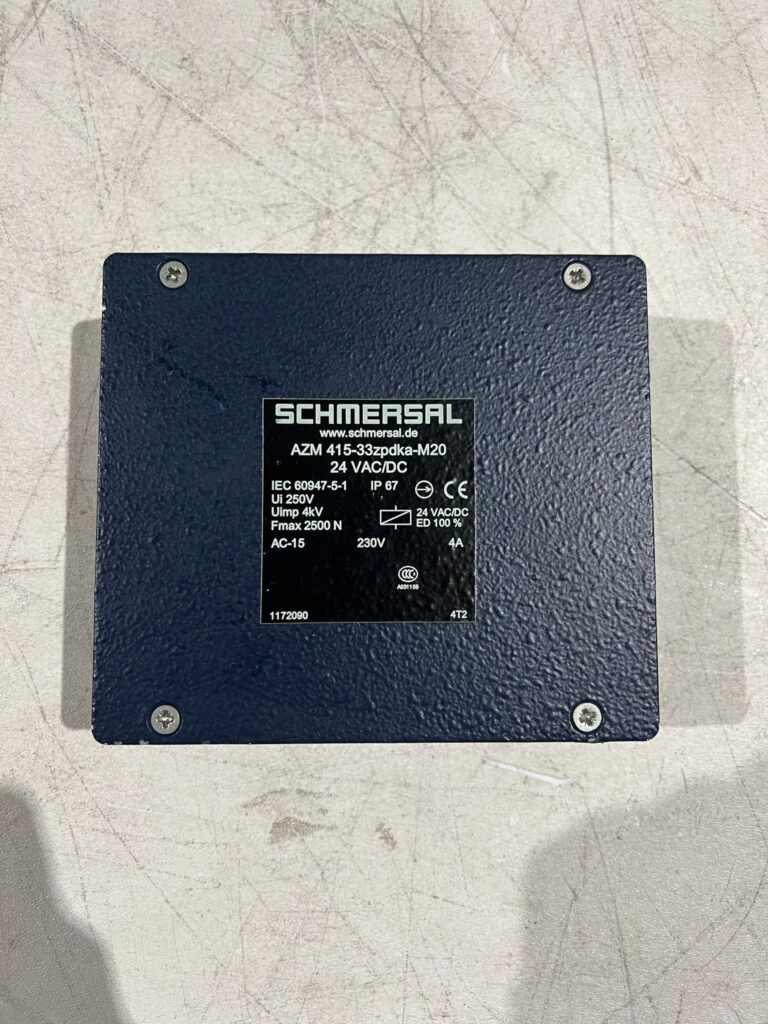

Model Number: AZM 415-33ZPDKA-M20
-
Operating Voltage: 24 V DC (solenoid)
-
Actuator Type: Key-operated interlock with separate actuator (not included)
-
Contacts: 3 NC / 3 NO
-
Connection Type: M20 cable entry
-
Material: Zinc die-cast housing
-
Enclosure Rating: IP67
-
Mounting Orientation: Any position
-
Standards Compliance: EN ISO 14119, IEC 60947-5-1
Key Features
-
Electromechanical solenoid interlock with mechanical guard locking
-
Rugged die-cast body for harsh industrial environments
-
Dual-channel safety outputs for integration into safety systems
-
High locking force to ensure secure door holding
-
Versatile installation with multiple actuation directions
Applications
-
Machine tool access safety
-
Guard door interlocking in packaging machinery
-
Robotics enclosures and automated work cells
-
Conveyor safety doors and hatches
-
Processing and bottling line safety systems
