Product Specifications
-

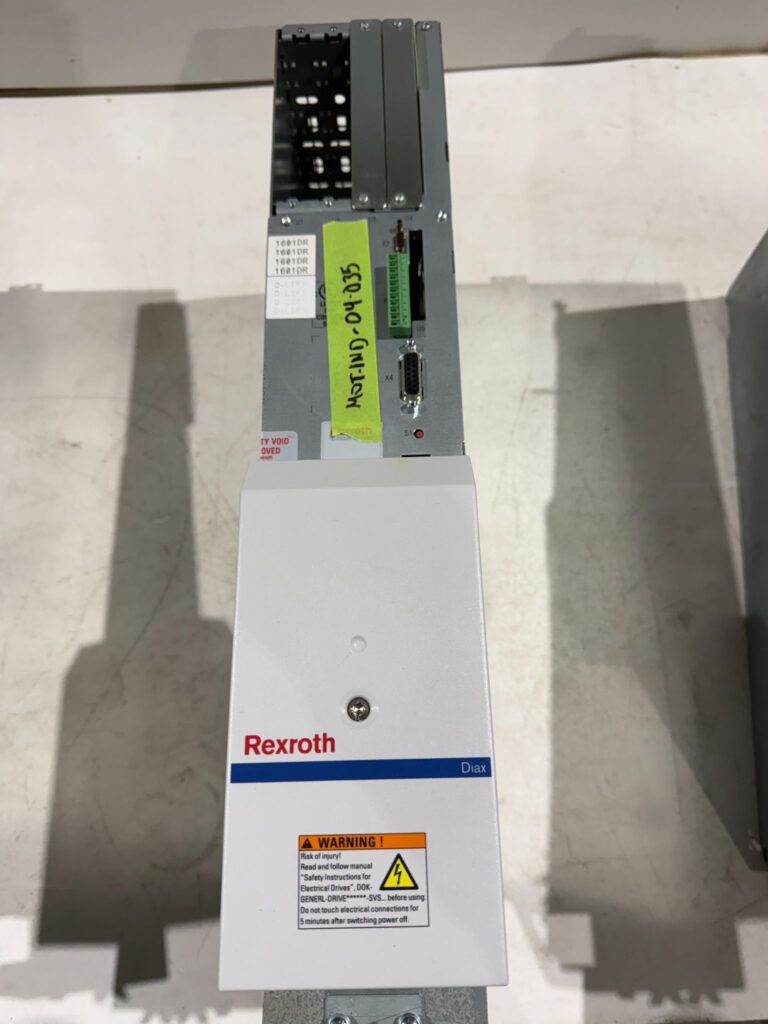

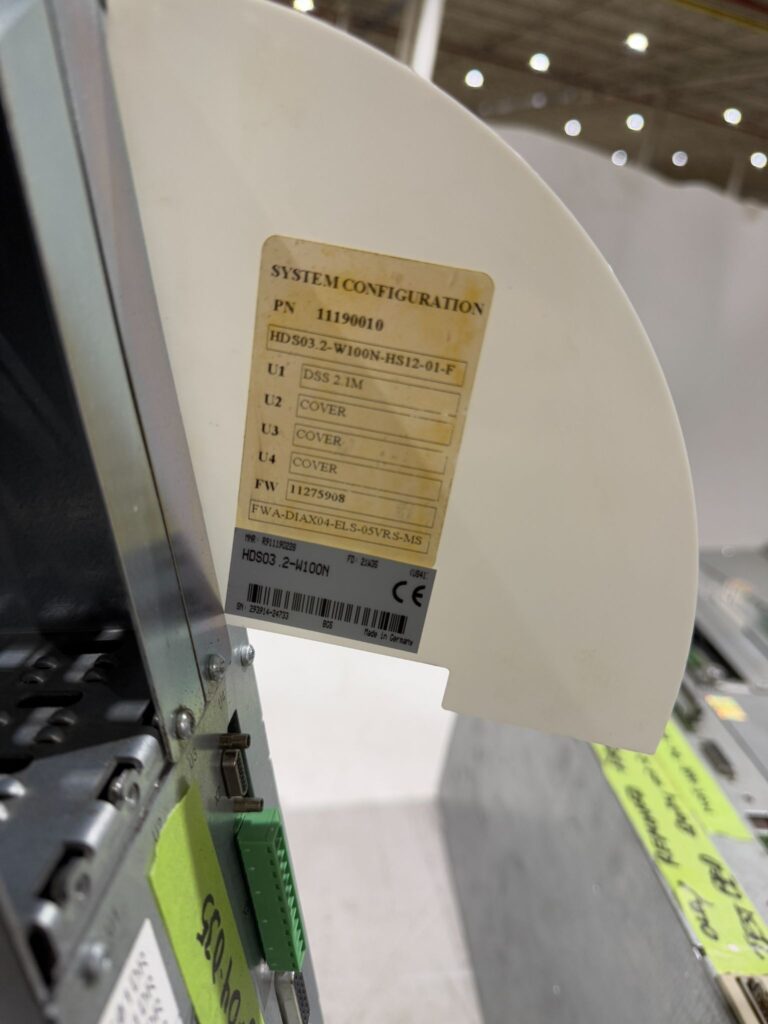

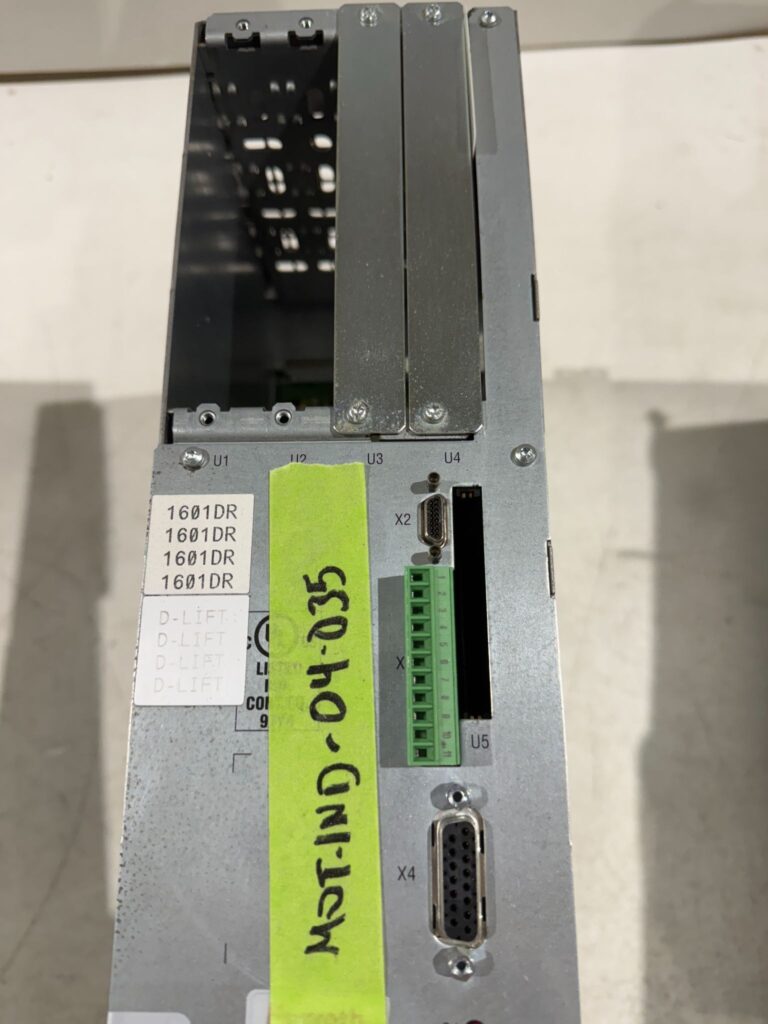

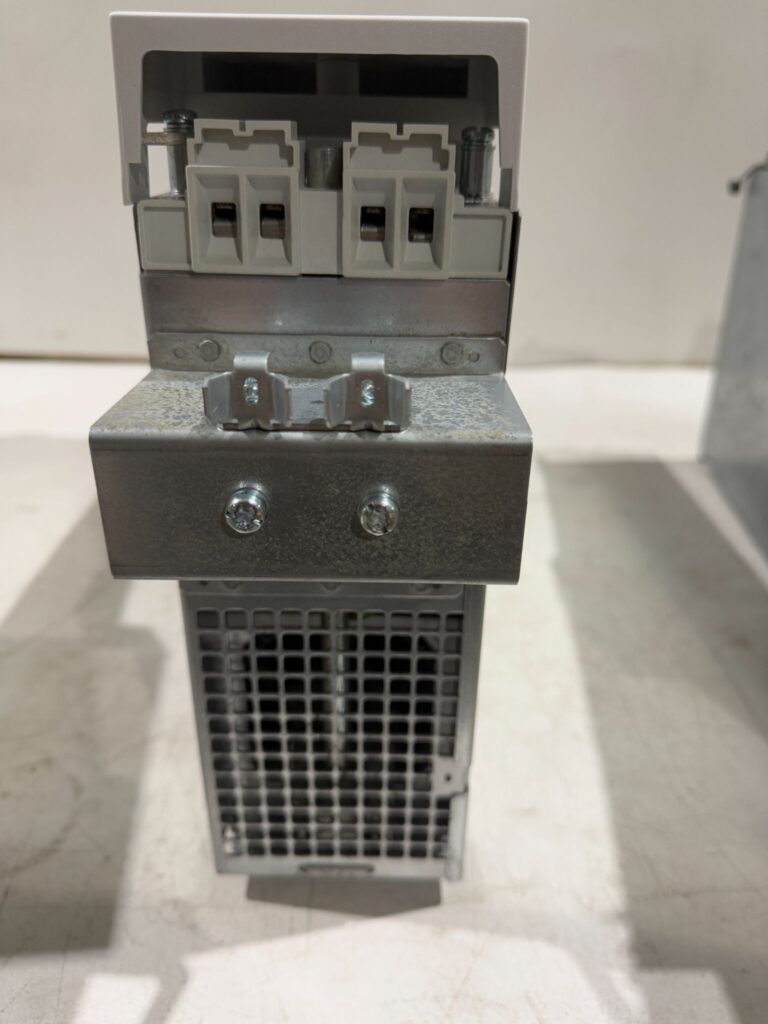

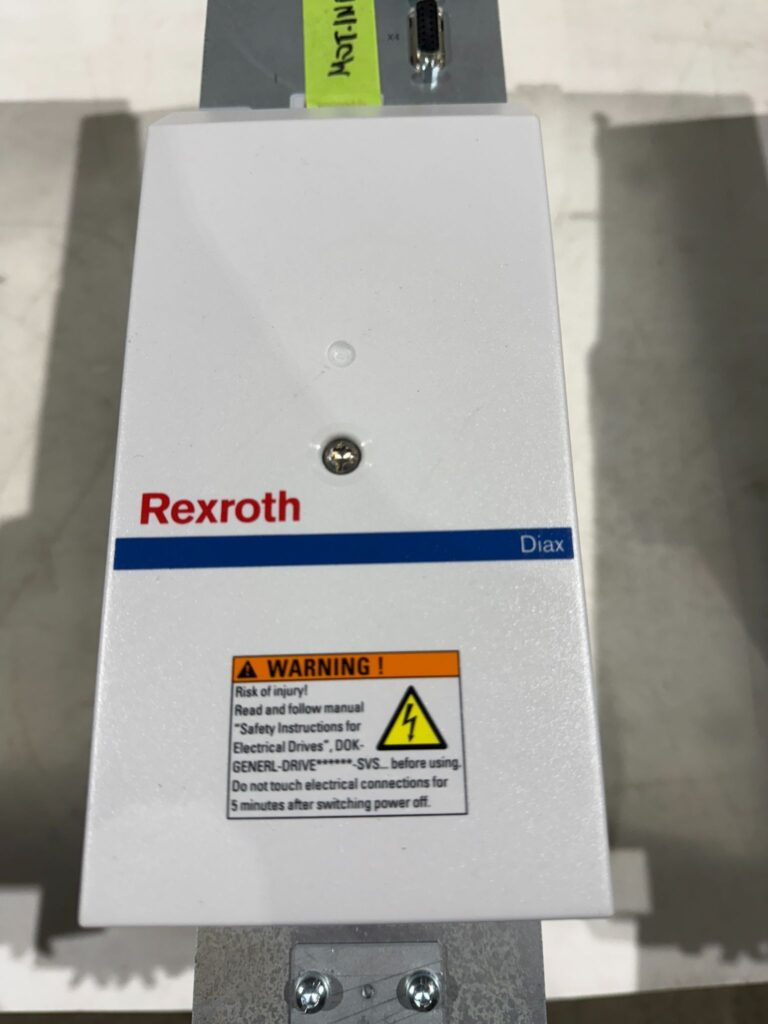

Model Number: HDS03.2-W100N-HS12-01-F
-
Drive Series: DIAX04
-
Rated Current: 100 A
-
Cooling Type: Air-cooled (internal fan)
-
Power Supply: Requires HVE/HVR power supply modules
-
Control Interface: SERCOS (optical fiber communication)
-
Motor Compatibility: Supports Rexroth Indramat 1MB, MHD, and MKD series motors
-
Mounting Configuration: Modular rack-mount
-
Firmware Version: 01
Key Features
-
High-capacity 100 A drive for heavy-duty servo applications
-
SERCOS interface for real-time digital control and diagnostics
-
Advanced fault monitoring and protection functions
-
Modular design for scalable motion control systems
-
Compatible with various Rexroth motor series for flexible application use
Applications
-
Industrial CNC machining centers
-
Automated production lines and robotics
-
Packaging and labeling machinery
-
Printing presses with high dynamic demands
-
Material handling and conveyor control systems
