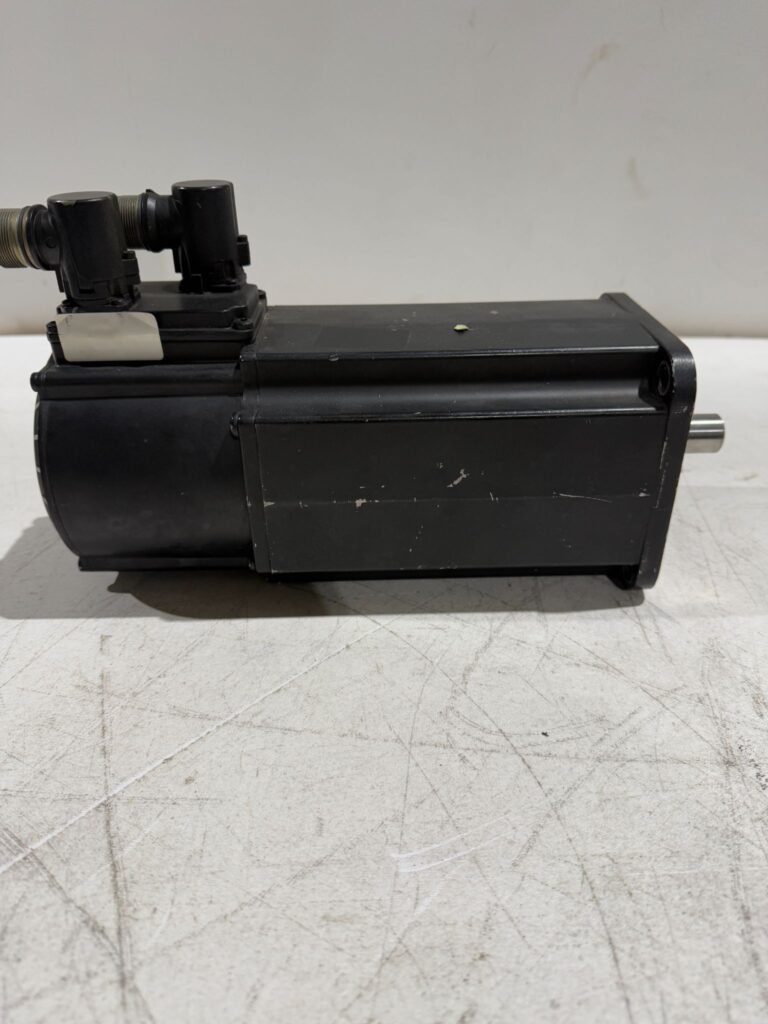

Product Specifications
-
Manufacturer: Bosch Rexroth (Indramat)
-

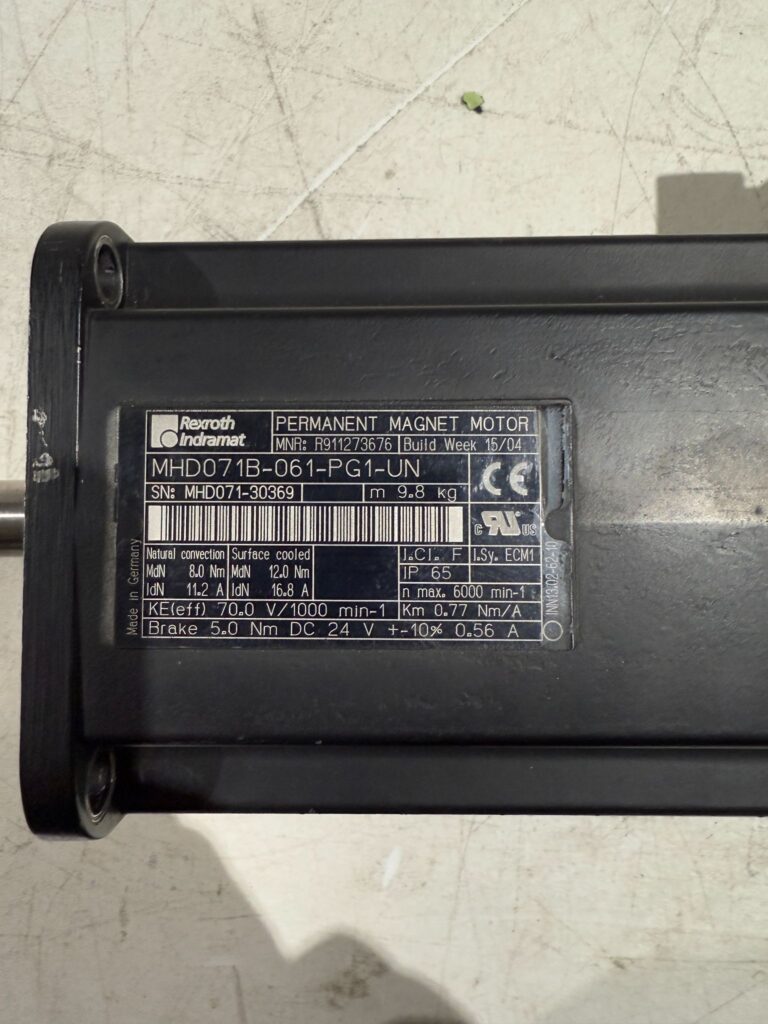

Model: MHD071B-061-PG1-UN
-
Motor Type: AC synchronous servo motor
-
Frame Size: MHD071
-
Length: B (standard)
-
Windings: 061
-

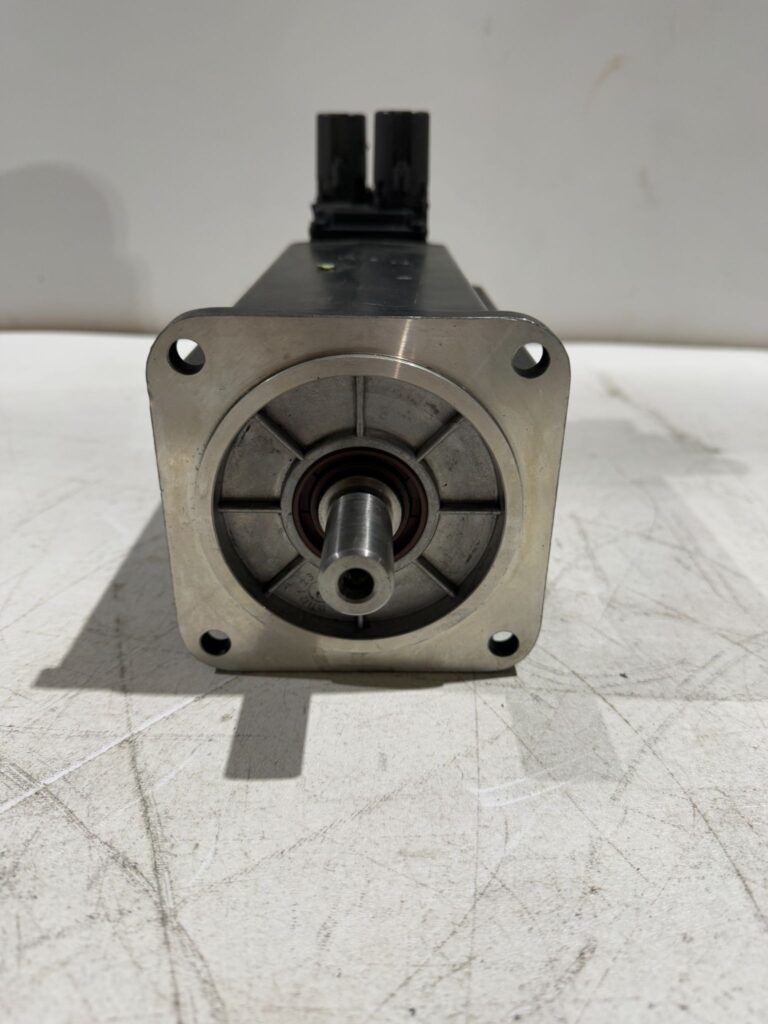

Shaft Type: Plain shaft with keyway
-

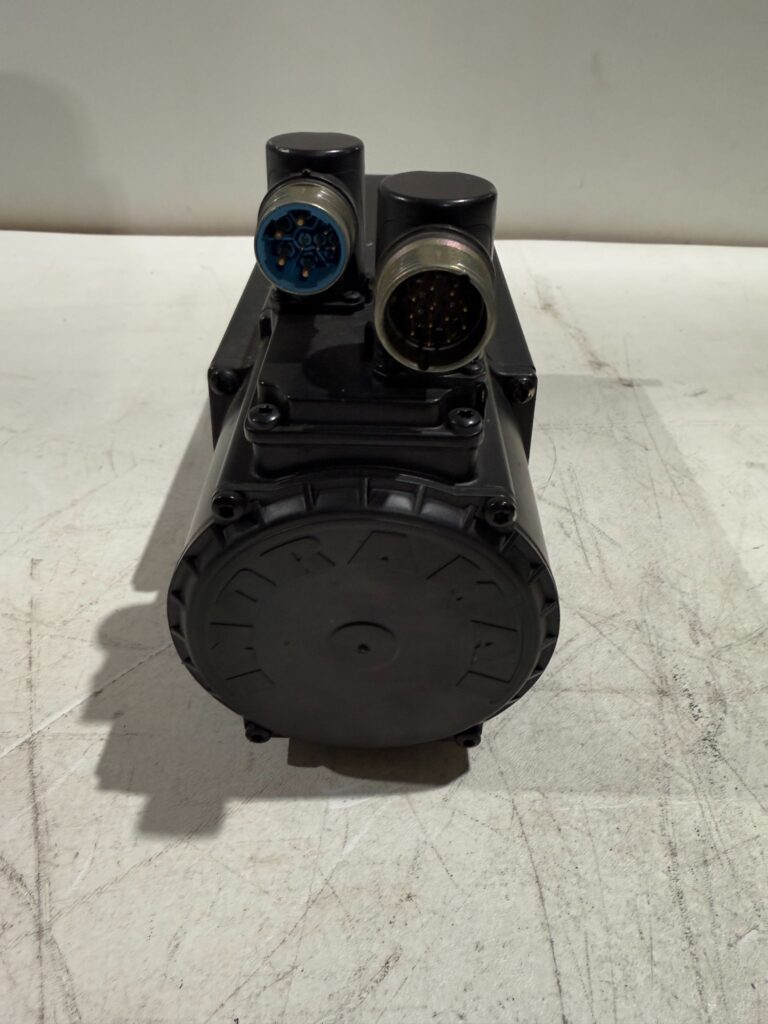

Feedback: Encoder with integrated multiturn absolute encoder (PG1)
-
Cooling Method: Natural convection (surface cooled)
-
Protection Class: IP65
-
Mounting Type: Flange-mounted
-
Rated Torque: Approx. 6.8 Nm (varies slightly by setup)
-
Rated Speed: Approx. 3,000 RPM
Key Features
-
High-precision positioning with integrated encoder feedback
-
Compact design suited for tight industrial spaces
-
Maintenance-free brushless technology
-
Compatible with Rexroth IndraDrive and Diax 04 drive systems
-
Fully enclosed IP65-rated housing for harsh environments
-
Designed for high-dynamic applications and 24/7 duty cycles
Applications
-
CNC machine tools and milling centers
-
Industrial robotics and automation arms
-
Printing and textile machinery
-
Packaging and bottling lines
-
Assembly and material handling equipment
