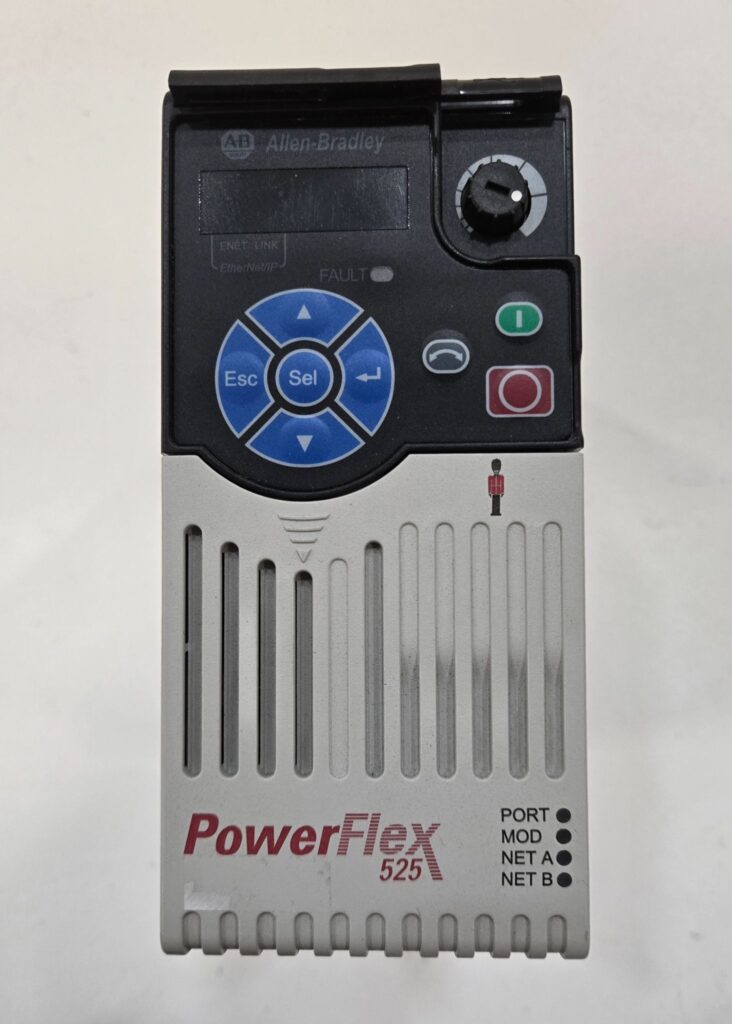

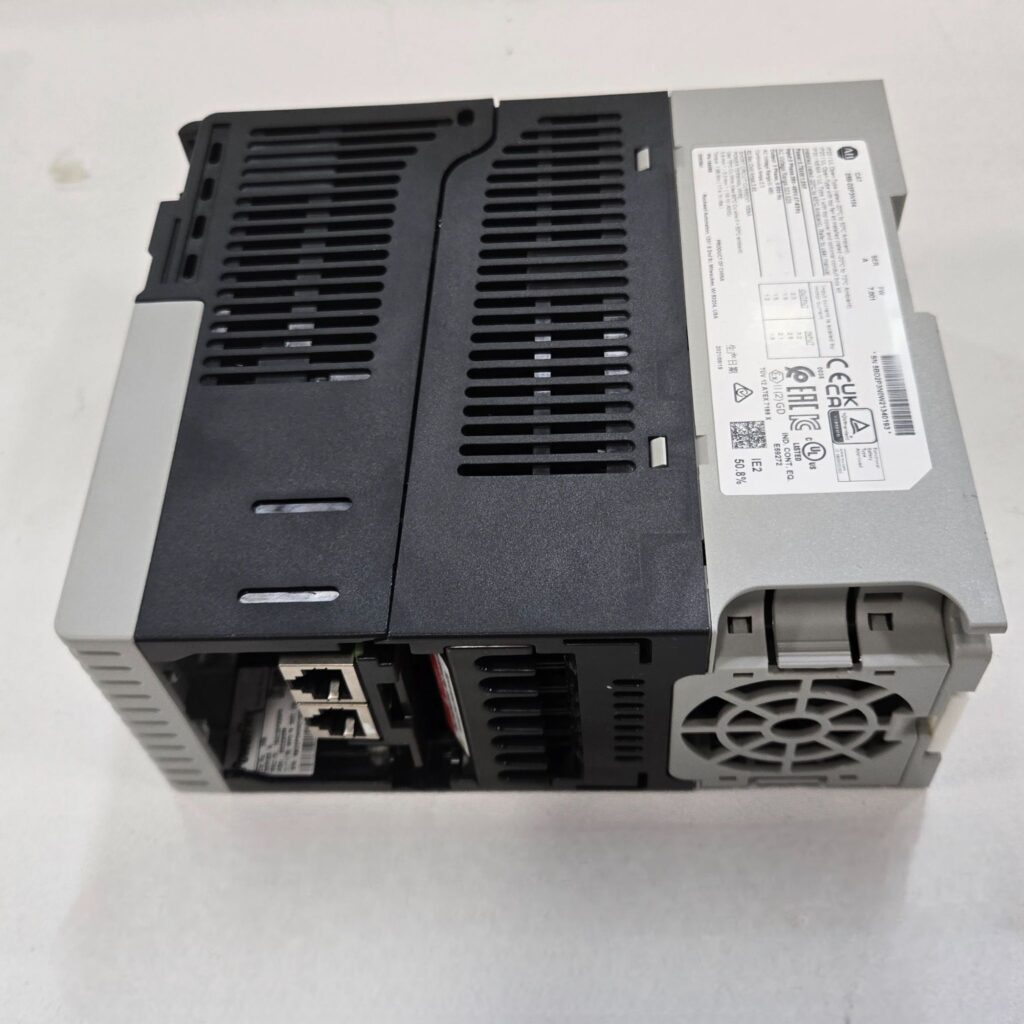

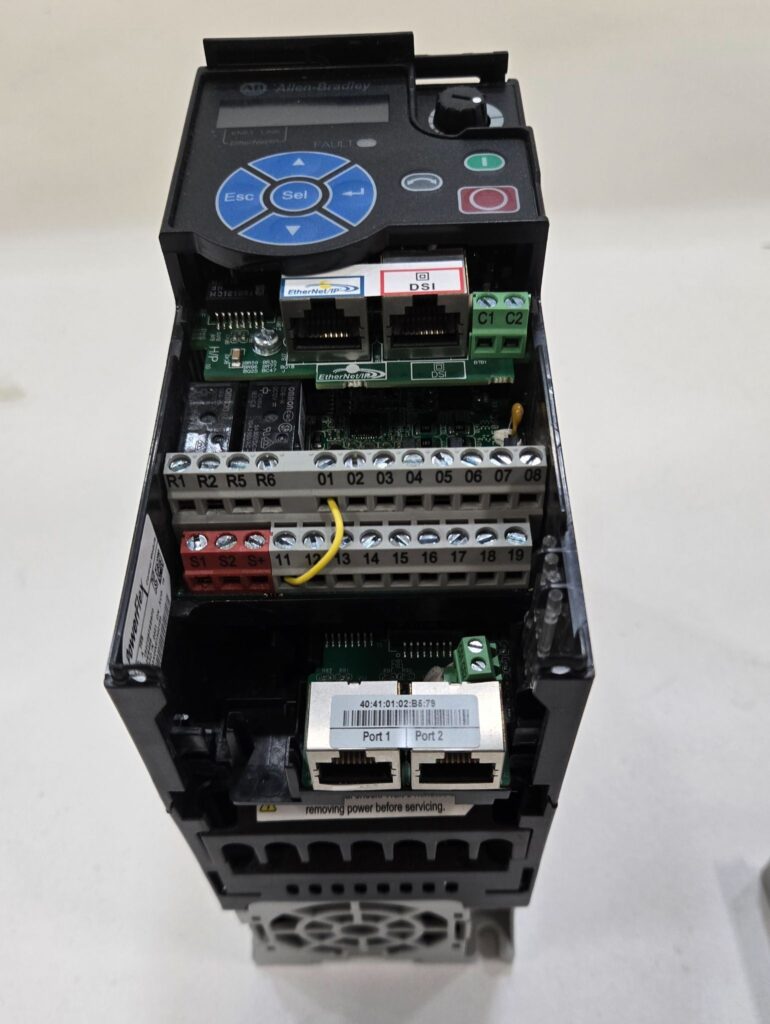

ALLEN BRADLEY 25B-D2P3N104 AC DRIVE SER A USED

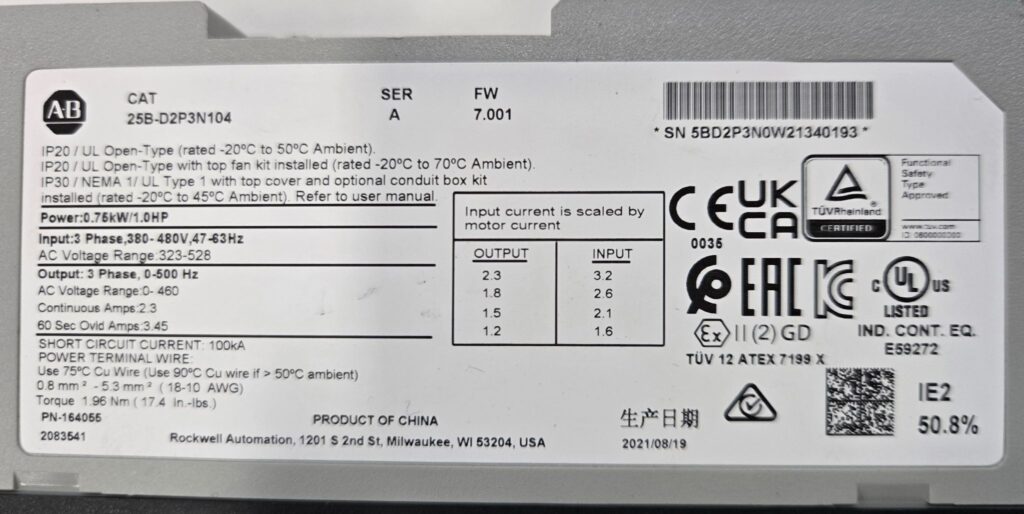

Product Specifications

• Manufacturer: Allen-Bradley
• Model Number: 25B-D2P3N104
• Series: PowerFlex 525 (Series A)
• Year of Manufacture: 2021
• Condition: Used
• Input Voltage: 480V AC (Three-Phase)
• Output Power: 1.1 kW (1.5 HP)
• Output Current: 2.3A
• Frequency Range: 0-500 Hz
• Control Method: Sensorless Vector Control / V/Hz Control
• Communication Protocols: Built-in EtherNet/IP & RS-485 (Modbus RTU)
• Enclosure Rating: Open Type (IP20)
• Safety Features: Safe Torque Off (STO)
• Operating Temperature Range: -20°C to +50°C
• Certifications: UL, CE, CSA

Key Features

• Advanced Motor Control – Offers precise speed and torque control with sensorless vector and V/Hz control modes.
• Integrated EtherNet/IP Connectivity – Provides real-time communication for seamless automation integration.
• Energy Efficiency – Optimized for low power consumption and motor performance improvement.
• Modular & Compact Design – Features a removable control module for flexible installation and quick setup.
• Built-in Safety Features – Includes Safe Torque Off (STO) for enhanced machine safety and protection.

Applications

• Industrial Automation & Manufacturing – Controls motors in automated production systems and assembly lines.
• Material Handling & Conveyors – Ensures smooth and efficient operation of conveyors, lifts, and sorters.
• HVAC & Pumping Systems – Regulates pumps, fans, and compressors for energy efficiency.
• Printing & Textile Machinery – Supports precision speed control for high-speed manufacturing.
• Automotive & Aerospace – Provides reliable motor control for precision-driven production environments.

 Alternative model numbers include: 25B-D1P4N104, 25B-D4P0N104, 25B-D2P3N114, 25B-D2P3F104, 25B-D2P3H104.Common misspellings include: 25B-DP23N104, 25B-D2P3N1O4, 25B-D2P3N14, 25B-D2P3N1L4, 25B-D2P3N0114.
