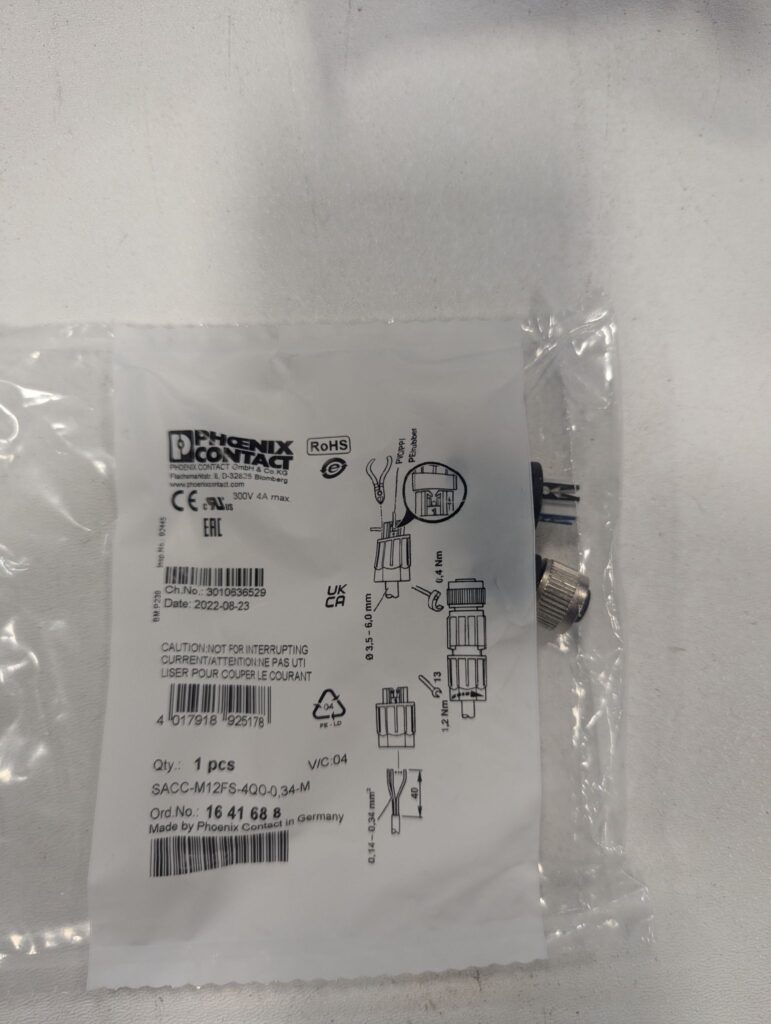

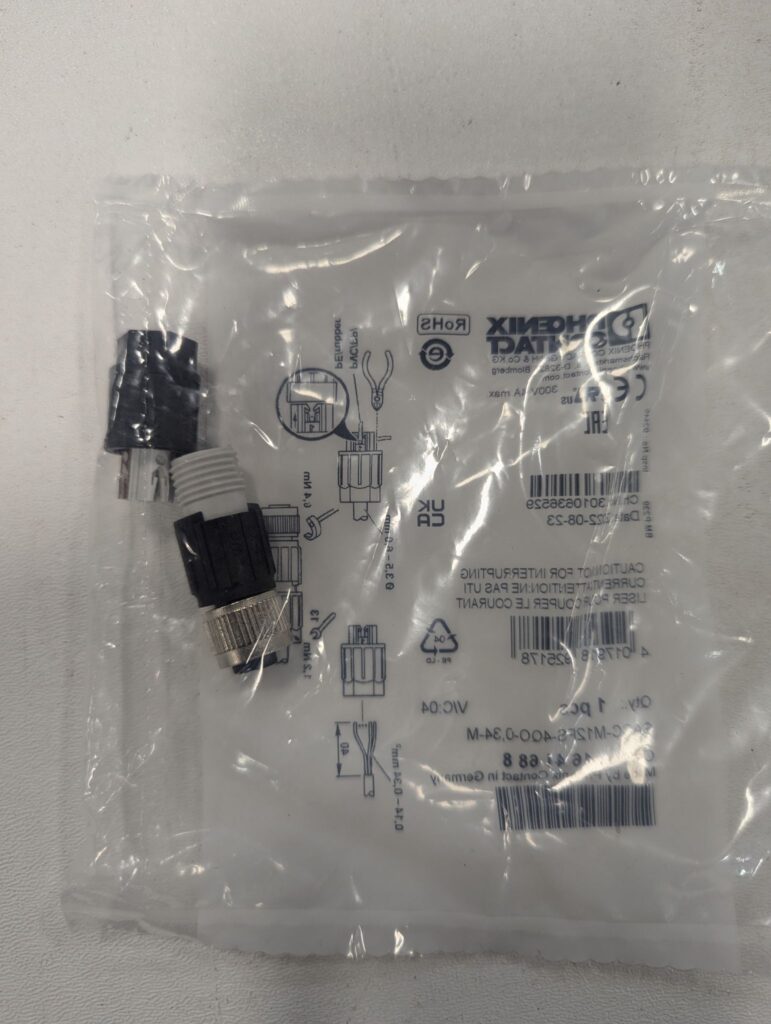

PHOENIX CONTACT SACC-M12FS-4QO-0,34-M CIRCULAR METRIC CONNECTOR NEW

Product Specifications

• Part Number: SACC-M12FS-4QO-0,34-M

• Manufacturer: Phoenix Contact

• Connector Type: Circular connector, M12 series

• Gender: Female (socket)

• Number of Positions: 4

• Wire Gauge: 0.34 mm² (approx. 22 AWG)

• Cable Connection: Screw connection

• Contact Surface: Gold-plated contacts

• Orientation: Straight

• Housing Material: TPU (thermoplastic polyurethane)

• Degree of Protection: IP67 (when mated)

Key Features

• Compact M12 design ideal for tight installation spaces

• 4-position socket configuration for signal or data lines

• Screw-termination for fast, tool-friendly wiring

• Gold-plated contacts provide excellent conductivity and corrosion resistance

• IP67-rated protection against dust and water ingress

• Resistant to vibration, ensuring signal stability in high-motion applications

Applications

• Fieldbus and sensor connections in industrial automation

• Signal wiring for robotics and machinery

• Process control systems

• Packaging and conveyor systems

• Outdoor equipment requiring IP67-rated connectors

Alternative model numbers include: SACC-M12FS-4QO, M12FS-4QO-0.34-M, Phoenix M12 4-Pin Female, SACC-M12-Female-4Pole, 4QO-0.34-M Connector
Common misspellings include: SACC-MI2FS-4QO-0,34-M, SACC-M12FS-4Q0, SACCM12FS-4QO034M, SACC-M12FS-4QO-034-M, SACC-M12SF-4QO
