▸ Key Features:

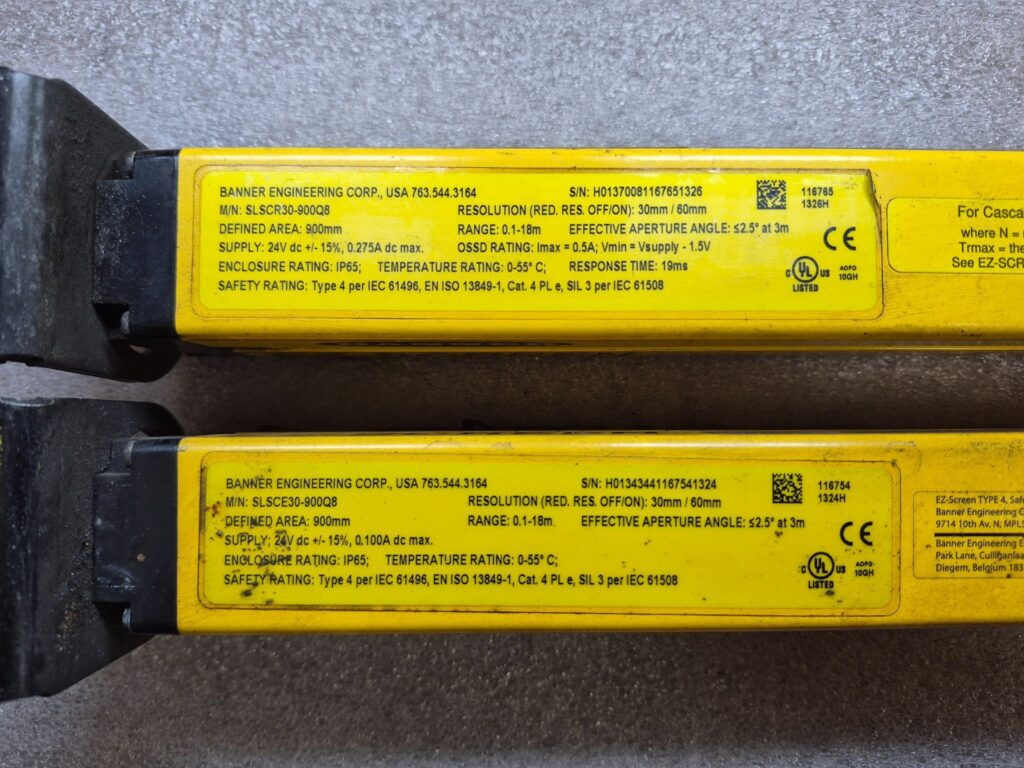

• 900mm defined detection area for large vertical safeguarding
• Safety Rating: Type 4 per IEC 61496, Cat. 4 PLe, SIL 3 per IEC 61508
• Operating range: 0.1–18 meters
• Resolution (RED and RES OFF/ON): 30mm / 60mm
• 24V DC ±15% supply voltage operation
• IP65 enclosure rating for industrial environments
• Effective aperture angle: ±2.5° at 3m
• Fast response time: 19ms (receiver)
• Ideal for robotic cells, presses, conveyors, and hazardous access points
▸ Applications:
• Machine guarding for industrial automation
• Operator safety around hazardous machinery
• Access detection for robotic workcells
• Packaging, cutting, and material-handling equipment
• Perimeter and point-of-operation safeguarding
▸ Alternative Model Numbers:
SLSE30-900Q
SLSR30-900Q
EZ-Screen 900mm Variants
SLS Series Safety Light Curtains
Banner 30mm / 60mm Resolution Light Curtains
▸ Common Misspellings or Phrasing:
SLSC30-900Q
SLC30-900Q
Banner EZ Screen 900
Banner 900mm Safety Curtain
SLSCE30900Q / SLSCR30900Q
