▸ Key Features:

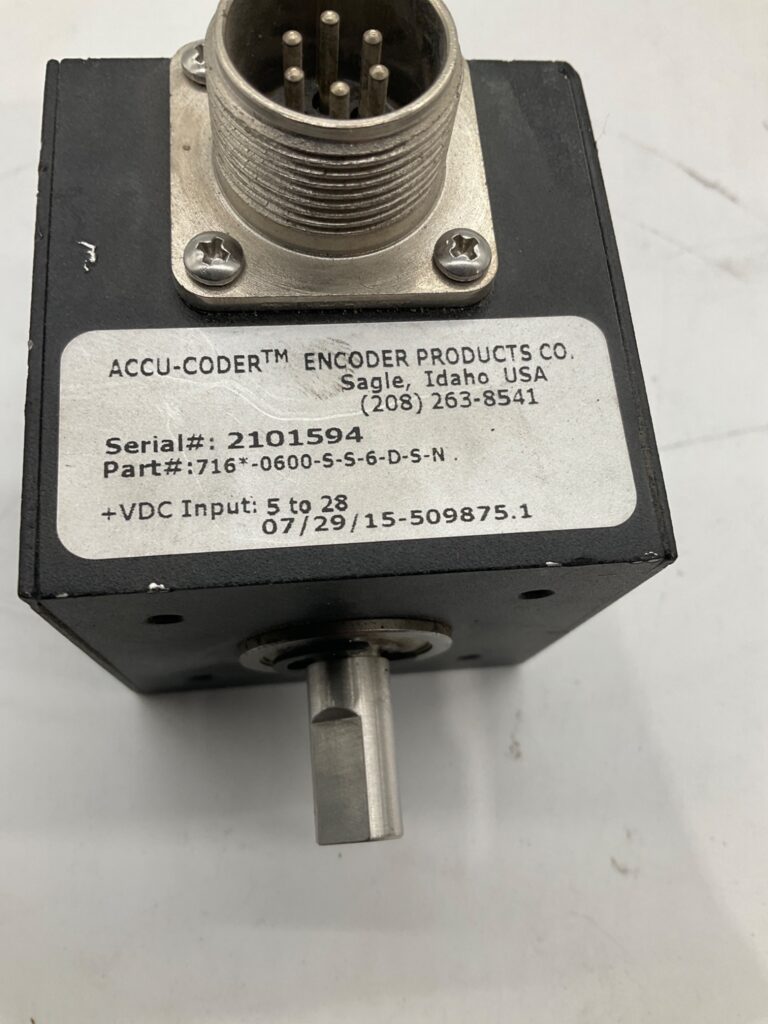

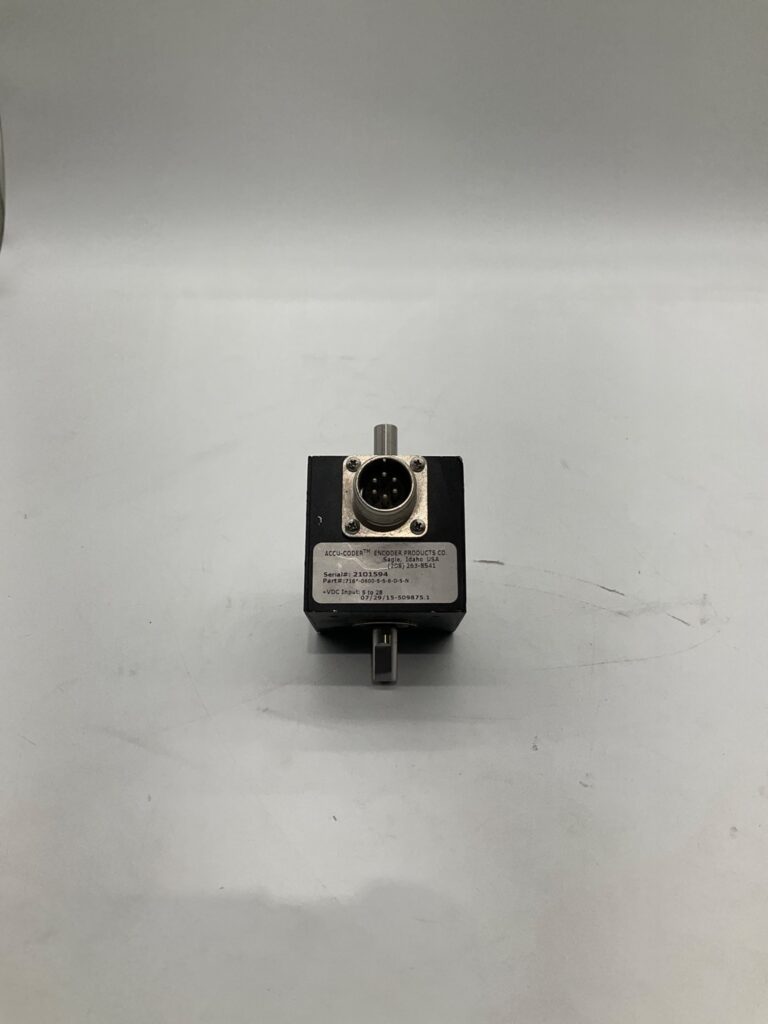

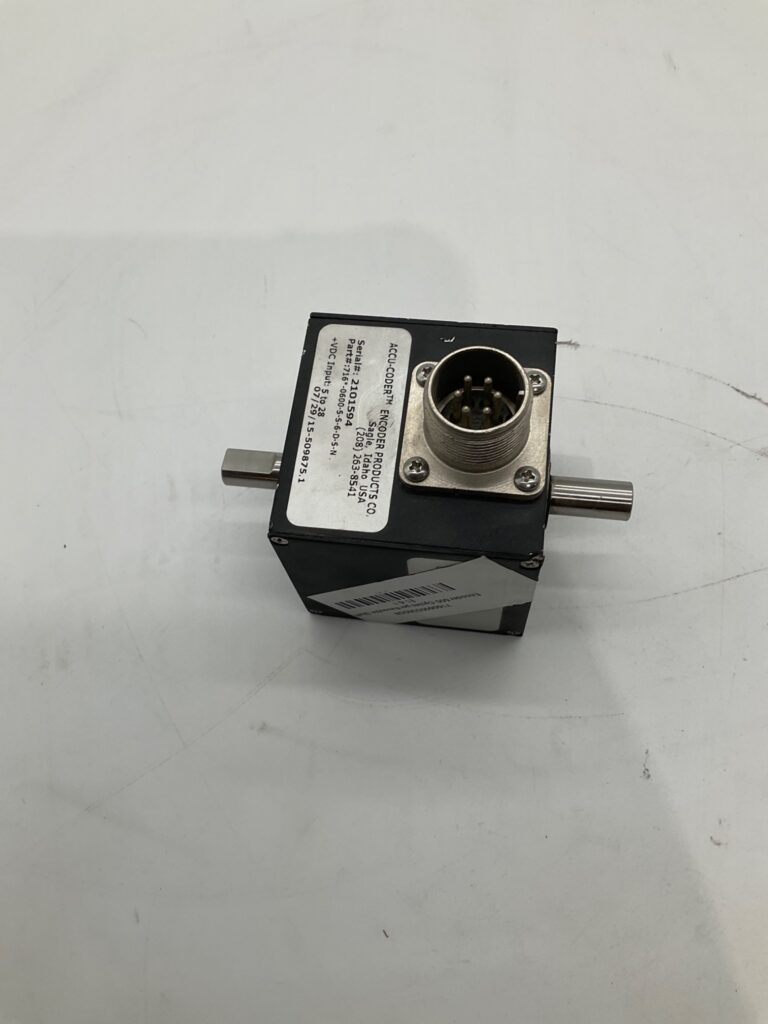

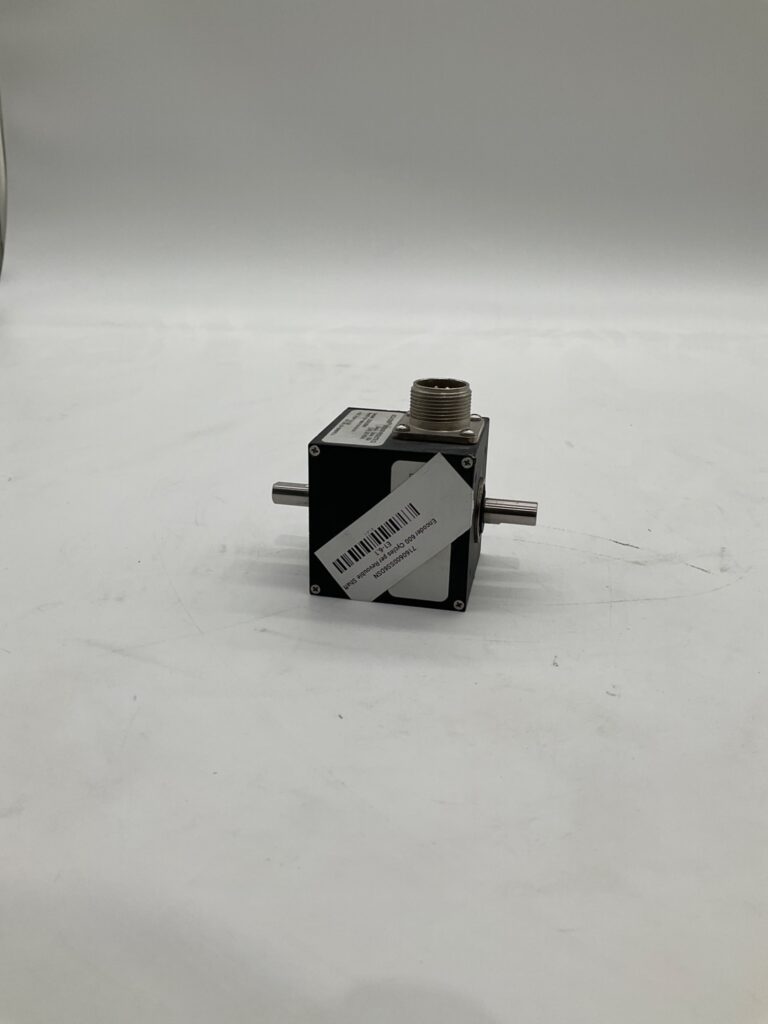

• Model 716 Accu-Coder incremental rotary encoder
• 600 cycles per revolution (CPR)
• Quadrature output design
• Operates from 5-28 VDC supply
• Standard 6-pin MS connector configuration
• Industry-standard cube housing design
• Designed for PLC, motion control, and drive feedback applications
• Single shaft configuration with 3/8″ shaft diameter
▸ Applications:
• PLC feedback systems
• Motion control systems
• Variable speed drives
• Industrial automation machinery
• Material handling equipment
• Packaging machines
• Measuring and positioning systems
• Motor speed and position feedback
▸ Alternative Model Numbers:
716-0600-S-S-6-S-S-N
716-0600/1-N-S-S-6-D-S-N
716 Series Accu-Coder
Model 716 Incremental Shaft Encoder
Accu-Coder 716 Quadrature Encoder
