Product Specifications
-

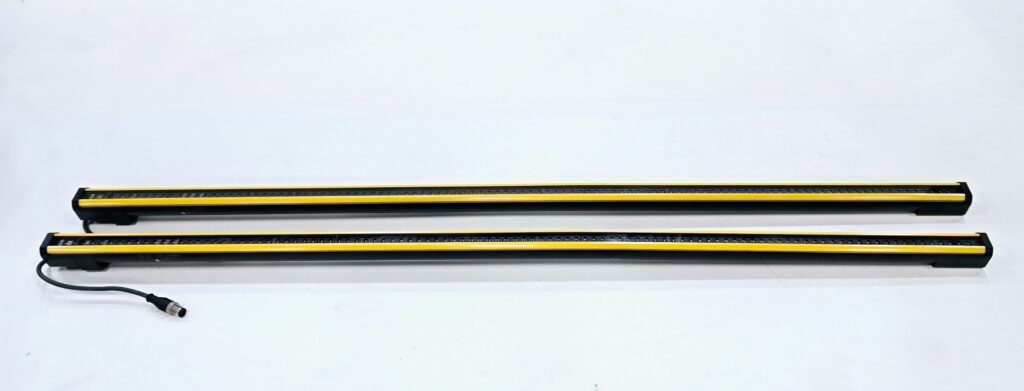

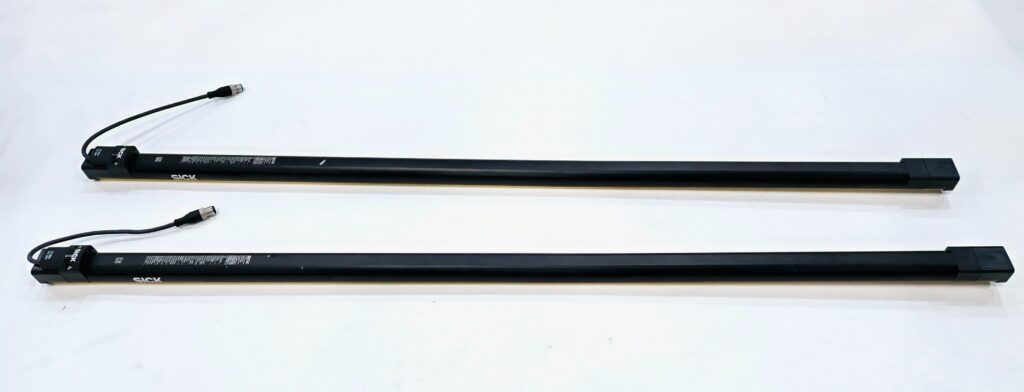

Models: C4P-EA10511C00 (Emitter) / C4P-SA10511A00 (Receiver)
-
Series: DETEC4 Core
-
Protected Height: Approximately 1050 mm
-
Resolution: 30 mm (ideal for finger and hand protection)
-
Operating Range: Up to 20 meters (depending on setup)
-
Response Time: Fast reaction (typically under 20 milliseconds)
-
Safety Ratings: Type 4, Category 4 (EN ISO 13849-1), SIL3 (IEC 61508)
-
Supply Voltage: 24V DC
-
Enclosure Rating: IP65 and IP67 for demanding environments
-
Connection: Standard M12 connectors
Key Features
-
Full light curtain set ensures complete safeguarding functionality
-
30 mm detection resolution for detailed hand and finger protection
-
Highly durable design with IP67 rating for washdown and dusty areas
-
Quick installation and simple wiring for reduced setup time
-
Built-in alignment aids for easier system calibration
Applications
-
Presses, punches, and stamping machines
-
Robotic work cells and automation enclosures
-
Conveyor and packaging line safety
-
Material handling and assembly operations
-
Industrial machinery perimeter guarding
Alternative model numbers include: C4P-EA10511C00, C4P-SA10511A00, SICK DETEC C4P, SICK C4P-EA10511C00-SA10511A00, DETEC4 C4P Light Curtain Set
Common misspellings include: SICK CP4-EA10511C00, SICK C4P-SA1051A00, SICK C4P-EA1051C00, SICK C4P-EA10511COO, SICK C4PEA10511A00
