▸ Key Features:

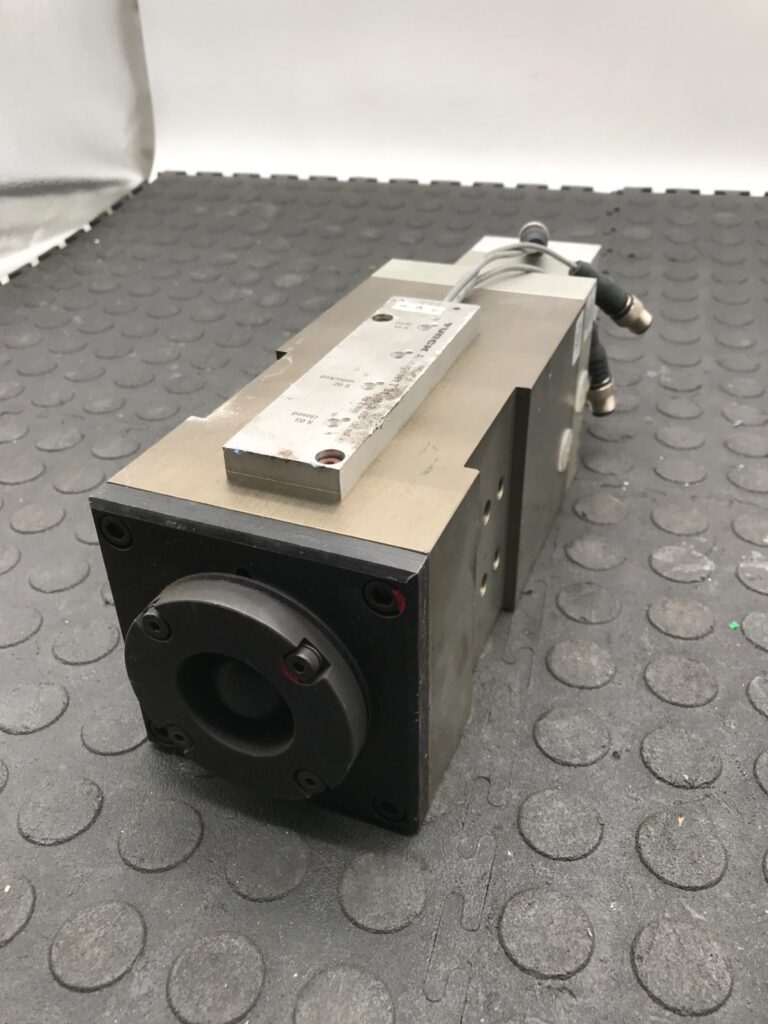

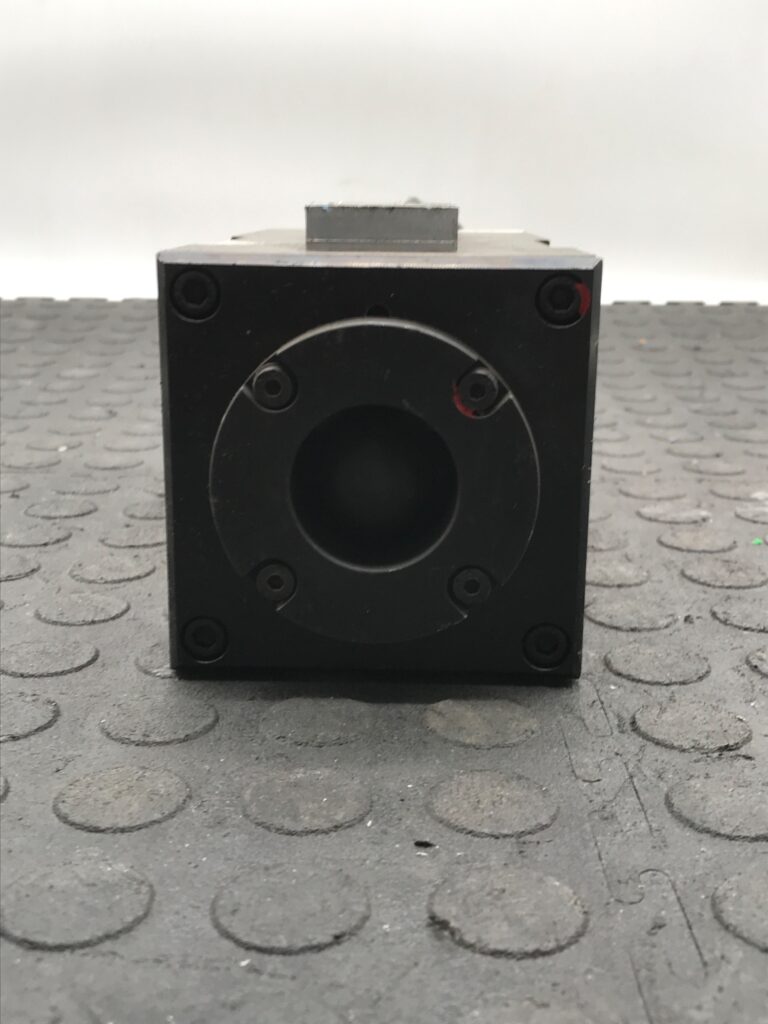

• Retractable centring pin for accurate workpiece positioning
• Integrated clamping hook for secure underbody clamping operations
• Self-locking toggle-joint mechanism for reliable holding force
• Pneumatic actuation using dual cylinders

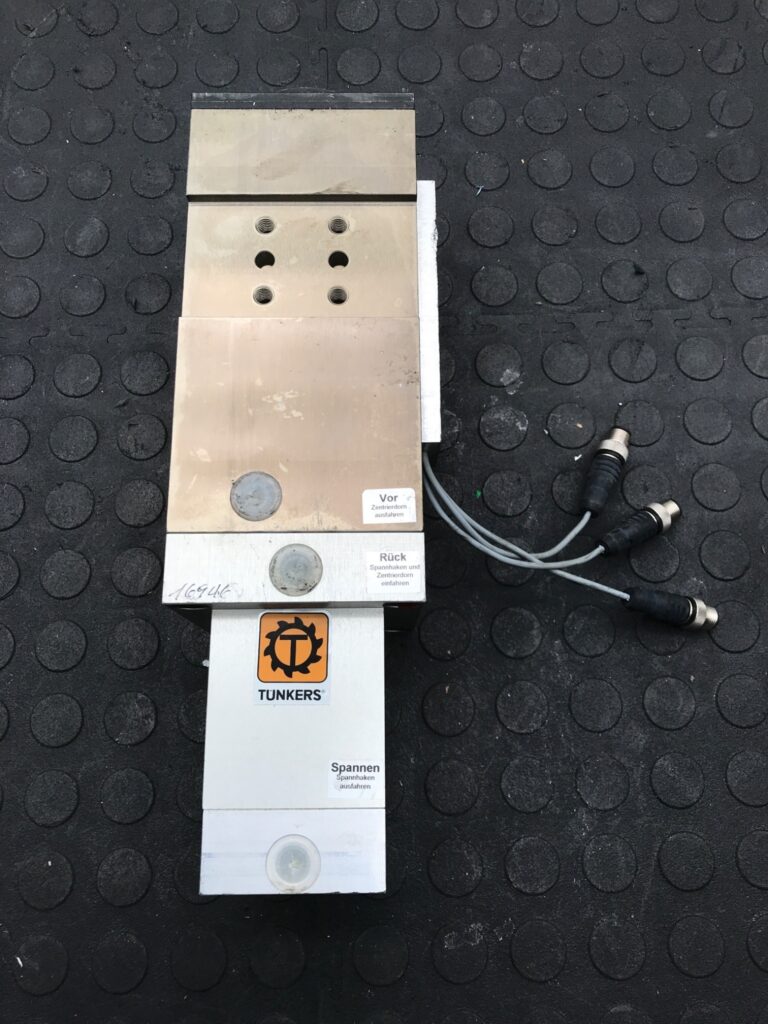

• Aluminium encapsulated housing with mounting hole pattern on both sides

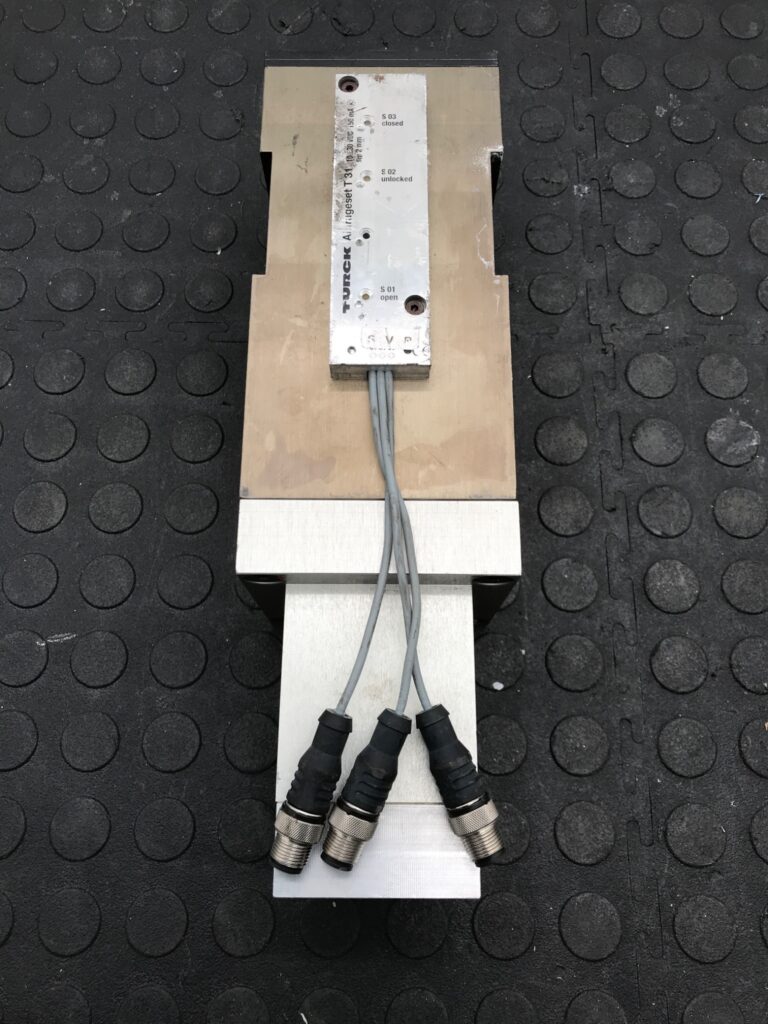

• T31 inductive sensing system for open and closed position detection
▸ Applications:
• Automotive body-in-white welding fixtures
• Underbody positioning and clamping stations
• Robotic and manual assembly lines
• Sheet metal centring and securing operations
▸ Alternative Model Numbers:
SZ 50 UZ
SZ 50 UZV
SZ 50 UZ-LB
SZ 60 UZ
▸ Common Misspellings or Phrasing:
Tunkers SZ50 UZ Clamp
Tunkers Underbody Clamp SZ 50
SZ50UZ T31 Clamp
Tuenkers SZ 50 UZ
