▸ Key Features:

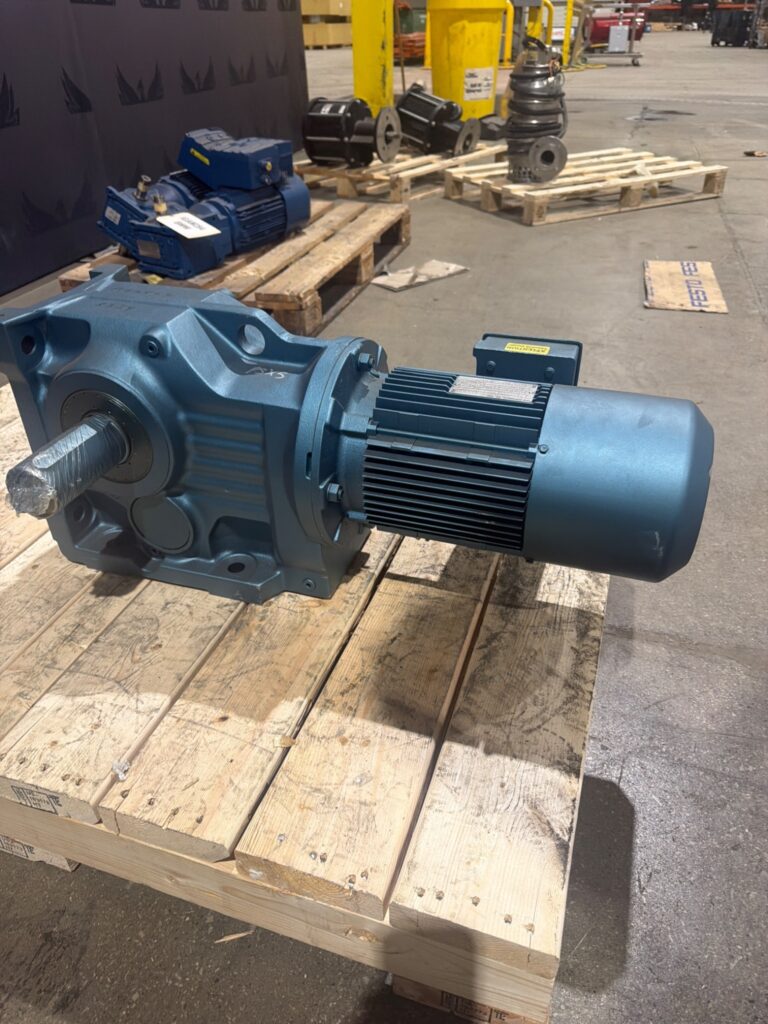

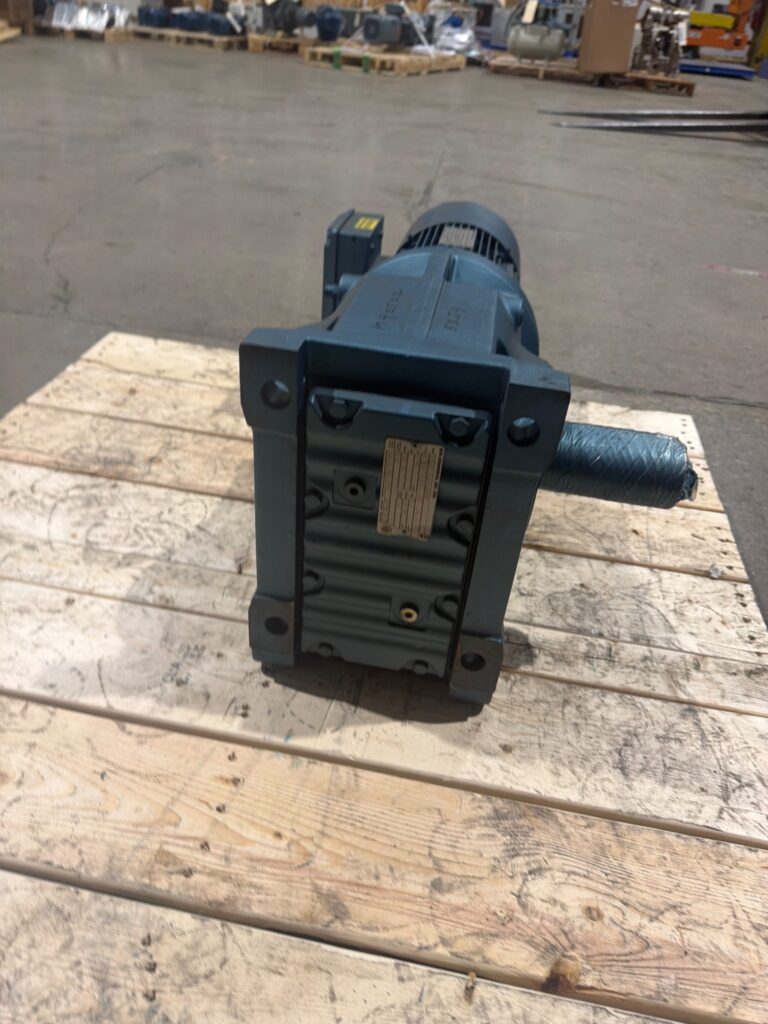

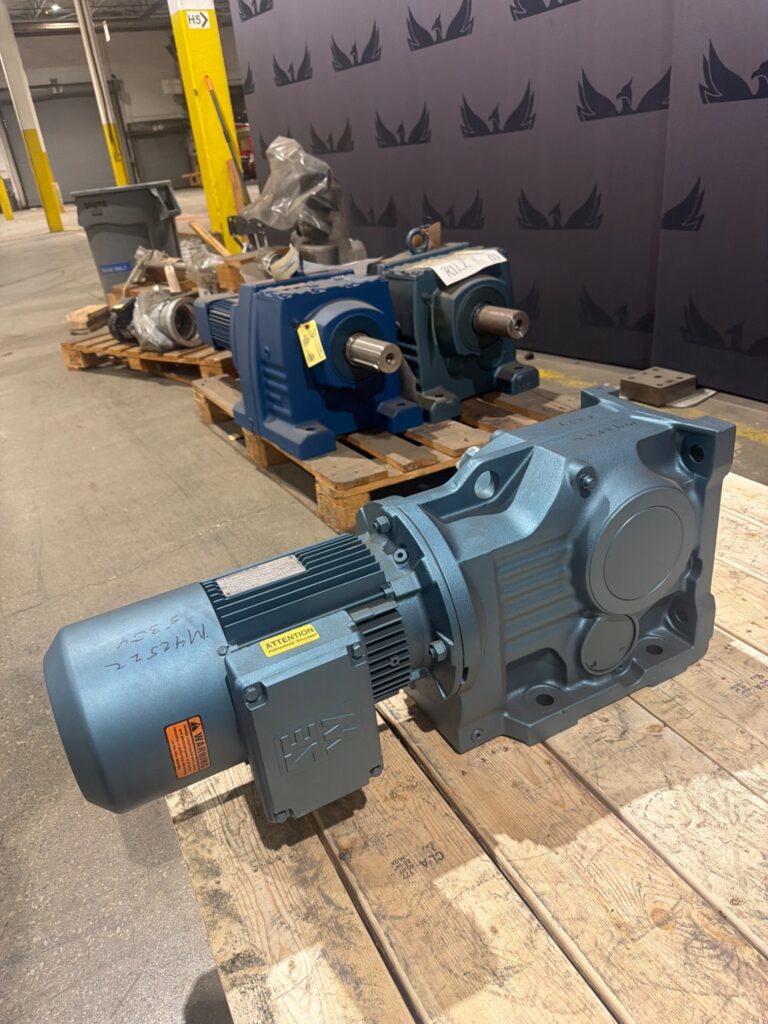

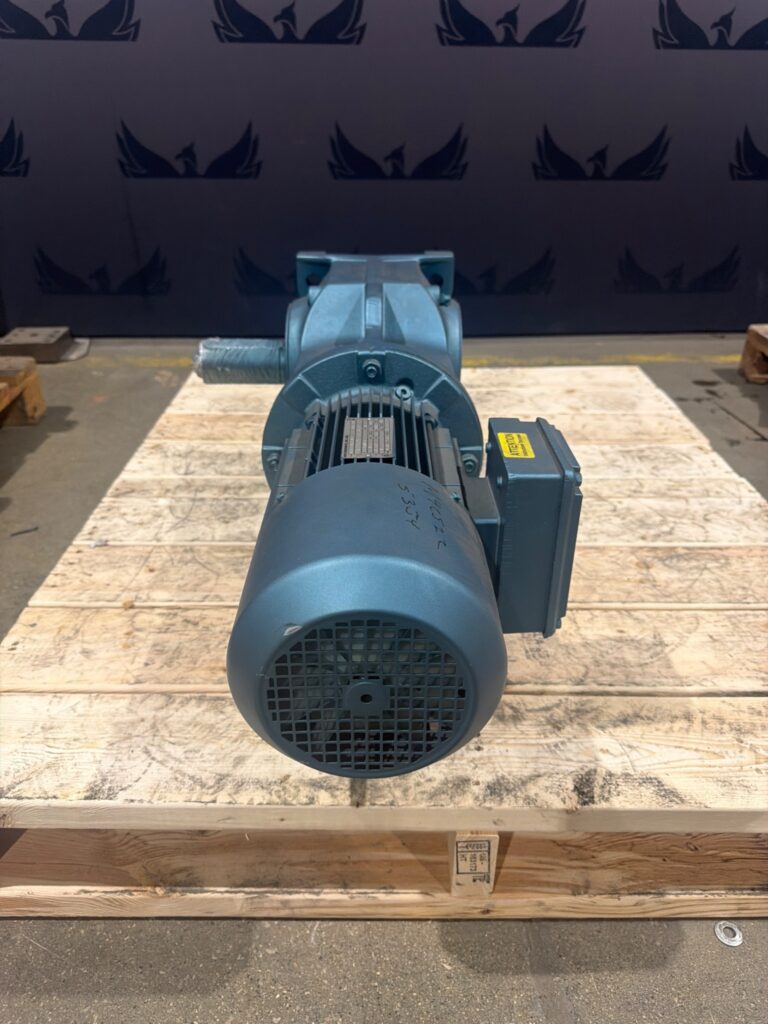

• SEW K-series helical-bevel gear reducer with integrated AC motor

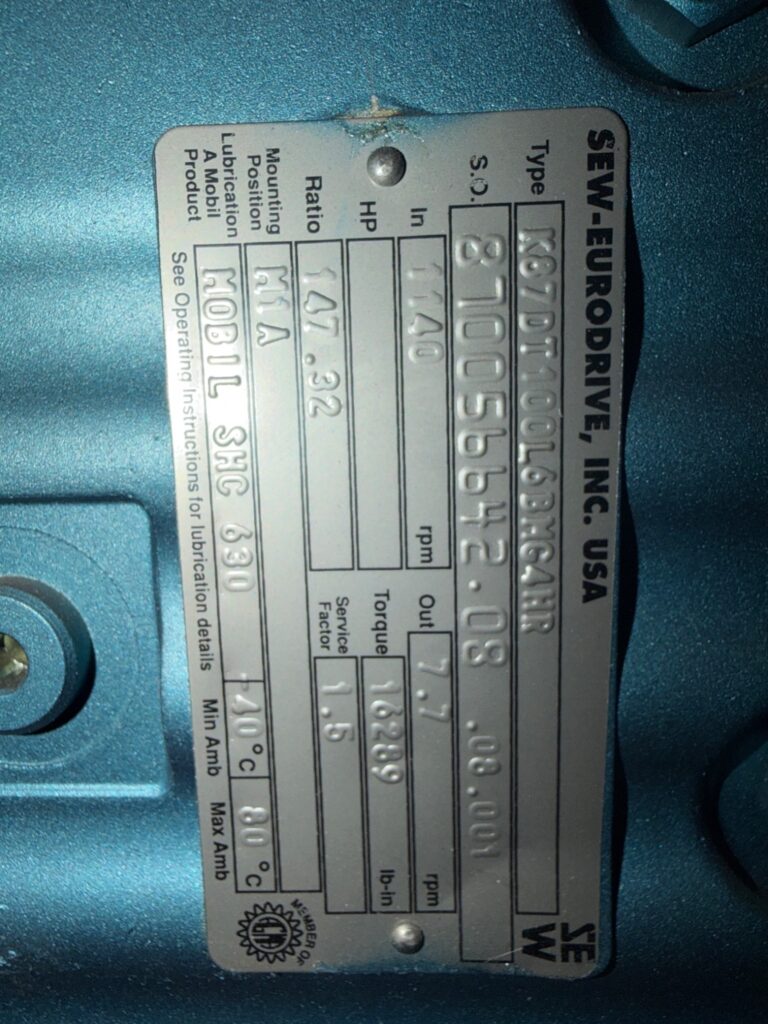

• 147.32:1 reduction ratio for extremely high torque output
• Rated torque: approx. 18,289 in-lbs
• Output speed: ~7.7 RPM for controlled low-speed operation

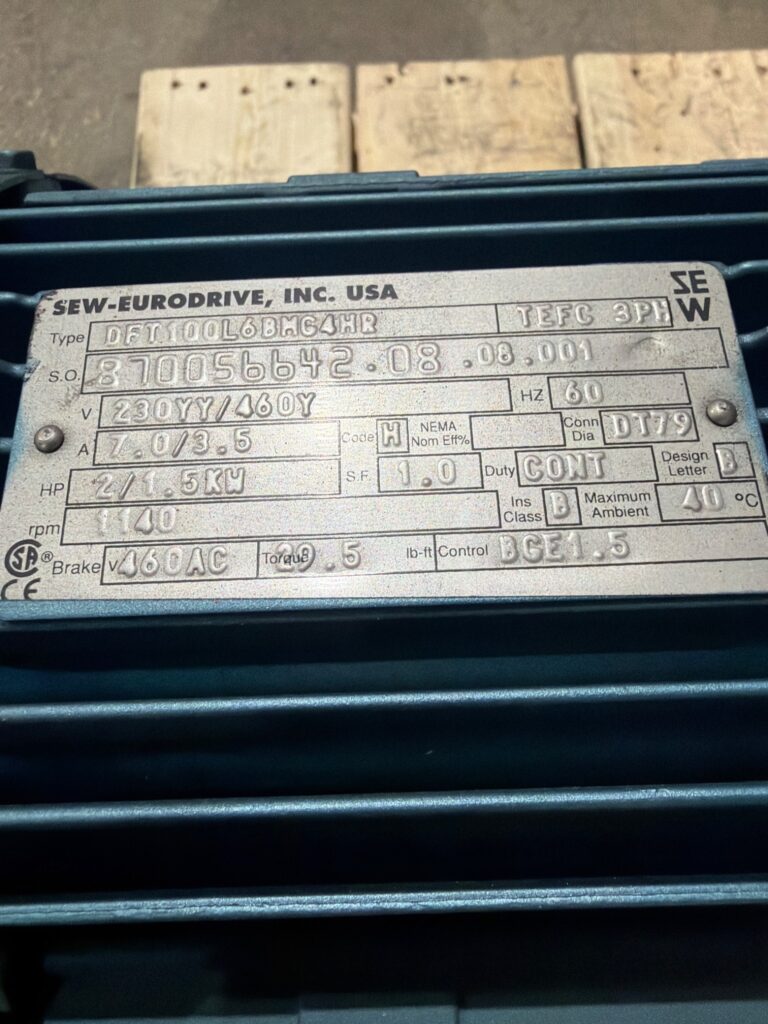

• DT100L6 motor (6-pole AC induction motor)
• Suitable for heavy-duty, continuous-duty (S1) applications
• Lubricated with Mobil SHC 630 synthetic gear oil
▸ Applications:
• Conveyor and bulk material transport systems
• Mixers, agitators, and process machinery
• Large OEM powertrain assemblies
• High-load automation and indexing systems
• Equipment requiring reliable low-speed, high-torque output
• Industrial production lines and heavy mechanical motion systems
▸ Alternative Model Numbers:
K87DT100L6
K87-DT100L6-BMG4HR
SEW K87 Gearmotor Series
DT100L6 Motor Variants
K-series Helical-Bevel Reducers
▸ Common Misspellings or Phrasing:
K87DT100L6BMG4
SEW Euro Drive K87 Motor
K87-DT100L6HR
K87DT100L6BMG4HRR
SEW K87 Gear Motor Assembly
