▸ Key Features:

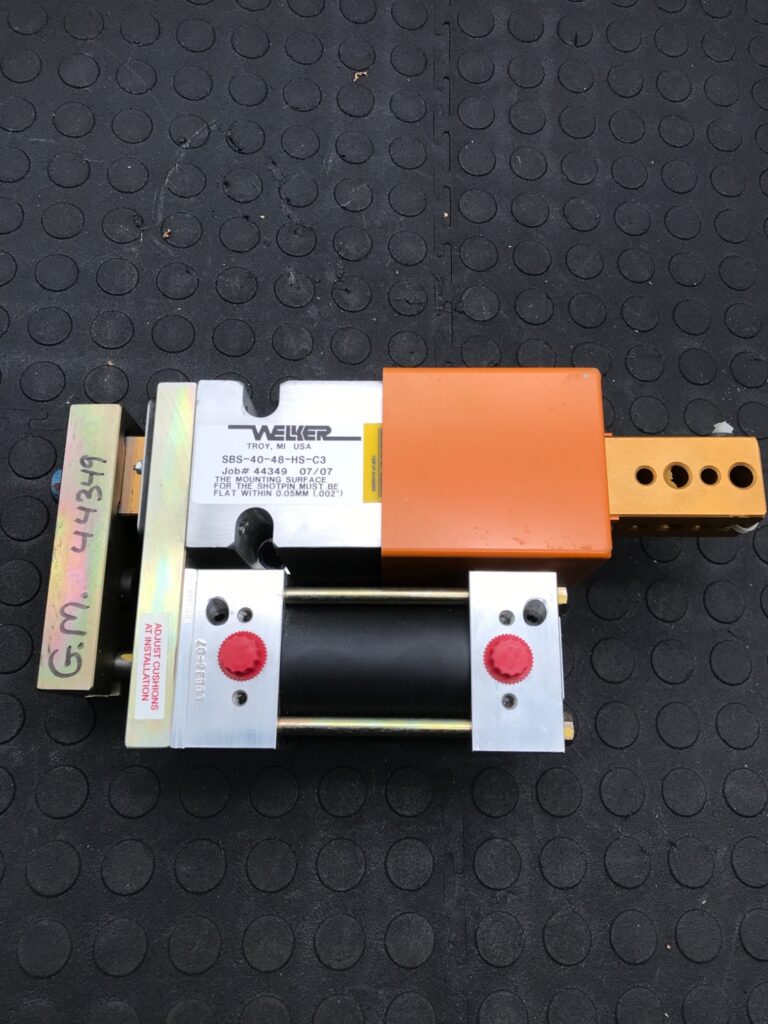

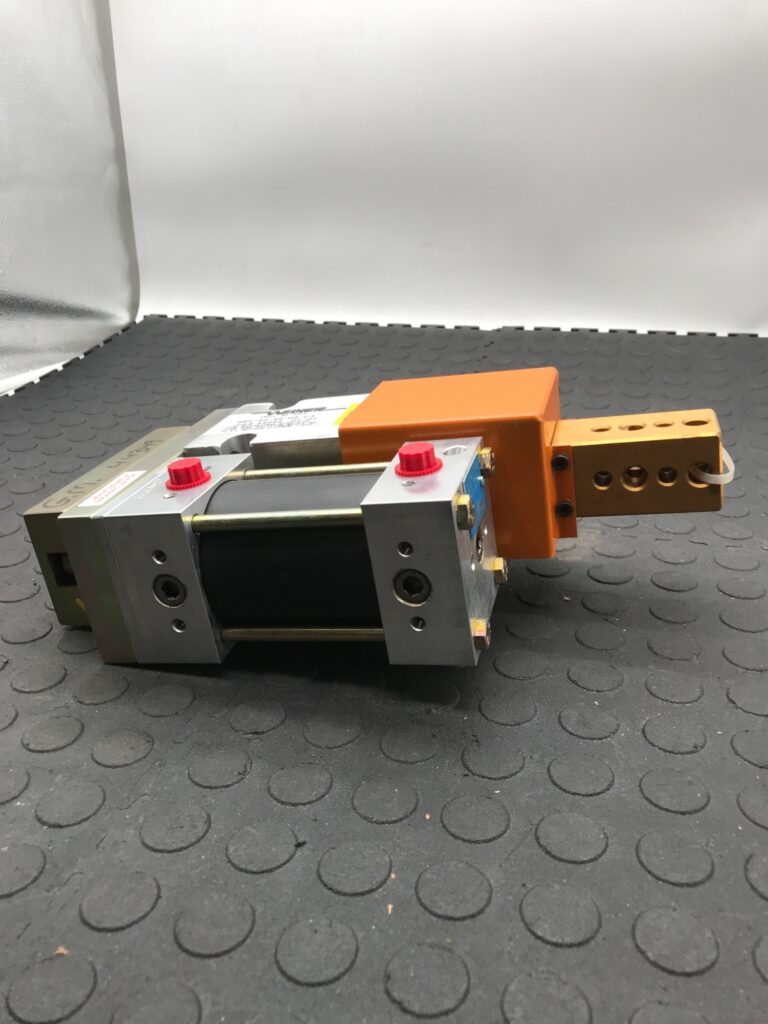

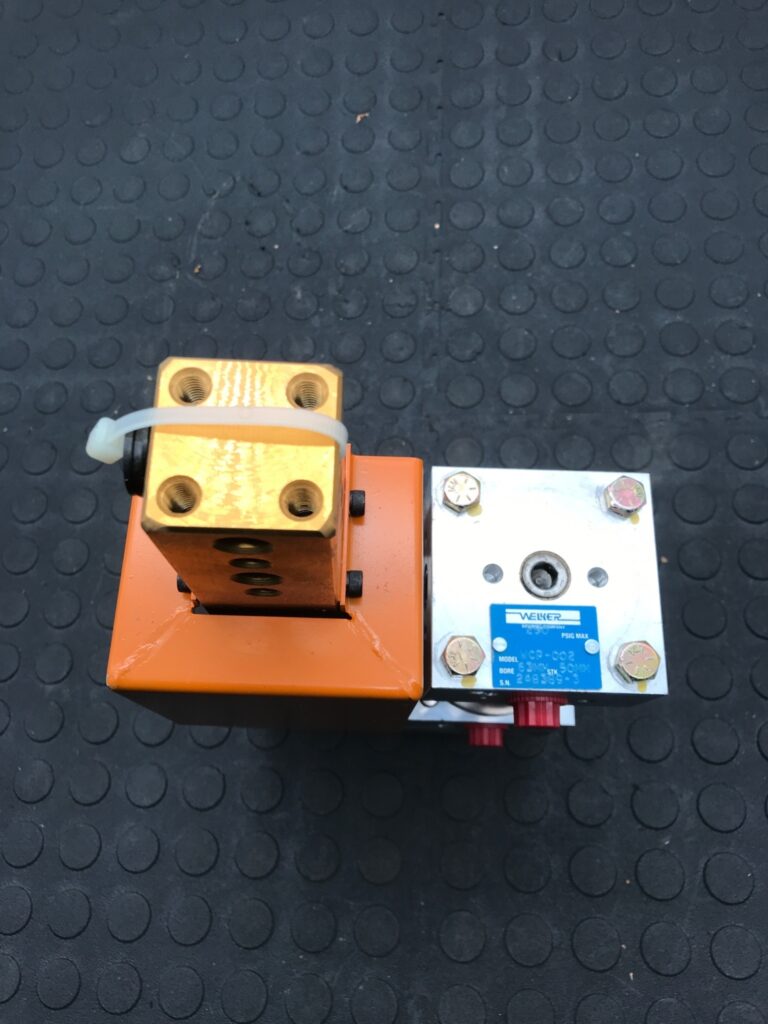

• Precision shot pin cylinder for automated locating applications
• 63 mm bore and 50 mm stroke
• Heavy-duty guided slide design for accurate pin positioning
• Suitable for part location, fixturing, and tooling alignment
• Includes integrated pneumatic cylinder and robust mounting block
• Designed to maintain repeatable alignment under industrial loads
▸ Applications:
• Automotive welding fixtures and locating stations
• Assembly line part positioning
• Precision indexing applications
• Retractable locating pin mechanisms
• Custom automation tooling requiring guided alignment
• Industrial jigs, clamps, and probe slides
▸ Alternative Model Numbers:
SBS-40-48-HS-C3
SBS-40-48

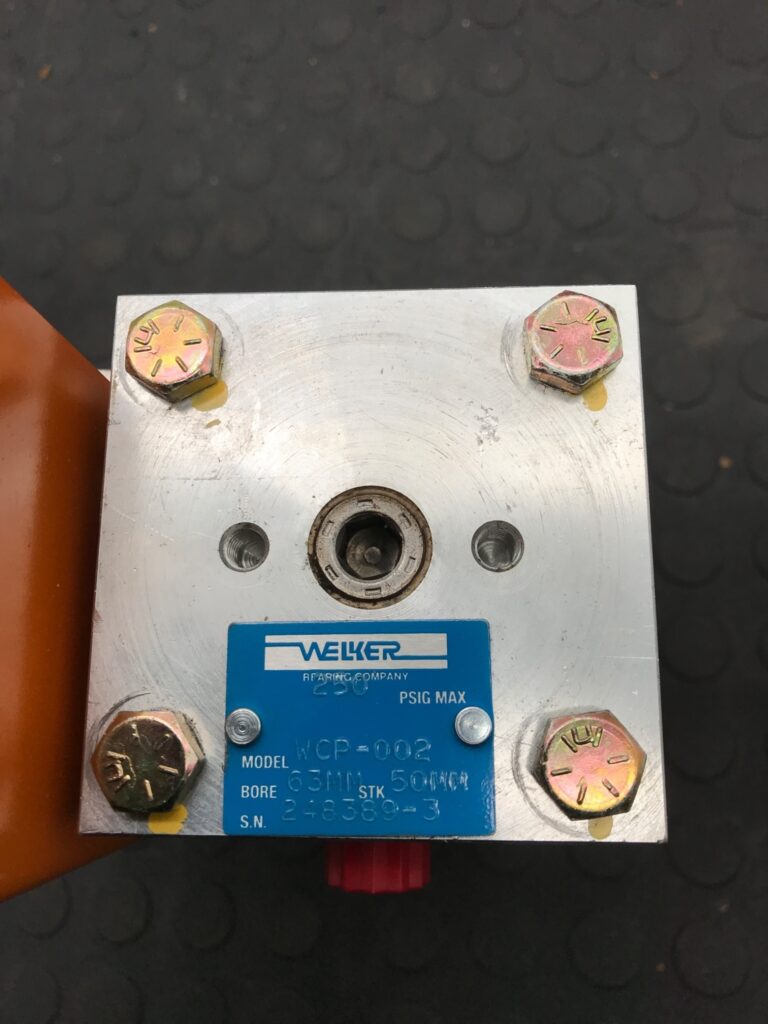

Welker WCP-002 Cylinder
SB4 / SB6 Shot Pin Series
Welker Shot Pin Actuator Variants
▸ Common Misspellings or Phrasing:
SBS4048HSC3
Welker Shot Pin Cylinder
SB-40-48-HS-C3
Welker Positioning Cylinder
SBS-40-48-HS-C-3
