▸ Key Features:

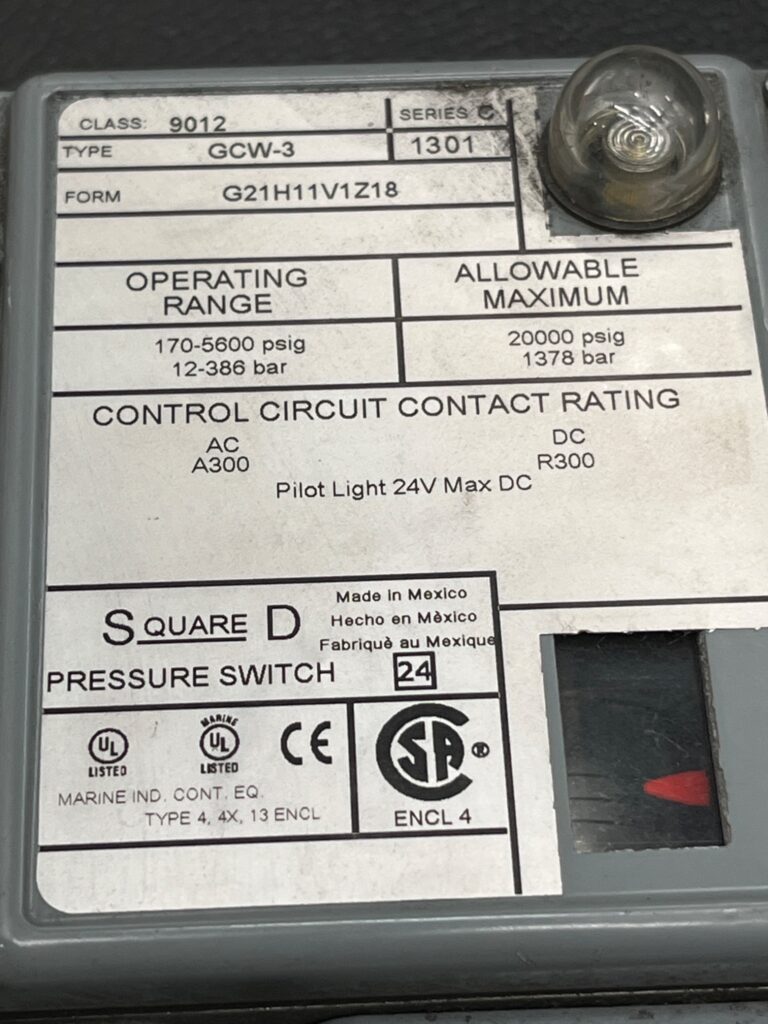

• Adjustable operating range: 170–5600 psig (12–386 bar)
• Maximum allowable pressure: 20,000 psig (1378 bar)
• SPDT control circuit contacts with A300 (AC) and R300 (DC) ratings
• Designed for heavy-duty industrial and high-pressure applications
• UL, CSA, Marine Listed for broad application suitability
• Rugged enclosure suitable for challenging environments
• Includes pilot light circuit rated 24V DC max
▸ Applications:
• High‑pressure hydraulic and pneumatic systems
• Industrial equipment requiring reliable pressure monitoring
• Pump and compressor control
• Oil, water, and compatible fluid process environments
• Marine and hazardous-location applications
▸ Alternative Model Numbers:
9012‑GCW‑2
9012‑GCW‑4
9012‑GAW‑5
Telemecanique 9012GCW3
9012G Series Pressure Switches
▸ Common Misspellings or Phrasing:
SQAURE D 9012-GCW-3
9012 CGW-3
SquareD GCW3
9012-GW3
GCW3 Pressure Switch
