Product Specifications
-

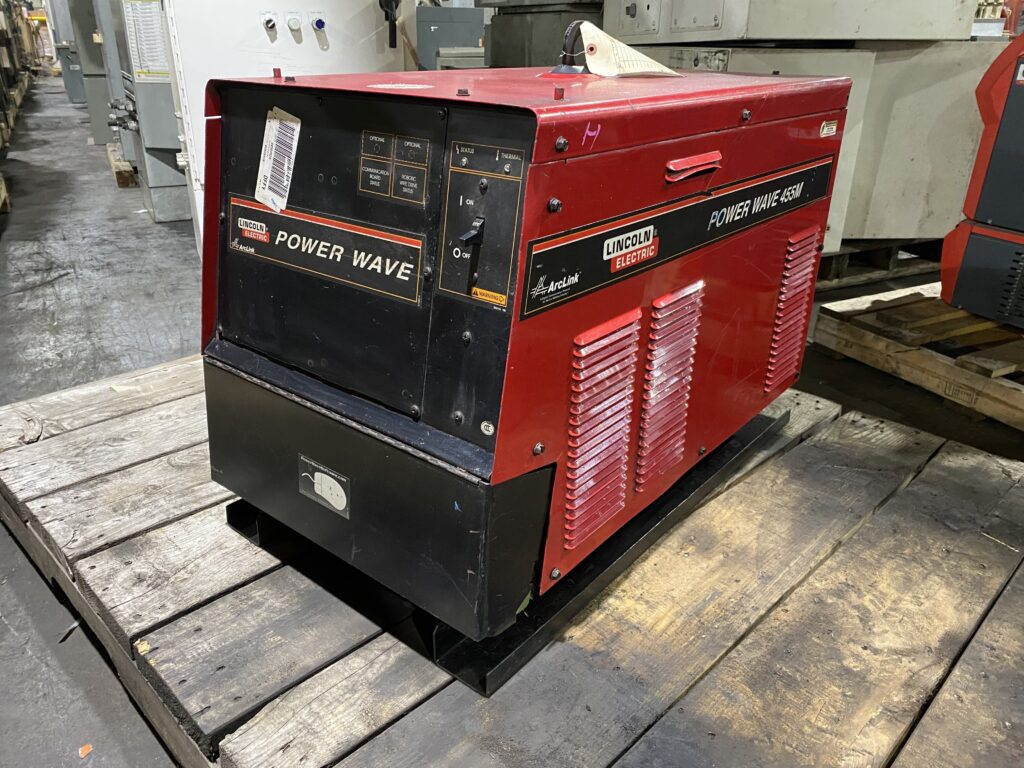

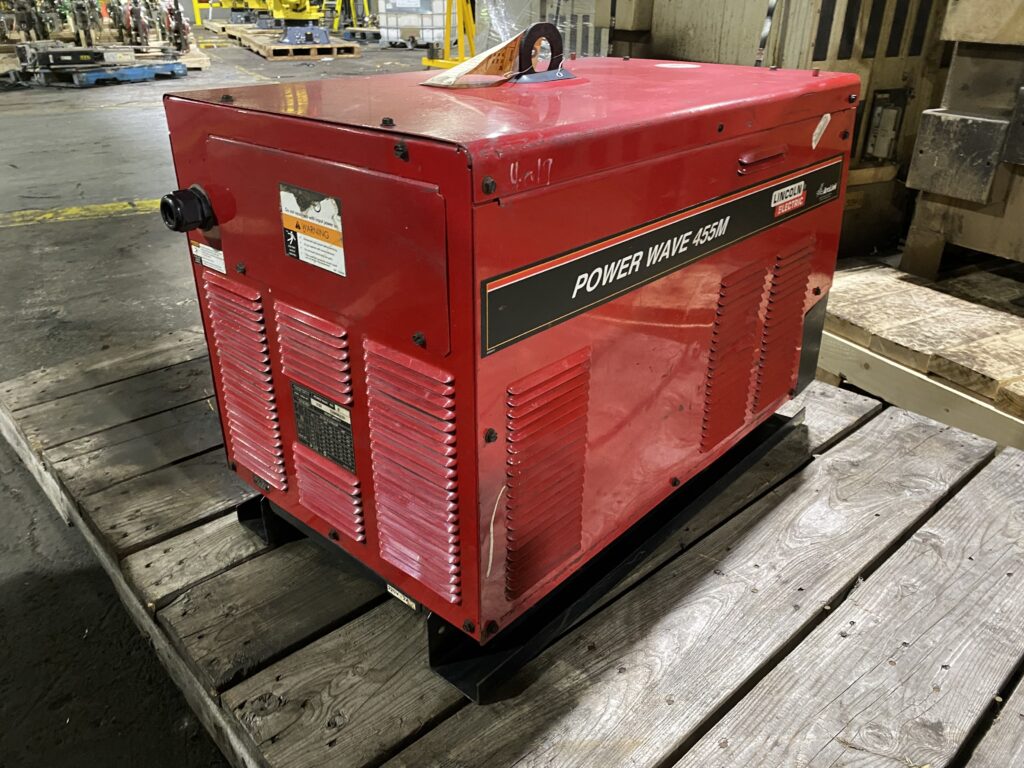

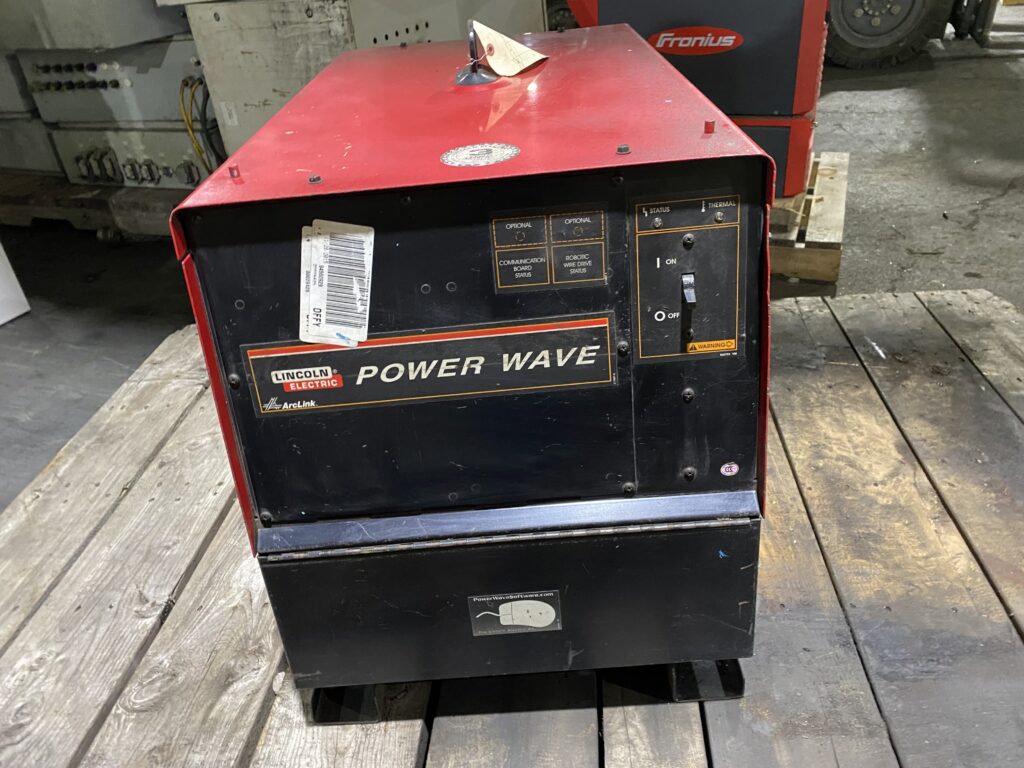

Model: PowerWave 455M
-
Manufacturer: Lincoln Electric
-

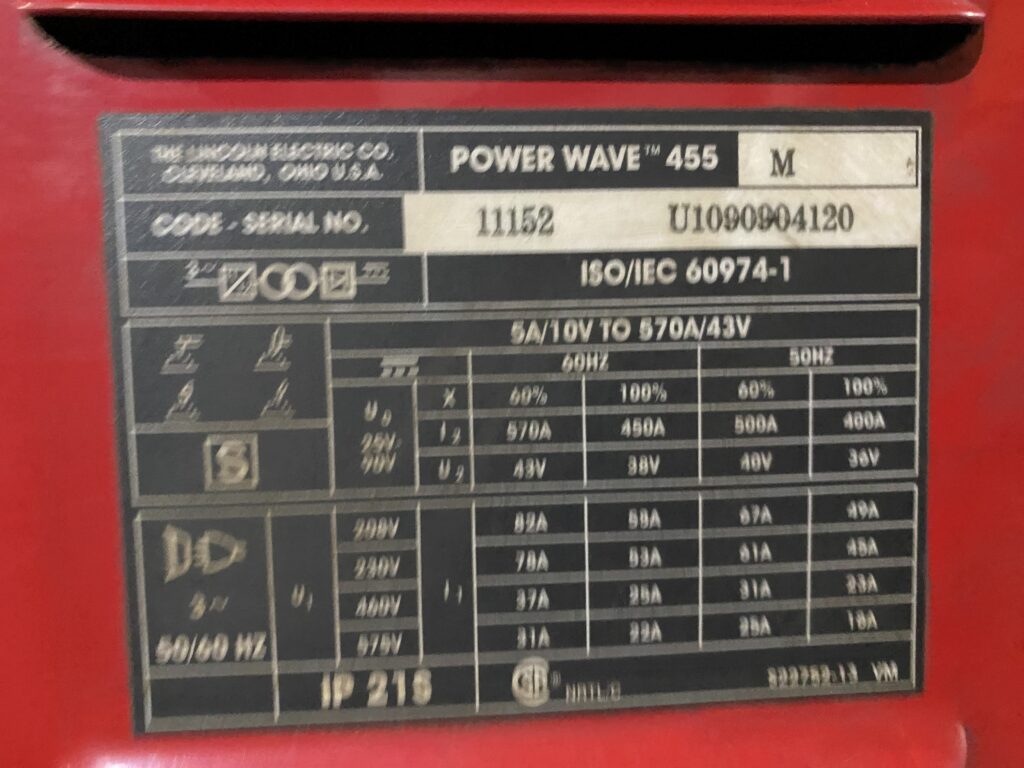

Rated Output: 450 Amps @ 36V, 100% duty cycle
-
Input Voltage: 380–575V AC, 3-phase
-
Welding Processes: MIG, Pulsed MIG, Flux-Cored, Stick, TIG (with optional equipment)
-
Output Range: 5–570 Amps
-
Dimensions: 24.8″ H x 17.1″ W x 31.3″ D (approximate)
-
Weight: Approximately 135 kg (300 lbs)
-
Control Interface: Digital controls with customizable waveforms
-
Communication: Ethernet and DeviceNet capable
Key Features
-
True multi-process performance for high productivity applications
-
Advanced pulse waveforms for superior arc control
-
Designed for heavy fabrication, structural, and manufacturing welding
-
Compatible with Lincoln’s PowerFeed wire feeders and automation systems
-
Robust industrial design built to handle harsh shop environments
Applications
-
Heavy fabrication and structural steel construction
-
Automotive and transportation manufacturing
-
Shipbuilding and offshore structures
-
Industrial maintenance and repair operations
-
Robotic welding system integration
Alternative model numbers include: PowerWave 455M, Lincoln 455M, Power Wave 455M, Lincoln Electric PW 455M, PowerWave-455M
Common misspellings include: PowerWave 455-M, PowerWav 455M, Power Wave 455 M, Lincoln Powerwave455M, Linclon PowerWave 455M
