Product Specifications
-

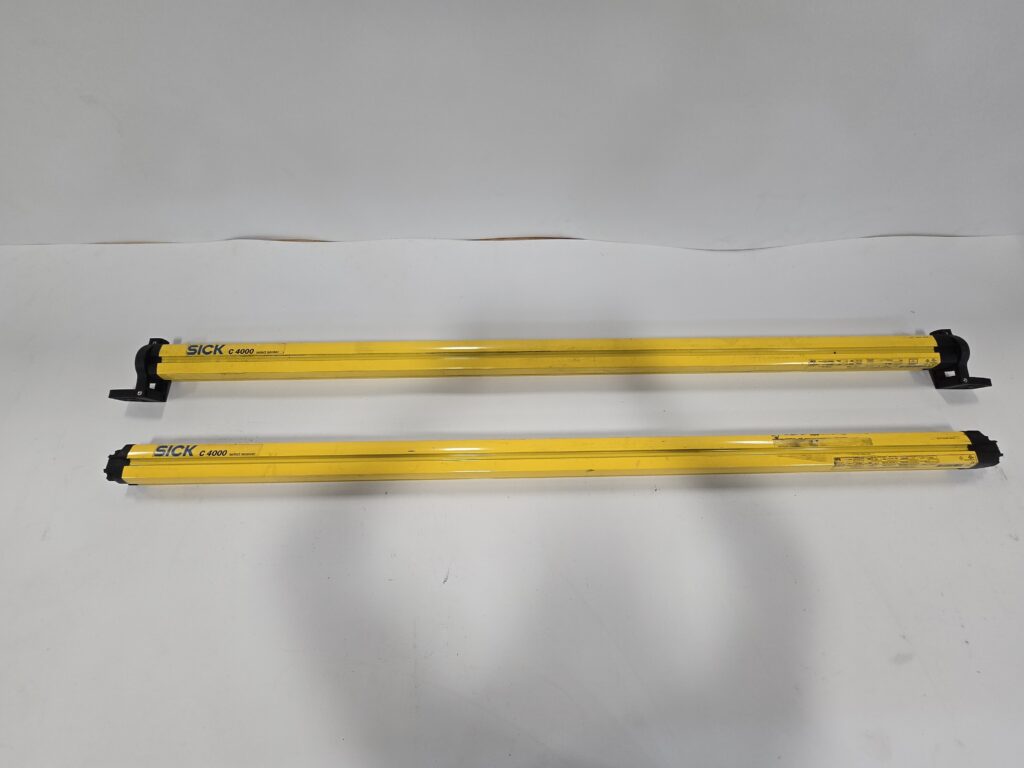

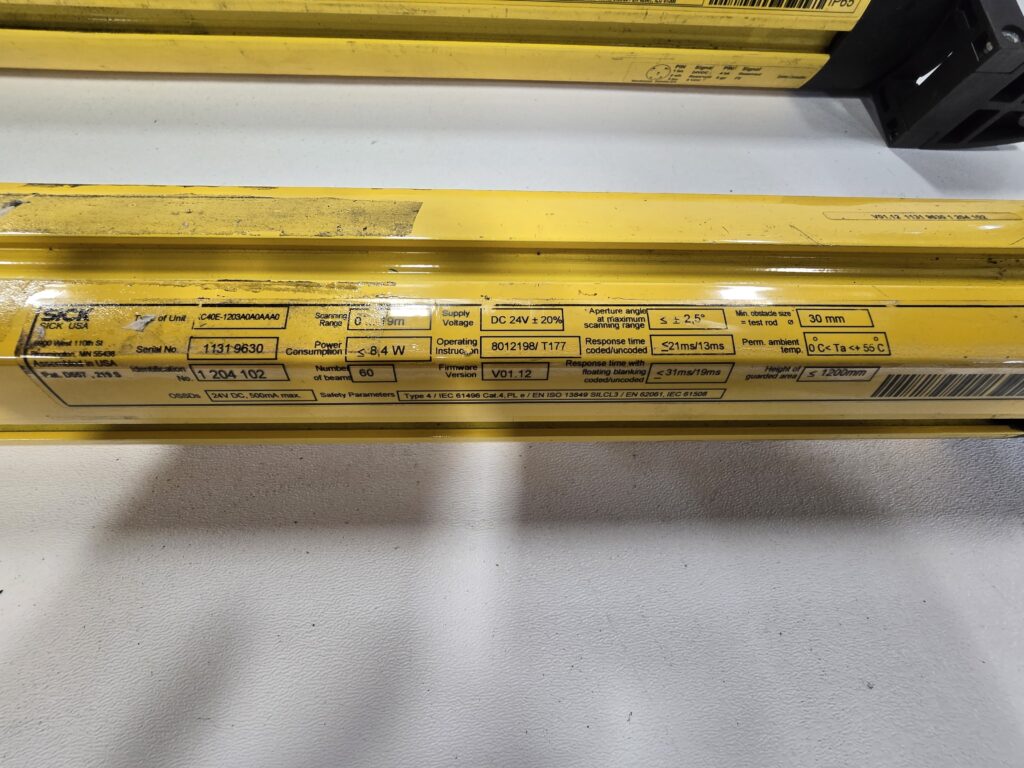

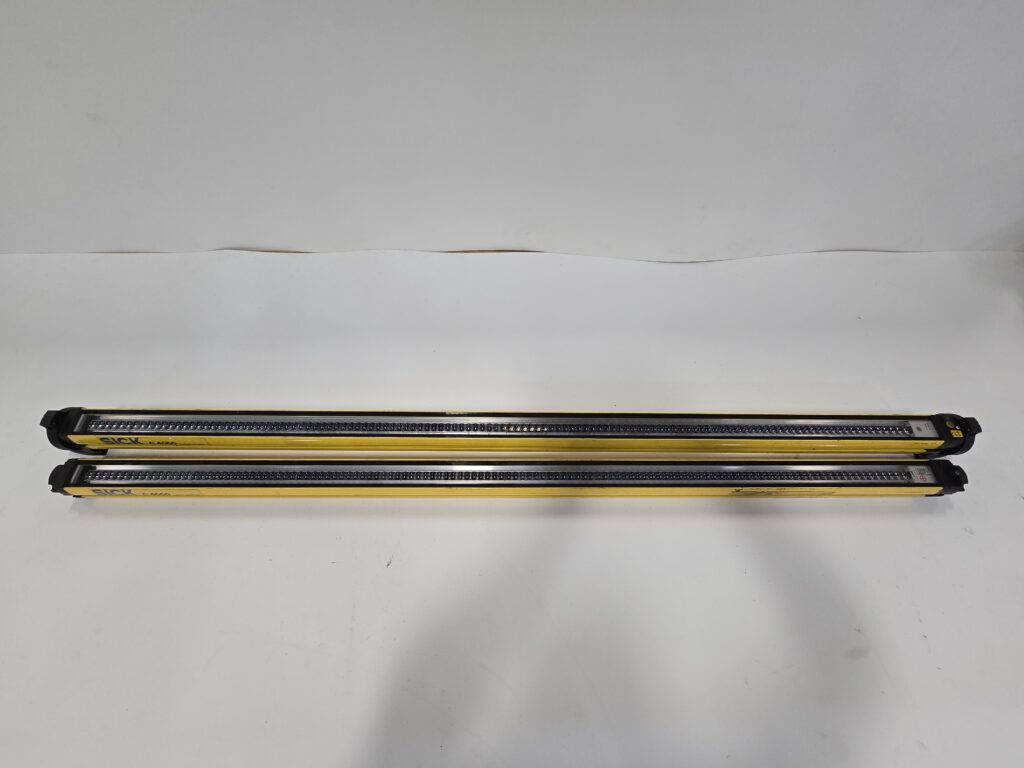

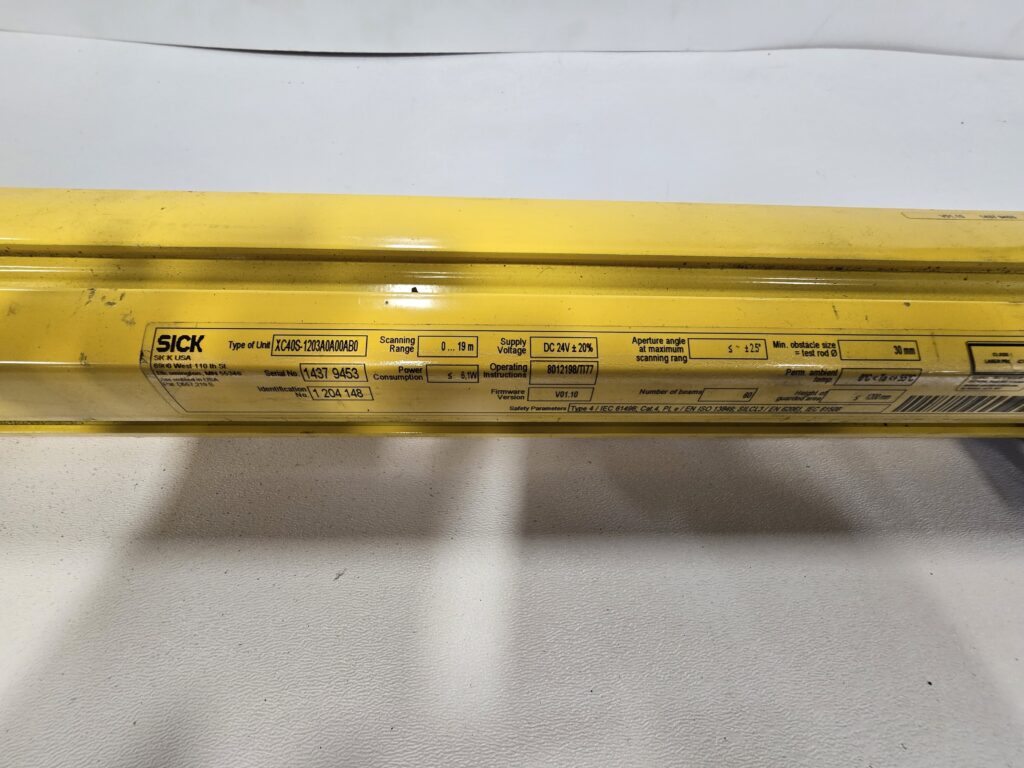

Model Numbers: XC40E-1203A0A0AAA0 (emitter), XC40S-1203A0A0AAA0 (receiver)
-
Protective Height: 1200 mm
-
Resolution: 30 mm (hand detection)
-
Operating Range: Up to 19 meters
-
Supply Voltage: 24 V DC
-

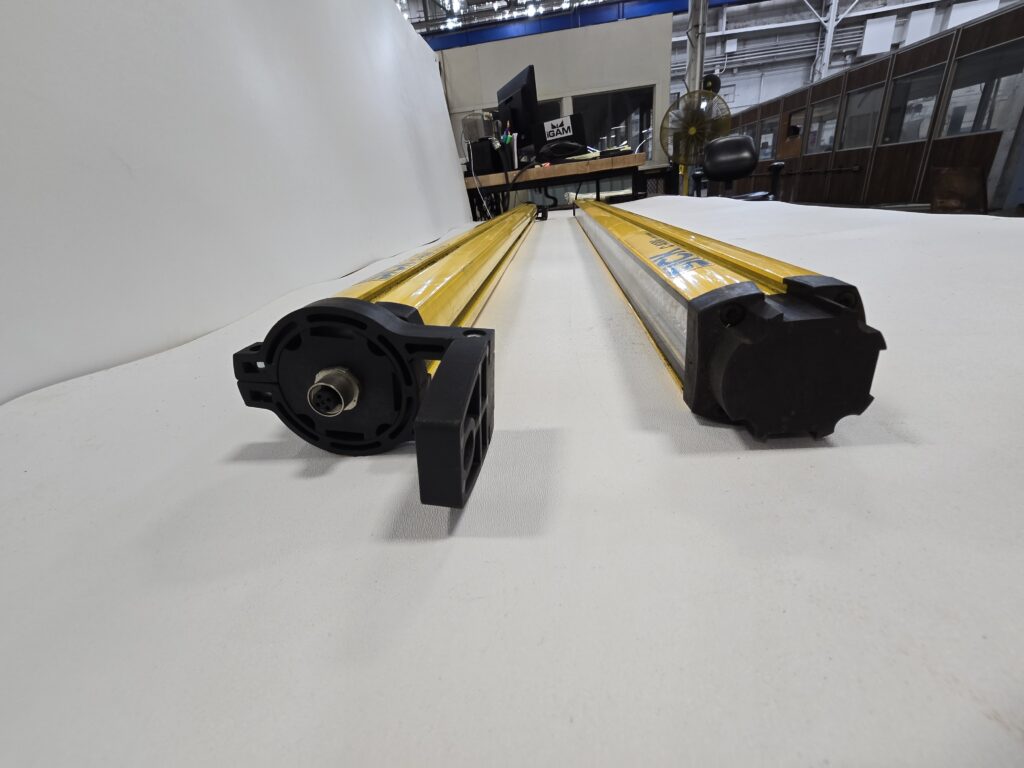

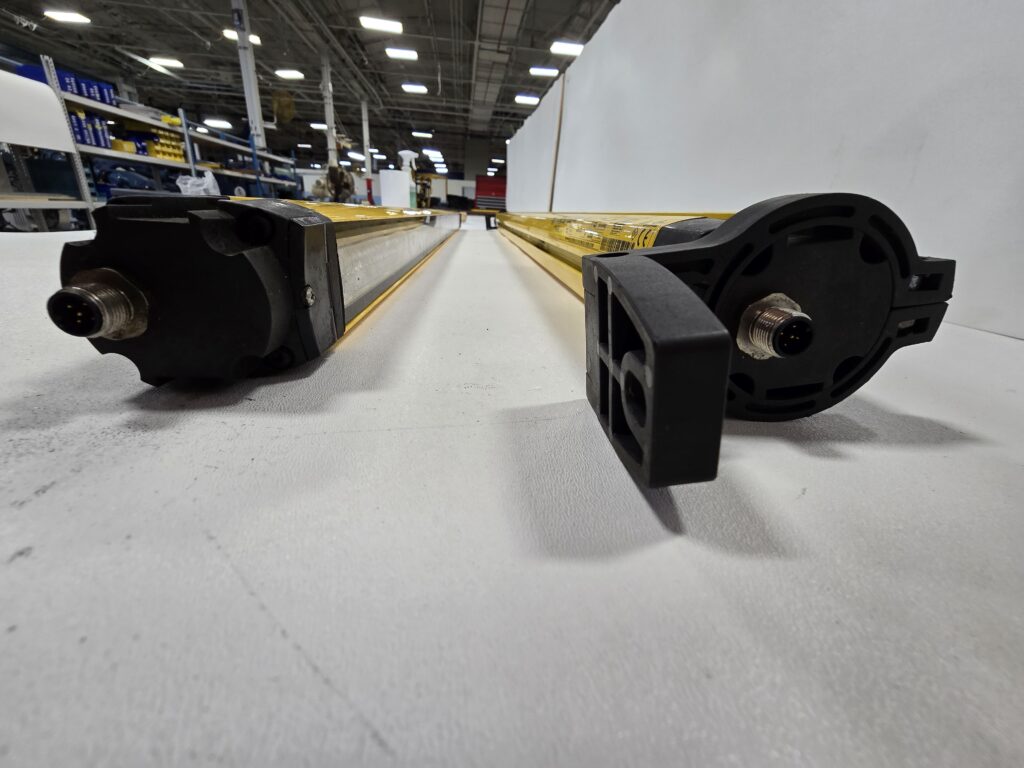

Interface: Standard M12 connectors
-
Response Time: ≤ 14 ms
-
Safety Level: Type 4, SIL3, PL e (according to IEC 61496, IEC 61508, ISO 13849)
-
Housing Material: Aluminum
-
Protection Class: IP65/IP67
Key Features
-
Advanced safety light curtain set for finger and hand protection
-
Long-range detection capability up to 19 meters
-
Compact aluminum housing with robust IP65/IP67 protection
-
Fast response time for high-speed machine safety applications
-
Simple installation with M12 connectors and easy alignment
Applications
-
Press brake and stamping machine guarding
-
Automated robotic work cells
-
Conveyor systems with hazardous pinch points
-
Assembly lines requiring point-of-operation safety
-
Packaging and palletizing systems
Alternative model numbers include: XC40E-1200, XC40S-1200, XC40E-30mm-1200, XC40S-A0A0AAA0, SICK XC40E-S
Common misspellings include: XCO40E-1203A0A0AAA0, XC4OE-1203A0A0AAA0, XC40S-1203AOA0AAA0, XC40E-1203AOAOAAA0, XC40E-1230A0A0AAA0
