Product Specifications
-

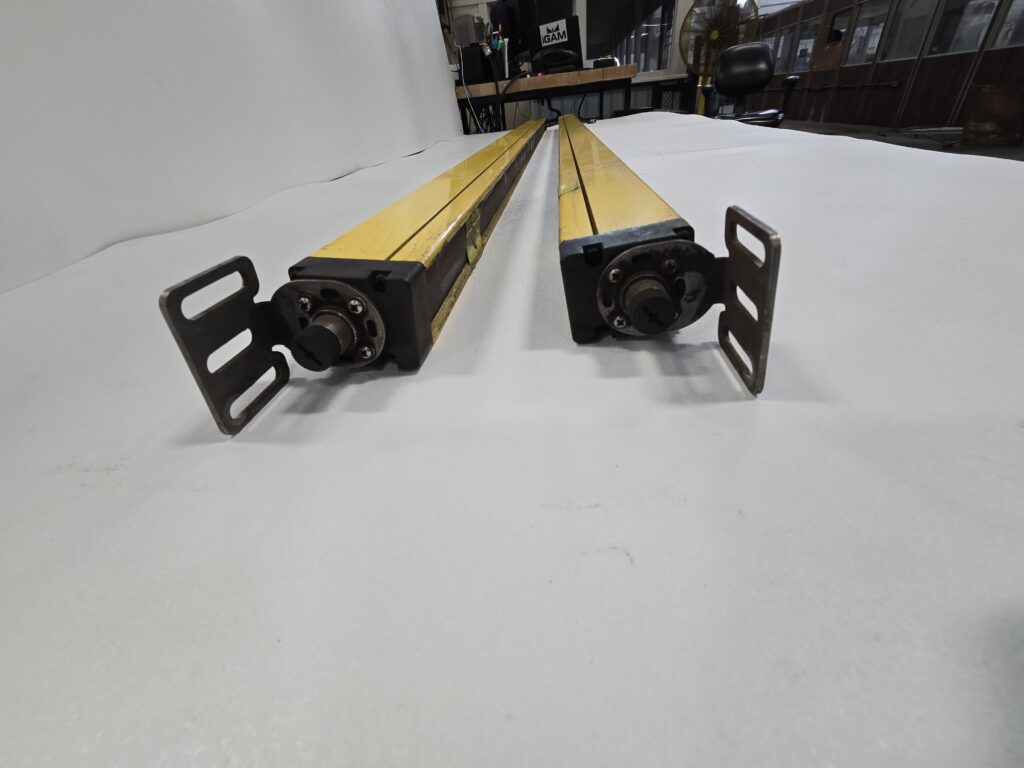

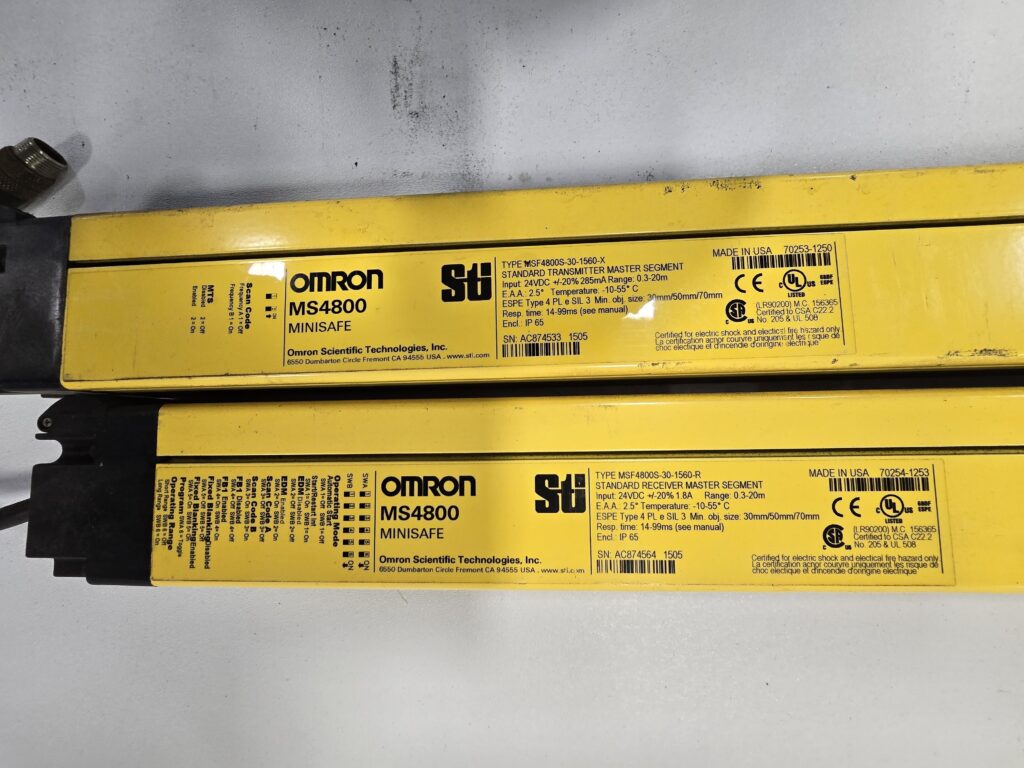

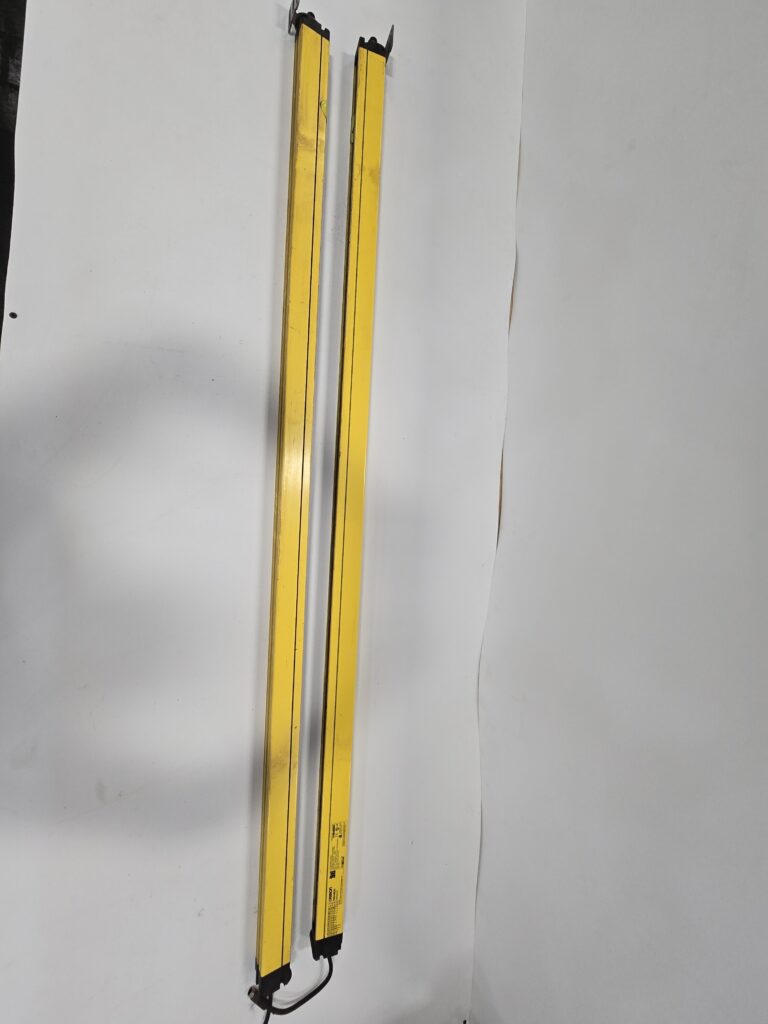

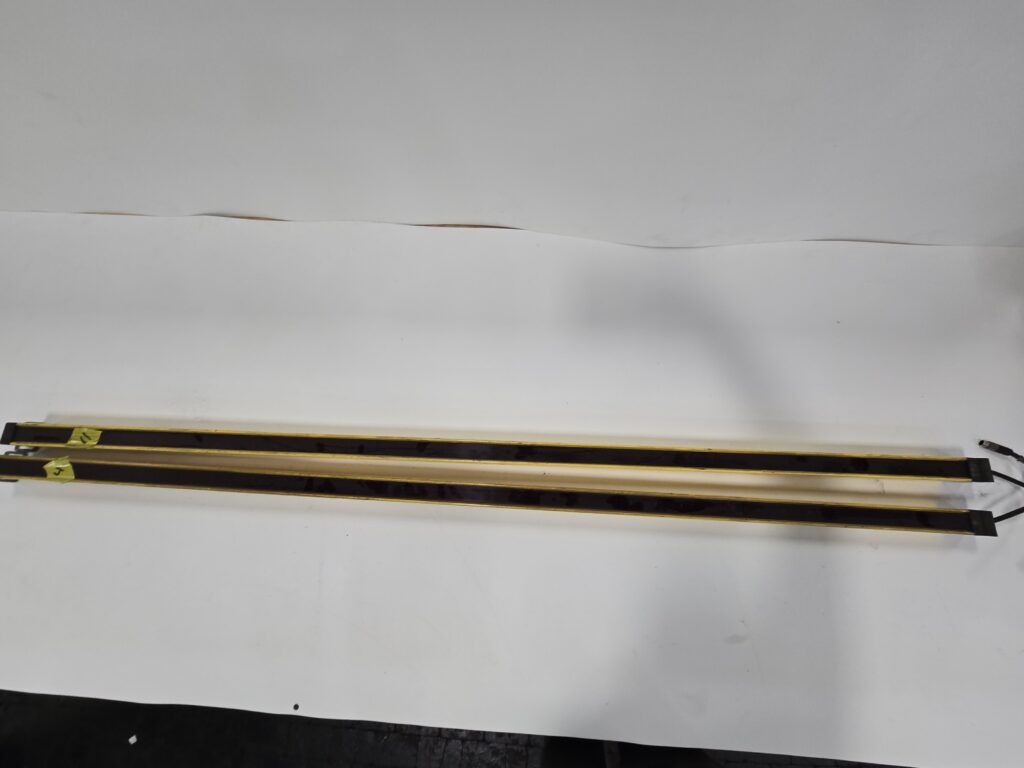

Model Numbers: MSF4800S-30-1560X (Transmitter), MSF4800S-30-1560R (Receiver)
-
Series: MSF4800S
-
Protected Height: 1560 mm
-
Detection Capability: 30 mm resolution (ideal for hand and finger protection)
-
Operating Range: Up to 15 meters
-
Power Supply: 24V DC
-
Response Time: 13 milliseconds or less
-
Protection Ratings: Type 4, Category 4 (EN ISO 13849-1), IP65/IP67
-

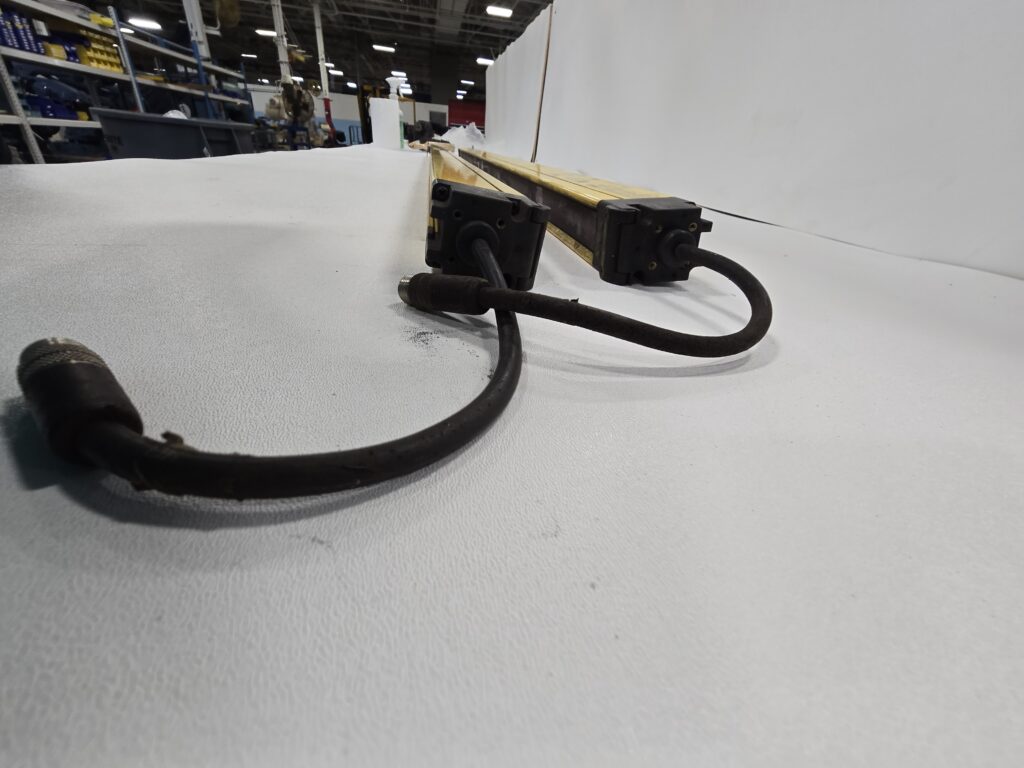

Connection Type: M12 connectors for simplified wiring
-
Housing Material: Aluminum with ruggedized sealing for industrial use
Key Features
-
Complete light curtain set with both transmitter and receiver included
-
30 mm detection resolution provides enhanced finger and hand protection
-
Fast response time for minimizing machine stop distances
-
High environmental protection for dusty and washdown areas
-
Easy setup and alignment for quick installation and maintenance
Applications
-
Presses, stamping, and cutting machine safety
-
Robotic cells and automated production lines
-
Industrial conveyors and packaging systems
-
Hazardous work area perimeter protection
-
Operator safety in manufacturing and assembly lines
Alternative model numbers include: MSF4800S-30-1560, MSF4800S301560, MSF4800S-30-1560-XR, MSF4800S30-1560, MSF4800S-30-1560X/R
Common misspellings include: MSF4800S30-1560X, MSF4800-30-1560X, OMRON MSF4800S-30-1650X, MSF4800S-30-156OX, MSF4800S-30-156OR
