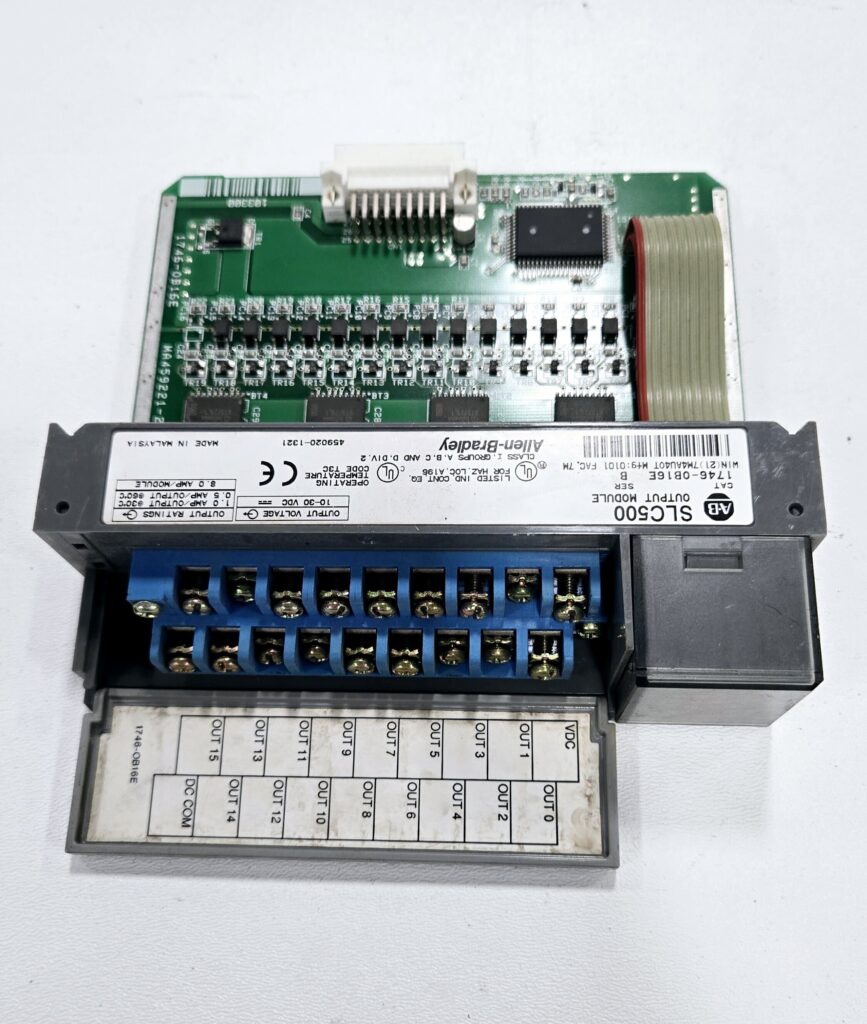

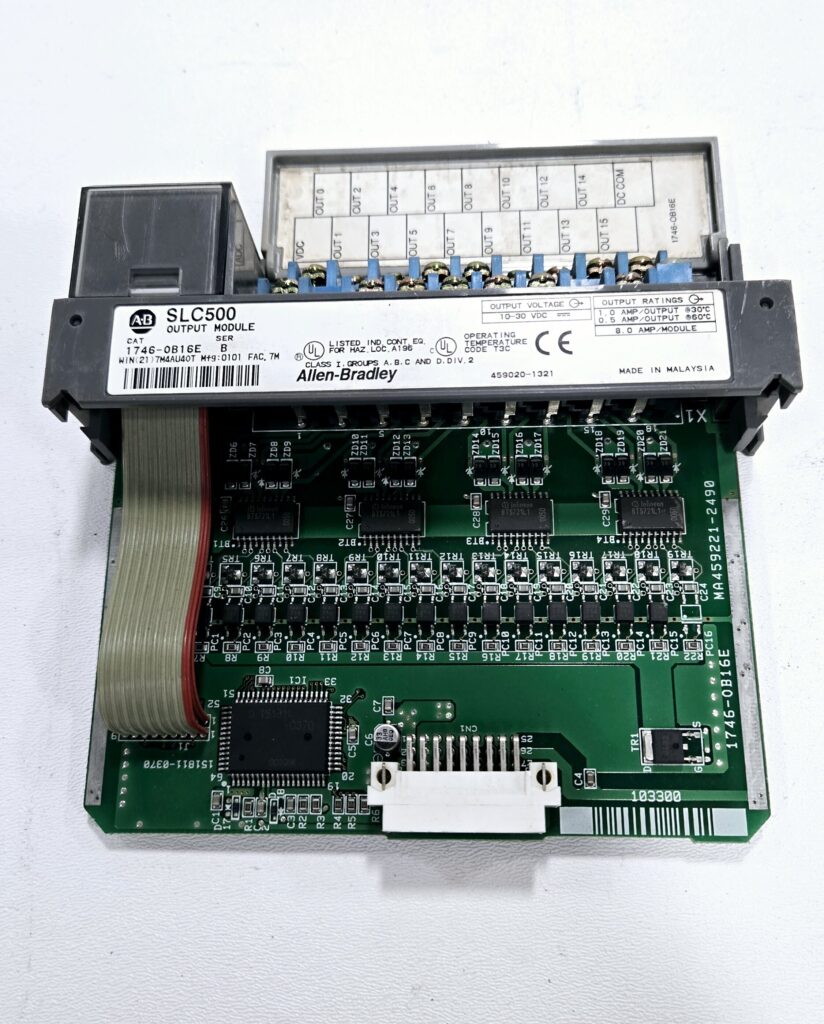

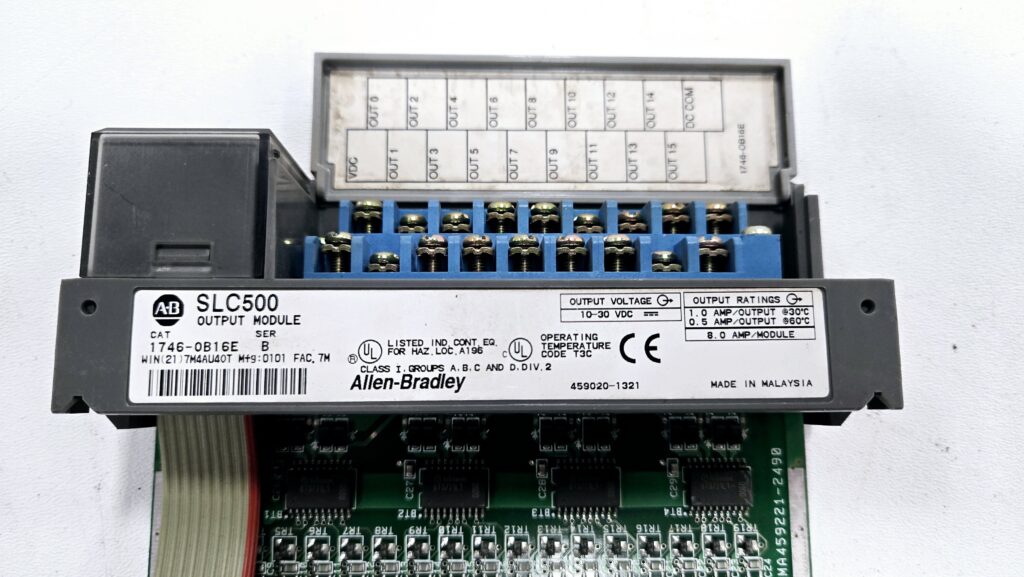

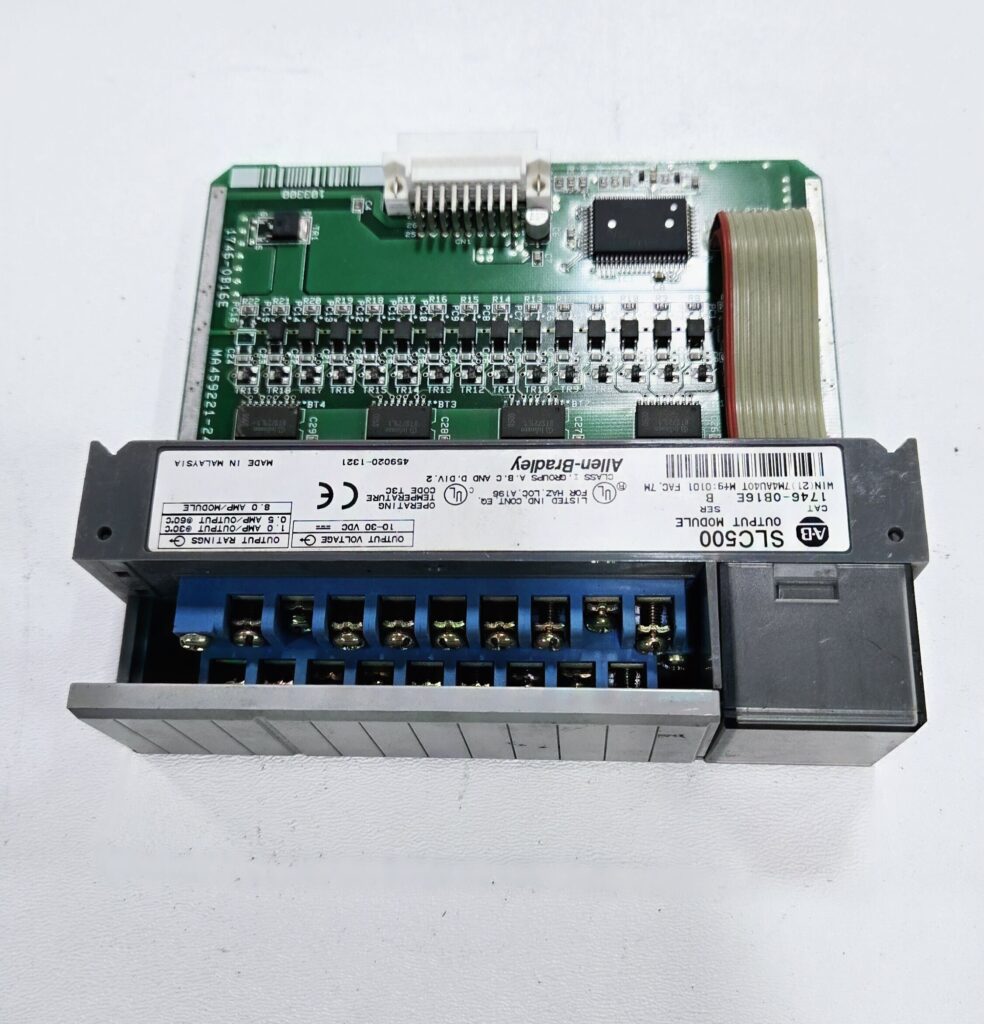

ALLEN BRADLEY 1746-OB16E/B Output Module USED

Product Specifications

• Model Number: 1746-OB16E/B
• Series: SLC 500
• Type: Digital Output Module
• Output Channels: 16 Digital Outputs
• Output Voltage Range: 10-50V DC
• Output Current Rating: 0.5A per point (maximum)
• Current Draw: 135 mA at 5V DC (backplane)
• Output Type: Sourcing
• Response Time: 0.1 ms (on/off)
• Connection: Backplane communication
• Dimensions: Standard SLC 500 slot size
• Compatibility: Fully compatible with all SLC 500 series chassis

Key Features

• 16 Output Points: Handles multiple digital outputs for enhanced system control and flexibility.
• Wide Voltage Range: Operates across a range of 10-50V DC for diverse applications.
• Quick Response: Fast switching ensures precision in time-critical operations.
• Compact and Modular: Designed to fit seamlessly into any standard SLC 500 chassis.
• Status Monitoring: Built-in LED indicators for real-time output status visualization and diagnostics.
• Durable Build: Manufactured for use in rugged industrial environments, offering dependable performance.

Applications

• Industrial Automation: Manages outputs for actuators, relays, solenoids, and other output devices in automation systems.
• Process Control: Provides precise control for systems such as conveyor belts, pumps, and valves.
• Energy Systems: Supports operations in energy management applications.
• Building Automation: Useful for controlling lighting, HVAC systems, and other building infrastructure.
• Custom Solutions: Suitable for custom-designed automation processes requiring reliable digital outputs.

 Alternative model numbers include: 1746-OB16D, 1746-OB16C, AB-1746OB16E, 1746OB16B, SLC500-OB16E.Common misspellings include: 1746-0B16E/B, 1746-OBI6E/B, Allen Bradley 1746OB16, 1746-OBl6E/B, 1746-OB16E.
