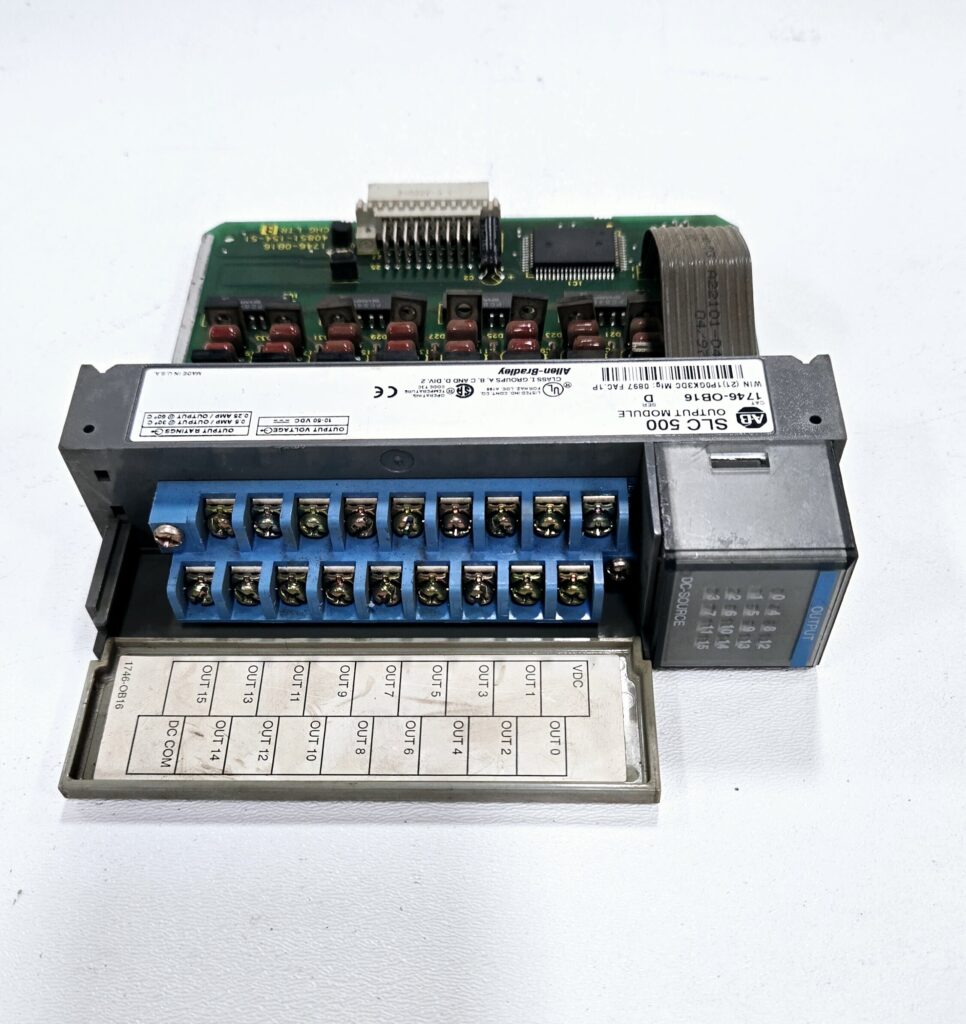

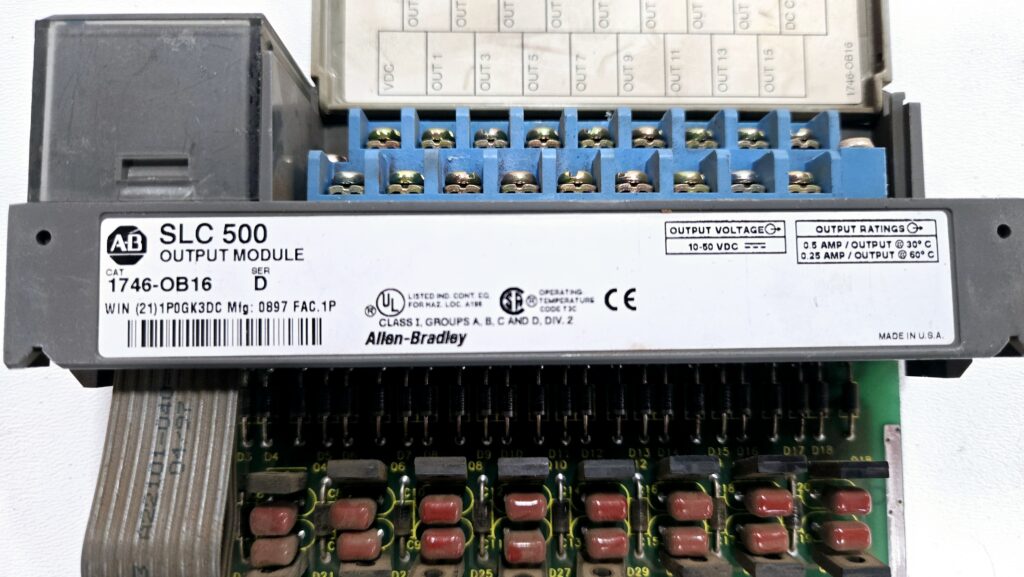

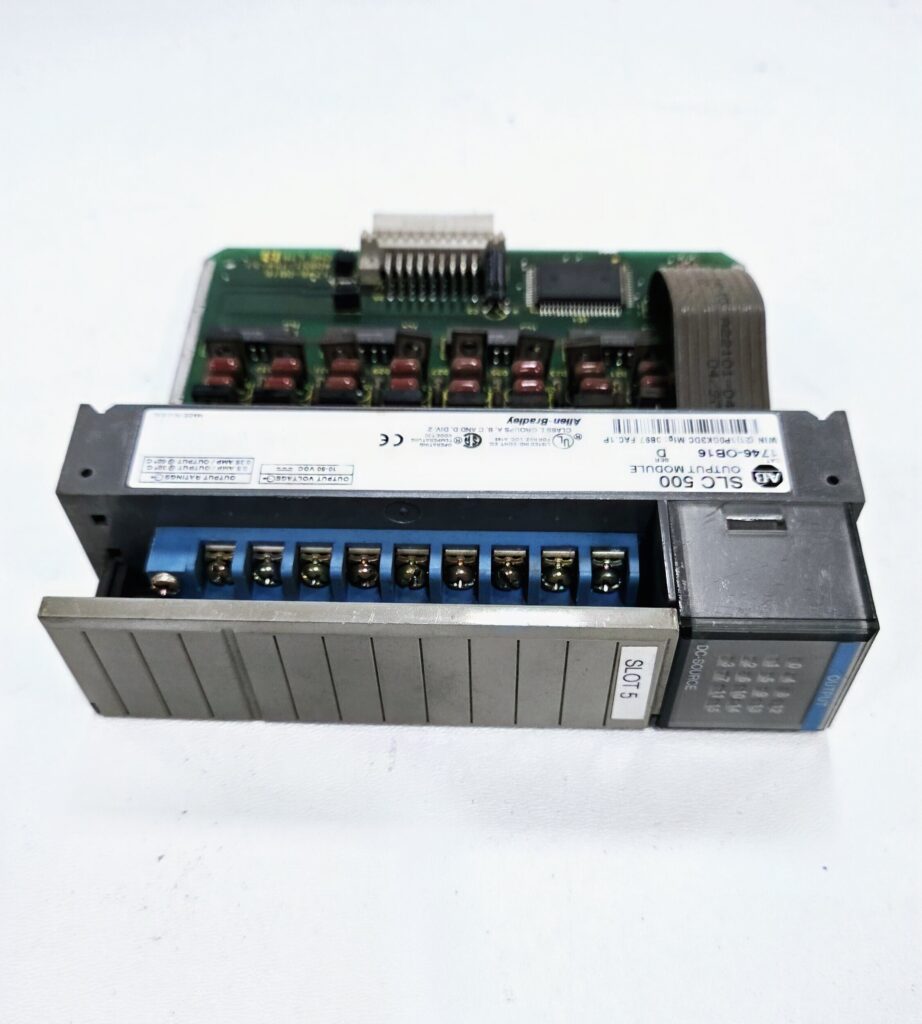

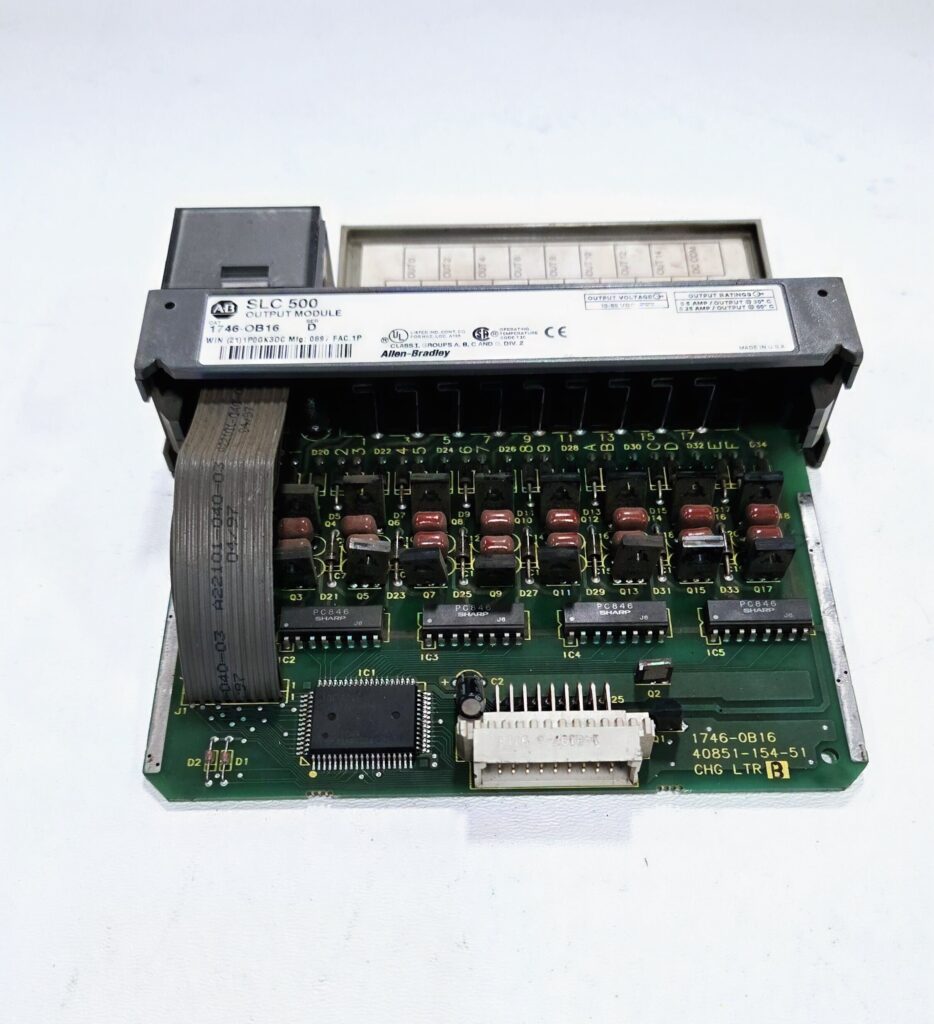

ALLEN BRADLEY 1746-OB16/D I/O Module USED

Product Specifications

• Model Number: 1746-OB16/D
• Series: SLC 500
• Type: Digital Output Module
• Output Channels: 16 Digital Outputs
• Output Voltage Range: 10-50V DC
• Output Current Rating: 0.5A per point (max)
• Current Draw: 130 mA at 5V DC (backplane)
• Output Type: Sourcing
• Response Time: 0.1 ms (on/off)
• Connection: Backplane communication
• Dimensions: Standard SLC 500 slot size
• Compatibility: Fully compatible with all SLC 500 series chassis

Key Features

• 16 Digital Outputs: Provides ample output points for controlling multiple devices simultaneously.
• High Voltage Range: Supports a wide voltage range for increased flexibility in application.
• Fast Switching: Quick response time ensures smooth and reliable performance in time-sensitive processes.
• Compact Design: Fits conveniently into a standard SLC 500 chassis, optimizing control panel space.
• LED Indicators: Each output channel is equipped with status indicators for straightforward troubleshooting and monitoring.
• Durable Construction: Engineered for demanding industrial environments, ensuring longevity and reliability.

Applications

• Industrial Automation: Ideal for controlling actuators, solenoids, relays, and other output devices in manufacturing systems.
• Process Control: Useful in managing outputs in systems like conveyor belts, pumps, and valves.
• Building Systems: Enhances automation in lighting, HVAC, and access control systems.
• Custom Automation Solutions: Perfect for bespoke projects requiring precise digital output control.
• Energy Management: Supports operations in systems requiring efficient and reliable digital output management.

 Alternative model numbers include: 1746-OB16C, 1746-OB16B, AB-1746OB16, 1746OB16A, SLC500-OB16.Common misspellings include: 1746-0B16/D, 1746-OBI6/D, 1746-OB16D, Allen Bradley 1746OB16, 1746-OBl6/D.
