Product Specifications
-

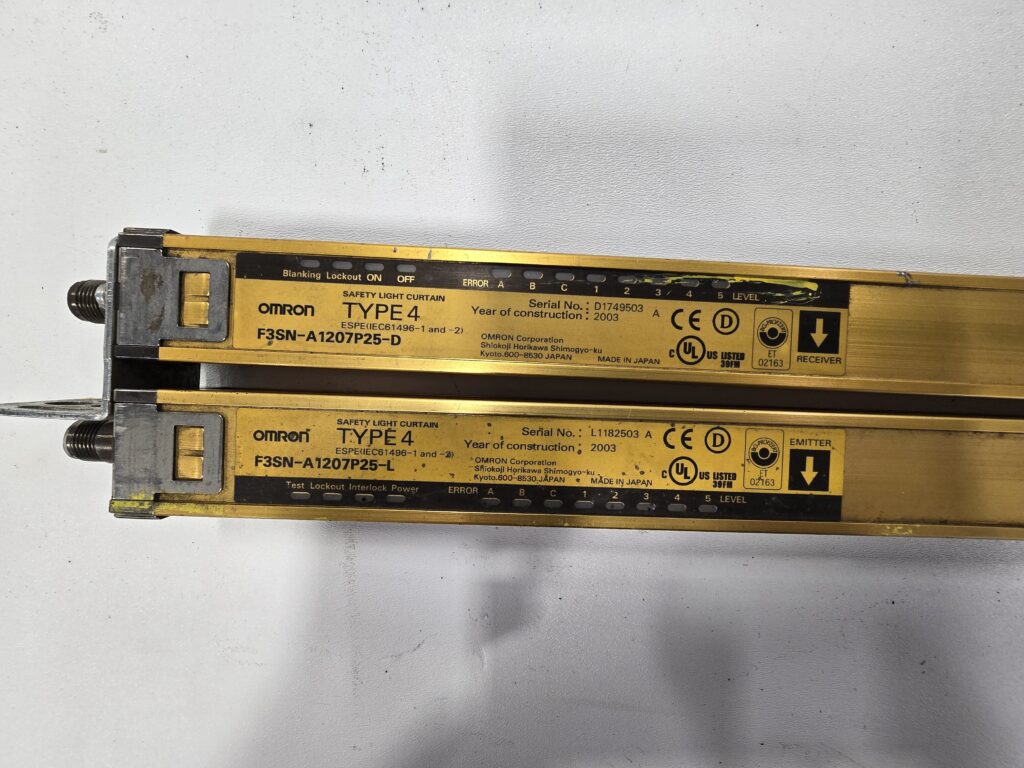

Model Numbers: F3SN-A1207P25-D (Emitter), F3SN-A1207P25-L (Receiver)
-
Type: Safety light curtain set
-
Detection Capability: 25mm (finger protection)
-
Protective Height: 1207mm
-
Beam Pitch: 25mm
-
Operating Range: Up to 7 meters
-
Response Time: 15ms (typical)
-
Power Supply: 24V DC ±10%
-
Output Type: PNP safety outputs
-
Enclosure Rating: IP67 (dust-tight and water-resistant)
-
Housing Material: Aluminum extrusion
Key Features
-
Complete emitter and receiver pair for full safety coverage
-
High-resolution 25mm beam spacing for finger detection
-
IP67-rated housing for industrial environments
-
Fast response time enhances safety without slowing workflow
-
LED indicators for alignment and diagnostics
-
Integrated controller-free operation with built-in safety outputs
Applications
-
Robotic work cell perimeter guarding
-
Press brake and stamping machine safety zones
-
Automated assembly line protection
-
Conveyor and material handling system safety
-
Industrial equipment requiring finger-level safety monitoring
Alternative model numbers include: Omron F3SN-A1207P25, F3SN-A1207P25D-L, F3SN-A1207-P25, Omron F3SN P25 Light Curtain, F3SN Series 1207mm
Common misspellings include: FS3N-A1207P25, F3SN-A12075P25, F3SN-A1207PP25, F3SN-A1207P2S, F3SN-A1207P25DL
