Product Specifications
-

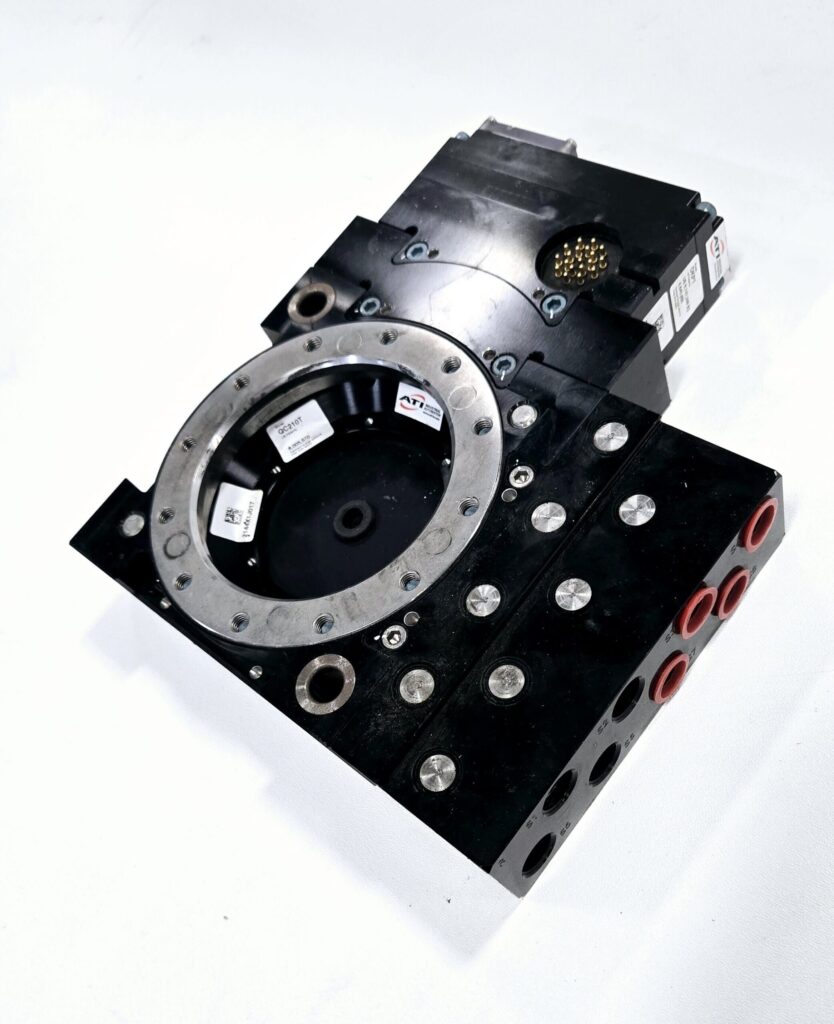

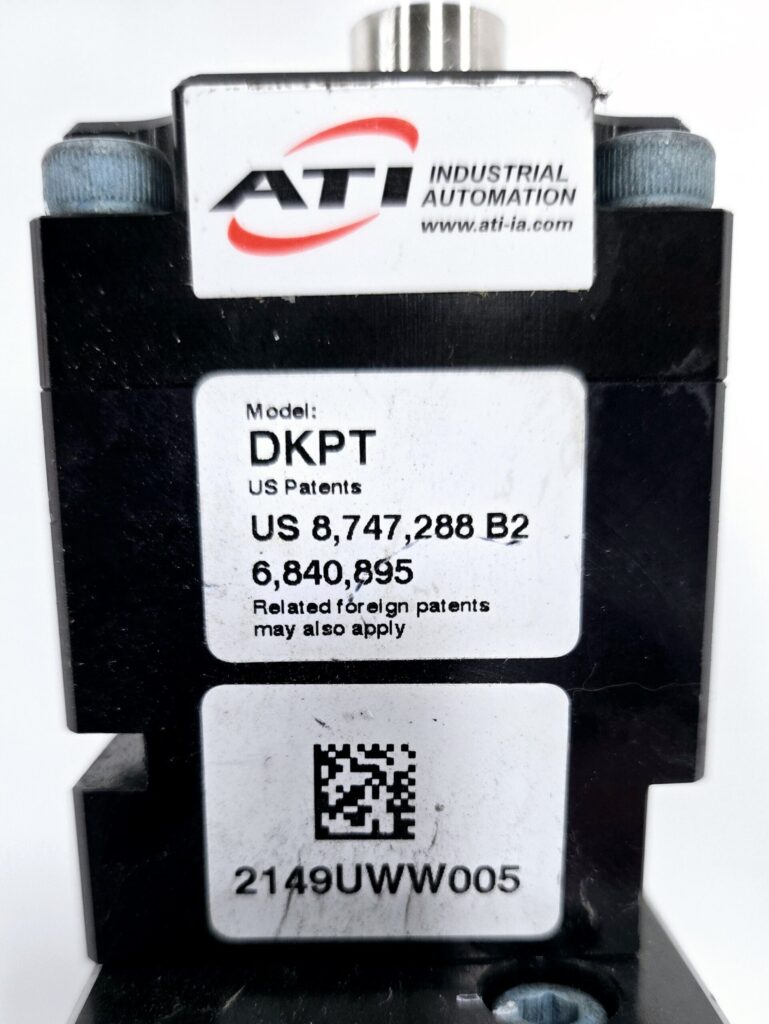

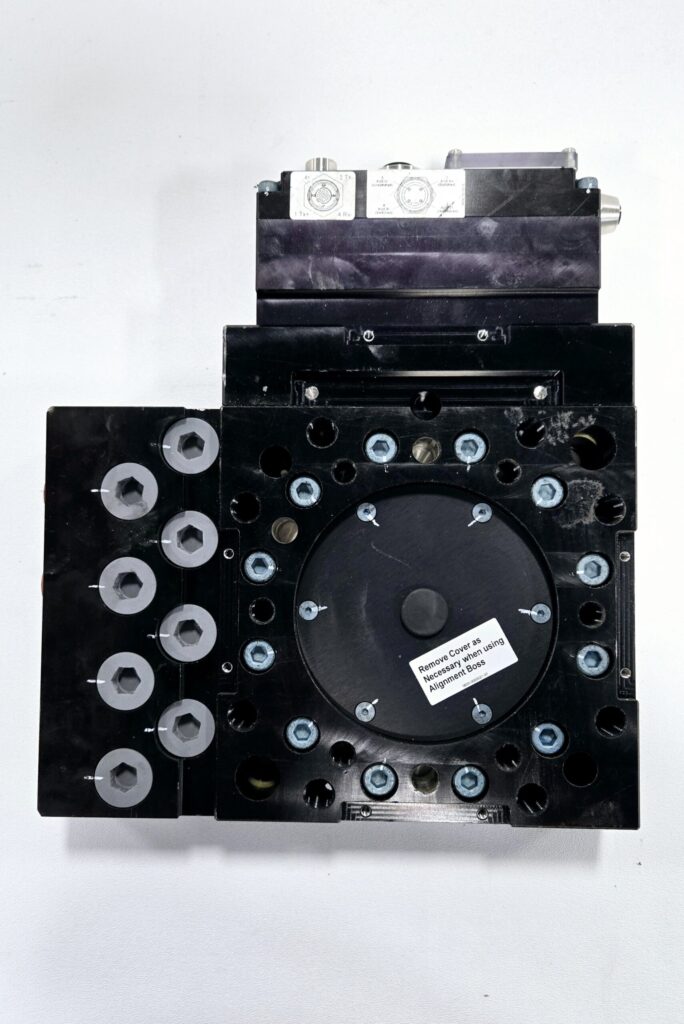

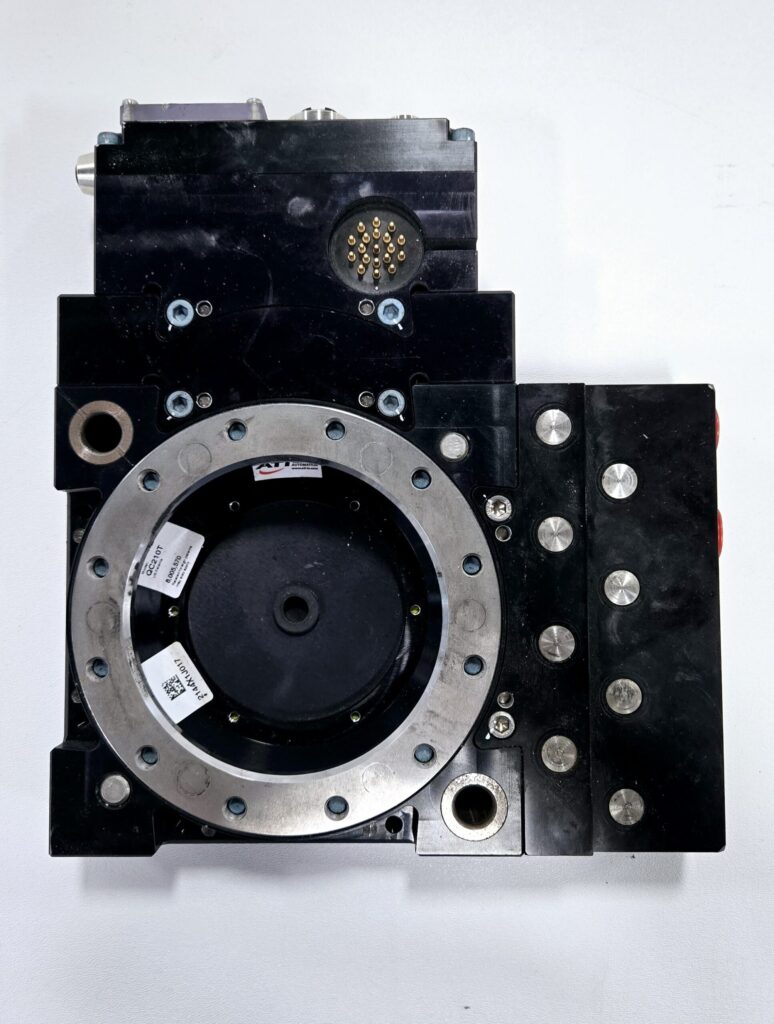

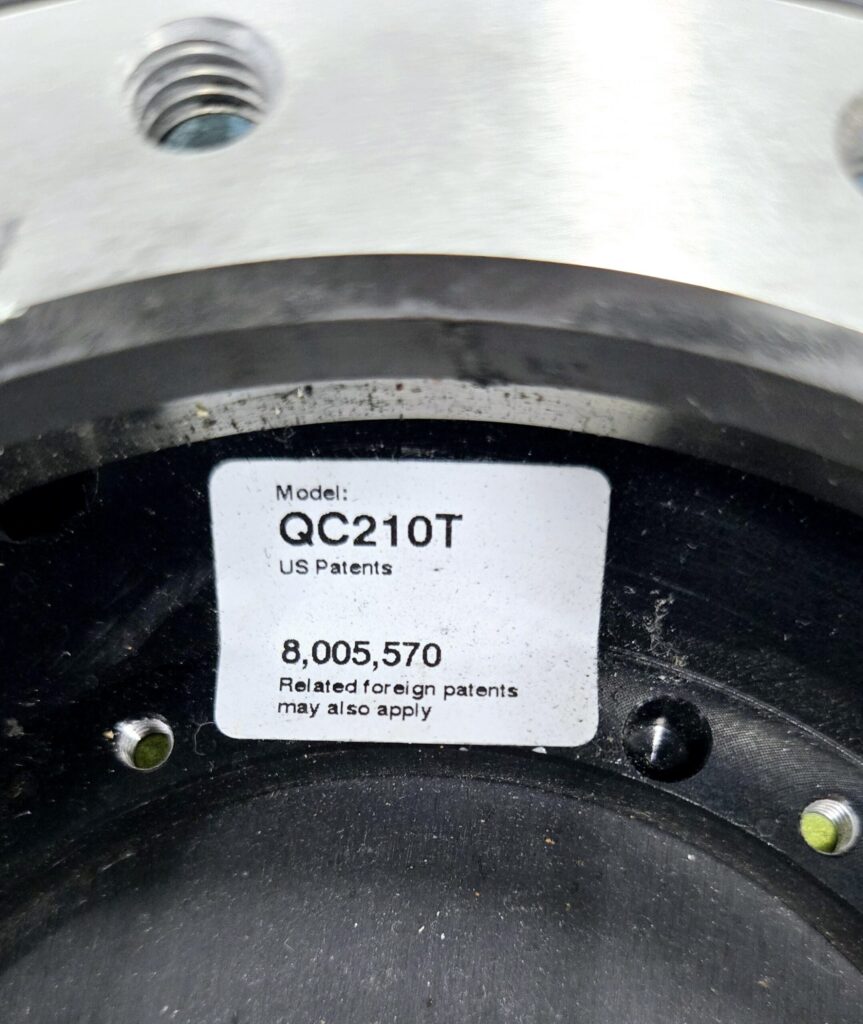

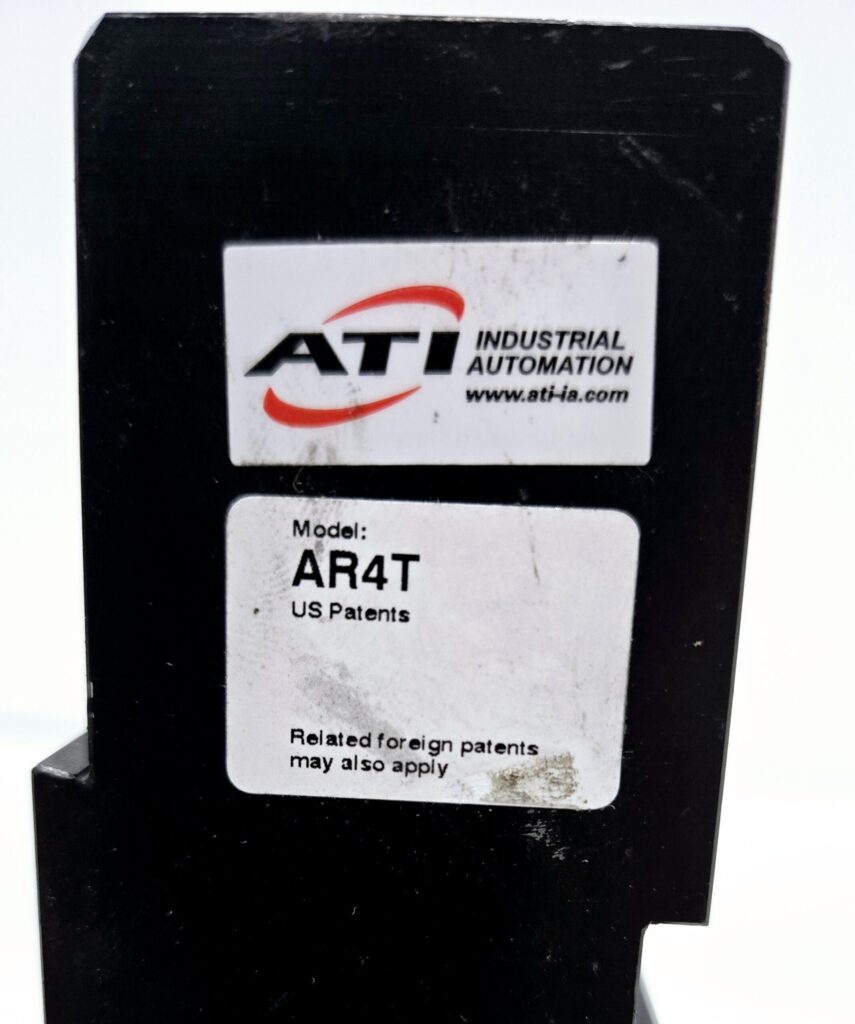

Model: ATI QC210C-AR4T-DKPT
-
Payload Capacity: Up to 210 kg (462 lbs)
-
Maximum Moment Capacity: High torque capability across all axes
-
Actuation Method: Pneumatic, dual-acting
-
Material: High-strength steel and aluminum construction
-
Coupling Repeatability: ±0.002 inches (±0.05 mm)
-
Locking Mechanism: ATI’s patented Fail-Safe Locking Design
-
Mounting Pattern: ISO standard bolt patterns
-
Weight: Approximately 13 kg
Key Features
-
Heavy-duty design for large payload robotic applications
-
Quick, secure, and repeatable tool changes with minimal downtime
-
Integrated electrical and pneumatic pass-throughs
-
Patented Fail-Safe Locking Mechanism ensures secure connection even in power loss conditions
-
Modular design allows for customization with various utility modules
Applications
-
Automotive manufacturing and assembly lines
-
Aerospace composite fabrication and assembly
-
Heavy material handling and palletizing
-
Robotic welding and machining cells
-
Flexible automation systems requiring frequent end-effector changes
Alternative model numbers include: QC210C-AR4T-DKPT, QC210C AR4T DKPT, QC210C-AR4T, QC210C-DKPT, ATI QC210C-DKPT
Common misspellings include: QC21OC-AR4T-DKPT, QCO210C-AR4T-DKPT, QC210-AR4T-DKPT, QC210CAR4TDKPT, ATI-QC210CAR4TDKPT
