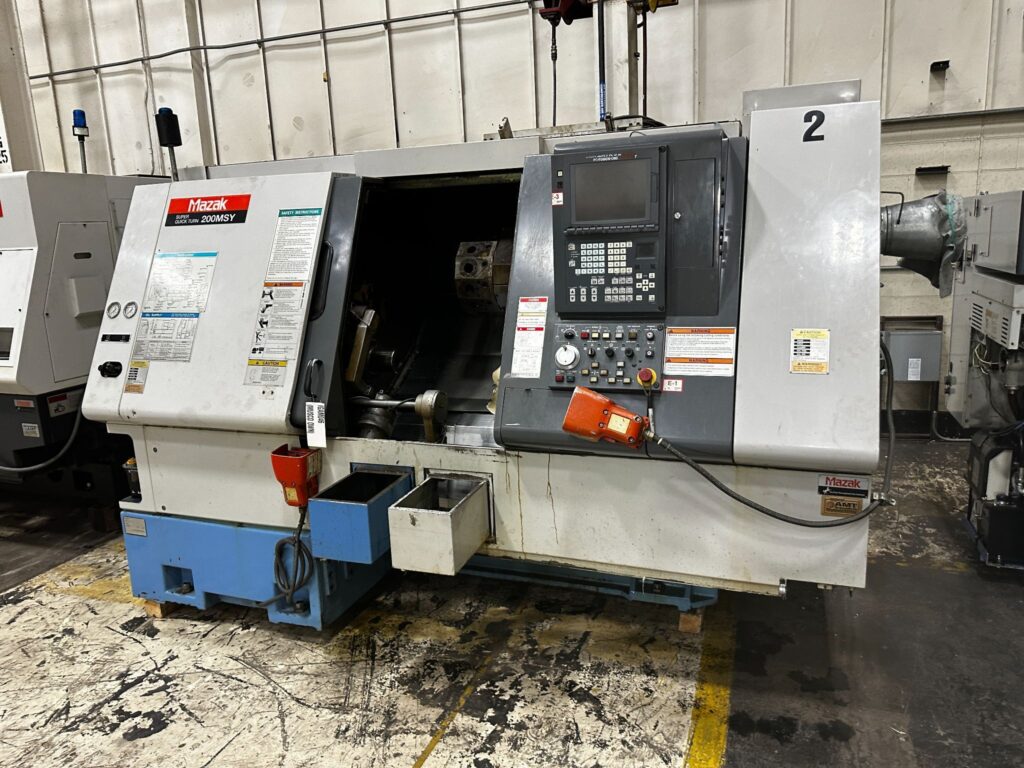

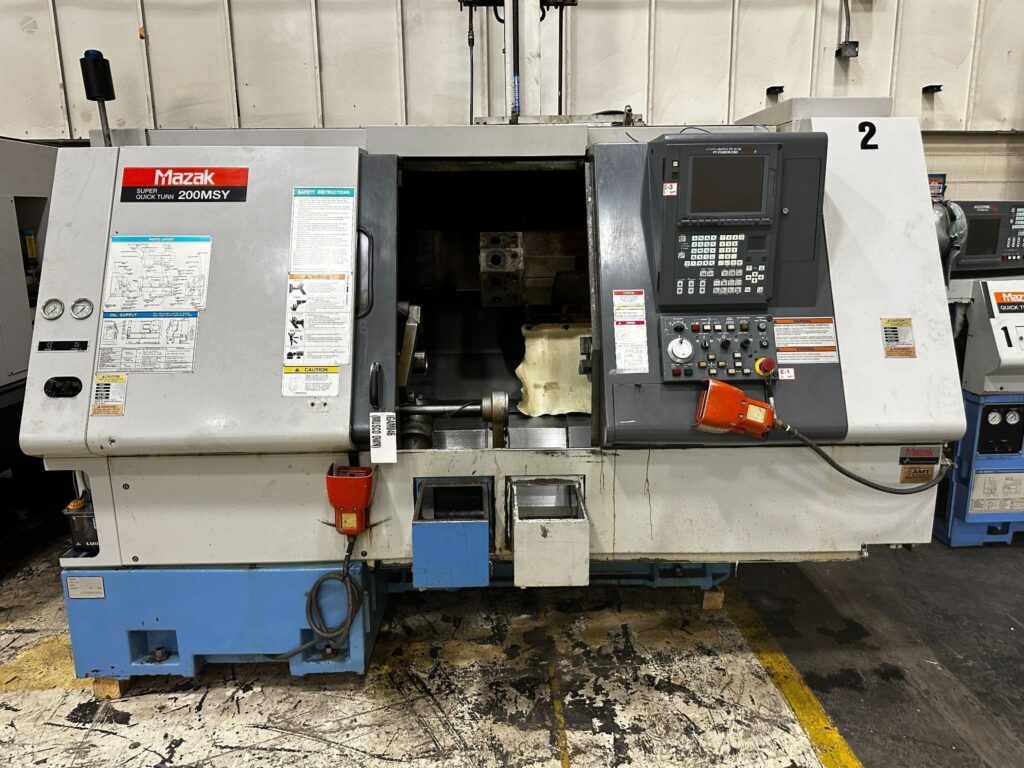

2000 Mazak SQT-200MSY CNC Lathe with Bar Feeder

$0.00

Availability:

Out of stock

BRAND: MAZAK MODEL: SQT-200MSY CONDITION: used
SKU: iGAM0430003 Weight:12500 LBS 12500 lbs Freight (Item Must Ship Freight)

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

First Name*

Last Name*

Email*

Phone*

Company Name*

Shipping Address

Country/Region*

Address*

City*

State*

Zip*

Product Information

Price

Brand

Model

SKU

Weight

Additional Information Required:

Information

Commercial

Residential

Do you have a loading dock?

Yes

Do you have a forklift?

Yes

Financing

Are you interested in Financing for your purchase?

Subscribe to Emails

Be the first to hear about iGAM exclusive offers, sales, markdowns and new arrivals.

About This Item

Specifications:

CNC Control	Yes

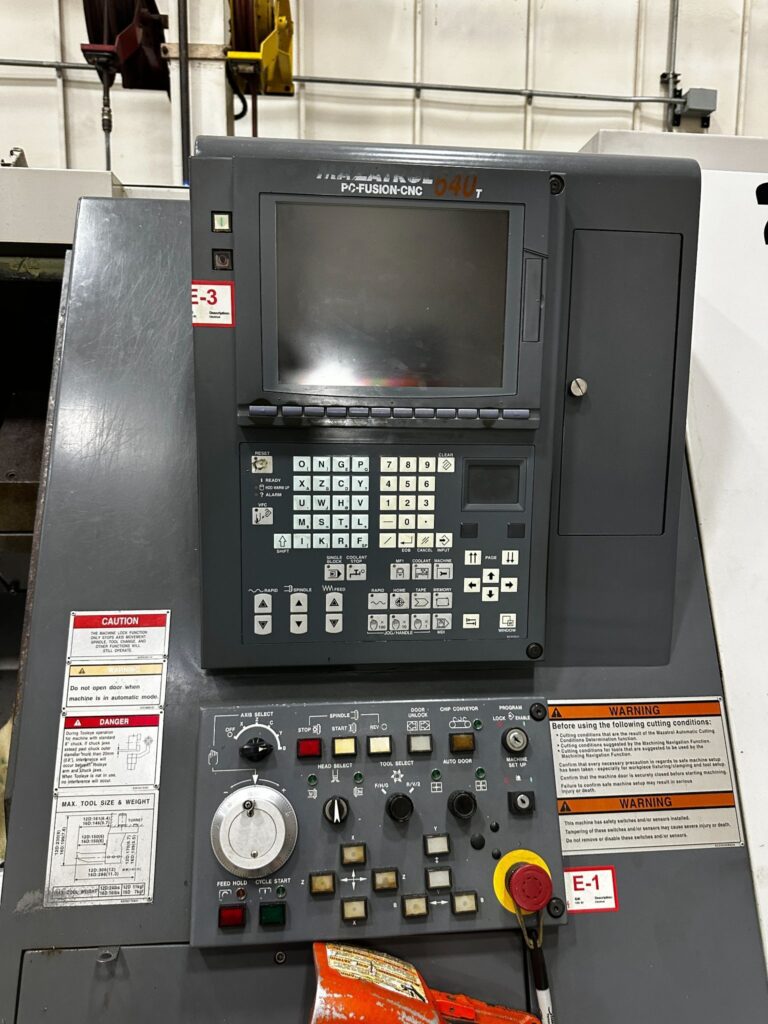

CNC Control Type	Mazatrol Fusion 640T
# of Axes	5
Swing	20.67″
Turning Dia	11.9″
Center Distance	22.63″

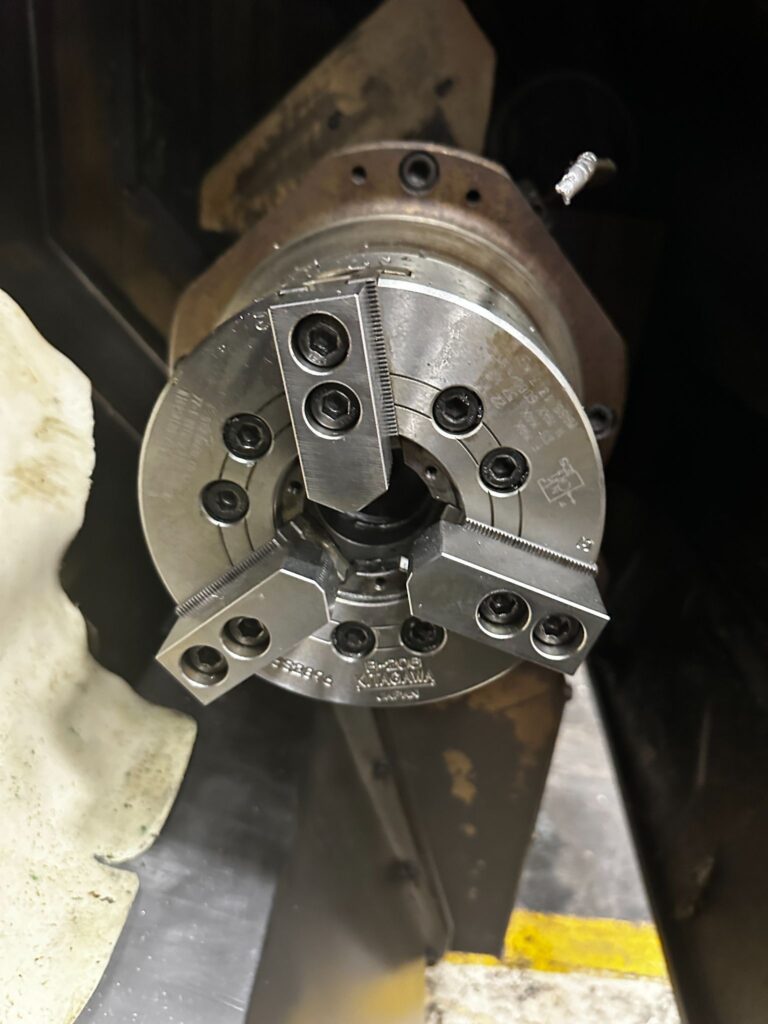

Chuck Size	8″
Bar Capacity	2″
X-axis Travel	7.125″
Y-axis Travel	4″
Z-axis Travel	22.63″
C Axis Indexing	0.001°
Spindle Speed (rpm)	5,000 RPM
Spindle Motor (hp)	25 hp
Tailstock	No
Live Tooling	Yes
Live Tooling Speed (rpm)	4,500 RPM
Live Tooling Motor (hp)	5 hp

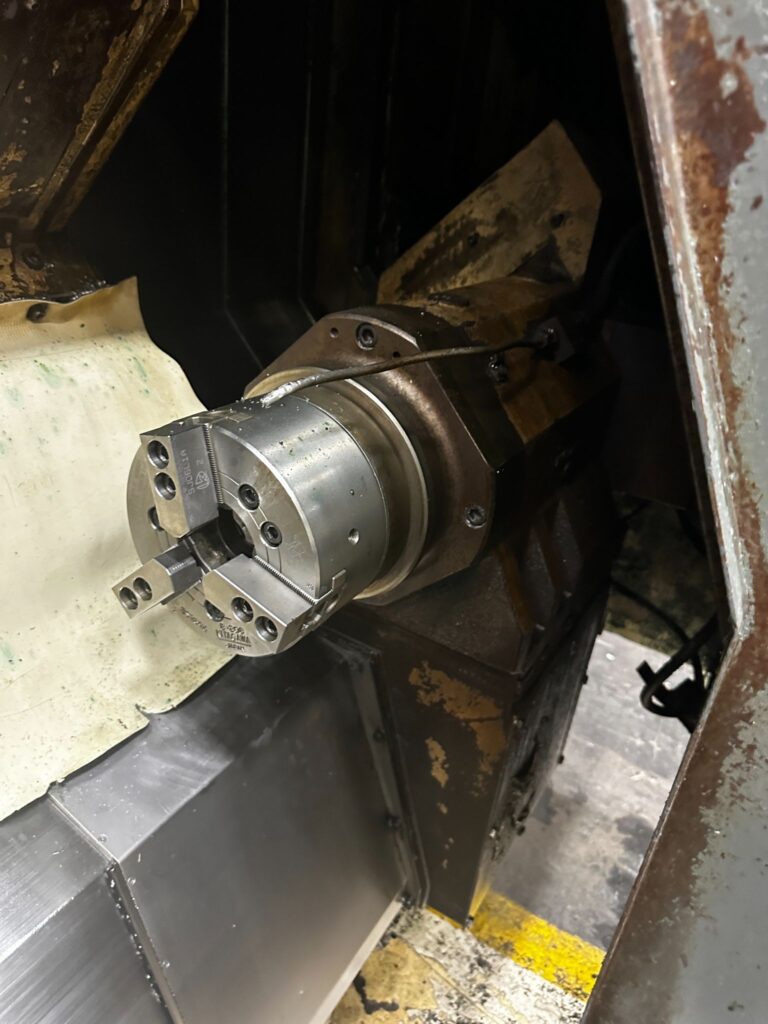

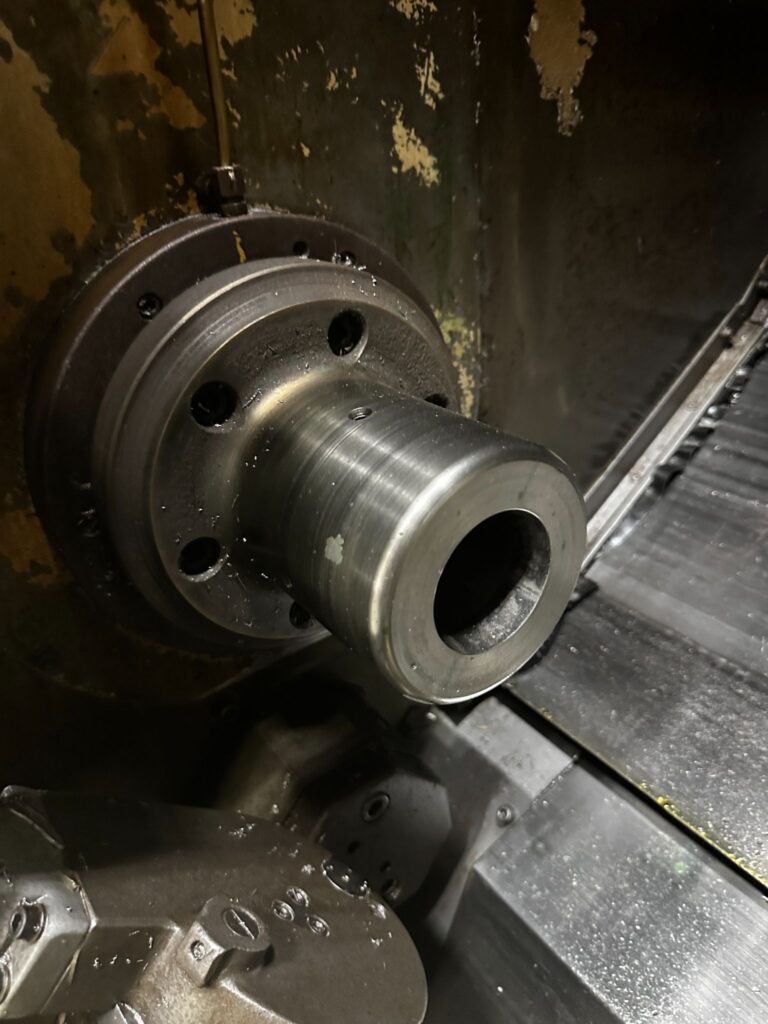

Sub Spindle	Yes
Sub Spindle Speed (rpm)	5,000 RPM
Sub Spindle Motor (hp)	10 hp

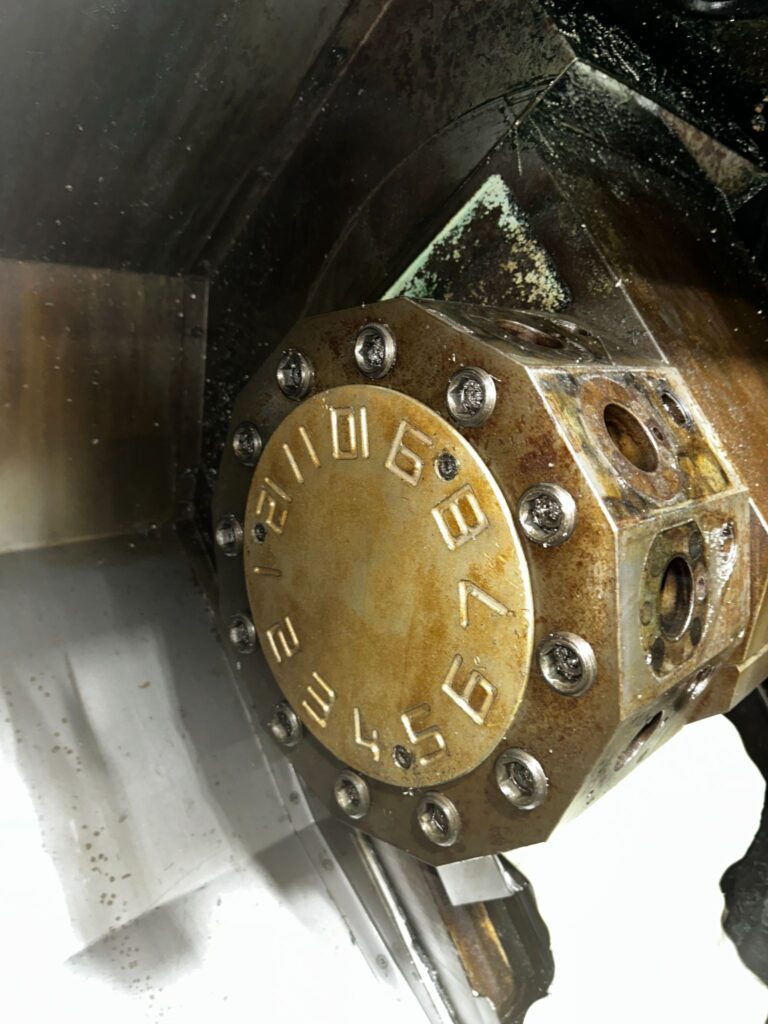

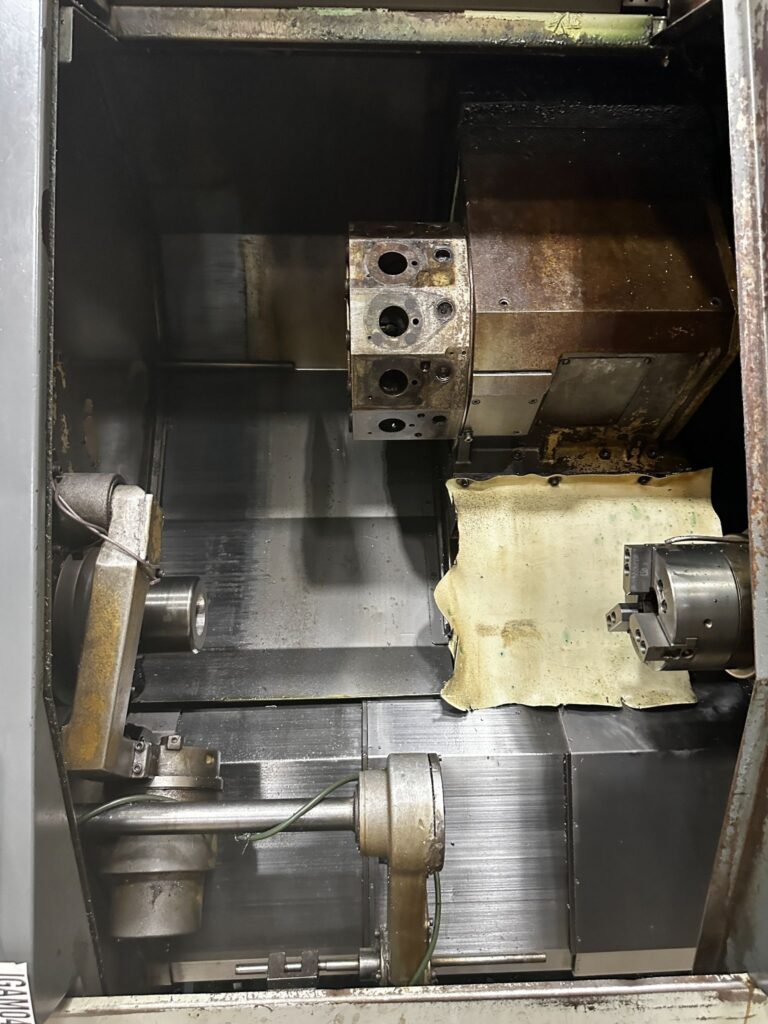

Turret Capacity	12
Machine Dimensions	119″ x 70″ x 79″
Machine Weight	12,500 lb

Equipped With:

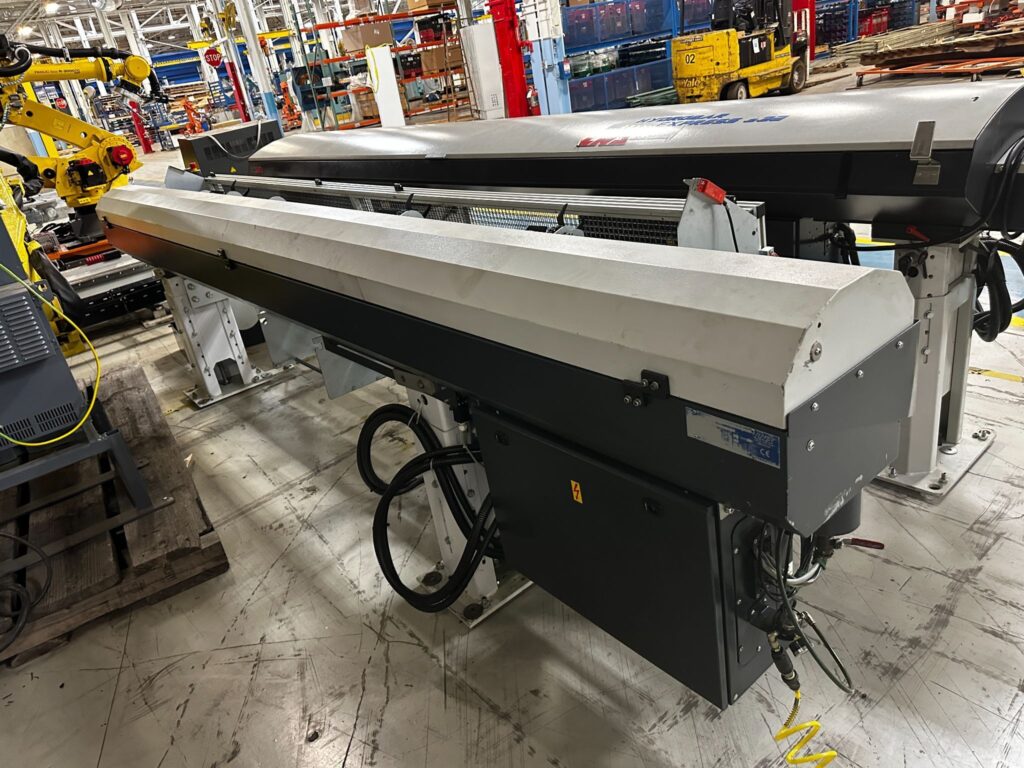

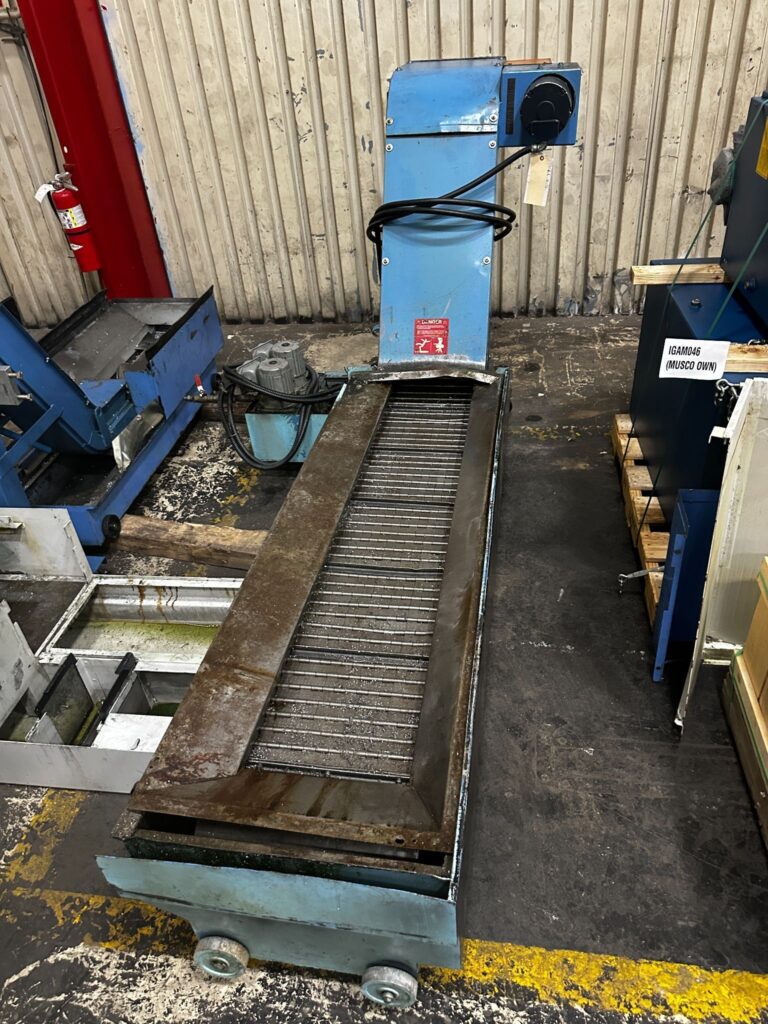

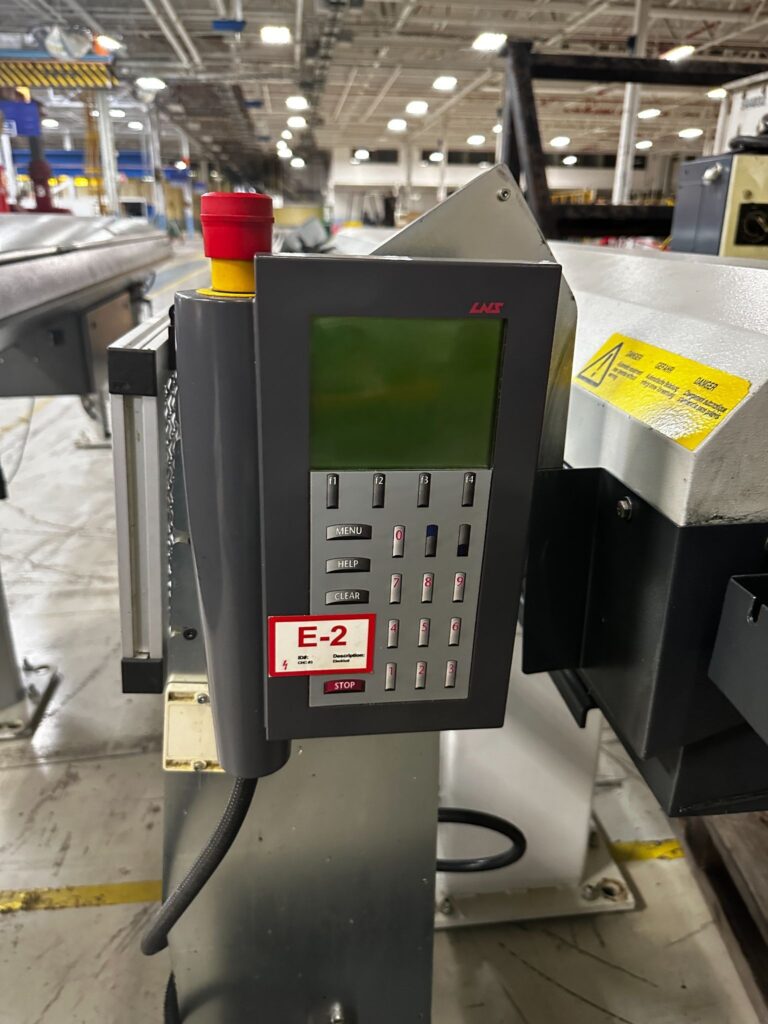

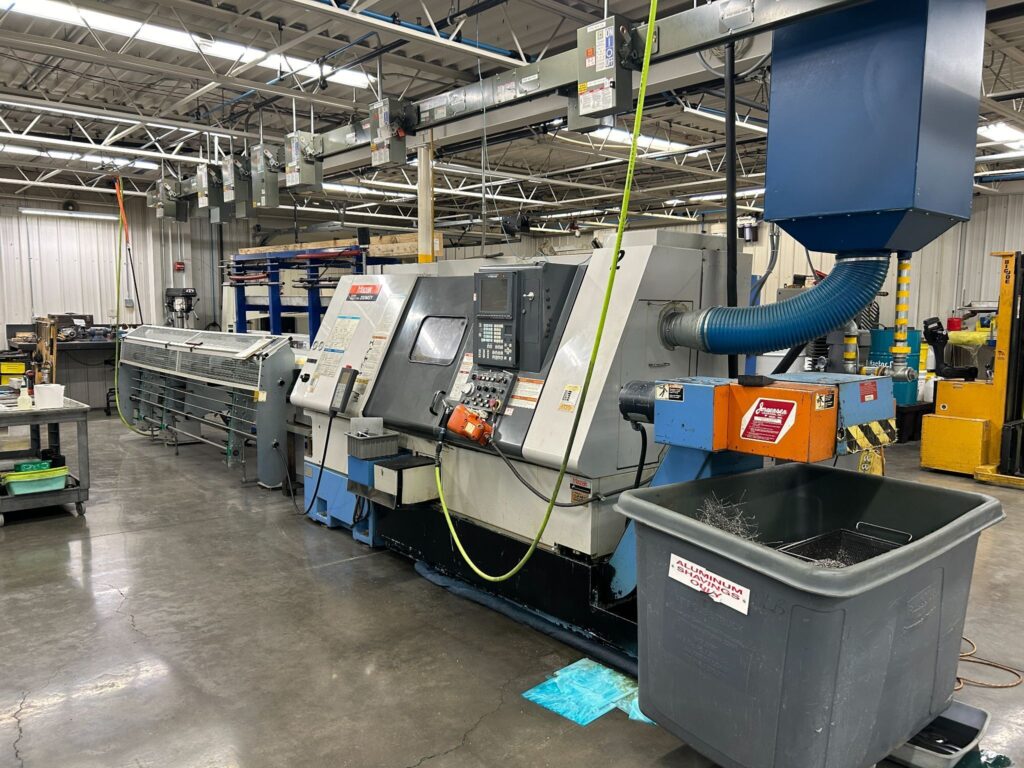

– Mazatrol Fusion 640T- Chip Conveyor- Coolant Tank & Pump- Live Tooling- Y Axis- Sub Spindle- Bar Feeder- Mist Collector
