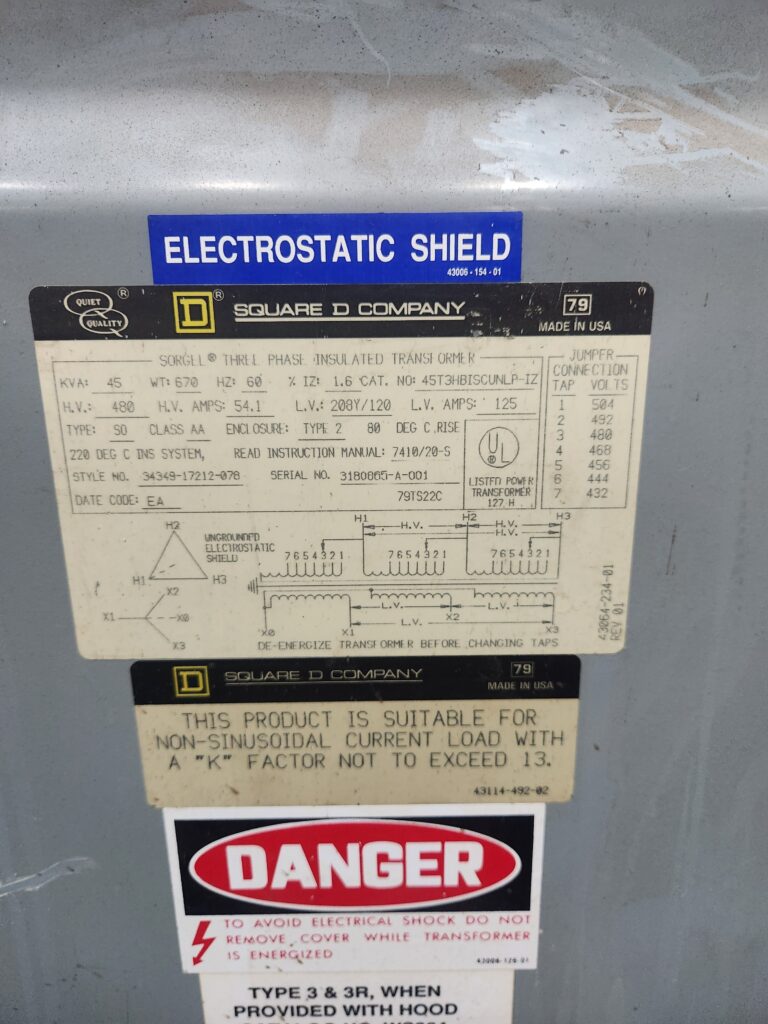

Product Specifications
-

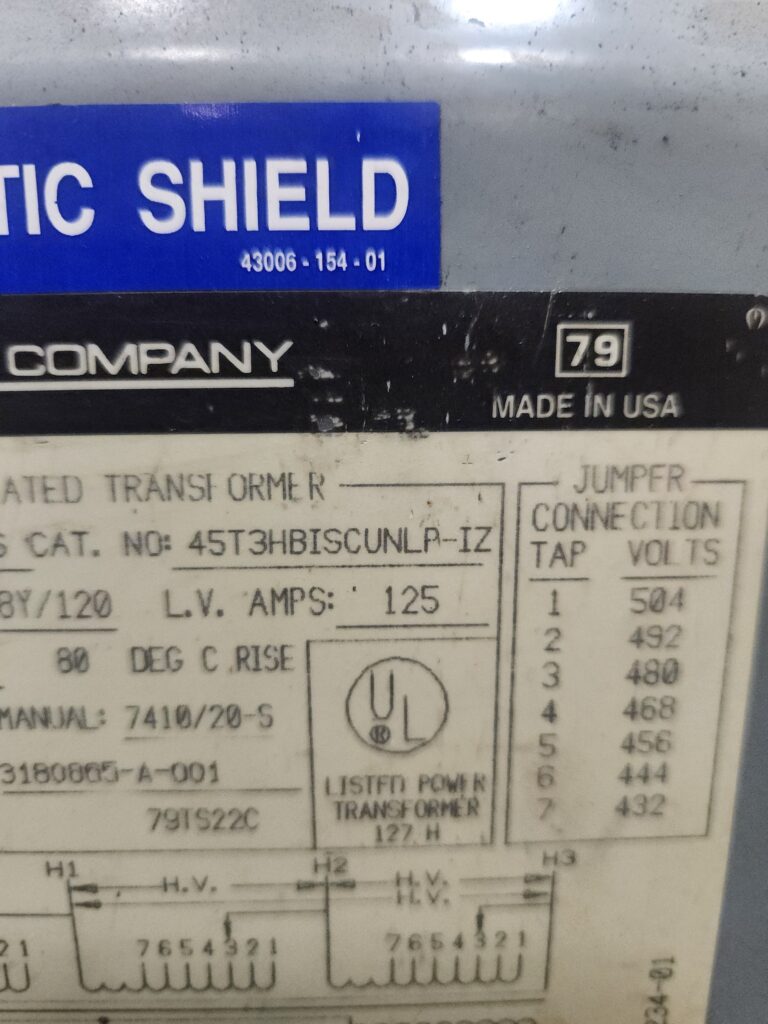

Catalog Number: 45T3HBISCUNLP-IZ
-
Part Number: 3292302-001-003FA
-
Style Number: 34349-17212-078
-
Power Rating: 45 kVA
-
Frequency: 60 Hz
-
Transformer Type: SO (Dry-type)
-
Class: AA
-
Enclosure Type: NEMA 1 (ventilated, indoor use)
-
Mounting: Floor-mounted
-
Weight: 670 lbs
-
Date Code: FA
Electrical Ratings
-
High Voltage (HV): 480V, 54.1 Amps
-
Low Voltage (LV): 208Y/120V, 125 Amps
-
Phase: 3-phase
Key Features
-
Copper windings for superior conductivity and energy efficiency
-
Durable dry-type transformer requiring minimal maintenance
-
45 kVA capacity supports medium-load applications
-
Complies with ANSI and NEMA industry standards
-
Suitable for a wide range of commercial and industrial electrical needs
Applications
-
Step-down transformer for facility distribution systems
-
Lighting panels and equipment power in commercial buildings
-
Manufacturing or processing control systems
-
Backup power integration
-
Utility rooms and mechanical equipment rooms
Alternative model numbers include: 45T3HBISCU, Square D 45KVA 480-208Y/120V, 45T3HBISCUNLP, 3292302-001 Transformer, Square D Style 34349-17212-078
Common misspellings include: 45T3HBISCUNLPI-Z, 45T3HBISCU NLPIZ, SQUARE-D 45T3HBIS, 45T3HBI-SCUNLP, 45T3HBSCUNLPIZ
