Product Specifications
-

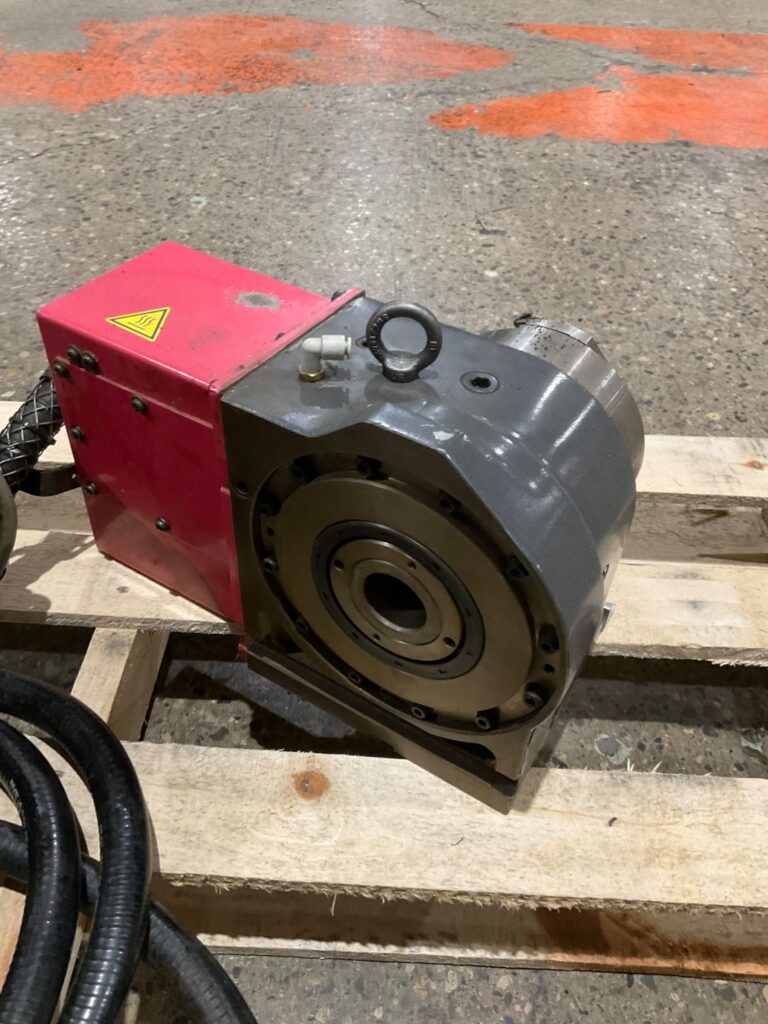

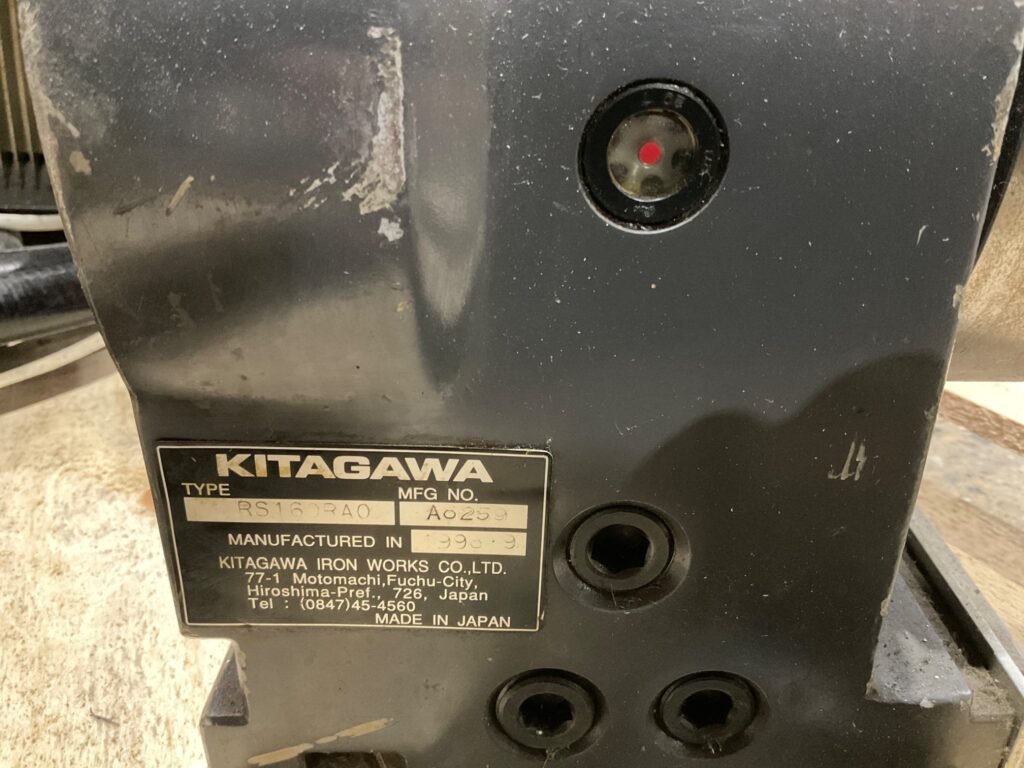

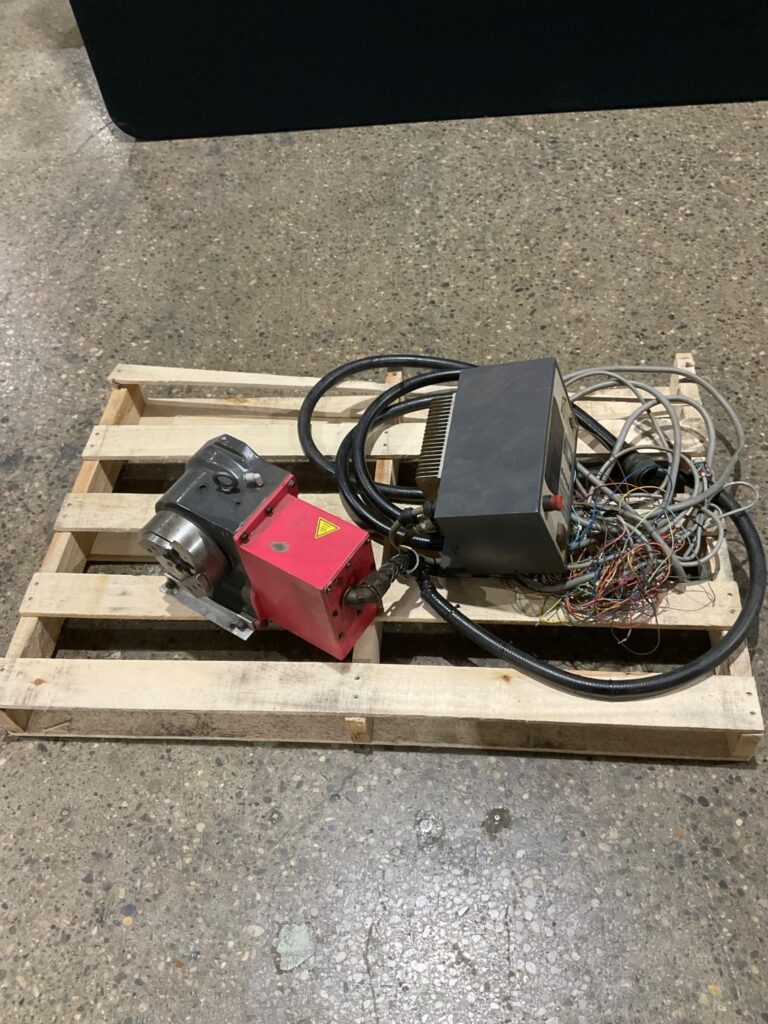

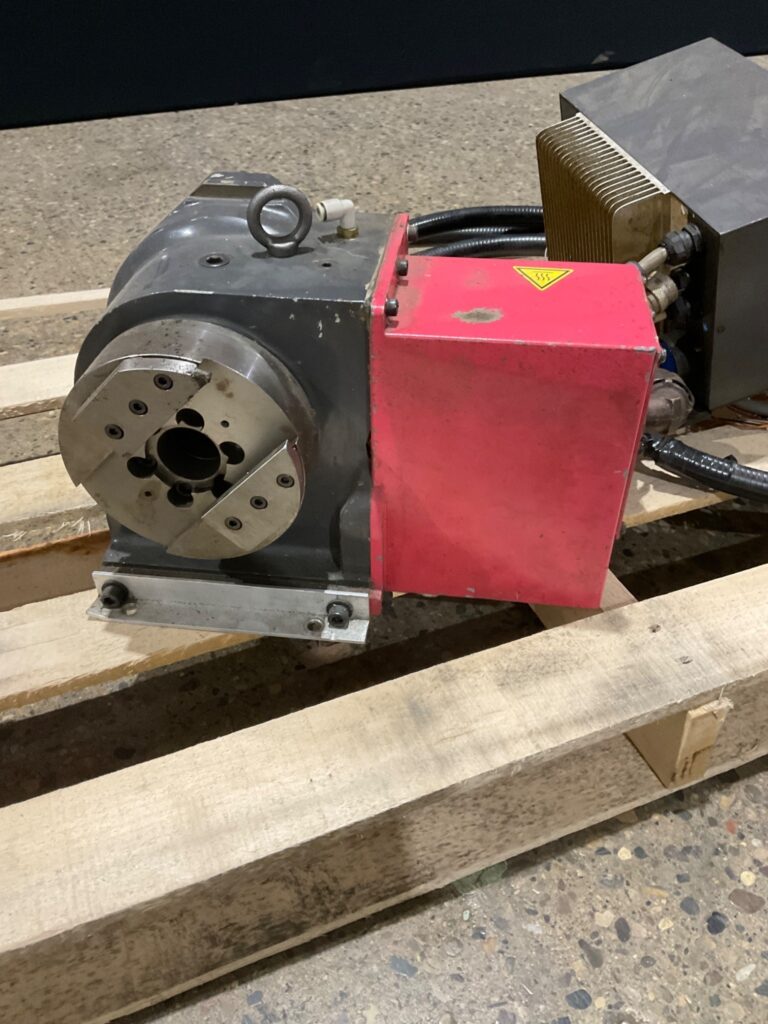

Rotary Table Model: RS160RAO
-

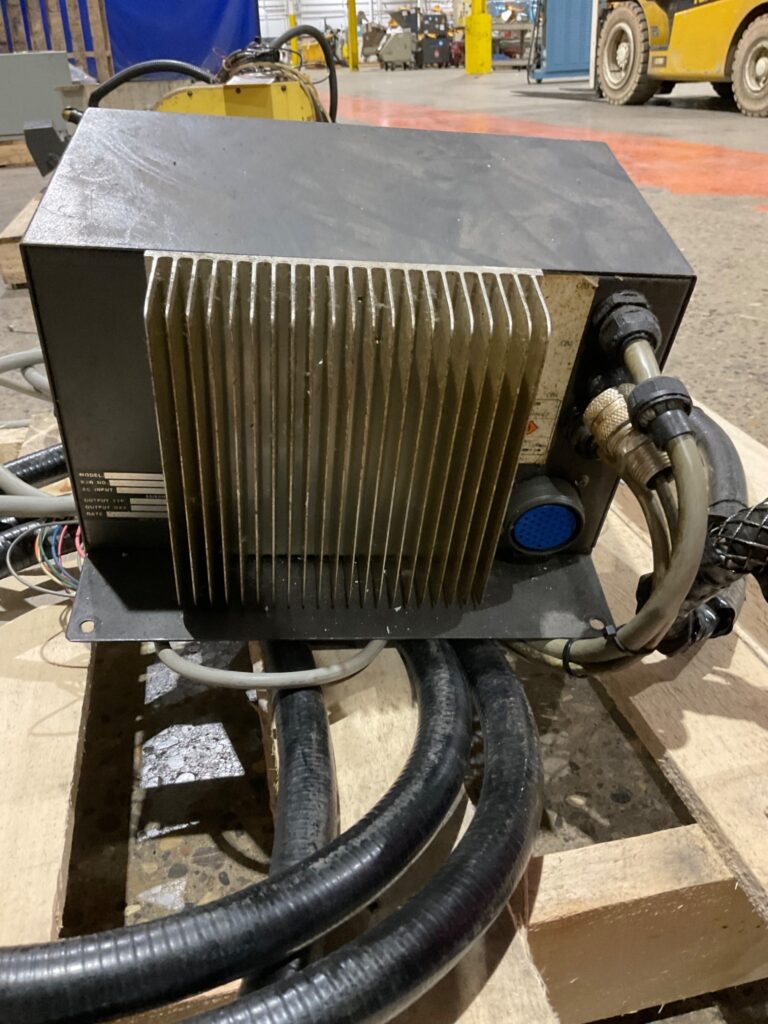

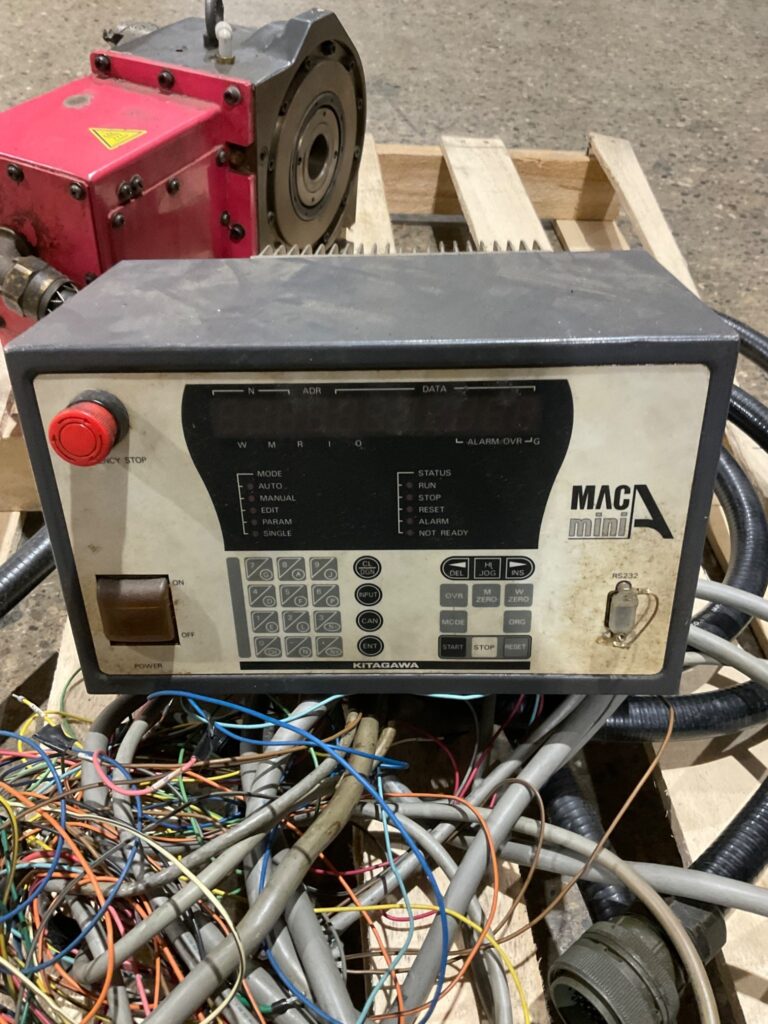

Controller Model: MAC Mini
-
Table Diameter: 160 mm
-
Clamping System: Pneumatic or hydraulic (model dependent)
-
Rotational Torque: Approx. 150 Nm (varies by setup)
-
Gear Ratio: High-precision worm gear (common ratios: 1/90 or 1/120)
-
Motor Type: Servo motor-driven (compatible with various CNC interfaces)
-
Positioning Accuracy: High precision, typical ±20 arc-sec or better
-
Weight Capacity (Vertical): Approx. 100–150 kg (depends on setup)
Key Features
-
Compact design suited for smaller machining centers
-
High clamping torque for stable heavy-duty machining
-
MAC Mini controller allows standalone or semi-integrated NC control
-
Suitable for retrofitting to 3-axis CNC machines for 4th-axis capability
-
Built for reliability and minimal maintenance in continuous-duty environments
Applications
-
4th-axis CNC milling operations
-
Precision drilling and indexing in multi-face machining
-
Aerospace and automotive part manufacturing
-
Mold and die production
-
Retrofit solutions for increasing CNC versatility
