Product Specifications:

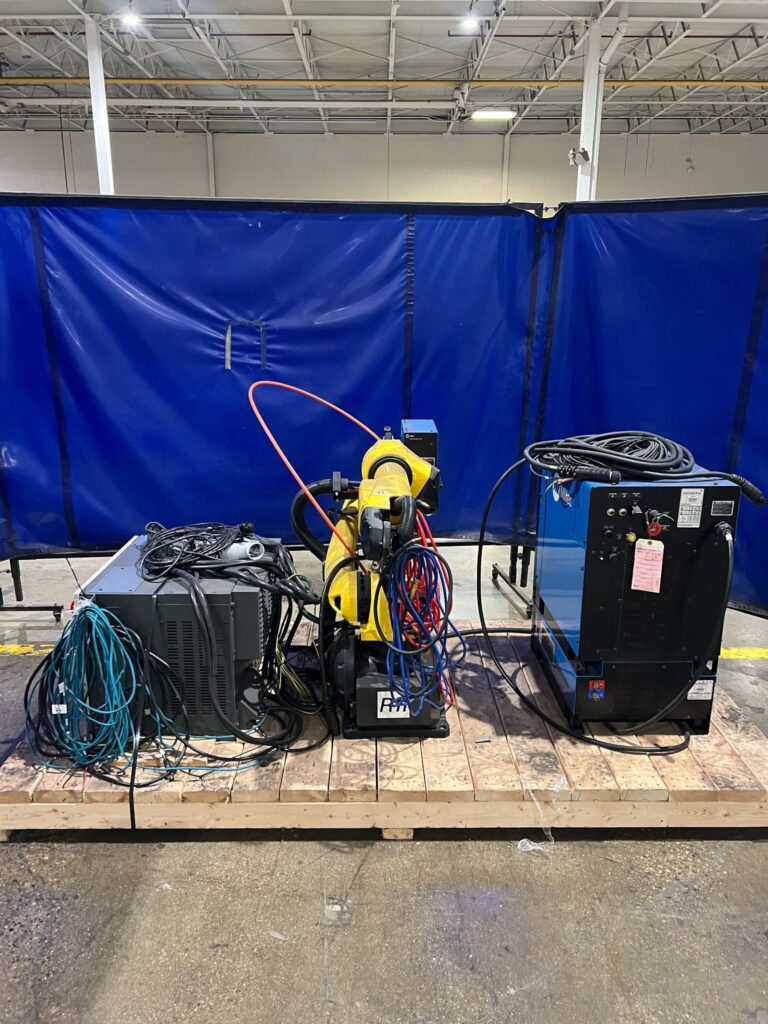

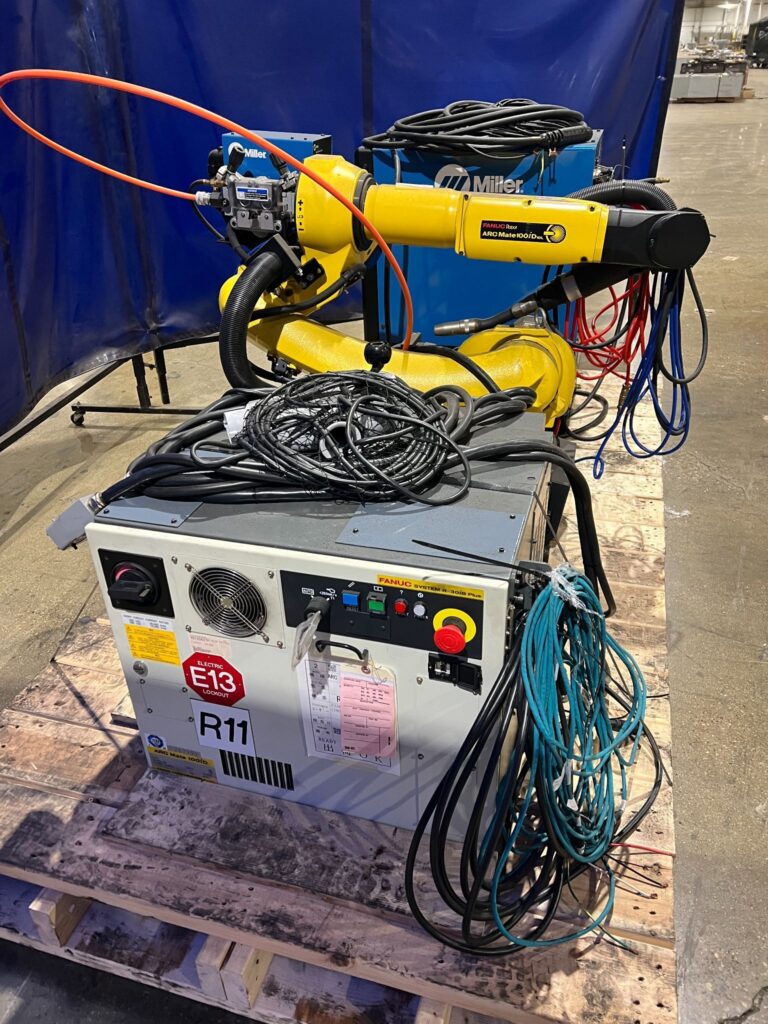

- Robot Model: FANUC ArcMate 100iD/10L

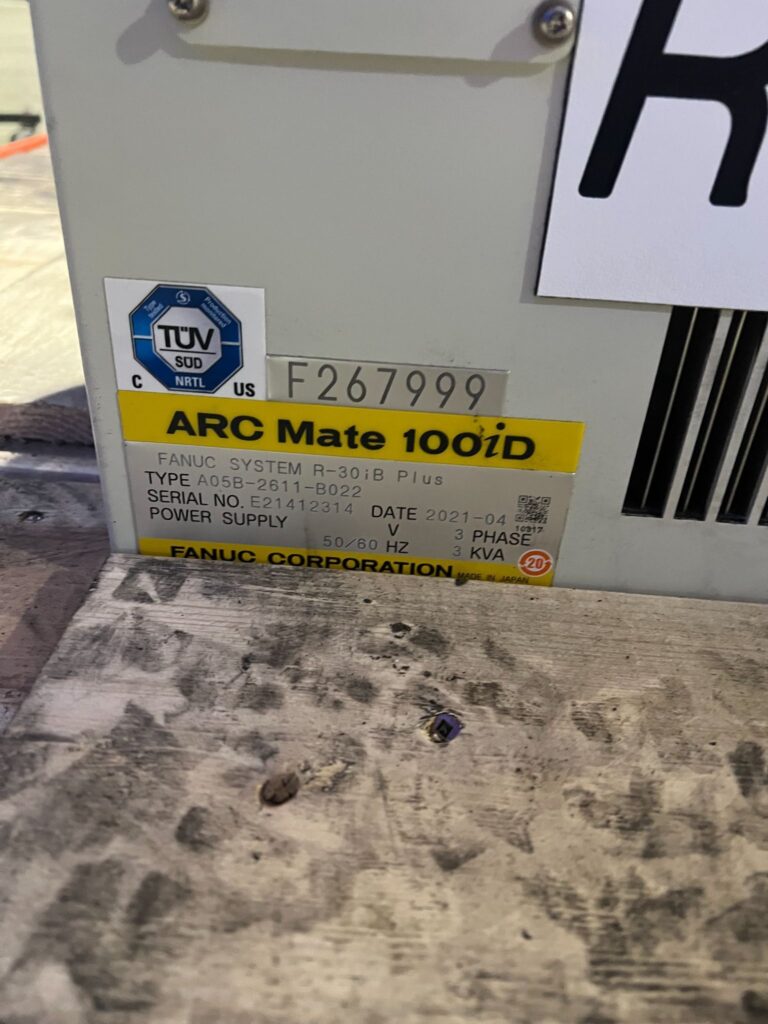

- Controller: FANUC R-30iB Plus

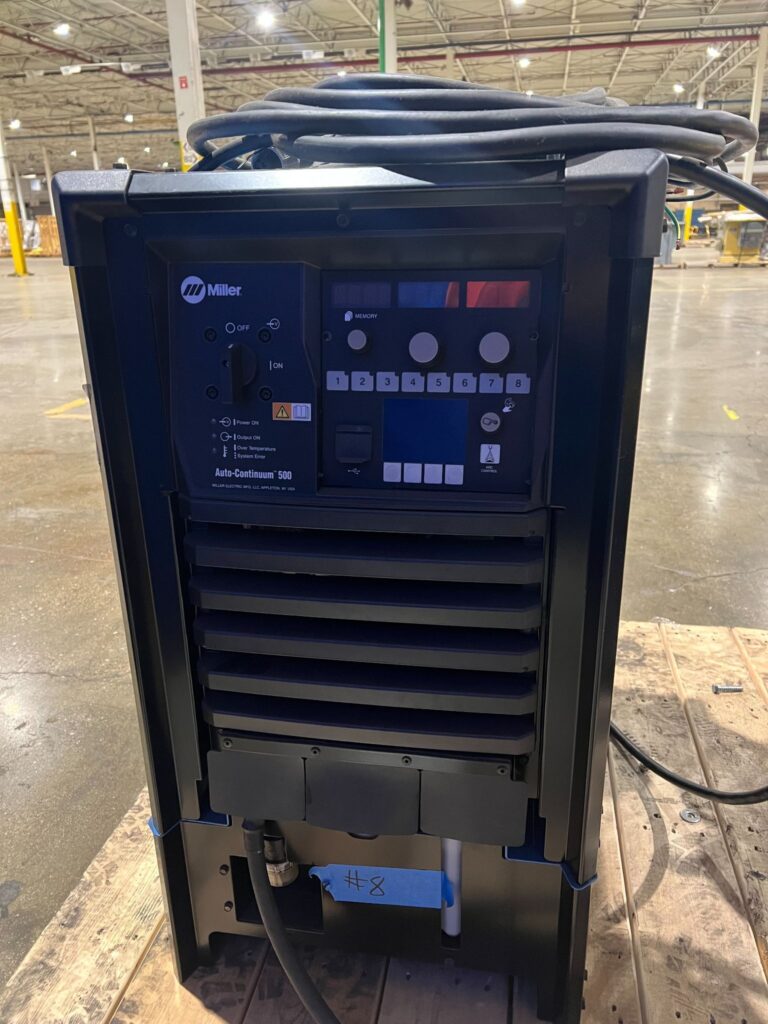

- Welding Power Source: Miller Auto-Continuum 500
- Axes: 6-axis articulated arm
- Payload Capacity: 10 kg
- Maximum Reach: 1,418 mm
- Repeatability: ±0.02 mm
- Mounting Type: Floor or overhead mount
- Condition: Typically available new or lightly used (specify as needed)
- Pendant: FANUC iPendant Touch (included)
Key Features:
- Extended Reach Arm: 10L variant provides long horizontal reach for large weldments
- Integrated Welding Cables: Internal cabling prevents snagging and simplifies cell design
- High-Speed Welding Performance: Combines fast robot motion with Miller’s precise arc control
- Advanced Controller: R-30iB Plus supports iRVision, Touch Sensing, and coordinated motion
- Seamless Integration: Pre-configured for compatibility between robot and welding power source
Applications:
- Automotive Welding: Seam welding and component assembly for automotive bodywork
- Heavy Fabrication: Long-reach welding on frames, trailers, and structural assemblies
- Stainless & Aluminum Welding: Miller’s adaptive arc technology enables high-quality welds across materials
- Large Part Welding: Ideal for long seams or complex joint configurations
- Multi-Station Weld Cells: Easily programmable for multi-position fixtures or dual-station operations
Alternative model numbers include: ArcMate 100iD, ArcMate 120iD/12L, M-10iD/10L, ArcMate 100iC/12, ArcMate 100iD/8L
Common misspellings include: ArcMate 1001D/10L, Arc Mate 100iD-10L, R30iB Plus, AutoContinuum 500, ArcMate100iDL
